    ONY007 - Overview

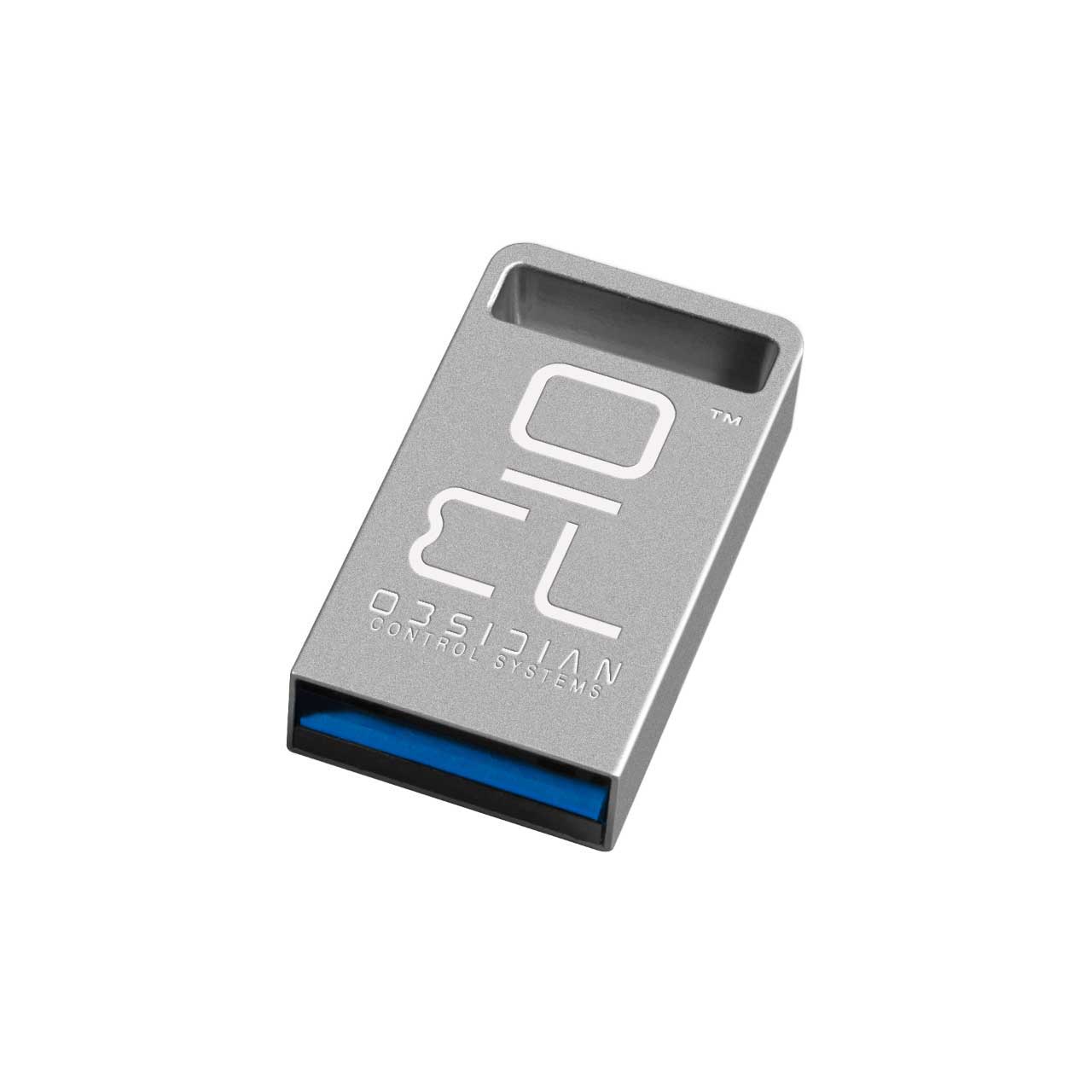

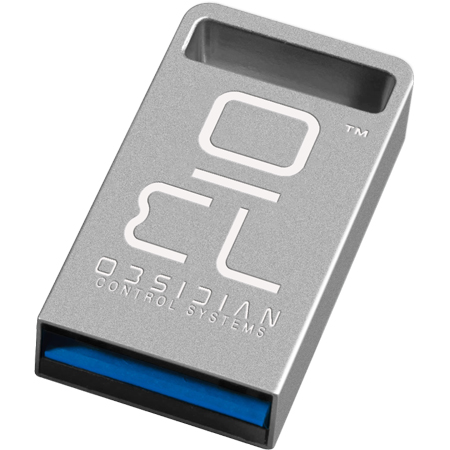

    The Obsidian Control Systems ONYX Elite is an encrypted USB key to enable 128 ONYX Universes and unlock OSC, MIDI and Timecode features for PC Systems.

    This compact key carries an ONYX license that is instantly recognized by the ONYX software. No online connectivity or activation is required. Different license levels are available to suit the size of the show.

    The ONYX Elite key can be used on any PC and is not registered to a specific hardware. Drivers are pre-installed with ONYX, making this key plug and play.

    The ONYX Key is a great solution for users on the go, as a backup system or to build powerful PC systems for architainment applications.

    • Features:

      • Flexible ONYX license
      • USB 2.0 compact housing with security loop
      • Plug and Play, no additional drivers required
    • Specifications:

      • General
      • 128 Universes
      • 5 DyLOS Zones
      • OSC, MID and Timecode Unlock
      • Encrypted USB 2.0 device
      • Weight: 2lb
      • Dimensions: 0.48 x 0.78 x 0.78"

      • 5V over USB
      • Maximum current: 20 mA

      • Windows 10, Windows 11 64bit (Home/Pro/Enterprise)
      • Intel Core i7 processor 6th Generation+
      • 8 GB RAM
      • SSD Drive
      • 40 GB available disk space
      • Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
      • USB 2.0 port
      • 10/100 Ethernet port for Art-Net DMX output
      • 100/1000 Ethernet port for X-Net, Remote operation and sACN

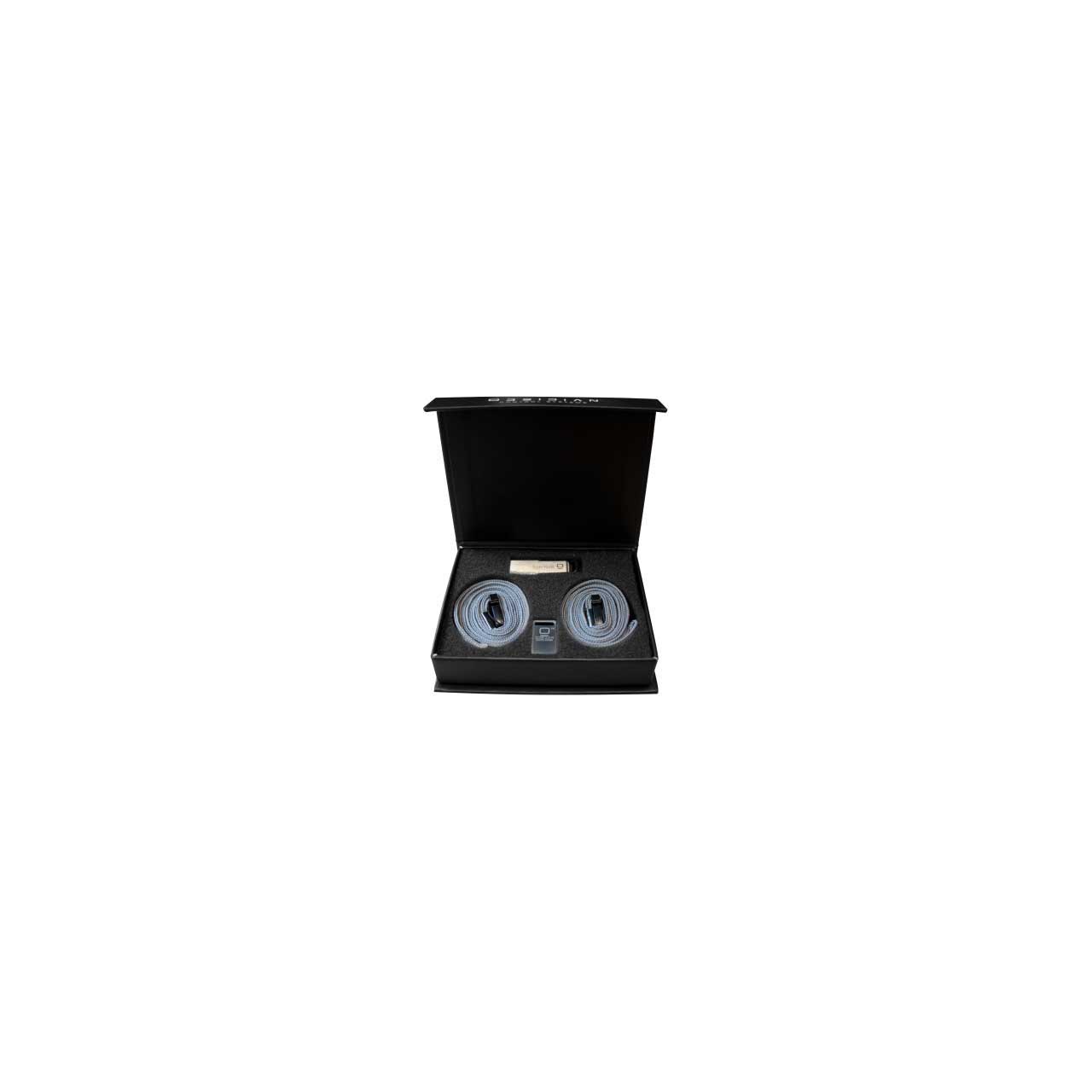

    • Item Includes:

      • 1x ONYX Elite Key
      • 1x USB Drive with ONYX Software
      • 2x ONYX USB Lanyard
    • Warranty:

      • 2 Year
