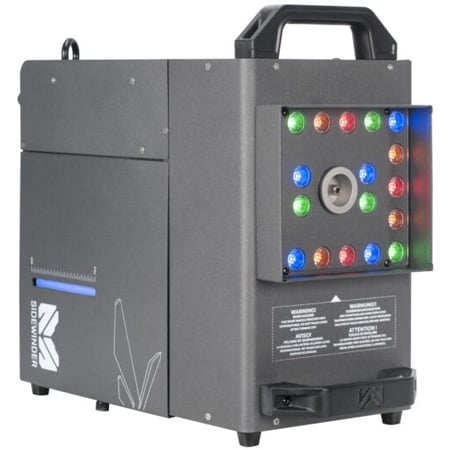

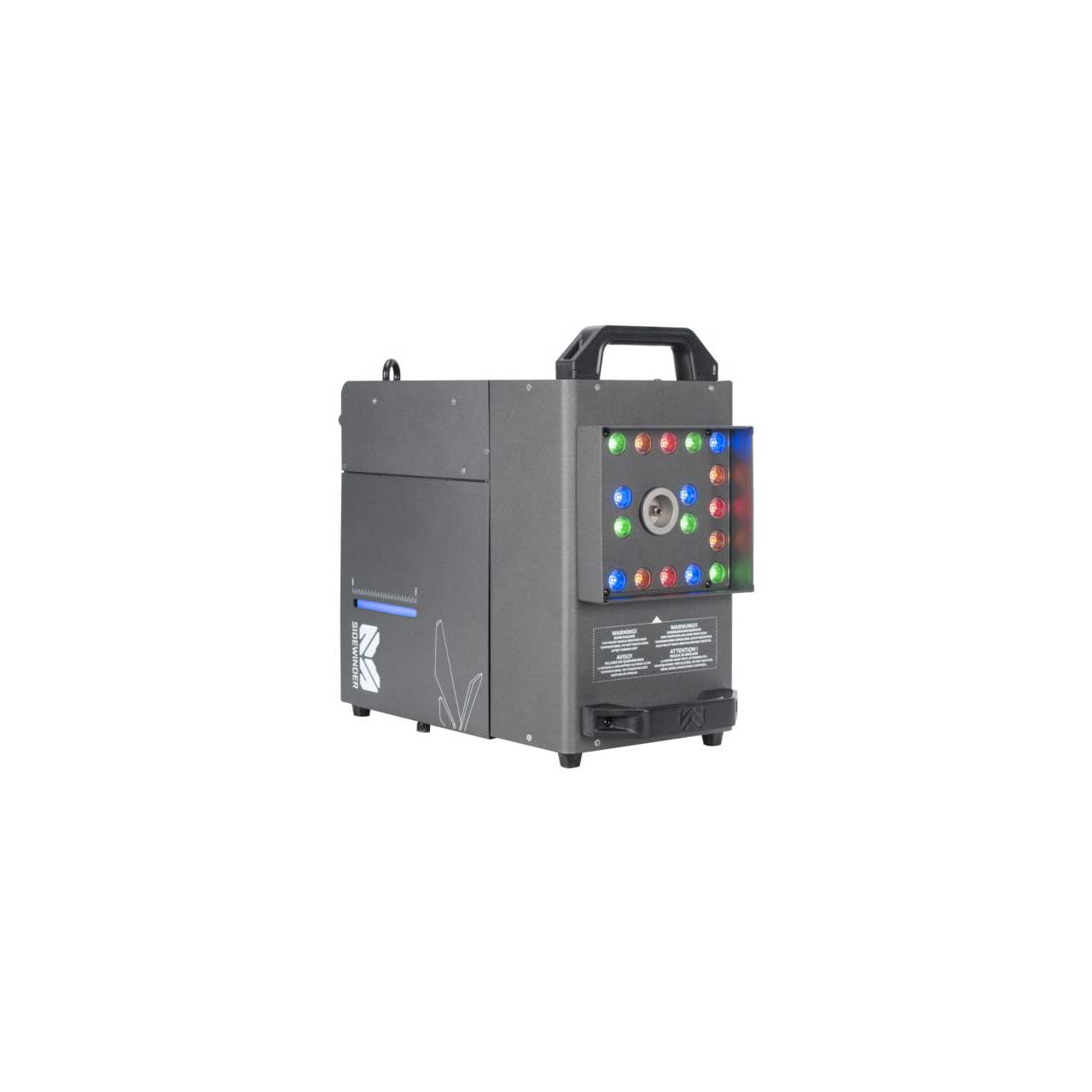

Elation Professional Magmatic SIDEWINDER 1450W 22x2W High Velocity CO2 Simulator Fog Machine w/ LCD Touchscreen Controls

RSS160 - Overview

• Features:

  • 50,000 cubic feet per minute
  • Four 10-second 20-ft bursts
  • 180° multi position fog burst

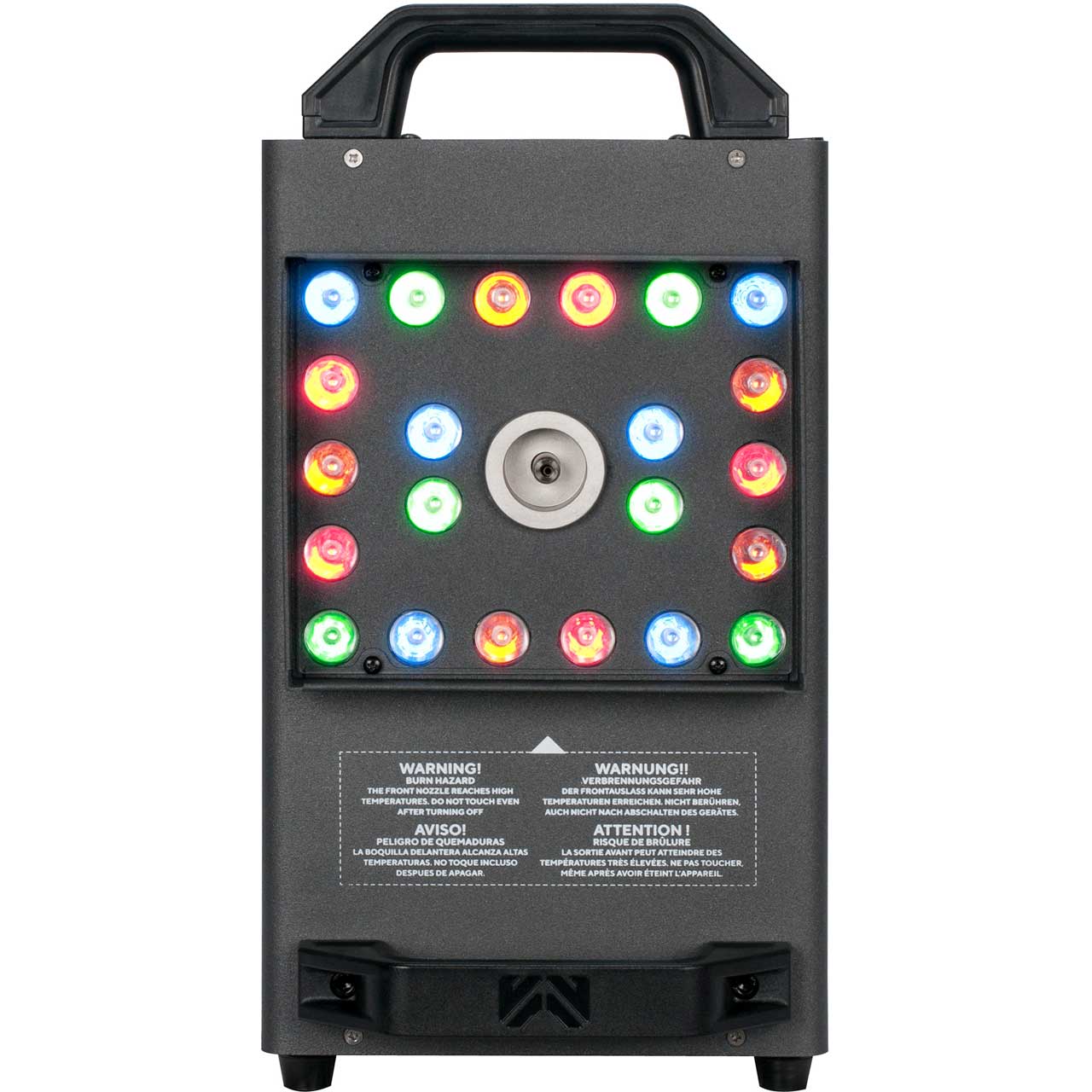

  • 22x 3-Watt RGBA LED's
  • Use of LEDs even without the use of Fog
  • Durable, tour-ready, aluminum housing


• Specifications:

  • Performance
  • Rated Power: 1450W
  • Max Output: 50,000 CFM* (cu ft/min.)
  • Max Continuous Output: 8 Seconds
  • Max Throw Distance: 20 Feet
  • Initial Ready Time: 9 Minutes
  • Cycling Ready Time: 1 Minute
  • Fluid Capacity: 2.5L
  • Fluid Consumption: 180ml/min.

    Compatible Fluid
  • Atmosity Flash Fog Fluid (AFF-2L, AFF-4L , AFF-20L)

    Construction
  • Thermally Protected Heat Exchanger
  • Advanced HPA (high pressure air) Pump Technology
  • Energy Saving Mode with Auto-Clean Process

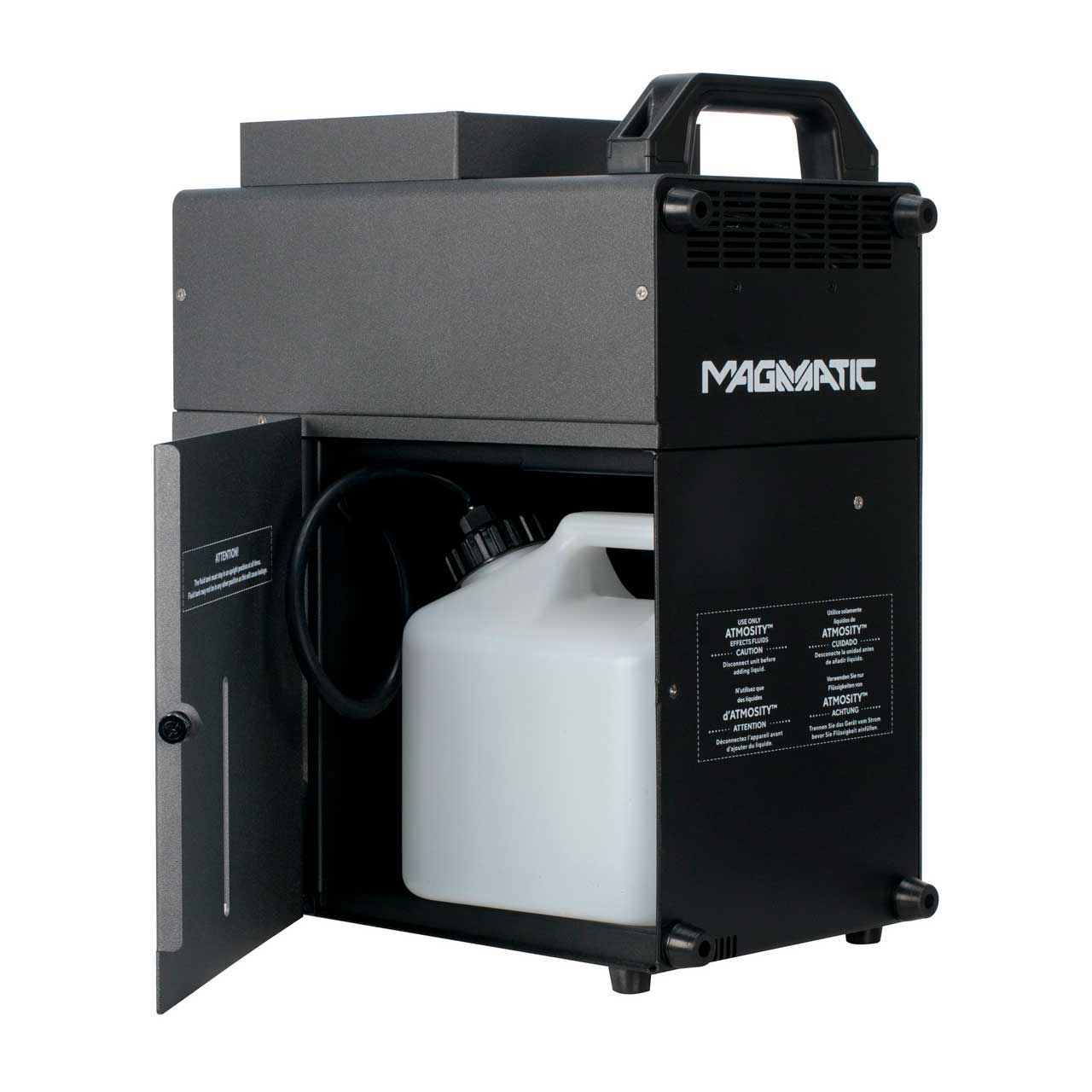

  • Sealed Fluid Reservoir

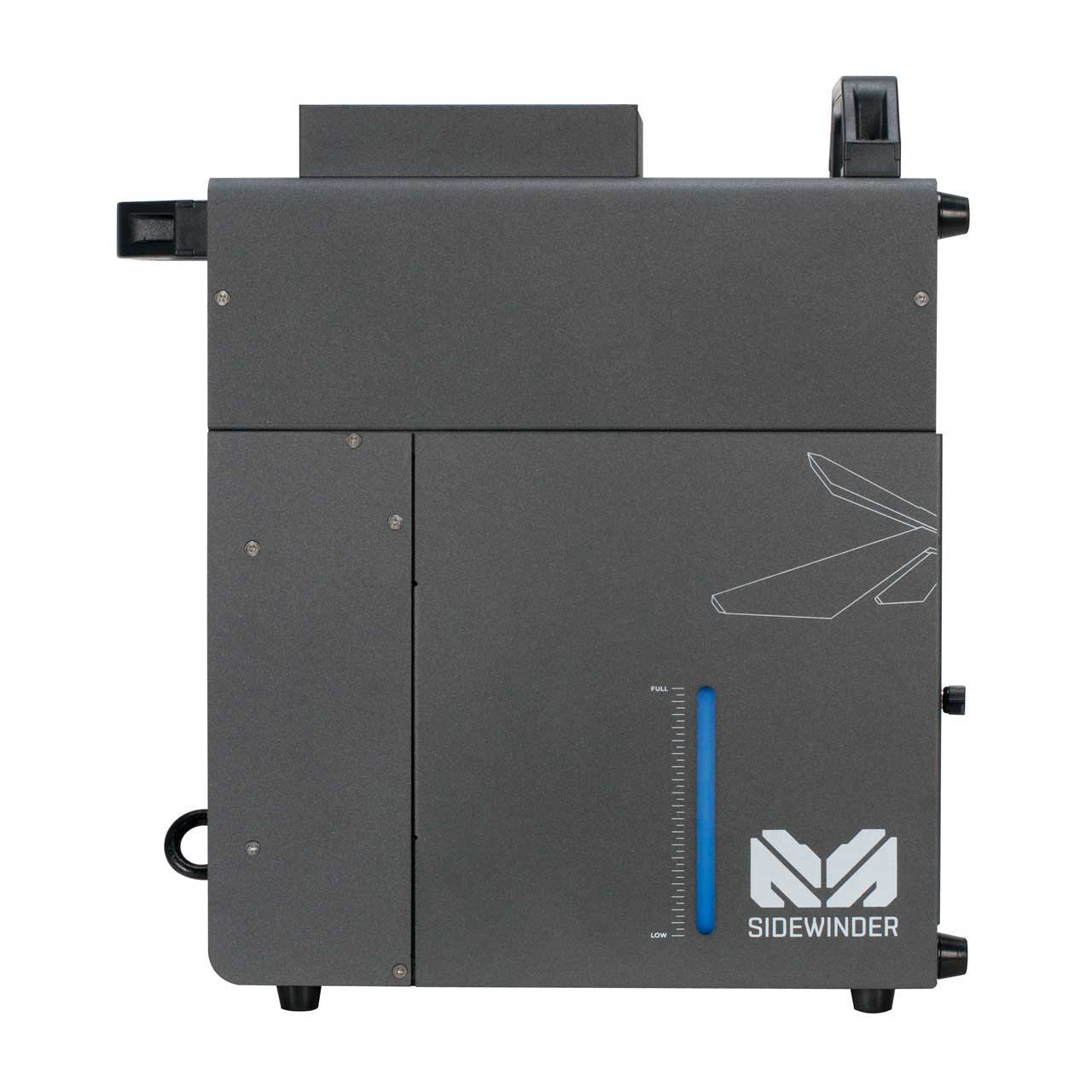

  • External Visual Fluid Level Detection
  • Compact Light Weight Mobile Design

    Control
  • 3 DMX Channel Modes (1 / 4 / 7)
  • Onboard LCD Touch Control Panel
  • DMX-512 and RDM Protocol Support
  • Optional E-FLY Wireless DMX Transceiver
  • Optional RF Wireless and Wired Remotes

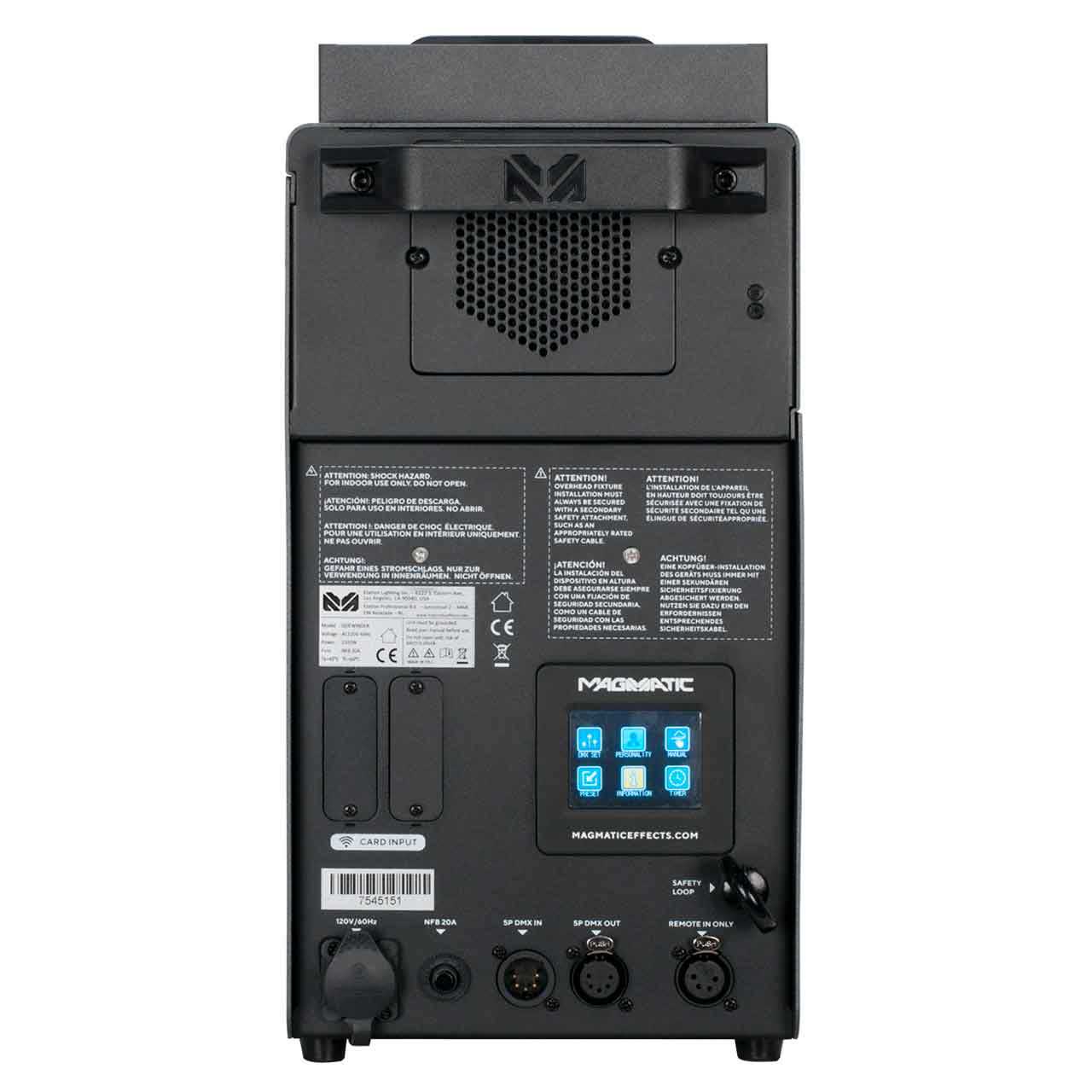

    Connections
  • 5-pin locking XLR, In/Out Data Connectors
  • IP65 Locking Input Power Connector
  • With Wired Digital Communication Network

    Size / Weight
  • Length: 16.26 in (413mm)
  • Width: 7.60 in (193mm)
  • Height: 14.80 in (376mm)
  • Weight: 29.5 lbs (13.4kg)

    Electrical
  • AC 100-120V - 50/60Hz
  • Breaker Size: 20A (120V Version)
  • Breaker Size: 10A (230/240V Version)
  • Max Power Consumption: 1560W

    Thermal
  • Maximum Ambient Temperature (Ta max) 104°F (40°C)
  • Exterior Surface Temperature, Steady State: 140°F (60°C)


• Item Includes:

  • 1x Sidewinder Fog Machine


• Warranty:

  • 2 Year


• GTIN:

  0810008261538
