Epson V11HB31020 PowerLite 6200-Lumen Short-Throw WUXGA 3LCD Laser Projector

V11HB31020 - Overview

Incredibly compact projector delivers larger-than-life images with a short throw ratio

• Features:

  • Bright, true-to-life images: 3-chip 3LCD technology and 6,200 lumens of equal color and white brightness
  • Full HD WUXGA resolution: Accepts up to 4K signal and provides 1920 x 1200 resolution for vibrant, high-definition images
  • Achieve large displays from a short distance: With a 0.79 - 1.36 throw ratio and a powerful 1.7x optical zoom, fill walls with large, shadow-free images-up to 400" diagonal in standard 16:10; also supports ultra wide 16:6 and 21:9 formats for wider visuals in low-ceiling spaces
  • Simplified installation: Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
  • Wireless networking and content sharing: Wi-Fi 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA 3-enterprise security
  • Low maintenance: Up to 30,000-hour laser light source and air filter in Extended Mode
  • Works with Apple AirPlay 2: wirelessly stream videos, music, photos and presentations to your projector right from your iPhone, iPad, or Mac
  • Built-in NFC6: reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool app
  • Optional attachable PixAlign camera: adds powerful multi-projector tools including screen matching, auto color calibration, blending assist for super wide displays and simple stacking without an external PC


• Specifications:

  General

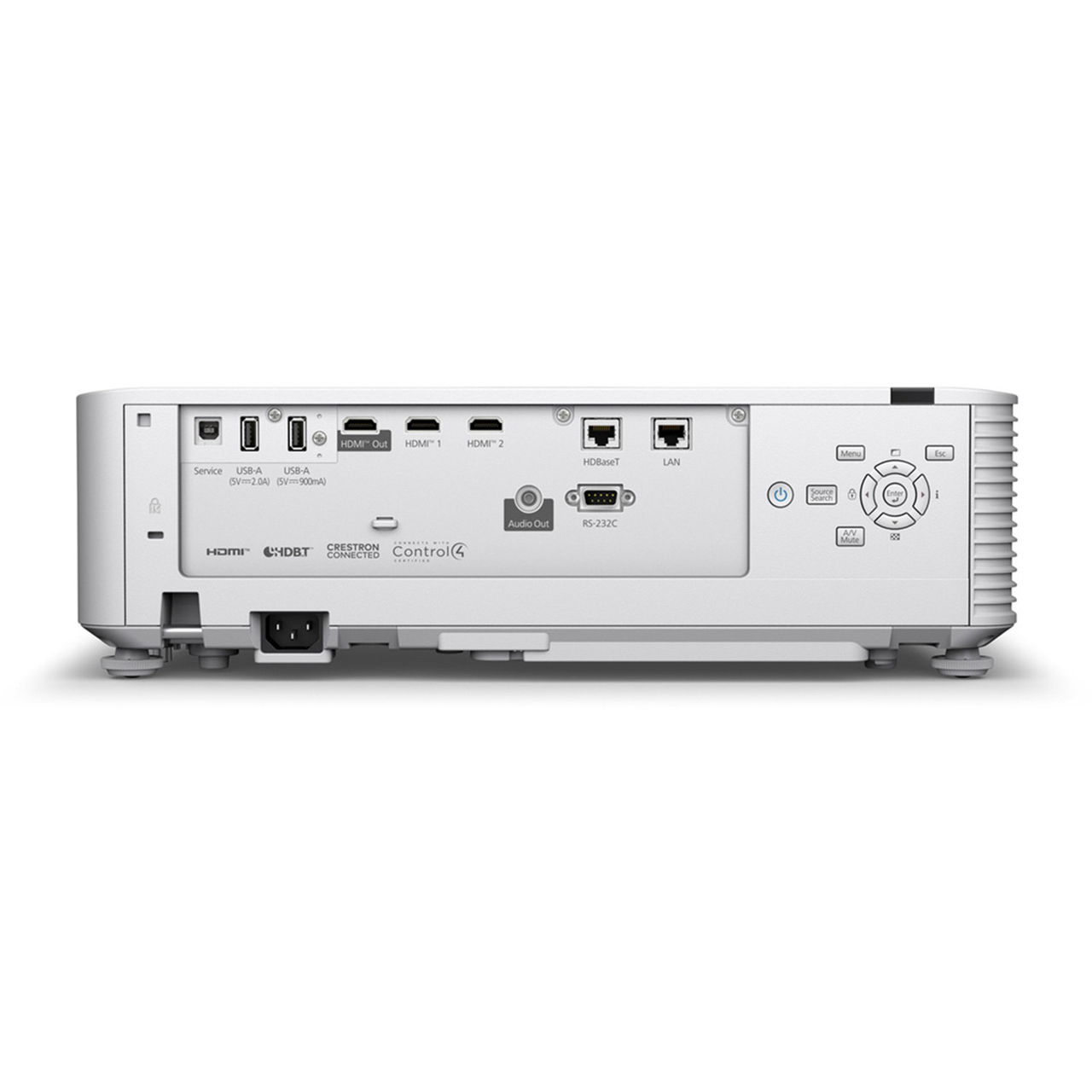

  • Interfaces:
    - 2x HDMI (HDCP 2.3)
    - 1x HDMI Out
    - 1x HDBaseT
    - 1x Variable Audio Out: Mini Stereo
    - 1x USB Connector Type-A
    - 1x USB Connector Type-B
    - 1x Serial: RS-232c
    - 1x Wired LAN RJ45
    - Wireless LAN: Built-in
  • Projection System: RGB liquid crystal shutter projection system
  • Projection Method: Front/rear/ceiling mount
  • LCD Size: 0.67" (C2Fine)
  • Driving Method: Poly-Silicon TFT Active Matrix
  • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
  • Native Resolution: 1920 x 1200 (WUXGA)
  • Resolution On-Screen: 1920 x 1200 (WUXGA)
  • Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
  • Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9* (*With vertical image shift control within letterbox area.)
  • Pixel Arrangement: Cross stripe
  • Color Brightness: Color light output: 6,200 lumens
  • White Brightness: White light output: 6,200 lumens
  • Contrast Ratio: Up to 5,000,000:1
  • Brightness Uniformity (Typical): 88%
  • Color Reproduction: Up to 1.07 billion colors
  • Size (Projected Distance): 60" - 400"
  • Projected Distance: 80" screen 1.38m
  • Lens Shift:
    - Vertical: ±50%
    - Horizontal: ±20%
  • Keystone Correction:
    - Vertical: ±30 degrees
    - Horizontal: ±30 degrees
  • Light Source: Laser Diode
  • Light Source Life:
    - Normal: 20,000 hours
    - Quiet: 20,000 hours
    - Extended: 30,000 hours

    Projection Lens (Short Throw)
  • Type: Optical Zoom (manual)/Focus (manual)/Corner focus (manual)
  • F-Number: 1.7 - 2.1
  • Focal Length: 11.6 mm - 19.9 mm
  • Zoom Ratio: 1.0 - 1.7x (optical)
  • Throw Rate Range: 0.79 - 1.36 (optical)
  • Lens Cover: Lens cap (without string)

    Wireless Specifications
  • Frequency Type (Modulations): 802.11 b/g/n/ac/ax (2.4 GHz)
  • Supported Security Type:
    - Quick Mode: Open, WPA2/WPA3 PSK, WPA2/WPA3-EAP
    - Advanced Mode: WPA2/WPA3-PSK, WPA2/WPA3-EAP

    Other Features
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)
  • Power Supply Voltage: 100V - 240V ± 10%, 50/60Hz AC
  • Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI, USB, VGA 15-Pin, BNC)
  • Sleep Mode: Yes (with timer)
  • HDMI CEC Control: Yes
  • Power Consumption:
    - 415W (Normal Mode)
    - 305W (Quiet and extended)
    - 2.4W (Standby comm on)
    - 0.3W (Standby comm off)
  • Fan Noise: 38dB (Normal Mode); max. 27 dB (ECO Mode)
  • Security: Security cable hole, Kensington lock provision
  • A/V Mute: Yes
  • Speaker(s): 10W (mono)
  • Miracast: Yes
  • Epson iProjection: Yes (V4)
  • Apple Airplay 2: Yes
  • Split Screen: Yes (up to 2 screens)
  • Corner Wall: Yes
  • Curved Surface: Yes
  • Camera: Optional
  • Content Playback: Yes
  • Quick Corner: Yes
  • Arc Correction: Yes
  • Edge Blending: Yes
  • Screen Sharing: Yes

    Effective Scanning Frequency Range (Digital)
  • Pixel Clock: 25.1MHz to 594MHz
  • Horizontal: 26kHz to 135kHz
  • Vertical: 23.98/24/25/29.97/30/50/59.94/60Hz

    Physical
  • Dimensions (WxDxH):
    - Excluding Feet: 17.32" x 11.97" x 4.80"
    - Including Feet: 17.32" x 14.25" x 5.94"
  • Weight: 22lbs


• Item Includes:

  • 1x PowerLite L690SU / L695SU projector
  • 1x Power cable
  • 1x Projector remote control with batteries
  • 1x Quick Setup sheet
  • 1x Cable cover
  • 1x Quick Setup poster


• Warranty:

  • 3 Year Limited Warranty
