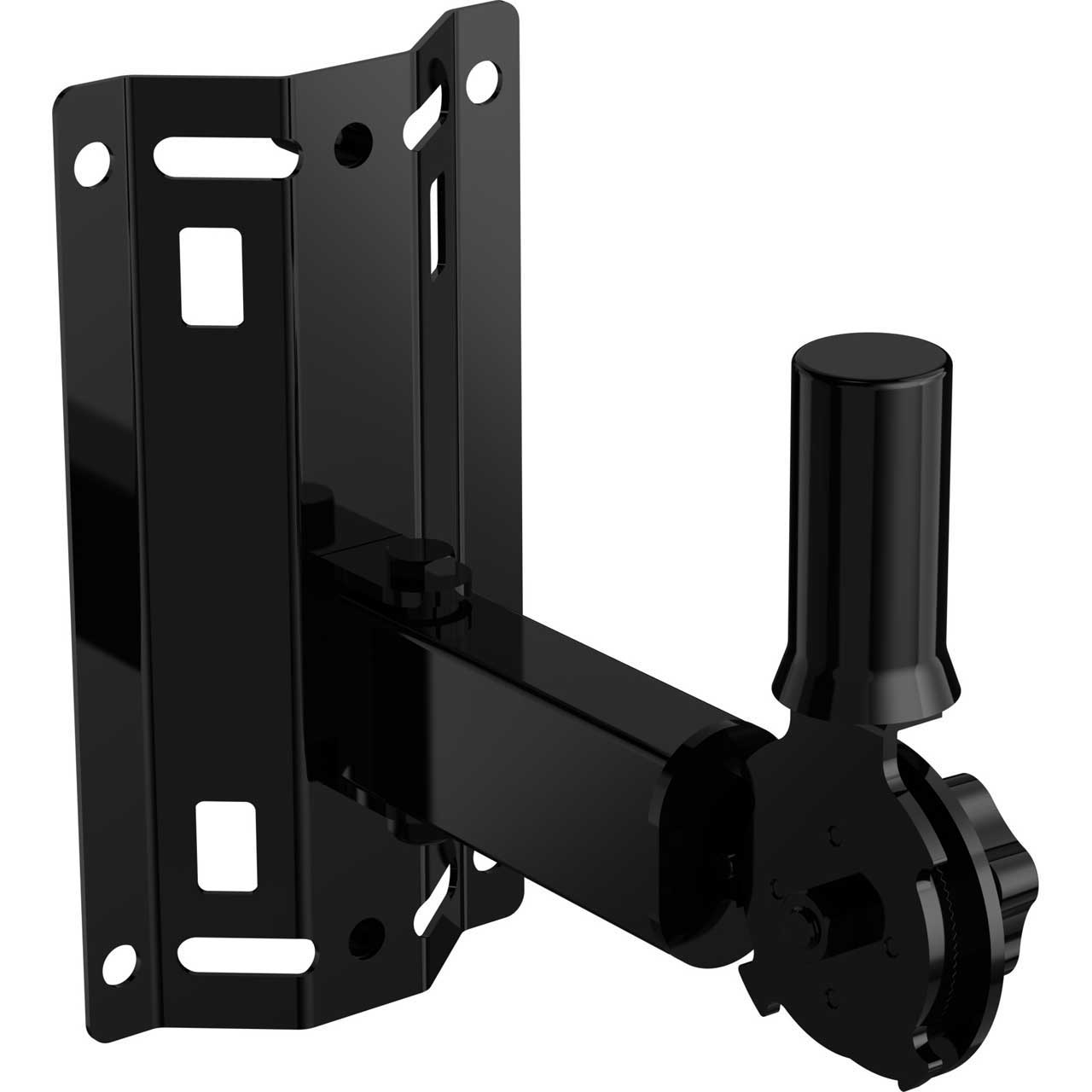

Electro-Voice BRKT-POLE-S Wall Mount Bracket for 8 Inch/10 Inch 2-way Speakers

BRKT-POLE-S - Overview

BRKT-POLE-S is suitable for 8- and 10-inch speakers and some 12-inch speakers

• Features:

  • Gives vertical tilt & horizontal pan adjustment
  • Maximum downward tilt: 30 degrees
  • Maximum upward tilt: 5 degrees, speaker dependent
  • Designed to fit nearly all speakers with pole cup
  • Maximum weight capacity / working load limit: 75 lb (34.1 kg)


• Specifications:

  • Color: Black
  • Dimensions (H x W x D) (mm): 250 mm x 115.8 mm x 215.9 mm.
  • Dimensions (H x W x D) (in): 9.84 in x 4.56 in x 8.50 in.
  • Shipping dimensions (H x W x D) (mm): 295 mm x 265 mm x 85 mm.
  • Shipping dimensions (H x W x D) (in): 11.61 in x 10.43 in x 3.35 in.
  • Working load limit (kg)1: 34.1 kg.
  • Working load limit (lb)1: 75 lb.
  • Weight (g): 1,78 kg.
  • Weight (lb): 3,92 lb.
  • Shipping weight (g): 1,94 kg.
  • Shipping weight (lb): 4,28 lb


• Item Includes:

  • 1x Electro-Voice BRKT-POLE-S Wall Mount Bracket


• Warranty:

  • 1-Year Warranty


• GTIN:

  0800549973878
