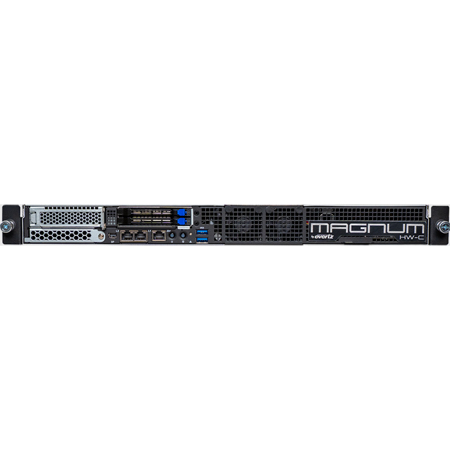

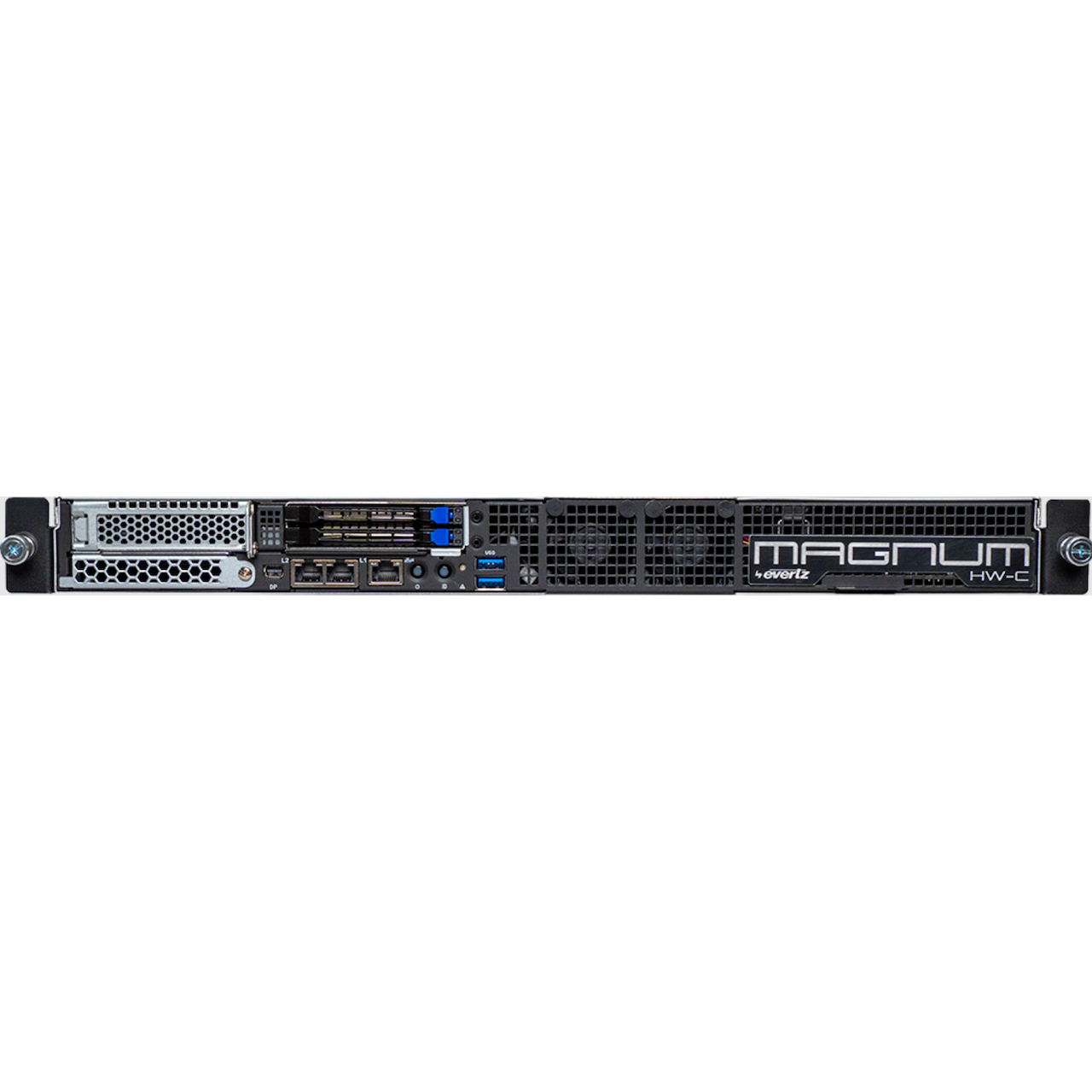

Evertz MAGNUM-HW-C 1RU Compact Linux Server with 6x RJ-45 LAN / 4x SFP+ Ports for Magnum Software Modules

MAGNUM-HW-C - Overview

• Features:

  • 1RU Compact Server
  • Linux operating system
  • Software pre-installed: MAGNUM-OS, requires license purchase to activate
  • Supports all MAGNUM software module configurations
  • 6x RJ-45 Ethernet ports
  • 4x SFP+ LAN ports


• Specifications:

  Chassis
  • Form Factor: 1RU
  • Dimensions: 17.1" W x 1.7" H x 15.7" D (435 x 43.8 x 400mm)
  • Front Panel Buttons: Power button with LEDs

    LEDs
  • Power Button with LED
  • System Status LED
  • Universal Information (UID) LED
  • 2x PSU LEDs
  • 7x 1GbE speed LEDs
  • 7x 1GbE link/activity LEDs

    System Cooling
  • 6x Cooling Fans
  • 2x Power Supply Fans

    Environmental
  • Operating Temperature: 50 - 95°F (10 - 35°C)
  • Non-Operating Temperature: -40 - 158°F (-40 - 60°C)
  • Operating Relative Humidity: 8-80% (non-condensing)
  • Non-operating Relative Humidity: 20-95% (non-condensing)

    Power Supply
  • 2x 1000 watts redundant PSUs

    AC Input
  • 100-127V ~/15A, 50 - 60Hz
  • 200-240V ~/8A, 50 - 60Hz

    DC Output
  • Maximum 1000 watts
  • +12V/83.3A
  • +12Vsb /3A

    LAN
  • 6x RJ-45 LAN ports
  • 4x SFP+ LAN ports
  • 1x RJ-45 dedicated IPMI LAN port

    USB
  • 2x USB front ports

    Display Port
  • 1x mini display port

    Supported SFPs
  • SFP10G-TR13-J
  • SFPTR-RJ45-SER-AV


• Warranty:

  • 1 Year Warranty
