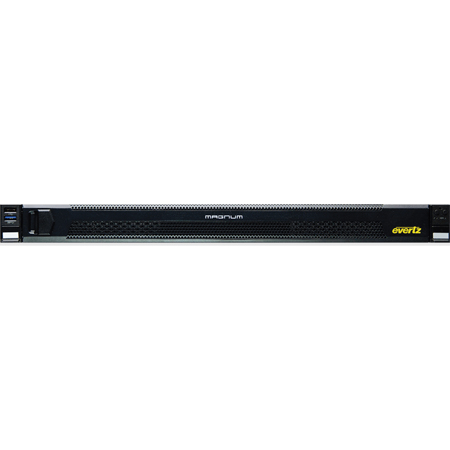

Evertz MAGNUM-HW 1RU Enterprise Class Linux Server with 4x RJ-45 Ethernet / 4x SFP+ Ports for Magnum Software Modules

MAGNUM-HW - Overview

• Features:

  • 1RU Enterprise Class Server
  • Redundant power supplies
  • Linux operating system
  • Software pre-installed: MAGNUM, requires license purchase to activate
  • Supports all MAGNUM software module configurations
  • 4x RJ-45 Ethernet ports
  • 4x SFP+ LAN ports
  • RAID 1 Hard Drive Configuration


• Specifications:

  Chassis
  • Form Factor: 1RU rackmount
  • Dimensions: 17.2" W x 1.7" H x 30.7" D (438 x 43 x 781mm)
  • Gross Weight: 40lbs (18.15kg)

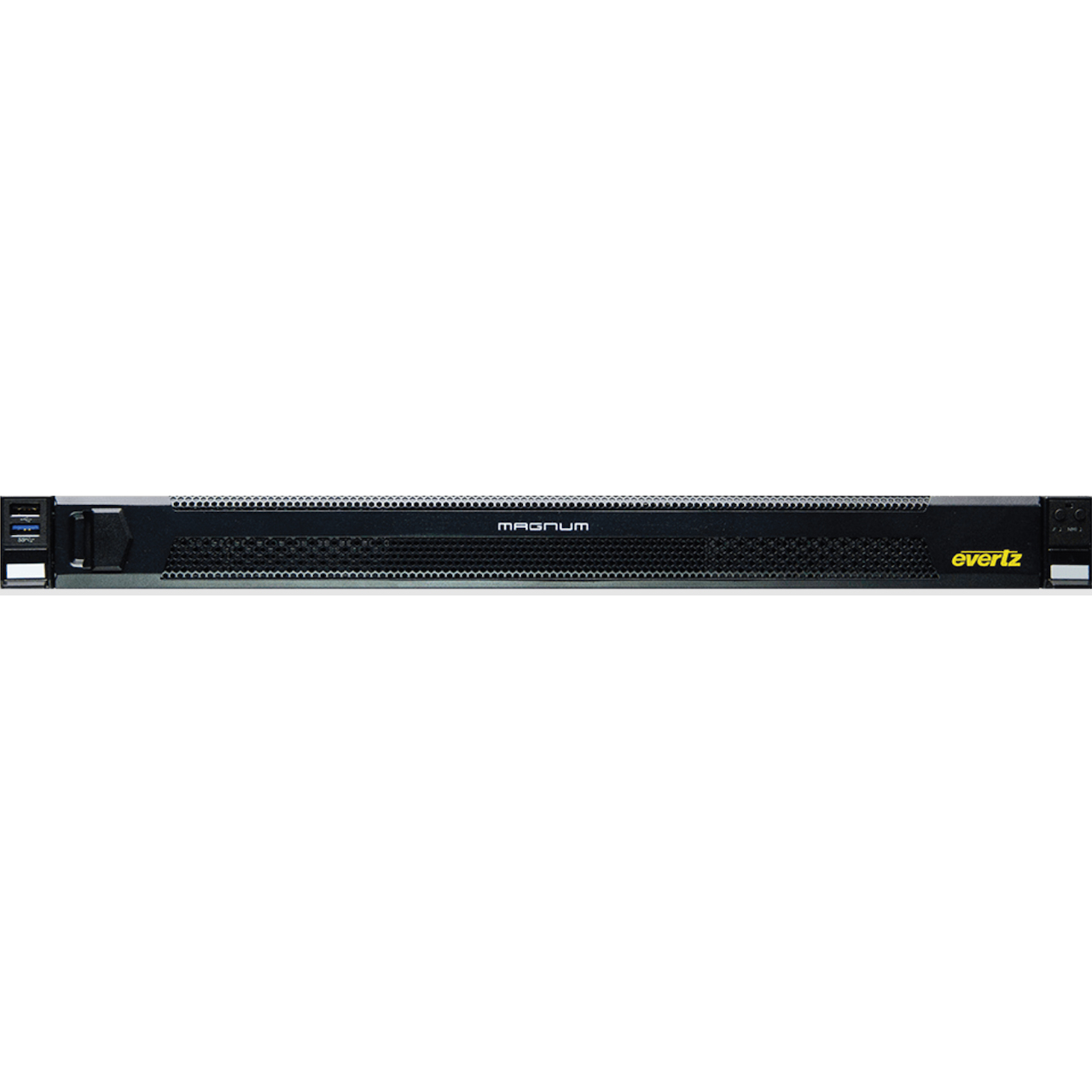

    Front Panel
  • Power On/Off Button
  • System ID Button
  • NMI Button
  • System Cold Reset Button

    LEDs
  • System Status LED
  • Drive Activity LED
  • Universal Information (UID) LED

    Environmental
  • Operating Temperature: 50 - 95°F (10 - 35°C), with the maximum rate of change not to exceed 10°C per hour
  • Non-Operating Temperature: -40 - 158°F (-40 - 70°C)
  • 8x cooling fans

    Power Supply
  • Type AC 1300 watts (80 PLUS* Titanium)
  • AC Input 200-240V, 50 - 60Hz

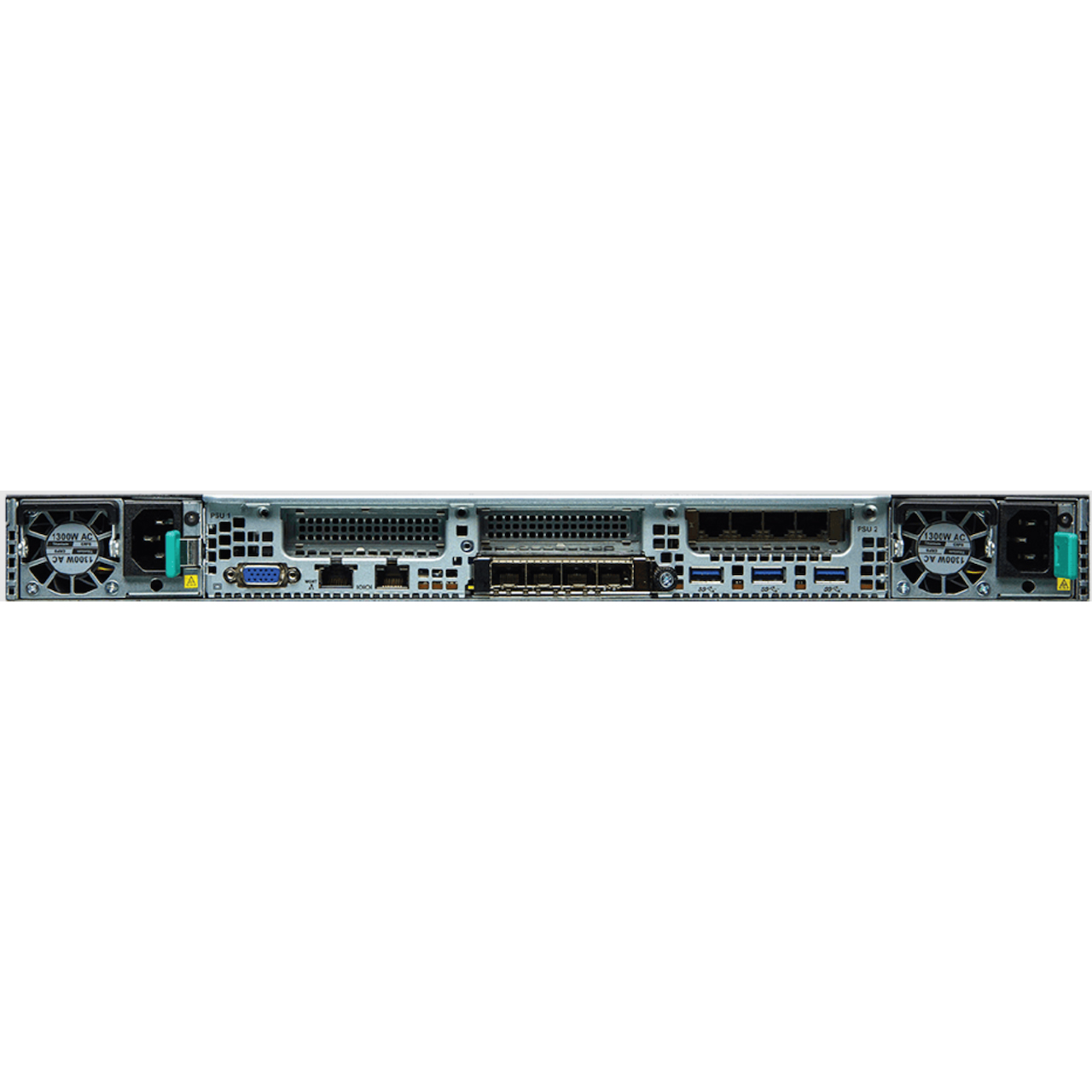

    Inputs
  • 4x RJ-45 LAN ports
  • 4x SFP+ LAN ports
  • 1x RJ-45 dedicated IPMI LAN port
  • 2x USB front ports
  • 2x USB rear ports
  • 1x VGA port

    Supported SFPs
  • SFP10G-TR13-J


• Warranty:

  • 1 Year Warranty
