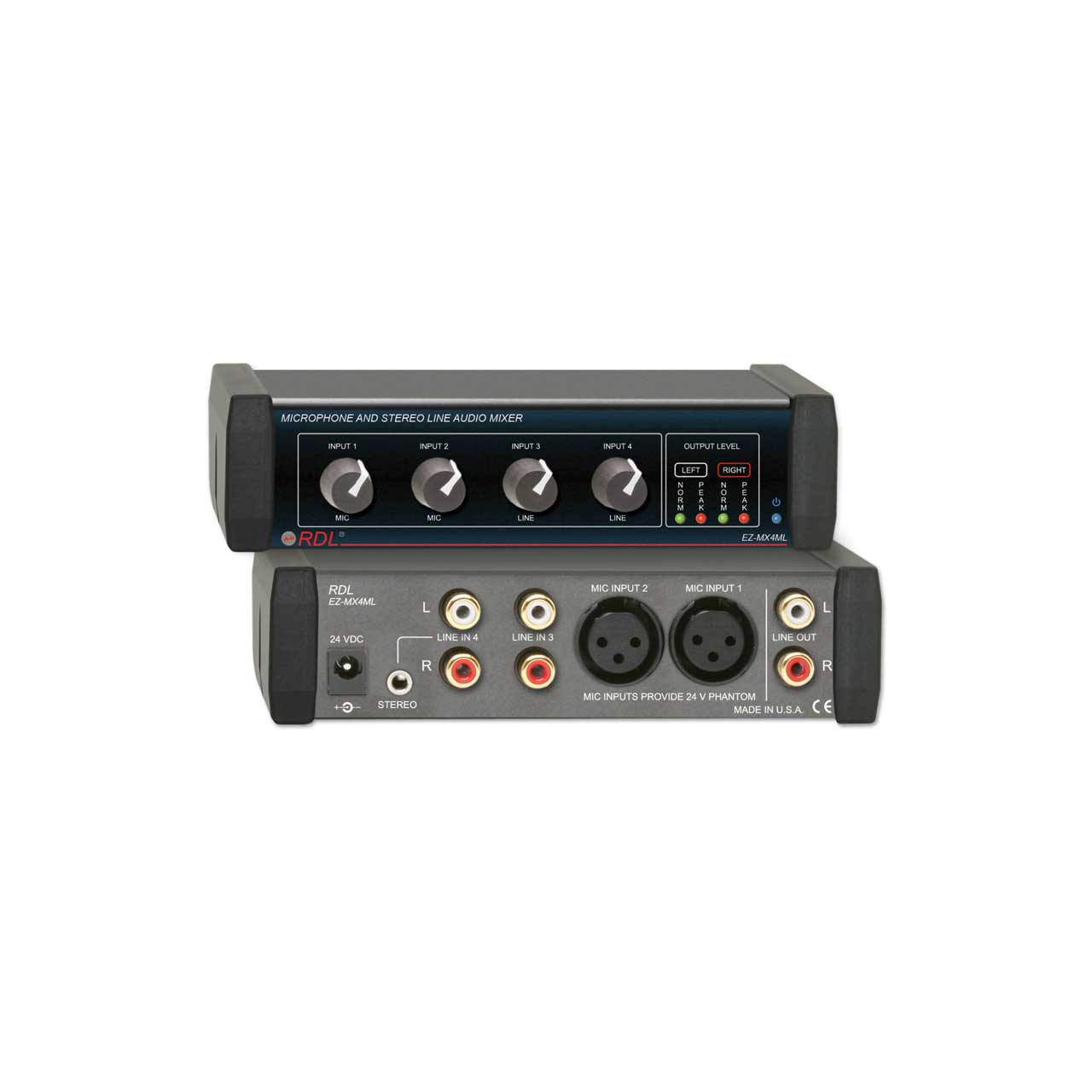

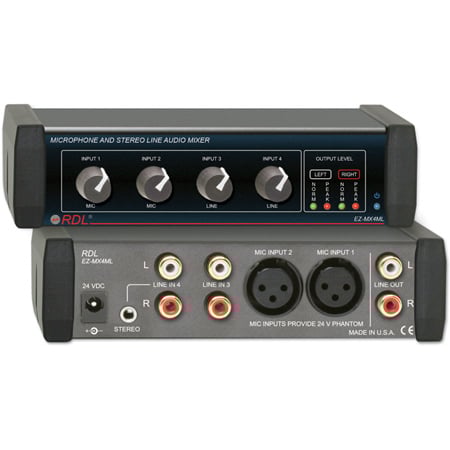

RDL EZ-MX4ML 4x1 Mic and Stereo Line Audio Mixer

ITEM #: EZ-MX4ML MFG #: EZ-MX4ML

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$316.02

Our Price:

$237.01

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EZ-MX4ML - Overview

    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

    • Features:

      • Four Input Mixer, Two Mic and Two Line Inputs
      • Two Balanced Microphone Inputs on XLR
      • One Unbalanced Line Input on RCA Jacks
      • One Line Input on MINI or RCA Jacks
      • Unbalanced Output on RCA Jacks
      • Microphone Inputs Provide Phantom Voltage
      • Dual-LED VU Meter for Each Channel
      • Headroom Accomodates High Input Level
      • Exceptional Headroom for an Unbalanced Mixer
      • Gold Plated RCA Input and Output Jacks

    • Specifications:

      • Mic inputs (2): 1.2 k Ohm balanced on XLR jack, mic-level, -11 dBu max.
      • Line inputs (3): > 10 k Ohm, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max.
      • Level controls (4): Off to 50 dB gain (mic), Off to 12 dB gain (line)
      • Output: -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max.
      • Frequency Response: 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (±0.01 dB, line input)
      • THD+N: < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input)
      • Crosstalk: < -72 dB (1 kHz)
      • CMRR: > -55 dB (20 to 20 kHz, mic input)
      • Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
      • Phantom: 24 V (IEC 1938: 1996-12)
      • Noise: < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input)
      • 24 Vdc power supply current: 50 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
      • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
      • Mounting size: 1/3 rack width.
      • Power supply included

    • GTIN:

      0813721010124
