FieldCast FC-CO102 Mux/Demux Three 3G 16-Channel SDI Video Over Fiber Multiplexer - LC Single Mode Port

FC-CO102 - Overview

• Features:

  • Transport Over Long Distance: The mux/demux pair can transport video over distances of up to 24 mi (40km) for 3G-SDI. The mux is typically placed at the camera side, and the demux at the control room side.
  • 16 Independent Video Channels with Loop-Through and Dual Output: The set supports 16 independent SDI video channels. The SDI inputs have a reclocked loop-through. The SDI outputs are dual. Hence, monitoring on both sides (input and output) is possible. The SDI input is typically connected to the camera's SDI output. The SDI output is generally connected to the SDI input of a monitor or switcher.
  • Transport Over One Fiber Optic Core: All information for up to 16 SDI video channels, back and forth, runs over a single fiber optic core. This means a simplex fiber optic cable is sufficient to bridge the distance between the mux and the demux, saving on fiber optic cable costs. Alternatively, if you have a fiber optic cable with 2 cores, you have 1 core (or channel) left for other fiber optic transport. You might, for example, use the free fiber optic core to connect to a second, similar Mux/Demux pair to add redundancy to your setup.
  • No Compression: There is no signal processing involved, so there is no compression; full data integrity is guaranteed.
  • Unidirectional Video by Default: The standard model is unidirectional, meaning that 16 SDI signals go from mux to demux; it's denoted as 16I/O, where `I' stands for Input and `O' stands for Output.
  • Bidirectional Video on Request: Upon request, the direction of the SDI signals can be changed to bidirectional. Customization is done at the factory level and built as requested. Custom bidirectional models can be configured in any way, for instance, 8 channels mux to demux and 8 channels demux to mux (8I/8O), or 14 channels mux to demux and 2 channels demux to mux (14I/2O, which is technically the same as 2I/14O). Logically, all possible custom solutions for a 16-channel multiplexer set can be configured as follows: 1I/15O, 2I/14O, 3I/13O, 4I/12O, 5I/11O, 6I/10O, 7I/9O, 8I/8O. The next logical successor, 9I/7O, is the same as 7I/9O and was already listed before.
  • LC Fiber by Default: By default, the mux/demux set is supplied with an LC singlemode fiber optic port. On request, other fiber ports, such as SC or ST connectors, can be built in.


• Specifications:

  • Material: Aluminum enclosure design (per Mux and Demux unit)
  • Form Factor: 1RU design with a depth of 155mm (per Mux and Demux unit)
  • Channel Count:
    - Mux: 16x SDI input, each with SDI loopthrough
    - Demux: 16x SDI output, each with dual output
  • Channel Direction: 16x SDI from Mux to Demux
  • SDI Fiber Conversion:
    - Mux: 16x SDI input to 1x fiber output
    - Demux: 1x fiber input to 16x SDI output
  • Multiplexing Type: Robust thin film xWDM multiplexing technology
  • Fiber Type: Singlemode 9/125
  • Fiber Connector: 1x LC singlemode (U)PC fiber optic (COM) channel + 1x LC singlemode (U)PC fiber optic upgrade (UPG) channel (per Mux and Demux unit)

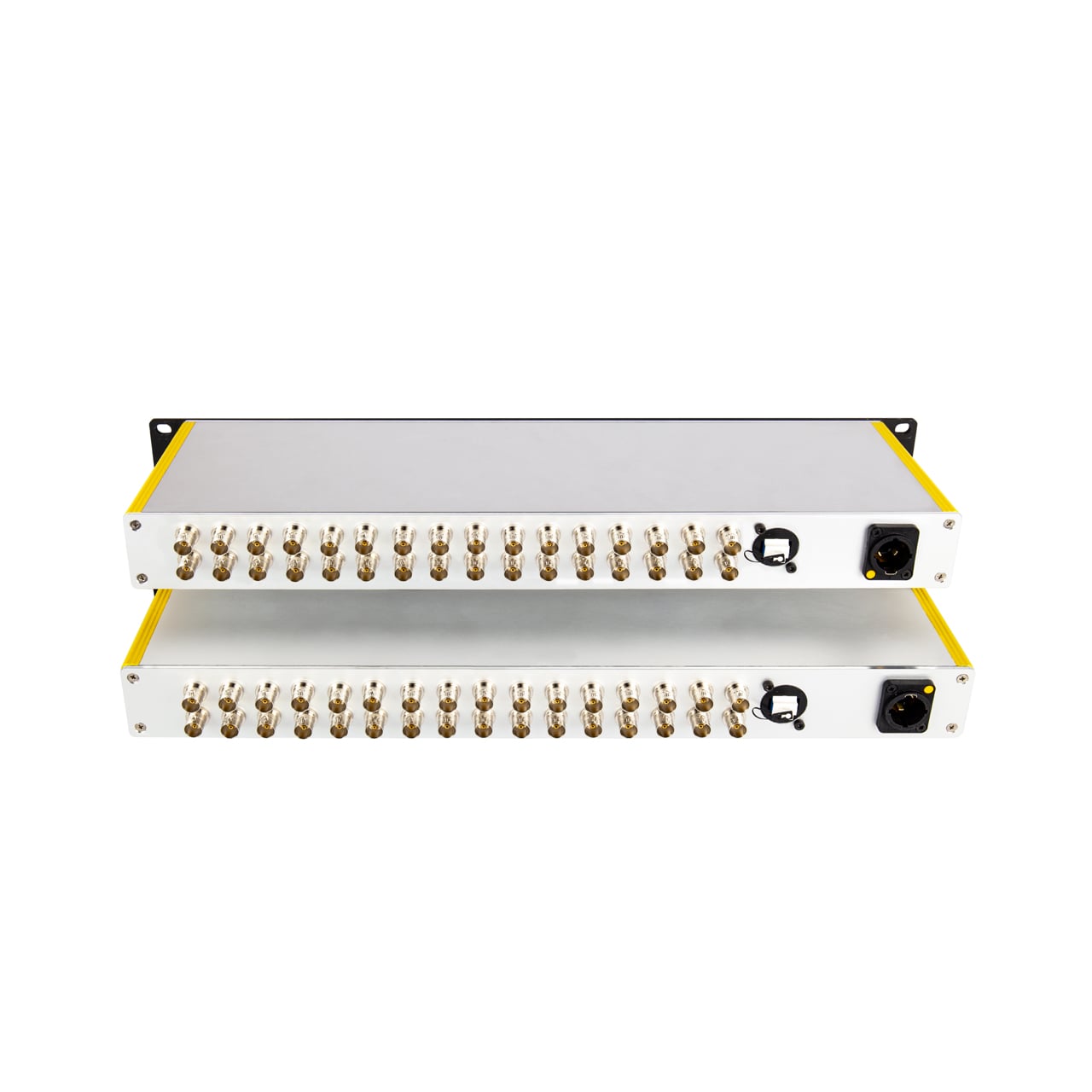

  • SDI Connector: 32x 75Ω BNC (per Mux and Demux unit)
  • Ethernet Connector: UTP RJ-45 connector, full duplex or half duplex
  • Supported Video Format:
    - Up to 3G (2.97Gb) SDI
    - All SD and HD standards up to 1080p60
    - Complies with SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M

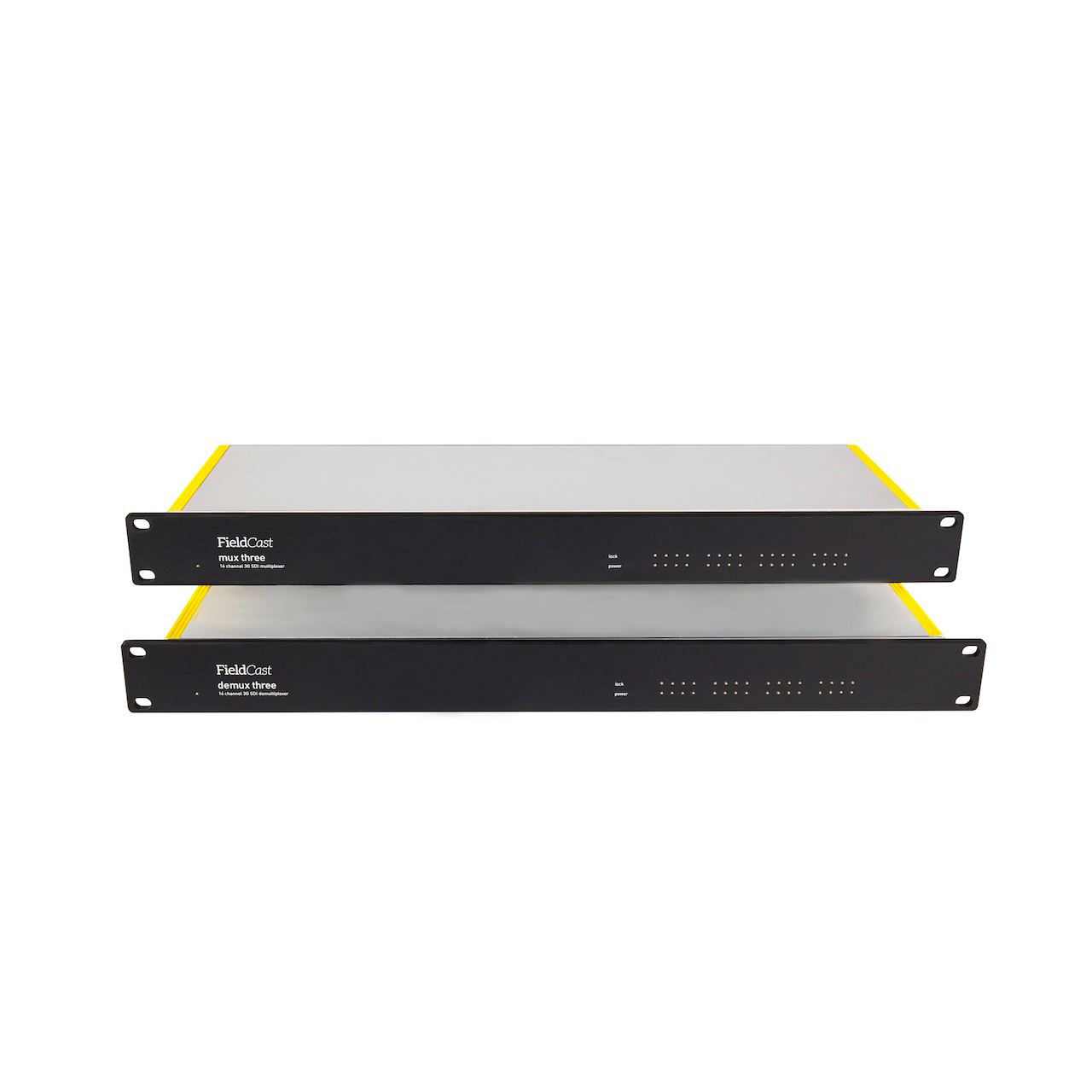

  • LED Indicators: Black front panel with 2mm warm white LED indicators containing (per Mux and Demux unit).
    - 1x LED indicator for power
    - 4x LED indicators for channel module activity
    - 4x LED indicators for SDI signal input activity
  • Transmission Distance: Up to 24 mi (40km) between Mux and Demux unit
  • Power Consumption: < 50W
  • Power: 110V - 240VAC input with PowerCon connector (per Mux and Demux unit)
  • Dimension (WxDxH): Standard 1RU panel size, 19" x 6.1" x 1.7" (482mm x 155mm x 43mm)(per Mux and Demux unit)
  • Weight:
    - 13.01lbs (5.90kg) per pair
    - 6.50lbs (2.95kg) per Mux and Demux unit
  • Weight Boxed Product: 19.7lbs (8.92kg) per pair


• Item Includes:

  • 1x Mux unit
  • 1x Demux Unit
  • 2x power cords (country-specific)
