Gold Line GL1K 1kHz Microphone Level Input Tester


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    GL1K - Overview

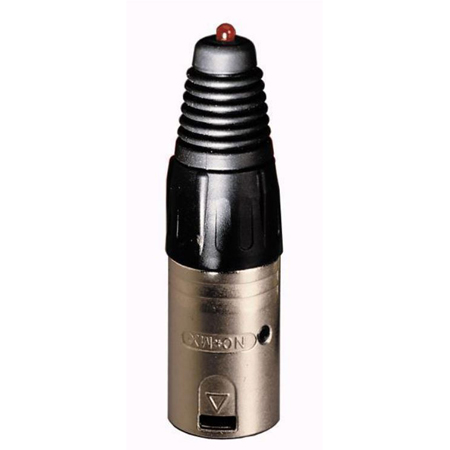

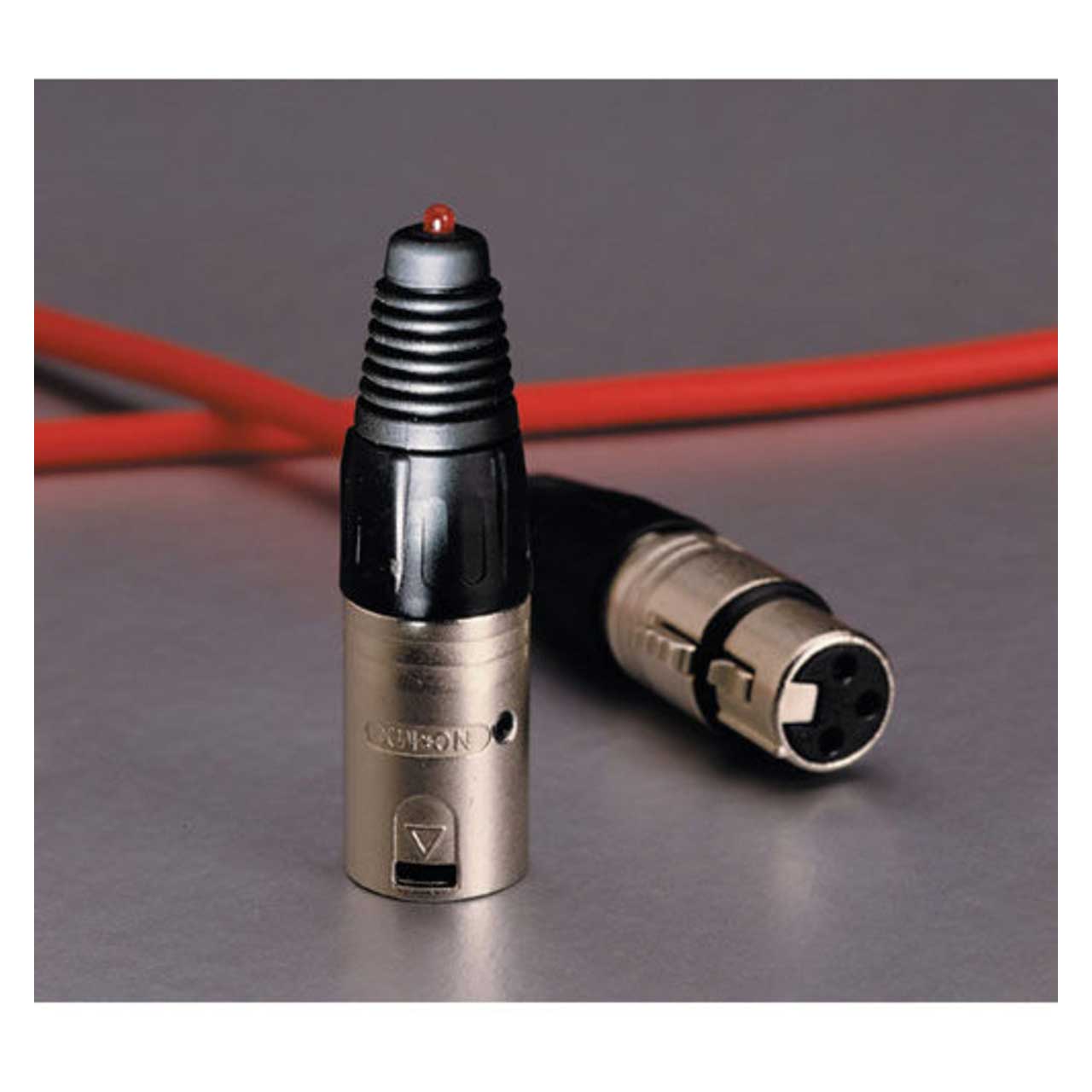

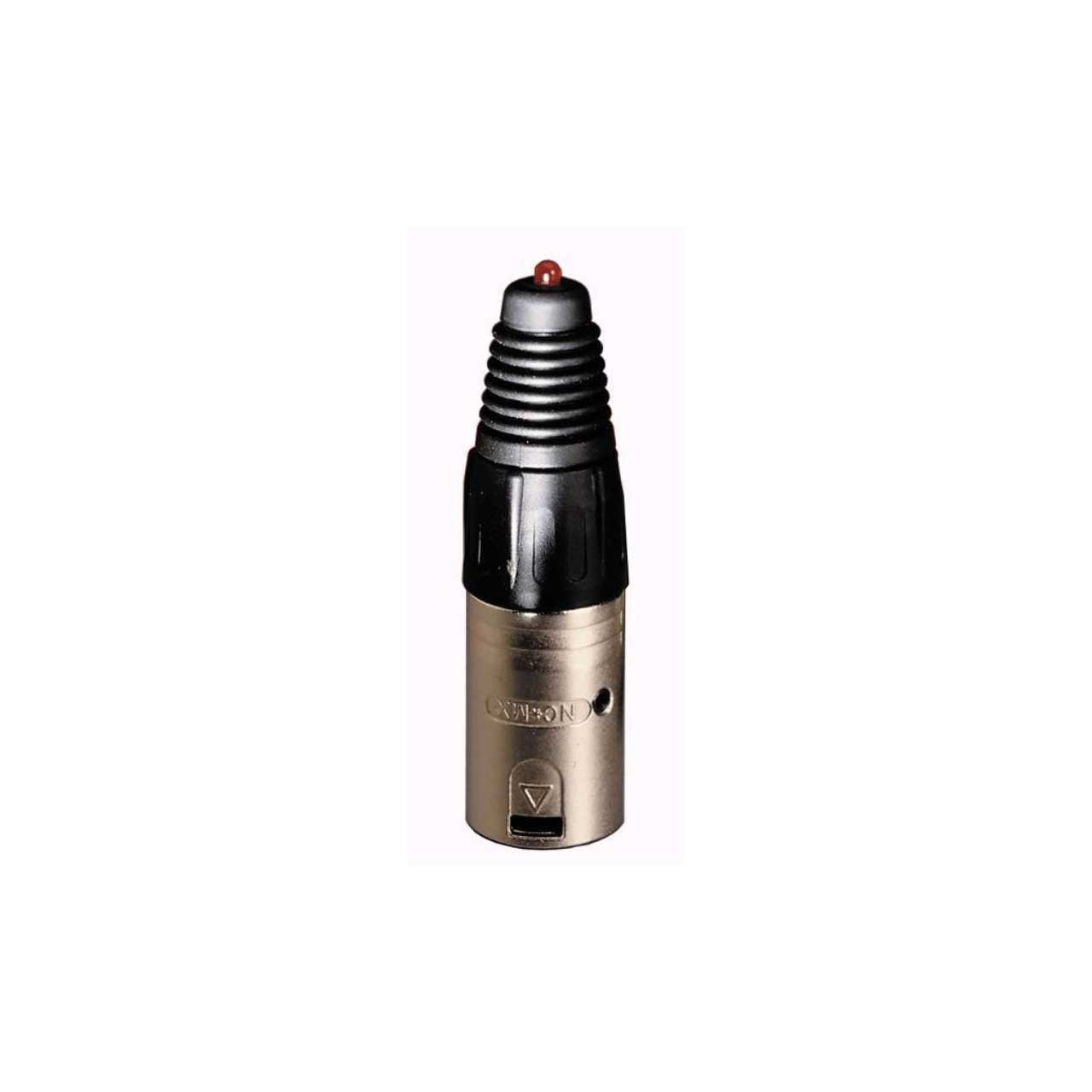

    The Gold Line GL1K is a miniaturized 1kHz microphone input tester consisting of a tone generator and phantom power detector built into a standard 3 pin XLR male connector. When inserted into a microphone input connector (12-48V), the LED indicator will light showing that there is a phantom power voltage present. If a voltage is present, a 1kHz tone will be sent into the microphone input.

    Perfect for Live Sound Applications
    The GL1K can be used to trace signals through a snake, check for bad mics, and bad inputs on a mixing board.

    • Specifications:

      • Output: 1kHz @ -48dBm
      • Distortion: 1.5% nominal
      • Power Requirements: 12Vdc - 48Vdc phantom power
      • Size (L x D): 2.75" x .75"
      • Weight: .093lbs/1.488oz
      • Case Material: Die cast body.
    • Item Includes:

      • 1x Gold line GL-1K
    • Warranty:

      • 1-Year Limited Warranty
    • GTIN:
