Power Supplies

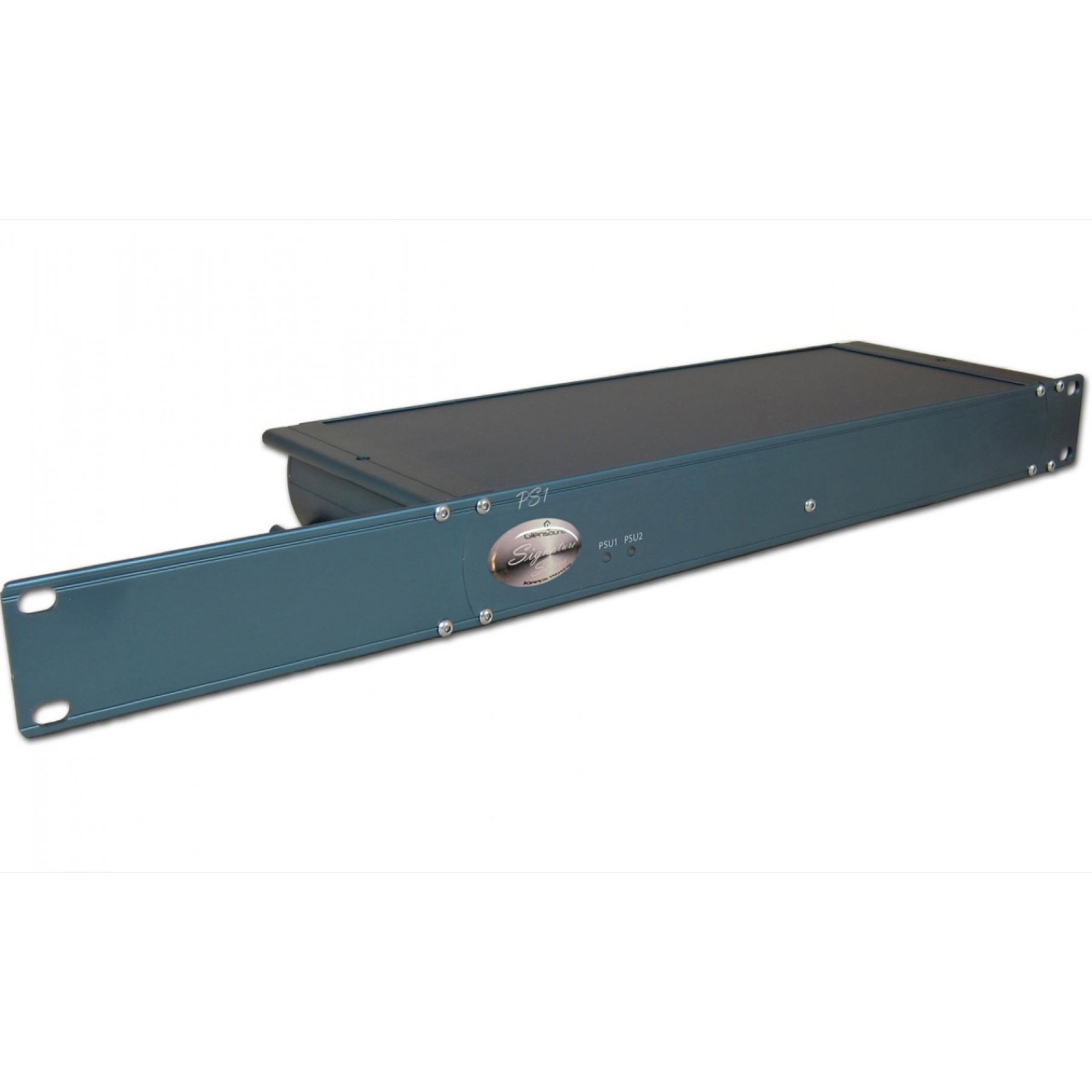

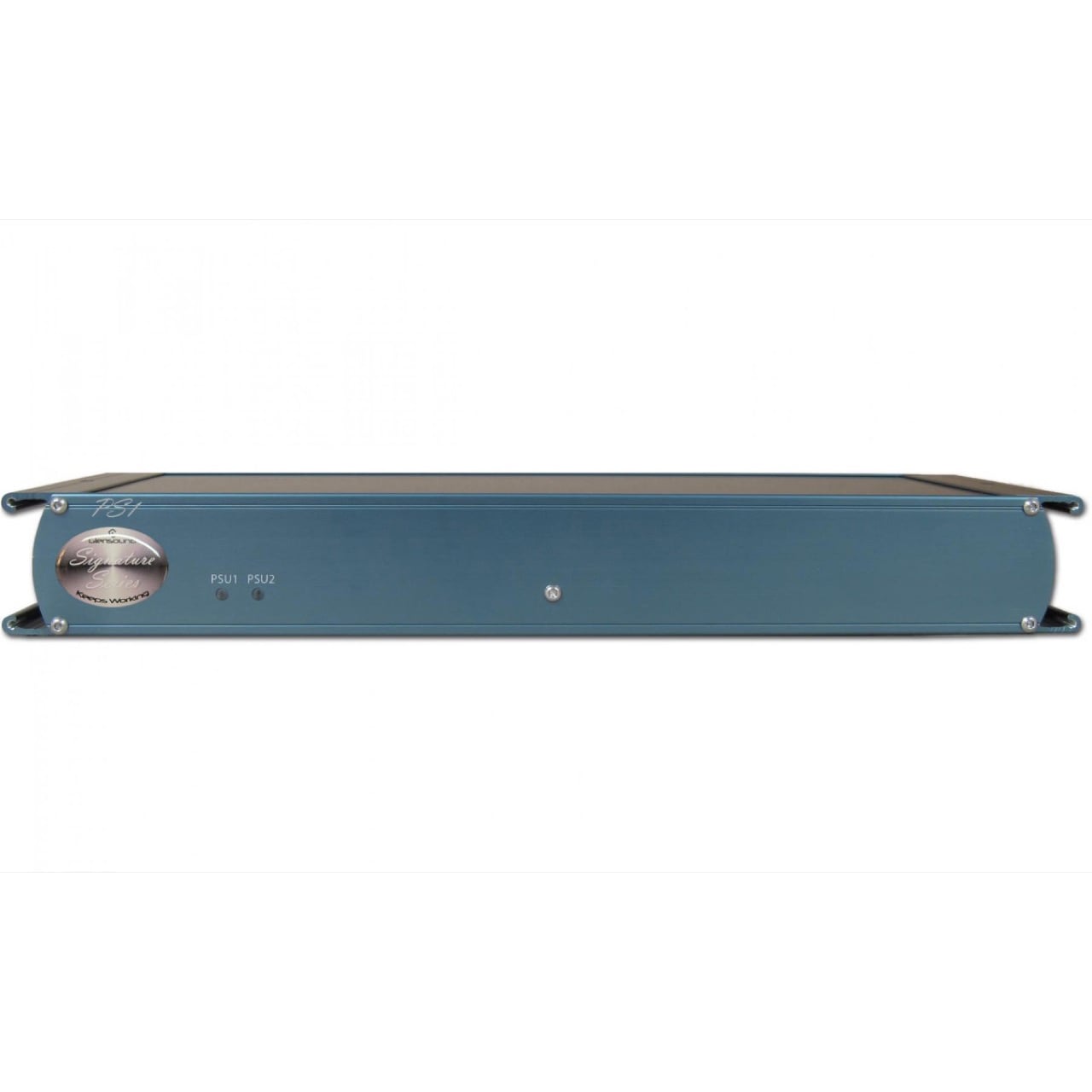

The Glensound Signature PS1 Power Station provides a fully resilient back up power supply to your Signature Series units. It contains two switch mode power supplies, each capable of powering up to three separate Signature Series units. A pair of bright front panel LEDs indicate that each power supply is on and active. The master AC power input accepts 100V - 240VAC for worldwide compatibility.

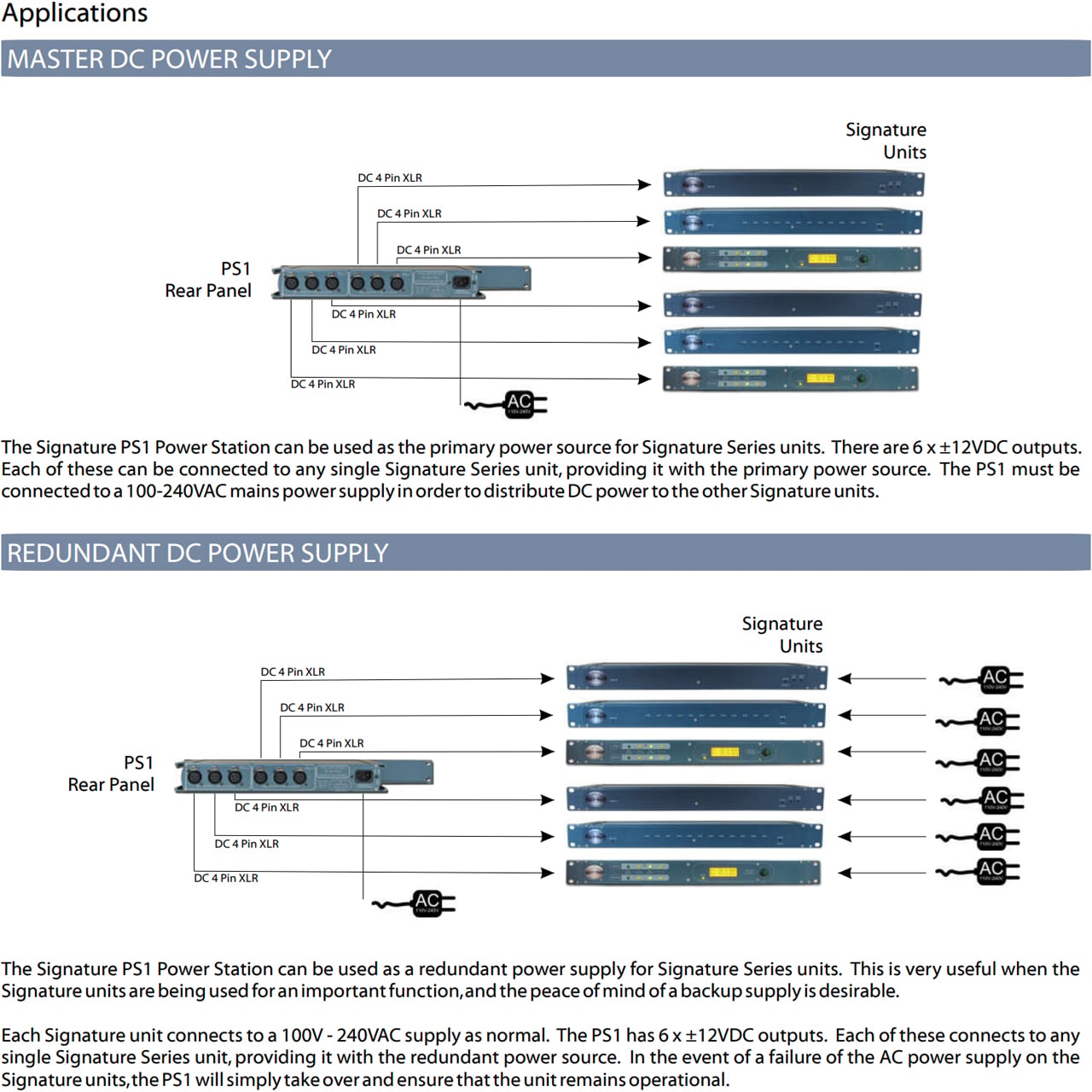

Master And Back Up Power
As well as providing a backup DC supply for up to six Signature Series units, the PS1 can also act as master DC power distribution to six Signature units.
Safety Features

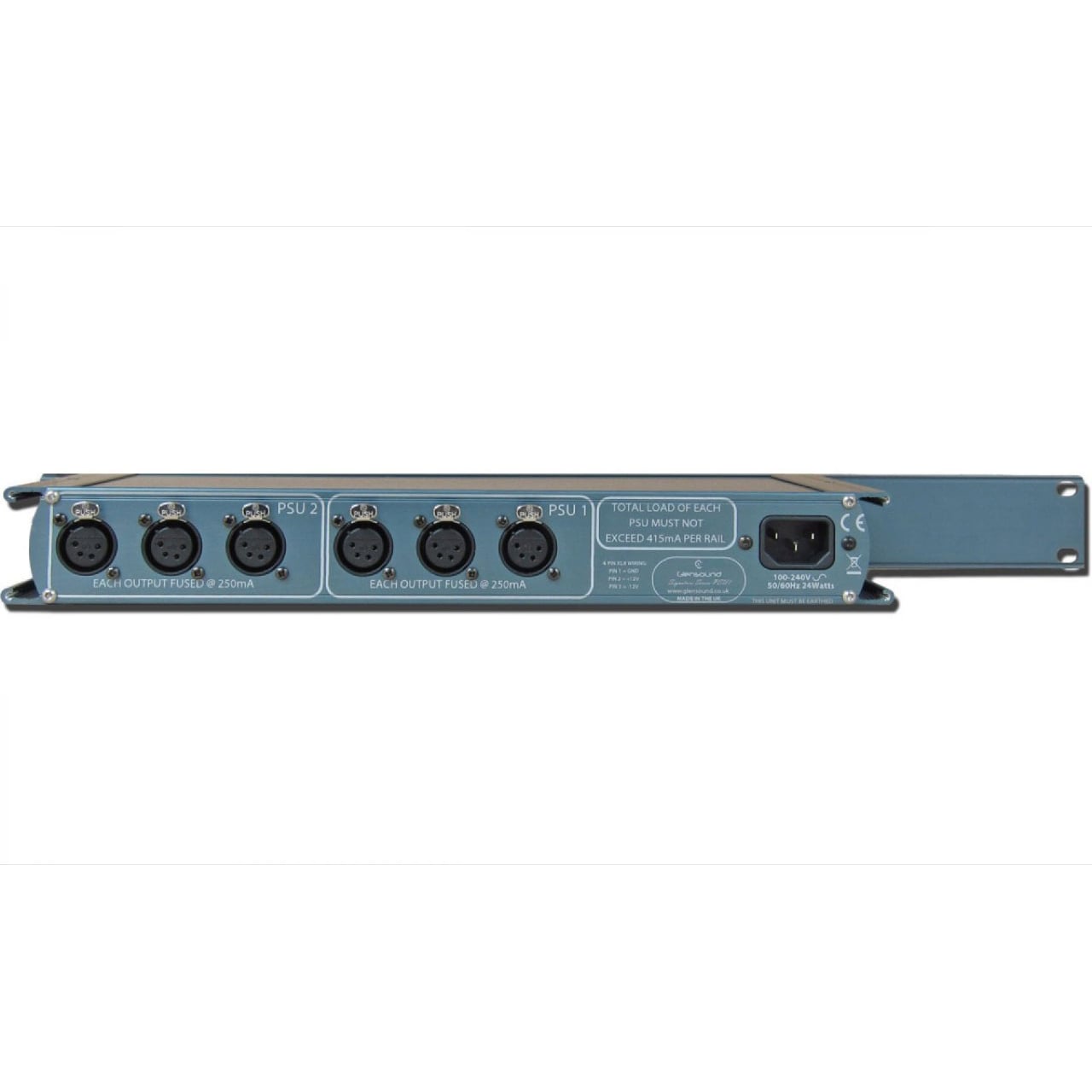

All outputs are individually fused so a short circuit on one will not affect any of the others.
Installation
For ease of installation and to allow quick connectivity to other Signature Series units, every Signature PS1is shipped with 6 x 4 pin XLR DC cables which are each 6.7ft (2m) long.

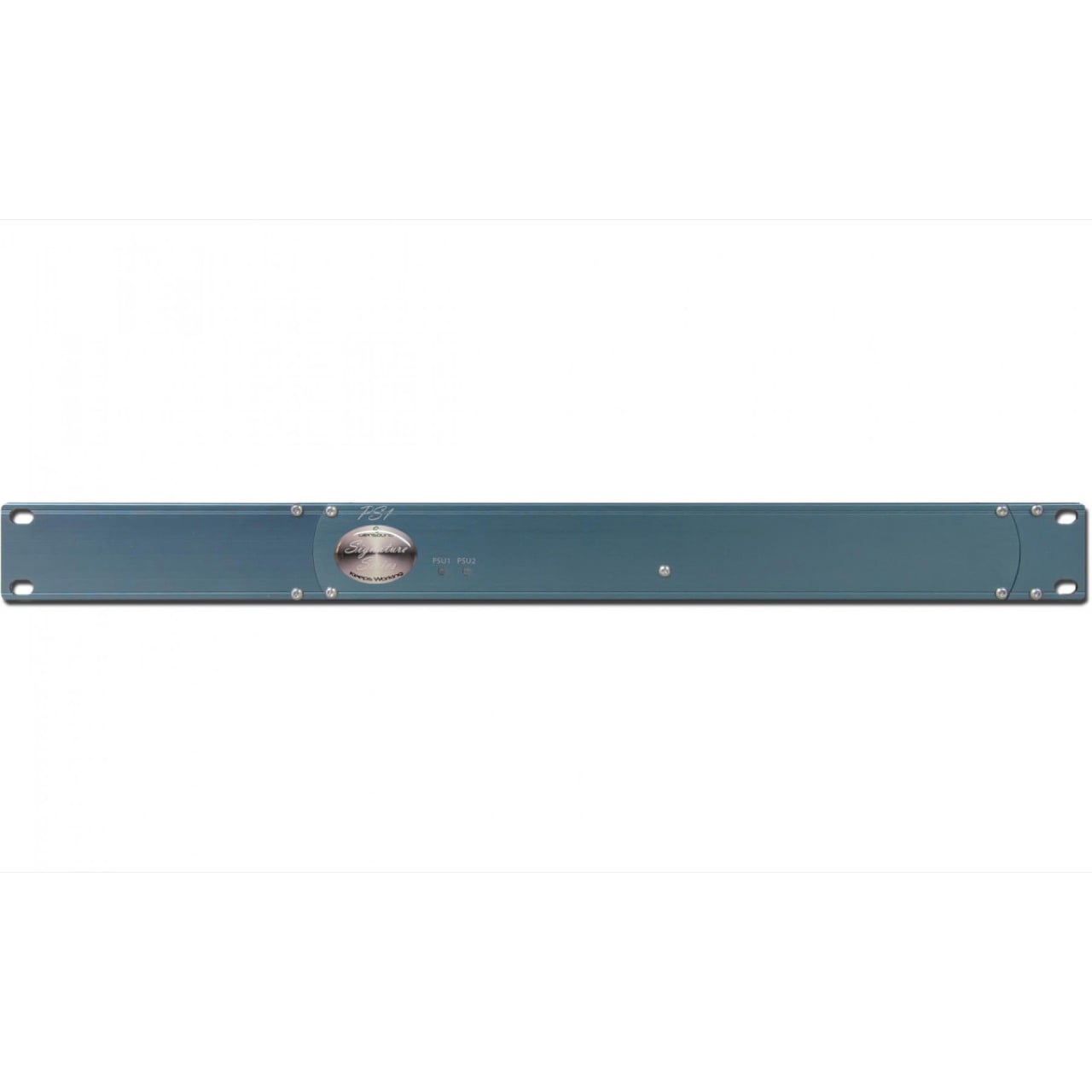

As the PS1 is only 13.23" (336mm) wide without the rack ears, it can easily be installed inside equipment racks, and fixed vertically via the flush mounting side wings. This provides the convenience of power distribution or backup without taking up any rack space.
Please Note: May be delivered with a black finish.
