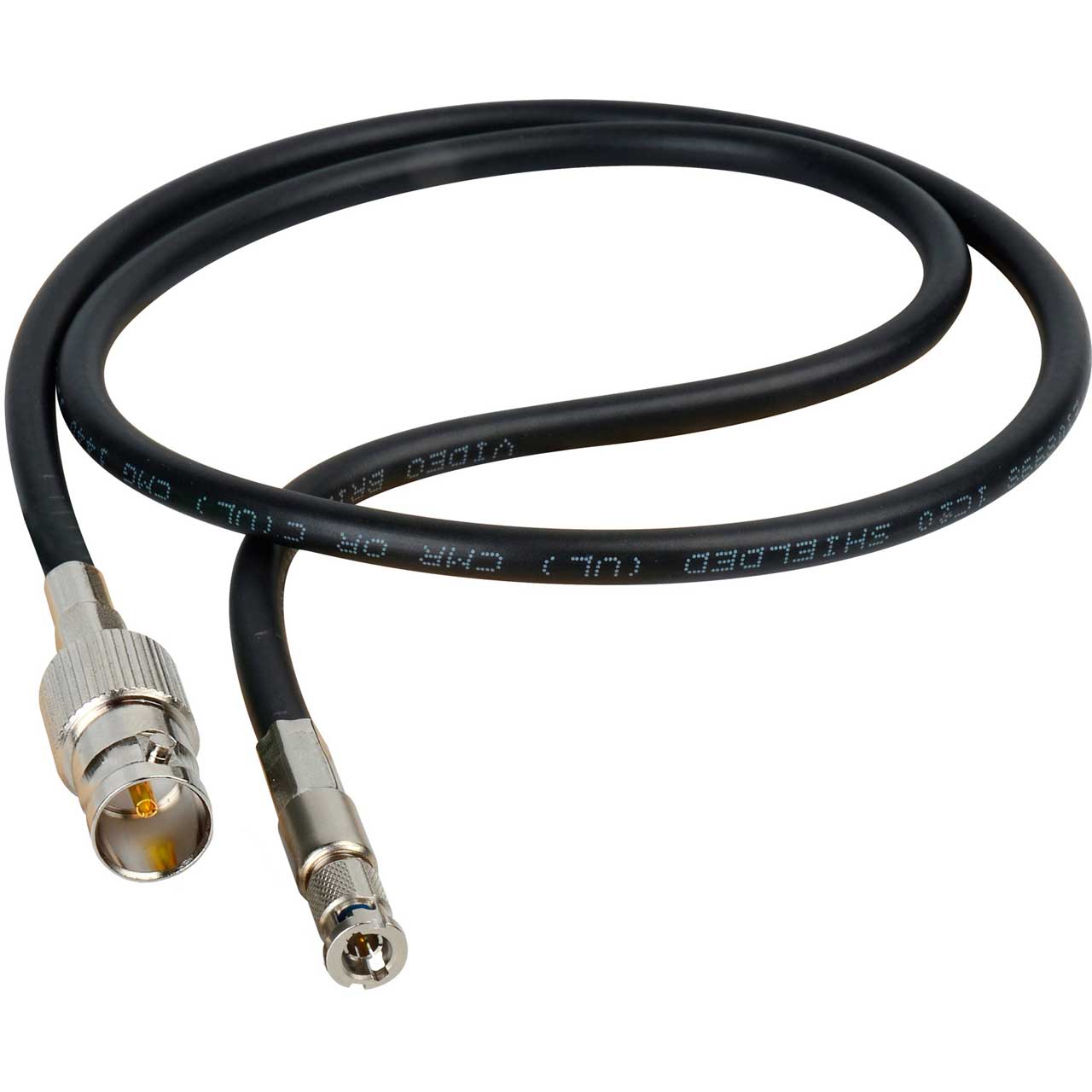

Laird HDBNC1505-BF01 Belden 1505A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 1 Foot

Item #: HDBNC1505-BF01 MFG #: HDBNC1505-BF01

Laird HDBNC1505-BF01 Belden 1505A RG59 HD-BNC Male to BNC Female 6G/HD-SDI Cable - 1 Foot
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$36.49

Our Price:

$23.49

Availability: More on the way, usually ships in 3-10 business days
i

This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    HDBNC1505-BF01 - Overview

    The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless. One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

    HDBNC1505-BF01 - Required Accessories

      HDBNC1505-BF01 - Recommended Accessories
