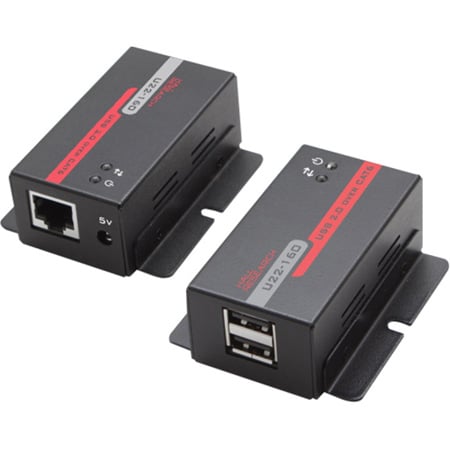

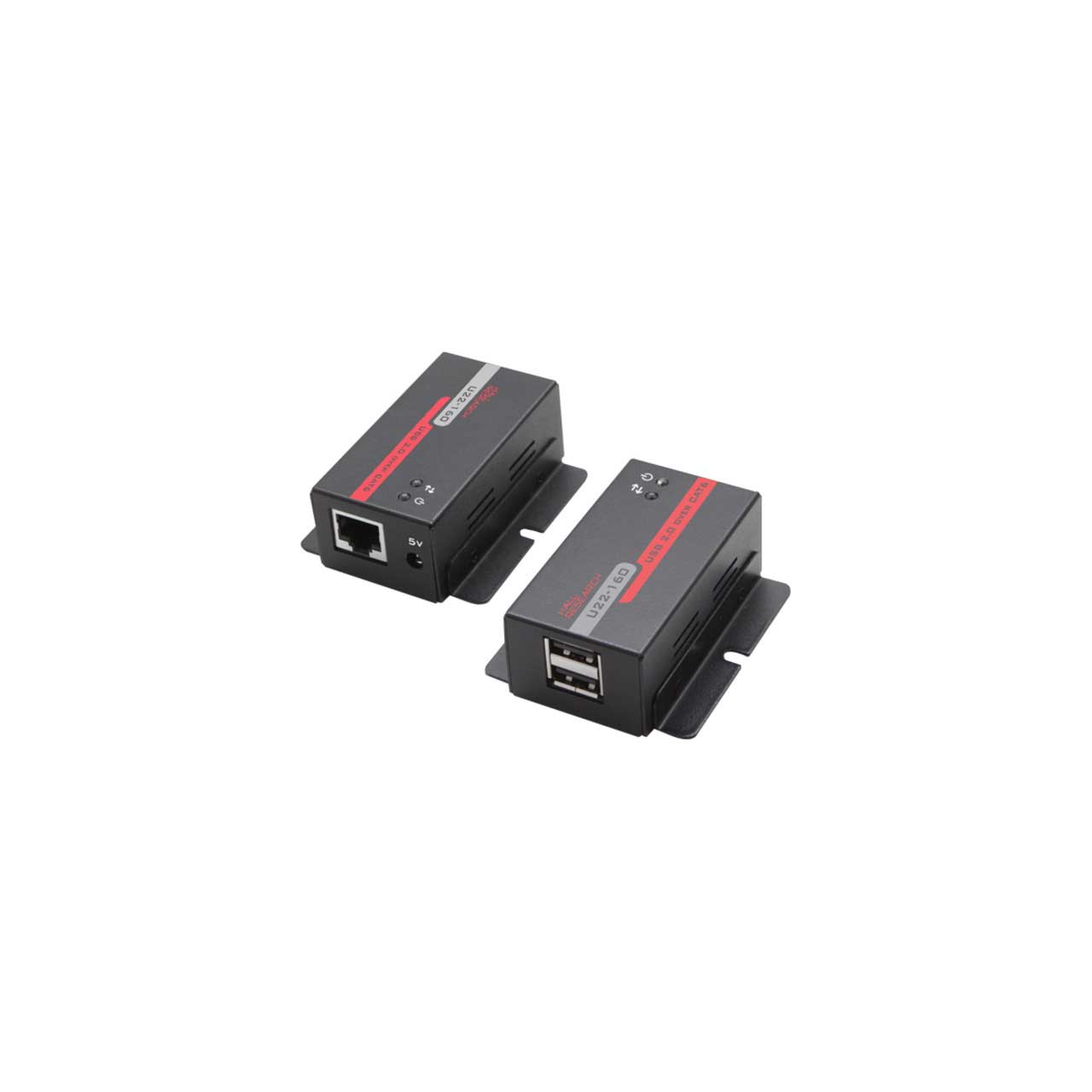

Hall Technologies U22-160 USB 2.0 over UTP Extender with 2 Port Hub

ITEM #: HRT-U22-160 MFG #: U22-160

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$187.55

Our Price:

$178.17

Availability: In Stock
iAvailability Description Popup


    U22-160 - Overview

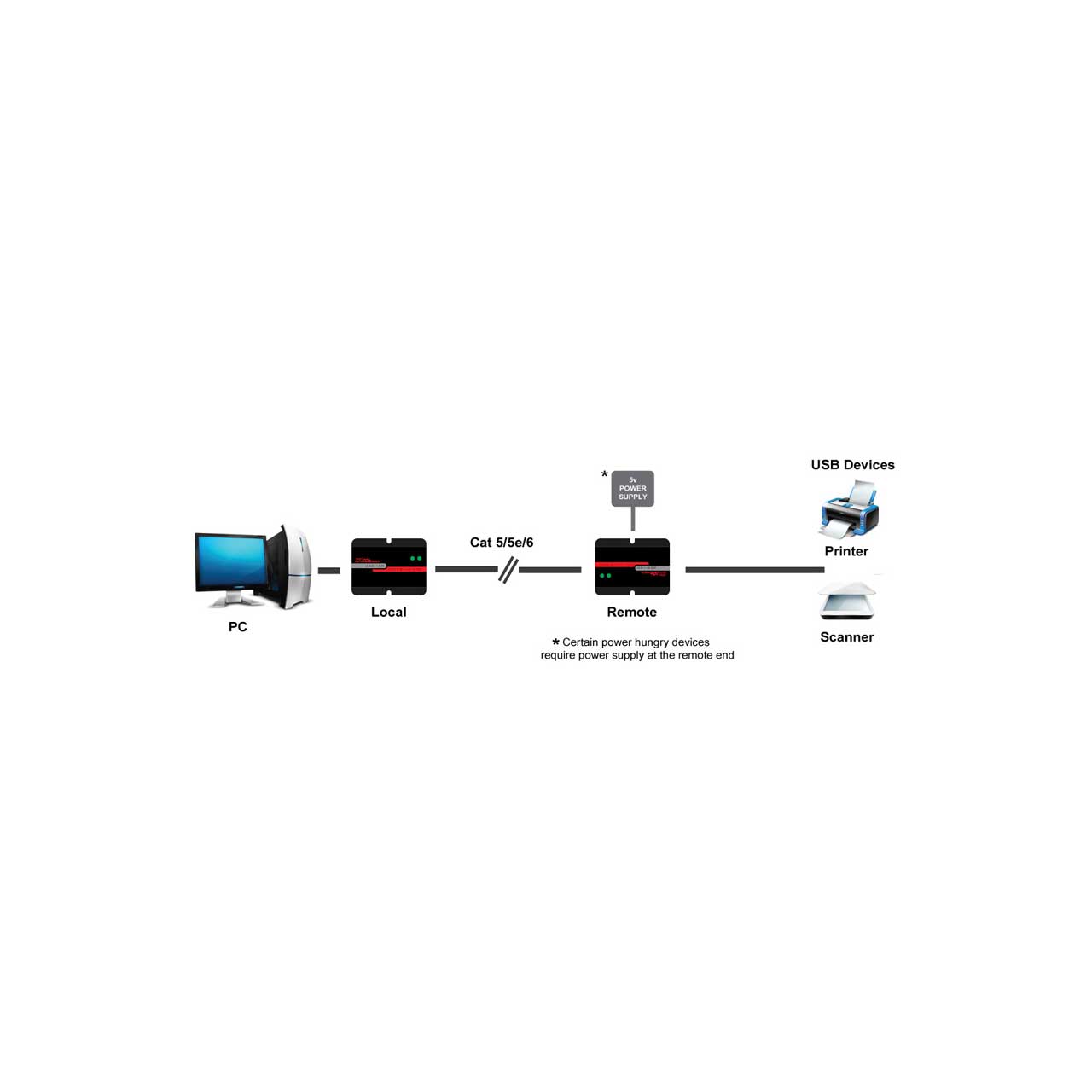

    The Hall Technologies U22-160 extends your host PC's USB 2.0 port across a single Cat5e/6 cable to 50 meters (165 ft) with data rates up to 480 Mb/s. In most instances, no power supply is needed for either side as the local (host) side gets its power from the PC and it sends PoC (Power-over-Cable) to the remote (device) side. However for convenience a power supply is included that can be plugged in to the remote end for power hungry USB devices. The remote end has a two port hub built-in to allow connection of 2 USB Devices.

    The U22-160 is a perfect solution for industrial and commercial applications. This product can be used to extend a broad range of USB devices like webcams, printers, keyboards, and disk drives up to 165 ft (50 m) using single Cat 5/6 cable.

    • Features:

      • Extends USB 2.0 devices up to 165 ft (50 m) using Cat5
      • Supports high-speed, full-speed, and or low-speed devices
      • Status LEDs indicate Power and Data
      • Supports Hot Plug/Unplug
      • Can power most USB devices without power supply
      • Plug and Play installation
      • Surface/Wall mount brackets included

    • Specifications:

      • Bus Interface: USB 2.0
      • Number of Ports: 2 (on the Remote Unit)
      • Local unit: 1 x USB type B female; 1 x RJ45 Ethernet female; 1 x DC Power supply
      • Remote Unit: 2 x USB type A female; 1 x RJ45 Ethernet female; 1 x DC Power supply
      • LEDs: 1 x Power, 1 x Data
      • Max Data Rate: 480 Mbps
      • Max Cable Distance: 50m (165 ft)
      • Cable Type: Cat 5e/6/6a
      • Power Supply: 5V DC 2A
      • Operating Temperature: 32 to 122 °F
      • Operating Humidity: 20% - 80% RH
      • Dimensions (Ends): 2.5 x 1.3 x 0.9 inch
      • Shipping Dimensions: 9.5 x 8 x 3 inch
      • Weight: 1 lbs

    • Item Includes:

      • 1x Hall Technologies U22-160 USB 2.0 over UTP Extender with 2 Port Hub

    • GTIN:

      0724696530275
