NTE Electronics 22 AWG 300V Stranded Hook-Up Wire 100 Foot Spool Blue

ITEM #: HUW-22ST-BE-100 MFG #: WH22-01-100

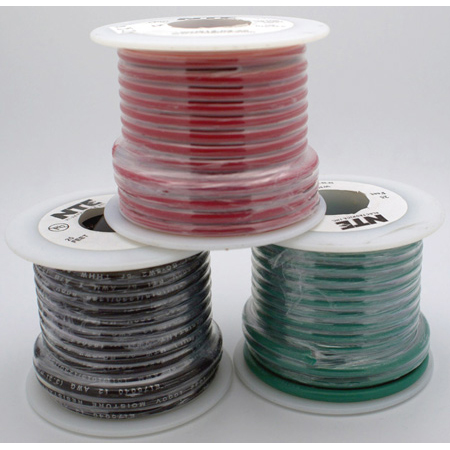

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    WH22-01-100 - Overview

    Every application is critical and wire failure is not an option when the safety of your equipment and personnel is paramount. NTE Electronics hook-up wire was built to withstand harsh environments and crucial applications; since the integrity of your system is only as robust as the products you use! So whether it's as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment, the broad range of hook-up wire from NTE Electronics means you will find the product exactly suited to your application.

    Internal wiring of electrical and electronic equipment
    Internal wiring of panels, meters, computers, business machines, appliances & control panels
    Point to point wiring where 300V required

    • Features:

      • Great for internal wiring of electronic equipment, panels, meters, computers, business machines, appliances & control panels. Point to point wiring wherever 300V is required.
      • UL Style 1007
      • CSA TR-64/1569
      • Passes UL VW-1.S vertical flame test
      • OSHA acceptable
    • Specifications:

      • EU RoHS: Compliant
      • ECCN (US): EAR99
      • HTS: 8544.11.00.30
      • Automotive: No
      • PPAP: No
      • Type: Hook-up Wire
      • Size (AWG): 22
      • Factory Cable Length (m): 30.48
      • Conductor Material: Tinned Copper
      • Insulation Thickness (mm): 0.39
      • Maximum Current Rating (A): 6
      • Maximum Voltage Rating: 300V
      • Maximum Operating Temperature (°F): 194
      • Insulation Color: Blue
    • GTIN:
