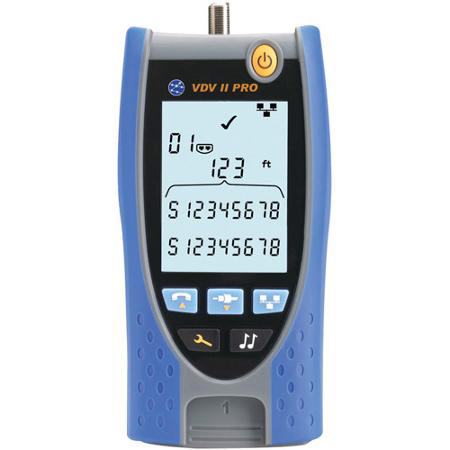

Trend Networks R158003 VDV II Pro Tester - Voice/Data and Video Cable Verifier

ITEM #: IDL-R158003 MFG #: R158003

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the IDL-R158003

R158003 - Overview

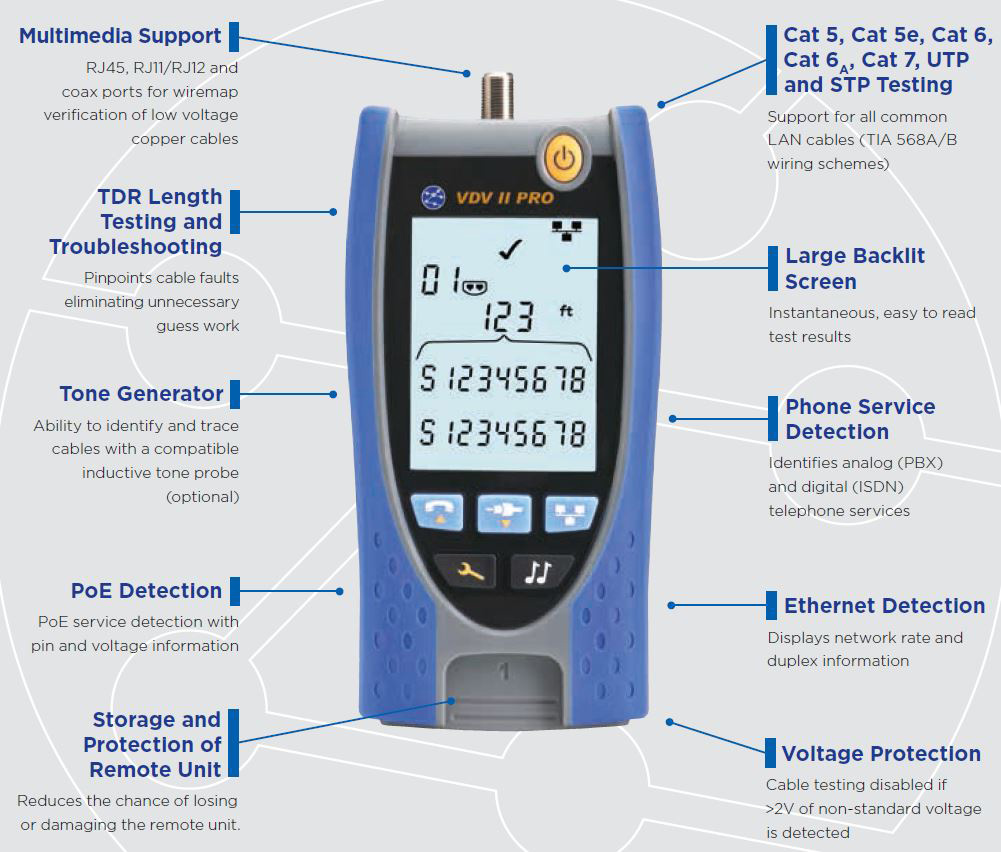

The new VDV II Series are easy to use cable verification testers that check the integrity of copper cables commonly found in domestic, commercial or industrial voice, data or video installations, including telephone wiring, data network and video/security cabling.

Accuracy
The flagship VDV II Pro utilizes a TDR to accurately measure cable length and provide distance to fault information. TDR's work by injecting a signal into the cable and measuring the time for any signal to be reflected back after encountering changes in impedance caused by cable damage, open and short circuits. The recorded time is then translated into an accurate distance measurement. TDR helps to pinpoint where cabling faults occur. This speeds up fault finding as well as minimising disruption and potential damage to fixtures and fixings.

Speed
With comprehensive details on faults such as opens, shorts, reverses, miswires and split pairs, VDV II identifies wiring errors instantly. The integrated RJ11/RJ12 (voice), RJ45 (data) and F-Type (video) connectors allow faster testing of most types of low-voltage cables by eliminating the need for separate testers or adapters.

Intelligence
Connection issues are not always associated with cable faults, so VDV II Pro has the capability to help identify service related issues. By detecting the presence of voltage and checking polarity, VDV II Pro quickly determines which type of media service is running over the cable, such as ISDN, PBX and PoE (Power over Ethernet) resulting in faster fault diagnosis. Troubleshooting active Ethernet networks is also made easier with in-built network detection that displays network rate and duplex information. Furthermore, to prevent potentially costly damage to the tester all VDV II's are smart enough to know when they have been plugged into an outlet where non-standard voltage is present.

  • Features:

    • All standard copper testing including:
    • Coax, 6Pin (RJ-11/12), 8Pin (RJ-45) Input Connectors for Copper Cable Testing
    • Wiremap for Miswires, Split Pairs, Shorts and Opens. Identifies crossover/uplink cables.
    • Analog Tone Generator - 4 selectable tones. Tone by pin, by pair, or by all conductors.
    • Voltage Protection. Unit alerts user to errant/unidentified voltage and prevents damage to tester.
    • Tests Cat 3, Cat 5e, Cat 6, Cat 6A, Cat 7 and STP (shielded) cables.
    • Single Screen Results. All cable tests performed at once with immediate results.
    • 2.7" clear, easy to read display.
    • Larger 2.9" Display
    • Backlight with user selectable timeouts
    • Hub Blink to identify port connectivity
    • Overall, and by pair, cable length measurement including distance to opens to aid in troubleshooting
    • Carrying Case, Adapters & Cables
    • TDR measurement to identify distance to opens and shorts for accurate and advanced troubleshooting.
    • PoE Detection with Voltage, Pin, and Polarity Information
    • Phone Service Detection: PBX / ISDN
    • Ethernet Detection with Network Rate & Duplex Information. Identifies 10/100/1000Mb and Hd/Fd on connected ports/devices.

  • Item Includes:

    • 1 x tester
    • 1 x dual port remote unit
    • 1 x coax remote unit
    • 1 x alkaline battery
    • 1 x multi-language user guide
    • 2 x RJ45 to alligator clip cable 15"
    • 2 x screened RJ45 to RJ45 cable 6"
    • 2 x RJ12 to RJ12 cable 4"
    • 1 x F-type plug to F-type plug cable 9"
    • 1 x F-81 barrel splice
    • 1 x BNC female to F-type male adapter
    • 1 x BNC female to F-type female adapter
    • 1 x RCA female to F-type male adapter
    • 1 x RCA female to F-type female adapter
    • 1 x wallet wiring card
    • 1 x carry case
