IDX IA-70A 70W AC Power Adapter

ITEM #: IDX-IA-70 MFG #: IA-70

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$270.00

Availability: In Stock
iAvailability Description Popup


    IA-70 - Overview

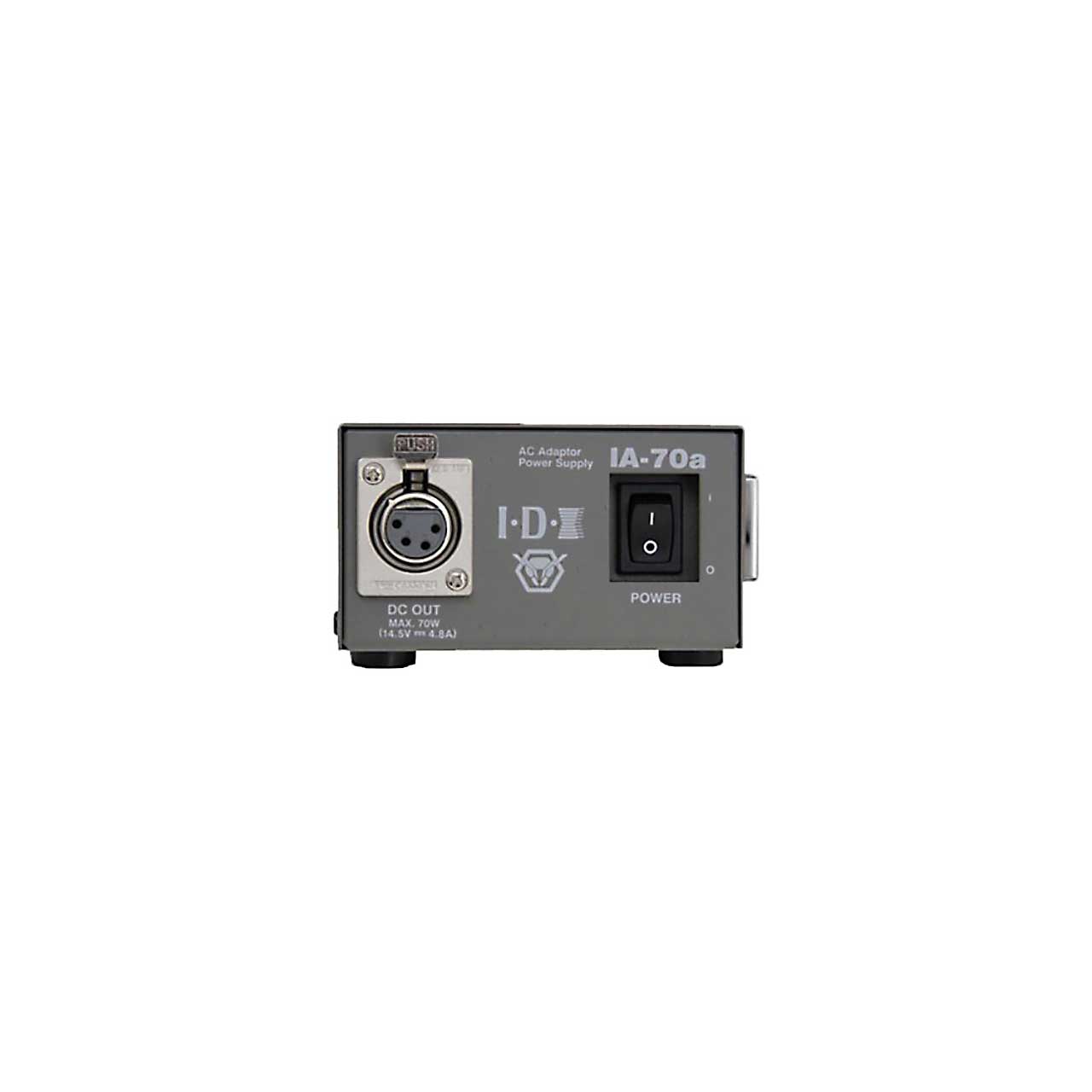

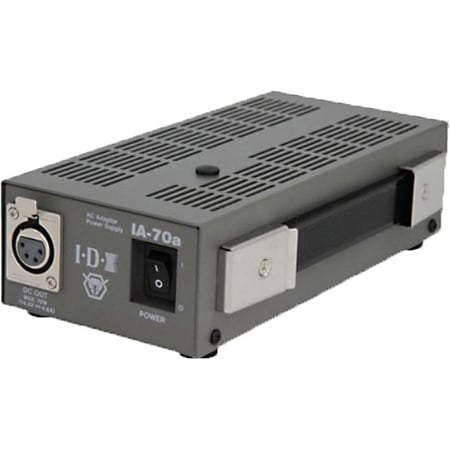

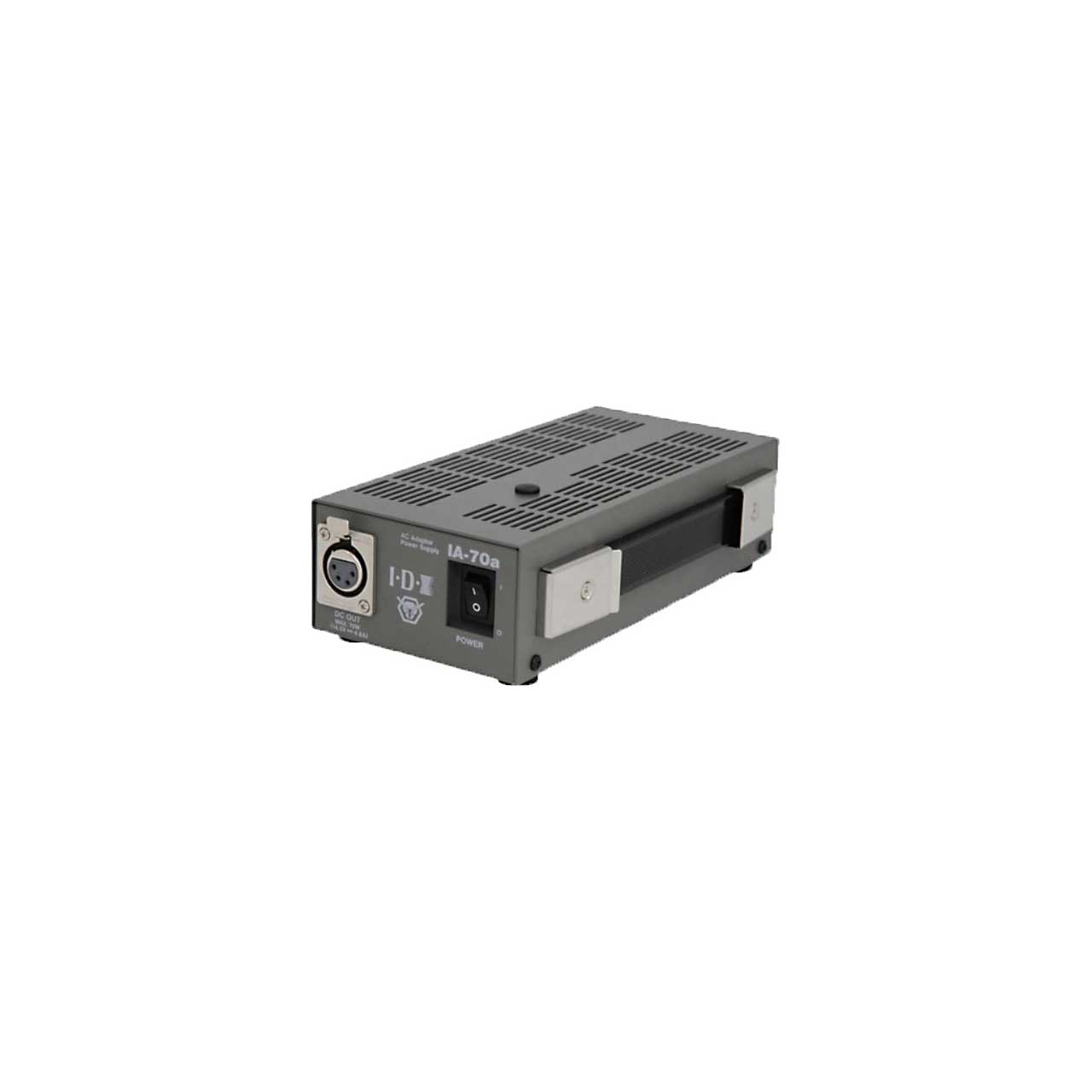

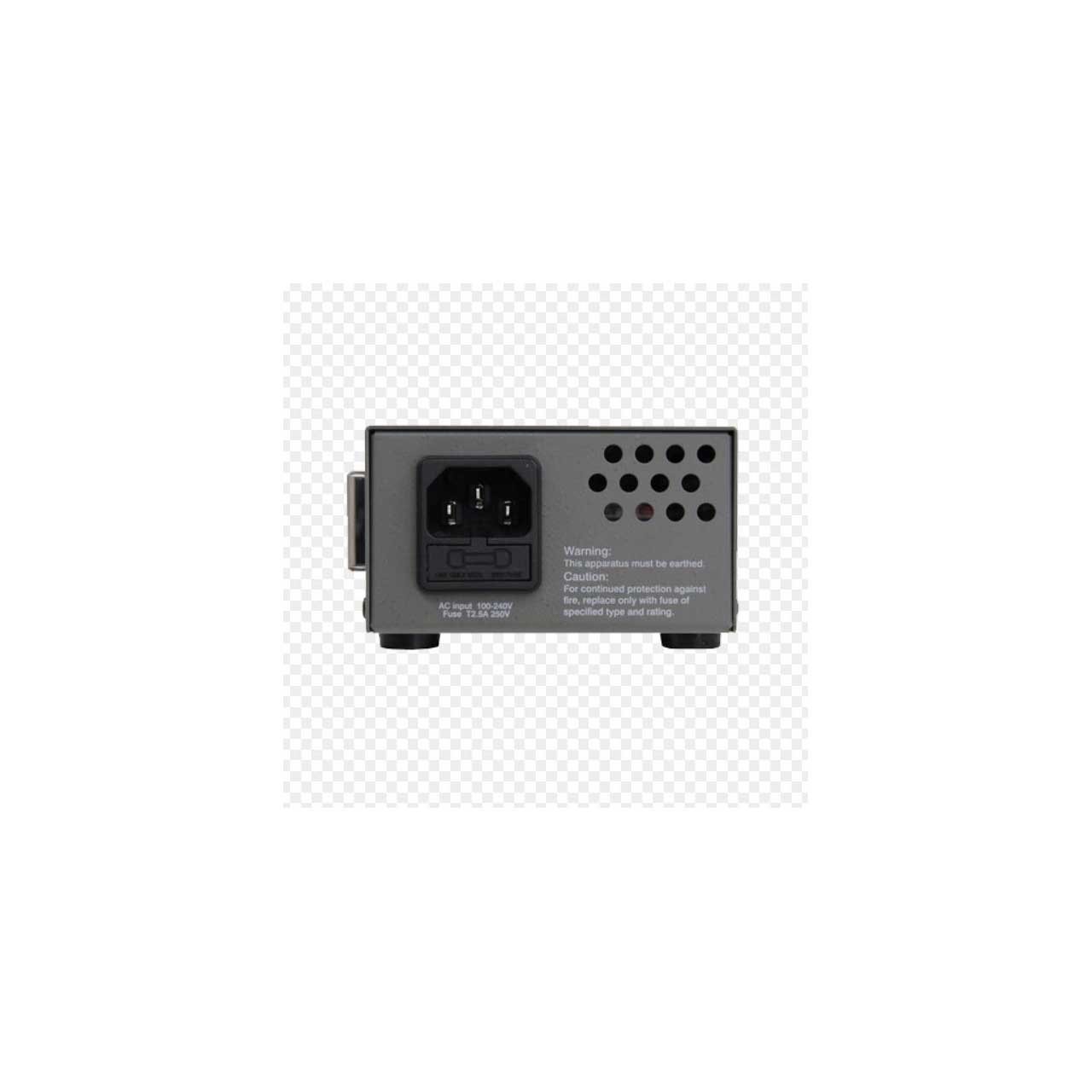

    The IDX IA-70a is a stand-alone camera AC power adapter with 1 XLR Output and 70W output (14.3 to 15.8 volts adjustable). There are many benefits from using the IA-70a which include a lightweight but rugged metal enclosure, built-in carry handle, adjustable output voltage and automatic overload protection. The IA-70a is perfect for powering portable cameras, as well as other broadcast equipment. The IA-70a weighs just 0.74 kg (1.65 lbs) despite an all-purpose rugged metal enclosure. An integrated carry handle is provided for easy handling. The IA-70a also has Universal AC input voltage for worldwide operation. Internal safety features protect the IA-70a from overload damage should an excessive load be drawn. It does this by automatically shutting down to recover. The IA-70a also produces `low ripple noise' to reduce the chances of signal interference with nearby devices. The 4-pin XLR power supply connector cable (10 ft), CA4XLR-B, is sold separately.

    Please Note: This IA-70a is the successor of the IA-60a.

    • Features:

      • 70W 14.5V DC output via a 4-pin XLR connector
      • The IA-70a weighs just 1.65 lbs., despite an all-purpose rugged metal enclosure. An integrated carry handle is provided for easy handling
      • Internal safety features protect the IA-70a from overload damage should an excessive load be drawn. It does this by automatically shutting down to recover. The IA-70a also produces "low ripple noise" to reduce the chances of signal interference with nearby devices
      • Adjustable output voltage from 14.3V to 15.8V
      • Universal AC input voltage for worldwide operation
      • (This IA-70a is the successor of the IA-60a)

    • Specifications:

      • Input Voltage: AC 100-240V 50/60Hz
      • Power Consumption: 170VA max.
      • DC Output: 70W max (14.5V @ 4.8A), Adjustable: 14.3V - 15.8V
      • Protection: Over voltage, Over current, Temperature protection
      • Dimensions (W x H x D): 3.54 x 1.97 x 7.48 inches
      • Weight: 1.65 lbs
