Link Electronics IEC-788 Closed Caption Decoder - PAL/NTSC & S-Video

Item #: IEC-788 MFG #: IEC-788

Link Electronics IEC-788 Closed Caption Decoder - PAL/NTSC & S-Video
  • Product Image Thumbnail
  • Product Image Thumbnail
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price: $716.10

Our Price: $626.80

Availability: Direct Ship from manufacturer, contact us for availability

Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    IEC-788 - Overview

    The IEC-788 is a high performance Closed CaptionDecoder for the NTSC/PAL system. It is capable of processing and displaying all standard closed caption format transmissions. This includes the codes specified by the FCC Report and Order on General Docket No. 91-1 and EIA-608 recommended practices for Captions, Text and XDS.

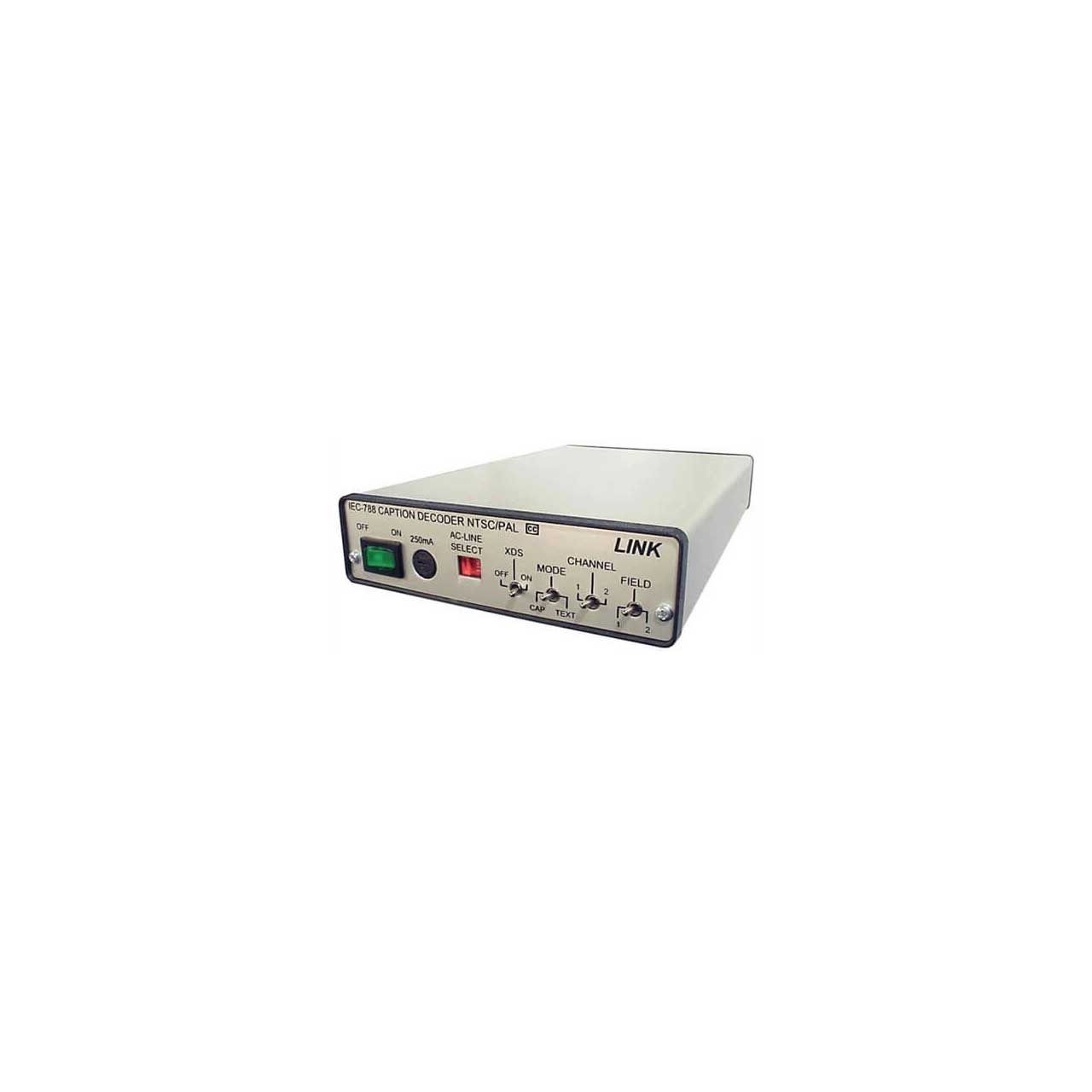

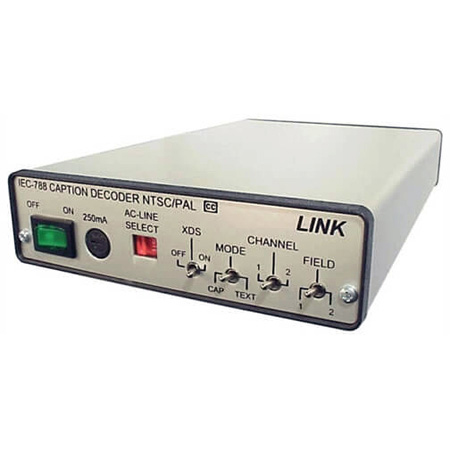

    Nine standard data channels are supported by theIEC-788: Caption channels 1 through 4 (CC1-CC4), Text modes 1 through 4 (T1 through T4), and Extended Data Services (XDS). The various operating modes are selectable from four front panel switches.

    Packaged in LINK's compact 700 Series chassis, the IEC-788 is both rugged and reliable. If desired, it may be rack mounted along side two other 700 Series units of any mix.

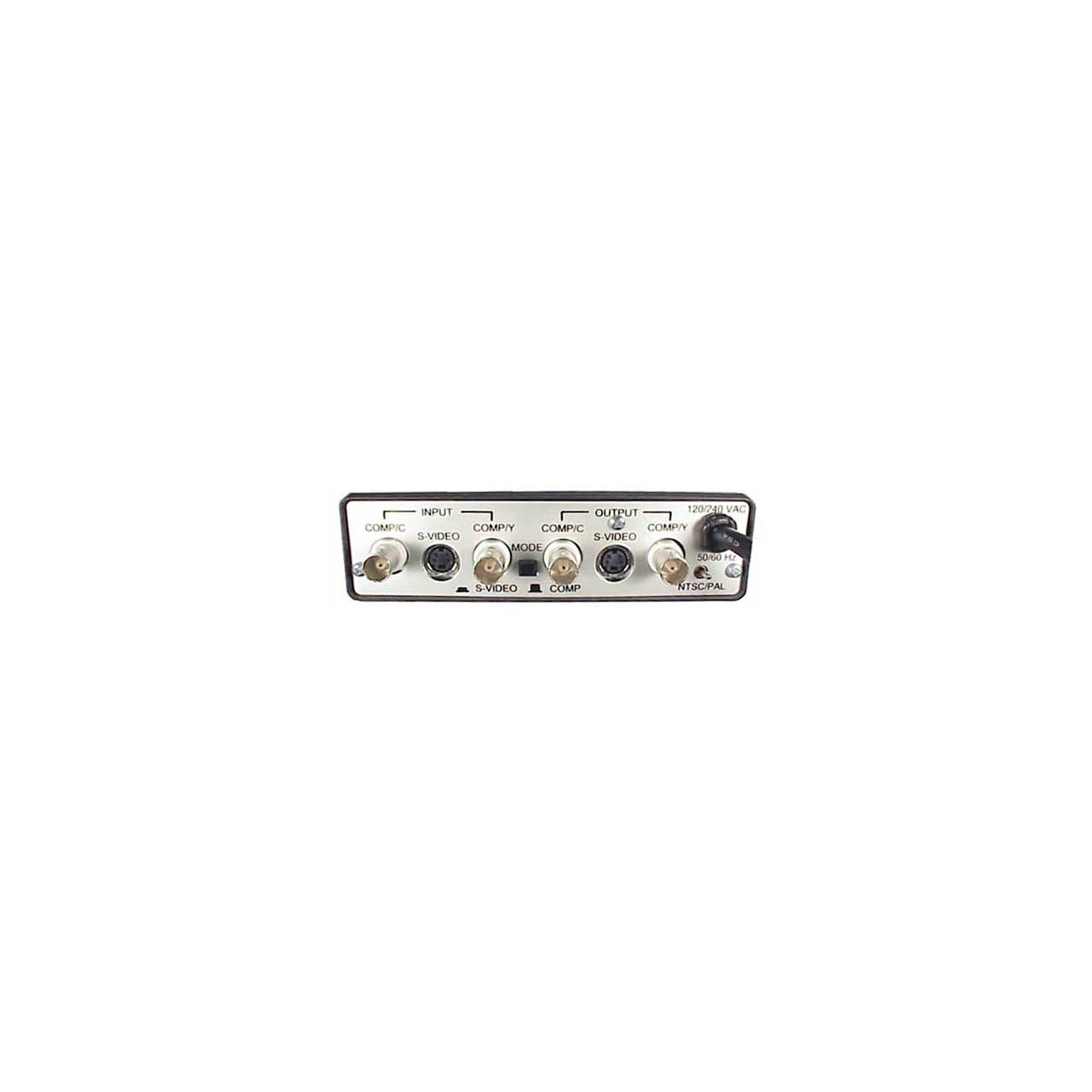

    A switch on the rear panel selects PAL or NTSC and a switch on the front panel selects between 115 or 230VAC.

    Designed with the professional user in mind, the IEC-788 processes composite baseband video orS-Video. The composite video input is high impedance looping and the S-Video is standard levels. A complementary differential input amplifier assures high common mode rejection while its phase-linear keyer cleanly inserts decoded characters into the video image. Differential gain and phase are well within 0.1% and 0.1¿ respectively.

    In addition, the IEC-788 is backed by a standard 10-year warranty. High performance, flexibility, and economy are equally represented in the IEC-788 Closed Caption Decoder.
