E-Image EG65PRO Mitchell Fluid Head and Heavy-Duty Tripod Kit - 143lbs Payload Capacity

ITEM #: IKAN-EG65PRO MFG #: IKAN-EG65PRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$17,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IKAN-EG65PRO - Overview

Payload for Heavy Broadcast Lenses

The E-Image EG65PRO kit centers on the GH65 fluid head with a 143lb (65kg) counterbalance payload capacity, engineered for box lenses, heavy teleprompters, and other heavy-duty accessories in outdoor broadcast and studio environments. Paired with the FILM-Mitchell L tripod rated at 414lb (188kg), this system supports massive camera rigs without compromise.

Precision Fluid Control
Achieve flawless balance with 1-12 counterbalance grades in 72 micro-steps and 0-11 pan/tilt drag settings. A payload switch toggles between 6.6lbs - 94.8lbs and 94.8lbs - 143lbs ranges instantly, while dual GB6 pan bars and labeled dials ensure intuitive operation under pressure.

Extended Height and Rock-Solid Stability
Adjust working height from 45.5" - 78.3" (115.5cm - 199cm) using the one-stage aluminum tripod with metal mid-level spreader. CNC steel spike feet and super-locking leg clamps deliver unshakable footing, even with 414lbs loads.

All-Conditions Professional Features
Operate from -22°F to 140°F with an illuminated bubble level (auto-off), tilt safety locker, and ⅜" accessory mounts. At 26.6lbs total weight, the EG65PRO combines rugged durability with broadcast-grade performance.

  • Features:

    • 143lbs (65kg) Payload
    • 1-12 Counterbalance (72 Micro-Steps)
    • 0-11 Pan/Tilt Drag
    • Mitchell Detachable Base
    • 6" (152mm) Sliding QR Plate
    • 45.5" - 78.3" (115.5cm - 199cm) Height Range

  • Specifications:

      Full Tripod Kit
    • Fluid Head: GH65 with Mitchell Base
    • Tripod: FILM-Mitchell L
    • Payload: 143lbs (65kg)
    • Safety Payload: 154lbs (70kg)
    • Bowl Size: Mitchell Base
    • Height Range: 45.5" - 78.3" (115.5cm - 199cm)
    • Transport Length: 51" (129.5cm)
    • Net Weight: 57.4lbs (26.1kg)
    • Bag: Head (PC-5065 safety box), Tripod (FILM CASE L hard case)
    • Spreader: Ground Spreader

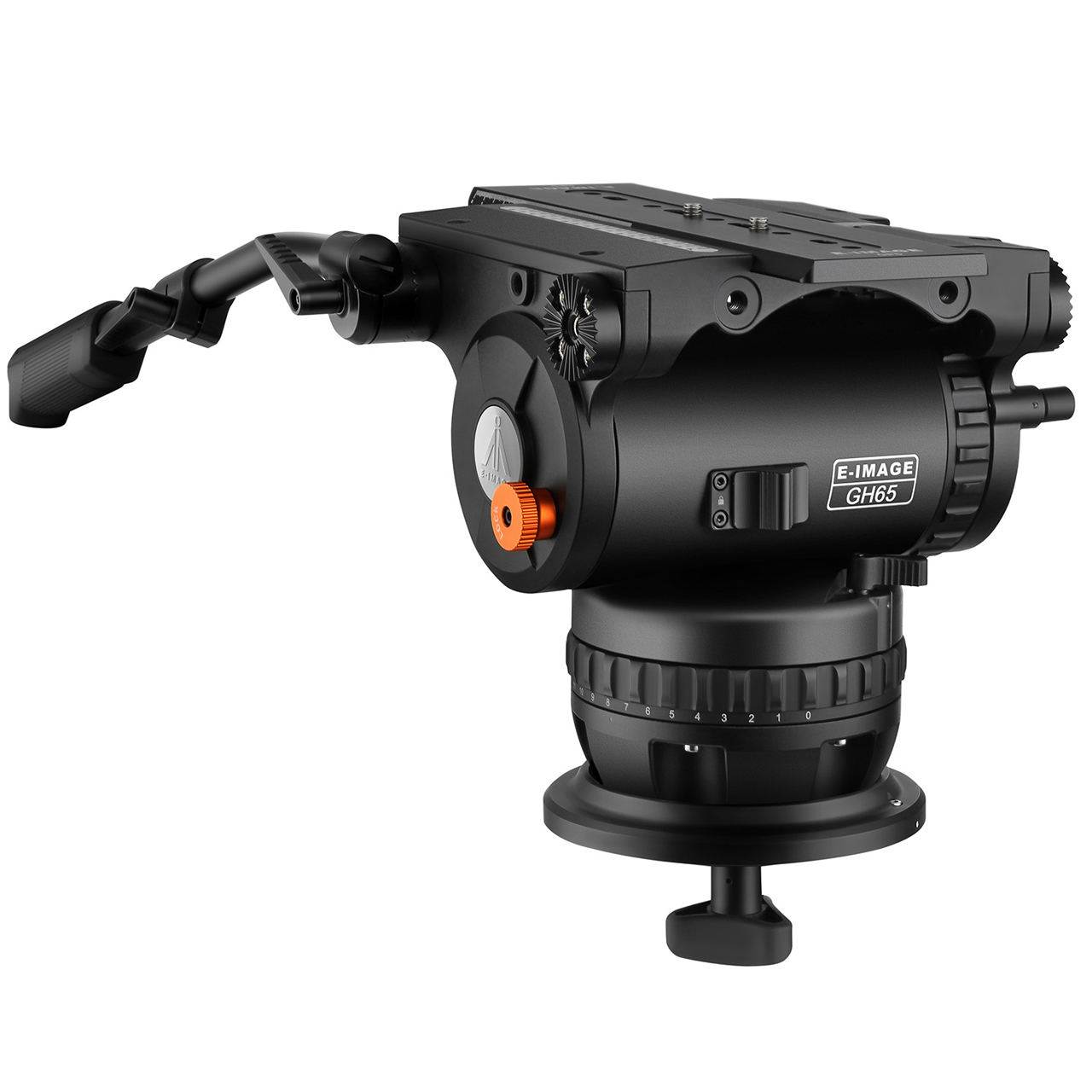

      GH65 Fluid Head
    • Payload Range: 6.6lbs - 143lbs (3kg - 65kg)
    • Net Weight: 26.6lbs (12.1kg)
    • Bowl Size: Mitchell Base
    • Counterbalance: 1-12 grades of counterbalance with micro counterbalance, total 72 steps
    • Grades of Pan Drag: 0-11
    • Grades of Tilt Drag: 0-11
    • Tilt Range: -75° - +90°

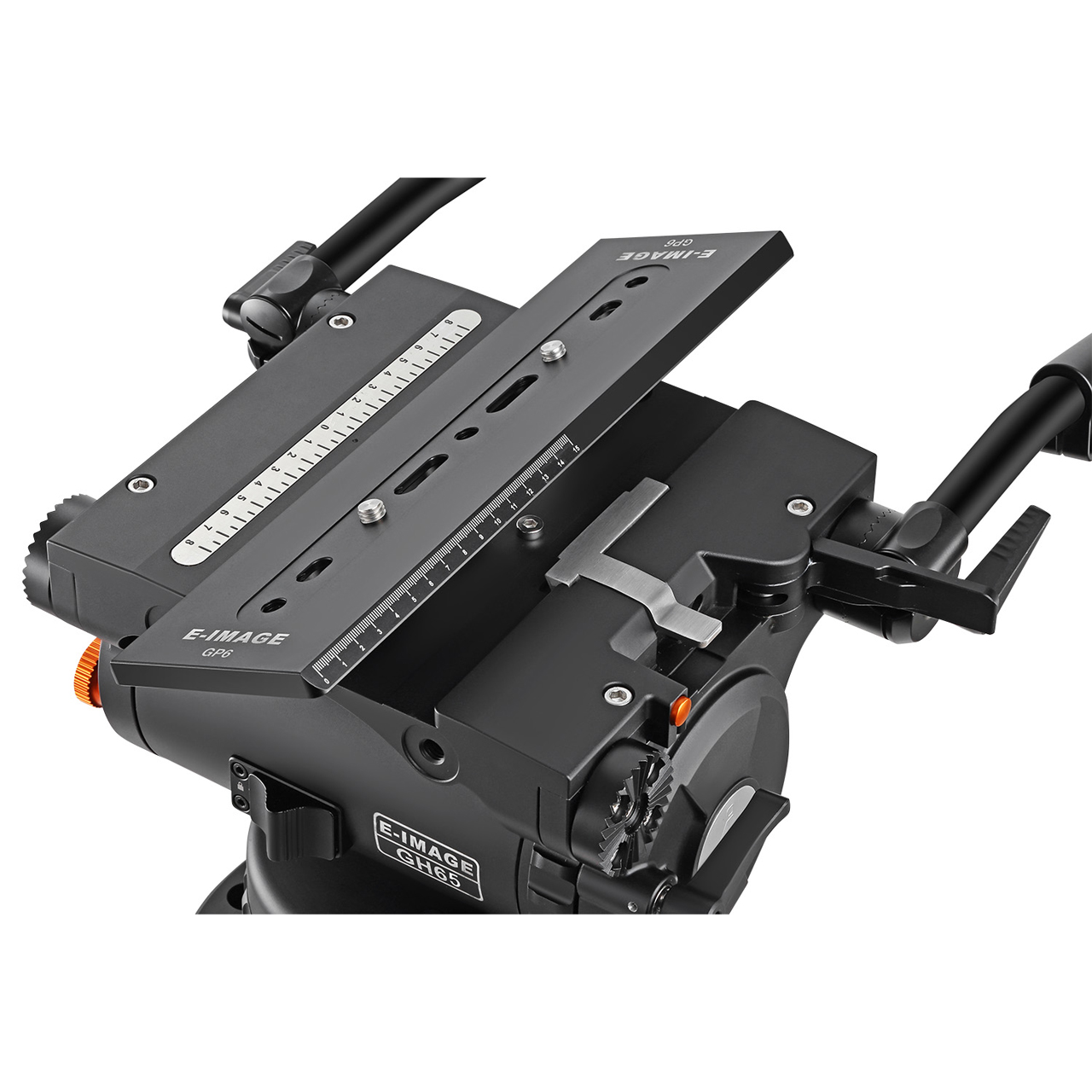

    • Camera Plate: GP6 sliding plate
    • Slide Length: 5.98" (152mm)
    • Pan Bar/Number: GB6/2pcs
    • Bubble Level/Illuminated Bubble Level: Yes/Yes

      Tripod Legs
    • Payload Range: 414lbs (188kg)
    • Net Weight: 30.8lbs (14kg)
    • Bowl Size: Mitchell Base
    • Sections: 2
    • Height Range: 35.0" - 67.9" (89cm - 172.5cm)
    • Transport Length: 40.6" (103cm)
    • Min. Radius: 16.1" (41cm)
    • Max. Radius: 24.8" (63cm)
    • Material: Aluminum

  • Item Includes:

    • 1x GH65 Fluid Head
    • 2x Panhandles
    • 1x Mitchell Film Tripod

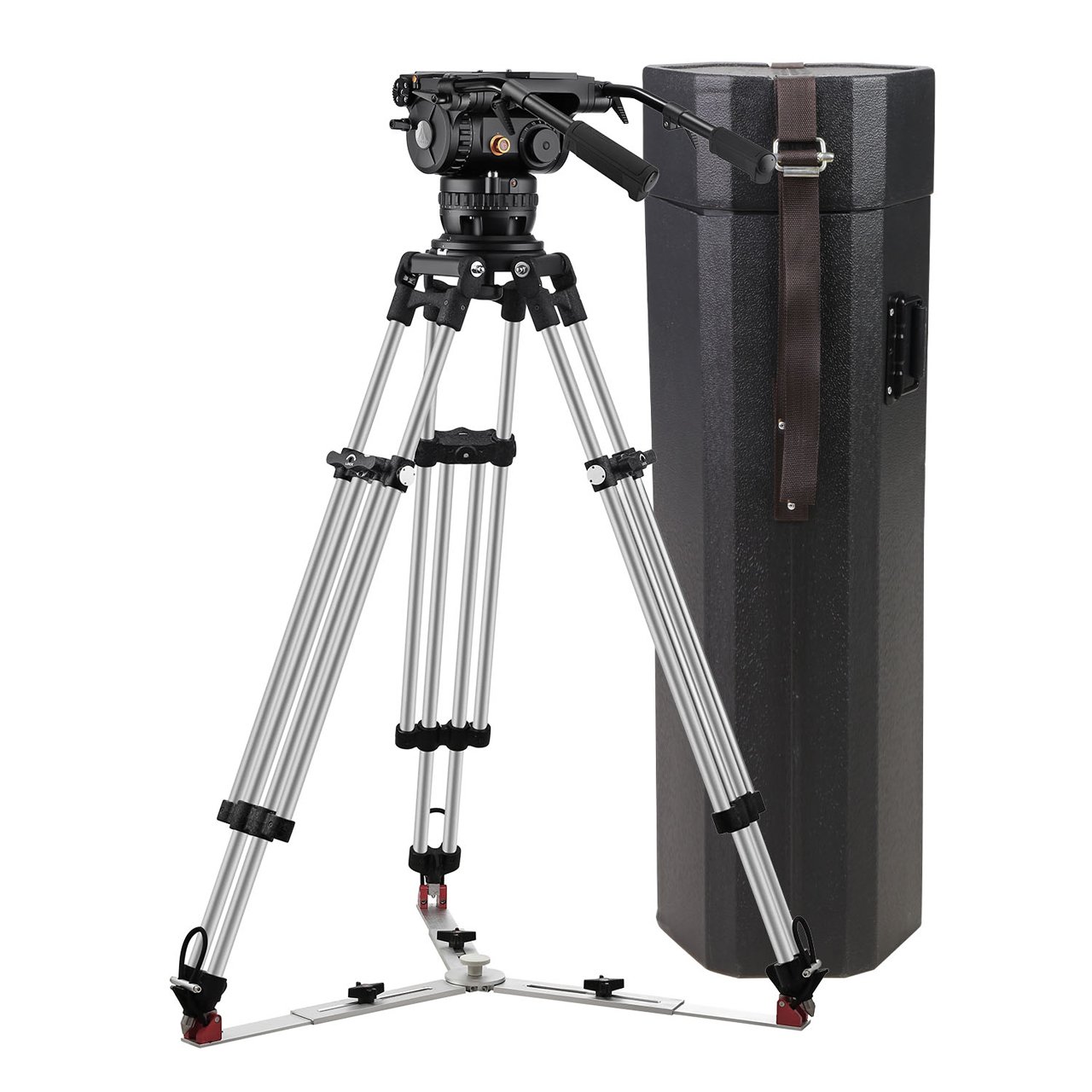

    • 1x Hard Carrying Case
    • 1x Mounting Screws

  • Warranty:

    • 1 Year Limited Warranty
