E-Image EP880XK Air Assist Carbon Fiber Pedestal/150mm Fluid Head/Dolly Kit - 88 lbs Payload with Counterbalance & Drag

ITEM #: IKAN-EP880XK MFG #: EP880XK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$14,999.00

Availability: Preorder
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


EP880XK - Overview

The E-Image EP880XK Pneumatic Pedestal Kit is designed for broadcast camera operators who require heavy payload capacity and tight counterbalance. This pedestal system has a counterbalance payload of 88 lbs and will carry an ENG camera with a box lens and servo controls.

Drag/Counterbalance

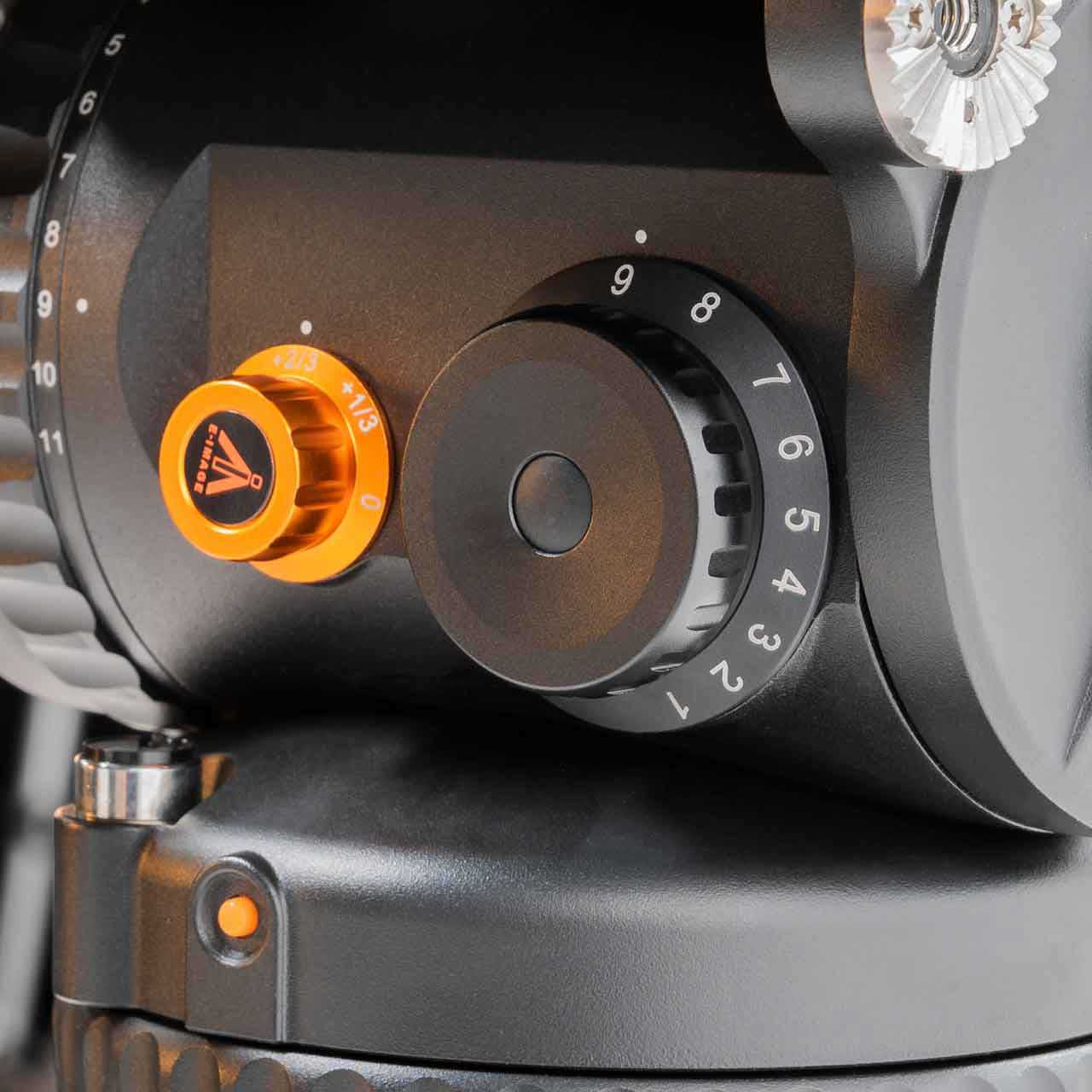

The fluid head features 9x micro counterbalance settings (3 steps), a payload switch (2 steps) for a total of 54-steps of adjustable counterbalance system. The system also offers 11 steps of pan & tilt drag.

Pneumatic Pedestal
The Pneumatic Pedestal includes the E-Image Mono-Lock leg design and the Easy Lock base plate system. The pedestal system, without the fluid head mounted, can support payloads weighing up to 110 pounds. This pneumatic pedestal includes an air release to achieve the perfect balance of the center column.

150mm Bowl
The fluid head includes a 150mm bowl mount with a twist lock to secure the teleprompter and camera payload.

Slide Range
The 205mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 8 inches of sliding range to counterbalance your entire teleprompter and camera setup.

Dual Panhandles
The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7" to 24"

Carbon Fiber Legs
The pedestal features dual carbon fiber legs for each section. When mounted onto the heavy-duty dolly, these pedestal legs can provide support up to 110 lbs.

Versatile Dolly Shots

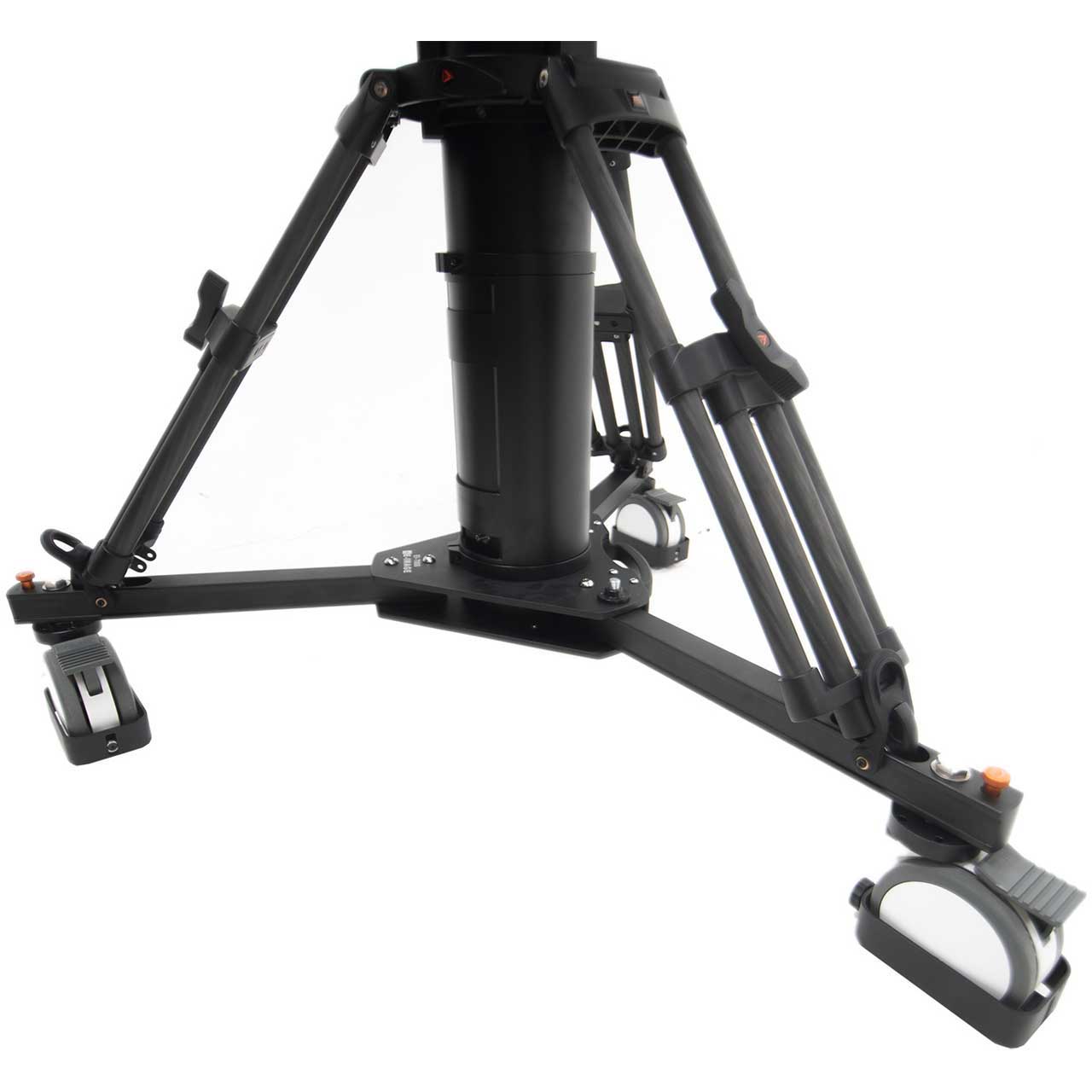

The dolly base has track lock wheels to maintain direction during complex dollying and tracking shots. By locking the wheels in certain positions, radial arc shots can also be achieved.

  • Features:

    • Supports 88 lbs. Camera Payload
    • 54 Steps of Counterbalance/ 11 Steps of Pan & Tilt Drag
    • 150mm Riser Bowl
    • Pedestal Working Height Range 40.1 - 64.6"
    • Pneumatic Telescoping Center Column/ On-Shot Stroke: 15"
    • Two-Stage Carbon Fiber Tripod Legs
    • Heavy Duty Telescoping Pan/Tilt Arms
    • Collapsible Dolly w/ Track Lock Wheels & Cable Guards

  • Specifications:

    • Pedestal
    • Bowl Size: 150mm
    • Payload Capacity: 88 lbs
    • Height Range: 49.1 - 73.6 in
    • Build Material: Legs: Carbon Fiber / Column: Aluminum / Riser: Cast Iron
    • Net Weight: 102.3 lbs
    • On-Shot Stroke: 15 in
    • Steering Ring Diameter: 12.04 in

      Fluid Head
    • Head Payload Capacity: 88.2 lbs
    • Bowl Size: 150mm
    • Counterbalance System: 54 Steps
    • Pan Drag Settings: 0-11
    • Tilt Drag Settings: 0-11
    • Tilt Lock: Thumb Lock
    • Tilt Range:: -70°/+90°
    • Bubble Level: Yes- Illuminated
    • Pan Handle Length Range: 15.6 in. - 23.4 in
    • Net Weight: 19.4 lbs
    • Net Weight w/ Pan Handles: 11 lbs
    • Sliding Plate Range: 8 in
    • Temperature Range: -40°F - 176°F

      Dolly
    • Net Weight: 23.6 lbs
    • Footprint Diameter: 39.4 in
    • Height: 8.4 in
    • Radius: 19.7 in
    • Wheel Width: 3.9 in
    • Lockable Wheels: Yes
    • Build Material: Legs: Aluminum / Wheels: Rubber / Screws: Steel
    • Payload: 220.5 lbs

      Other
    • Shipping Weight (lbs): 165.6
    • Shipping Dimensions (in): Box 1: 22x18x18" Box 2: 45x22x22" Box 3: 32x25x12"

  • Item Includes:

    • 1x EP880X Pneumatic Pedestal Base
    • 1x GH40 Plus Fluid Head
    • 1x EI-7008 Heavy Duty Dolly
    • 2x GB4 Panhandles
    • 1x Center Support Column
    • 1x Air Pump
    • 1x Rolling Hard Case for EP880X Pedestal
    • 1x Soft Carrying Case for EI-7008
    • 1x Allen Wrench Set

  • Warranty:

    • 1-Year Limited

  • GTIN:

    0847983034765
