ikan EVF50-KIT 5 Inch 4K Support HDMI EVF LCD Monitor Kit with Canon E6 Battery Plate

ITEM #: IKAN-EVF50-KIT MFG #: EVF50-KIT

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the IKAN-EVF50-KIT

EVF50-KIT - Overview

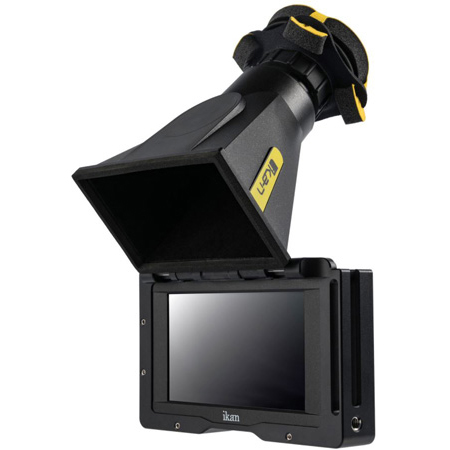

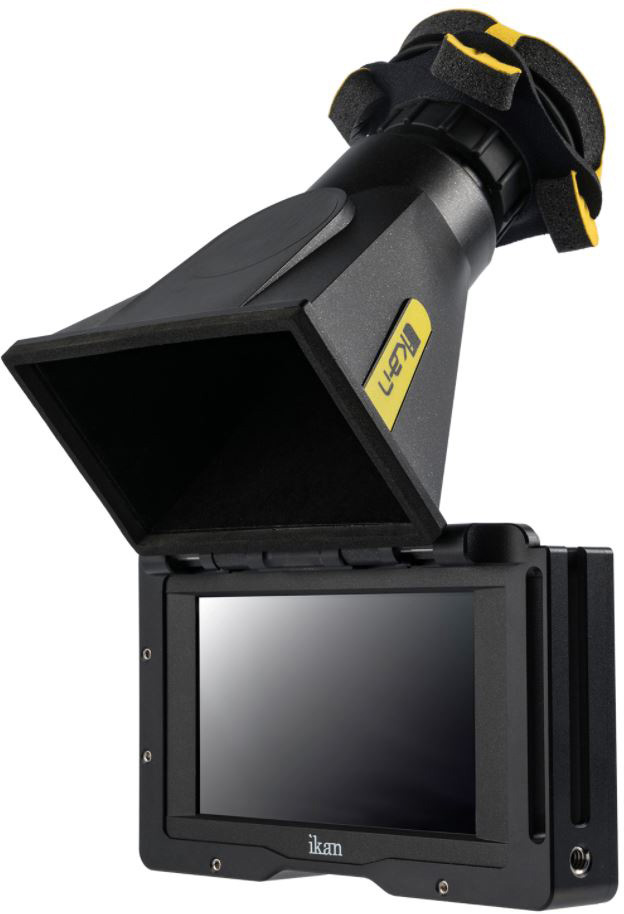

The EVF50-KIT takes the popular DH5e monitor and makes it even better. This kit adds an aluminum form-fitting cage with a built-in high quality viewfinder. The cage adds protection for the monitor as well as additional 1/4-20 mounting points and cable locks. The viewfinder is able to easily flip up and includes a Bluestar Ultrasuede eye cushion that provides function and comfort. The monitor supports 4K and includes a super sharp 1920x1080 screen with HDMI inputs and outputs.

  • Features:

    • 1920 x 1080 Full HD LCD Panel
    • DCI 4K & Ultra HD Support via HDMI
    • DH5e with Cage and Viewfinder Kit
    • Form Fitted Aluminum Cage
    • High Quality Viewfinder with Diopter
    • Pinch to Zoom Pixel to Pixel Function
    • Histogram and Audio Meters
    • 2.5mm Audio Output Image Flip
    • Includes Canon E6 Battery Plate

  • Specifications:

    • HDMI: 720x480i & 720x480p @ 59.94, 60 Hz
    • 720x576i @ 50 Hz
    • 1280x720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
    • 3840x2160p @ 24, 25, 30 Hz
    • 4096x2160p @ 24 Hz
    • Aspect Ratio: 16 x 9
    • Backlight: LED
    • Brightness: 450 cd/m2
    • Build Material: Heavy Duty Plastic & Aluminum
    • Color Depth: 16.7 Million
    • Color System: PAL/NTSC/SECAM (Auto-Detected)
    • Contrast Ratio: 1000:1
    • Dimensions: 5.5 x 3.2 x 0.7 in.
    • Dimensions (Metric): 142 x 82 x 20 mm
    • Input Voltage: DC 7V - 24V
    • Inputs: HDMI
    • Operating Temperature: 0°C ~ 50°C (32°F ~122°F)
    • Outputs: HDMI
    • Pixel Pitch: 0.01925×0.05775 (mm)
    • Power Consumption: 6W
    • Resolution: 1920 x 1080
    • Response Time: 20ms
    • Screen Size: 5 in.
    • Shipping Dimensions: 16 x 8 x 8 in.
    • Shipping Weight: 4 lbs
    • Viewing angle: 160° horizontal/160° vertical
    • Weight : .2 lbs (Monitor) .76 lbs (Cage)

  • Item Includes:

    • AC Adapter
    • Bluestar Eye Cushion
    • Canon E6 Battery Plate
    • DH5e Monitor
    • Monitor Cage W/ Viewfinder
    • Screen Cleaning Wipe
    • Screen Protection Film
    • Sunhood

  • Warranty:

    • 1 Year

  • GTIN:

    0847983025091
