    GA230-PTZ - Overview

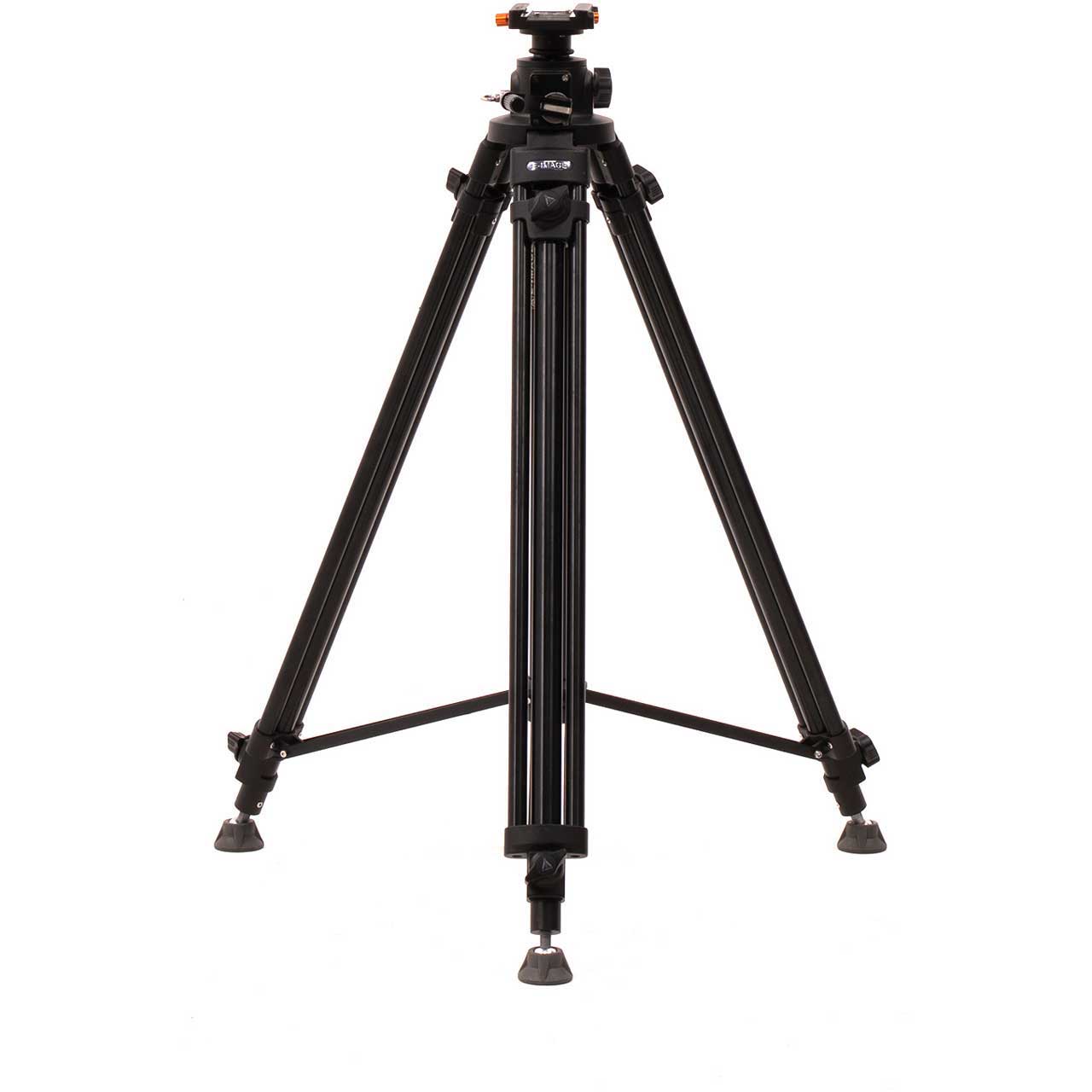

    The ikan GA230-PTZ from E-Image combines a durable Aluminum Tripod with a Quick Release Plate for an ideal solution for your PTZ camera. This tripod is designed for steady use, light-to-moderate loads, and a super-wide height range.

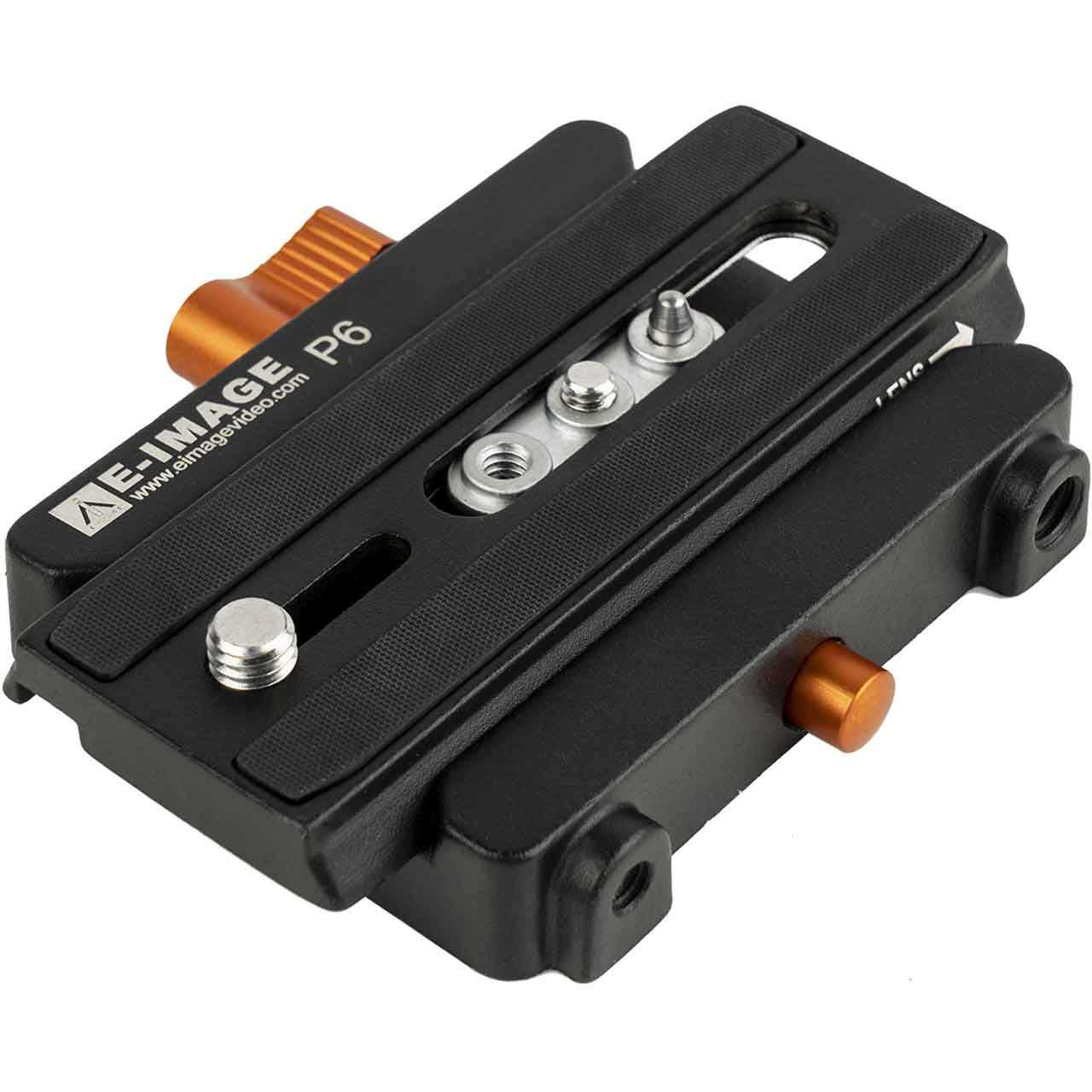

    While a tripod is still absolutely necessary, using a PTZ camera eliminates the need for a fluid head. The GA230-PTZ replaces the fluid head with a P6 Quick Release Plate to ensure stability.

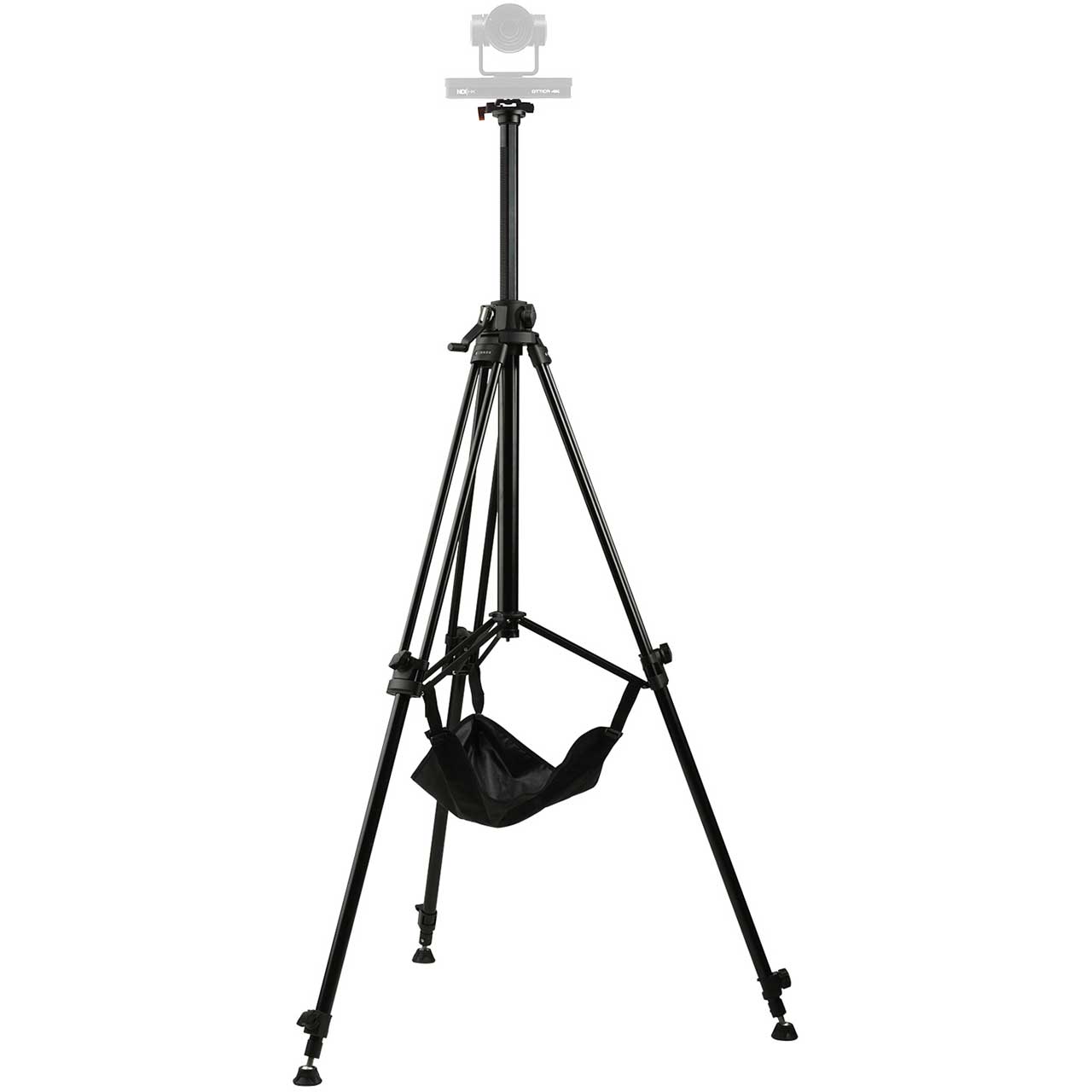

    The geared center column of the tripod can extend 18" and lock in place for high-angle shots. This tripod has a height range of 33.25" to 92", and is topped off by a flat mounting base with a 3/8-16 threaded screw.

    The GA230-PTZ can hold up to 26.5 lbs and comes packaged with a flat quick release plate for extra stabilization. Also included is a camera plate that can slide forward or backward before being secured by the lock-down lever. Additionally, a safety release ensures that the camera won't fall off the plate if it's not secured. The camera plate is also interchangeable with Manfrotto 501 plates. A stone bag is also included to weigh down your tripod for added stability.

    A threaded 1/4"-20 mounting recess is conveniently located at the base of the central column for mounting accessory arms. These will allow for mounting wireless transmitters, lights, or especially monitors, which you might need if your camera is set at the tripod's full extension. Additionally, the quick-release plate itself also includes two mounting recesses; a 1/4"-20 thread and a 3/8"-16 thread. These would be ideal for mounting lighter accessories like a shotgun mic, LED light, or any other accessories you might need.

    The quick release plate incorporates a bubble level to assure proper head alignment when shooting.

    • Features:

      • Convenient Tripod for PTZ Camera Setups
      • Extra-Tall Tripod Legs with Geared Rising Center Column
      • Maximum Height of 92", Minimum Height of 33.25"
      • Recommended Payload of 26.5 lb.
      • Mid-Level Spreader
      • Individual Locks for Each Leg Stage
      • Retractable Foot Spikes for Soft Ground
      • Adjustable Ratcheted Release Screw
      • Plate Mountable from Rear or Front
      • Plate Includes 1/4"-20 and 3/8"-16 Mounting Screws and Registration Pin
      • Plate Includes Safety Locks and Safety Release
      • Includes Stone Bag
    • Specifications:

      • Shipping Weight: 13.77Lbs
      • Shipping Dimensions: 37 x 8.27 x 8.27"
      • Product Weight: 11.2Lbs
      • Bubble Level: Yes
      • Build Material: Aluminum
      • Compatible Mount: Manfrotto 501
      • Fixture Weight: 11.6 lbs
      • Head Payload Capacity: 26.5 lbs
      • Height Range: 33.25? - 92"
      • Leg Lock Type: Twist
      • Leg Payload Capacity: 26.5 lbs
      • Leg Stagessections: 2-Stage/3-Section
      • Max. Height: 92"
      • Min Height: 33.25"
      • Mounting Plate: Manfrotto 501
      • Mounting Points: 1x 3/8?-16 thread ~ 2x 1/4"-20 threads
      • Payload: 26.5 lbs
      • Quick Releasewedge Plate: Quick Release
      • Spikedretractable Feet: Yes
      • Spreader Type: Mid-Level
    • Item Includes:

      • 1x GA230 Rising Column Tripod Legs
      • 1x P6 Quick Release Plate
      • 1x Tripod Shoulder Strap
      • 1x Stone Bag
    • GTIN:
