ikan STR-A6 STRATUS Complete Cage for Sony a6500/a6400 Camera Body

ITEM #: IKAN-STR-A6 MFG #: STR-A6

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$99.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    STR-A6 - Overview

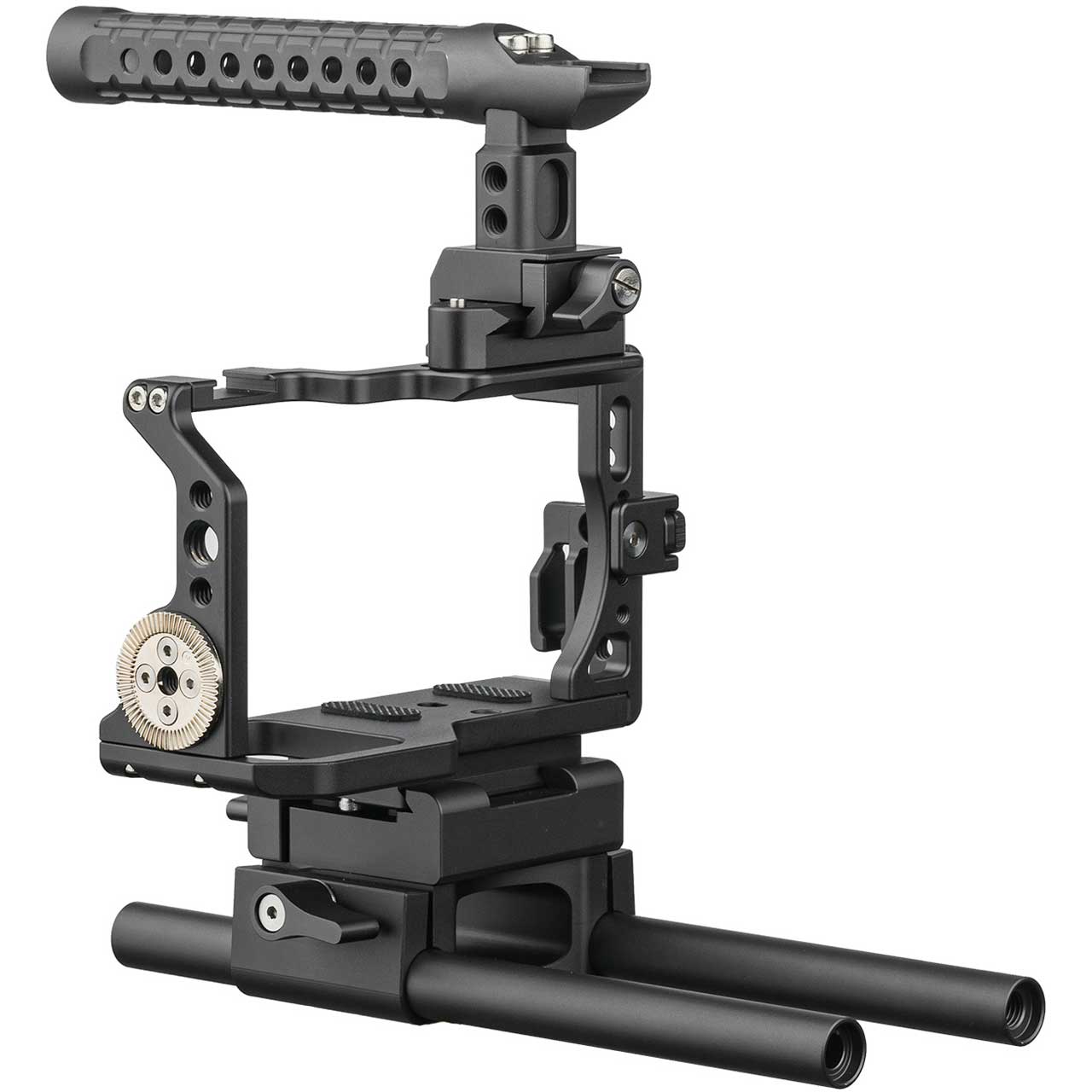

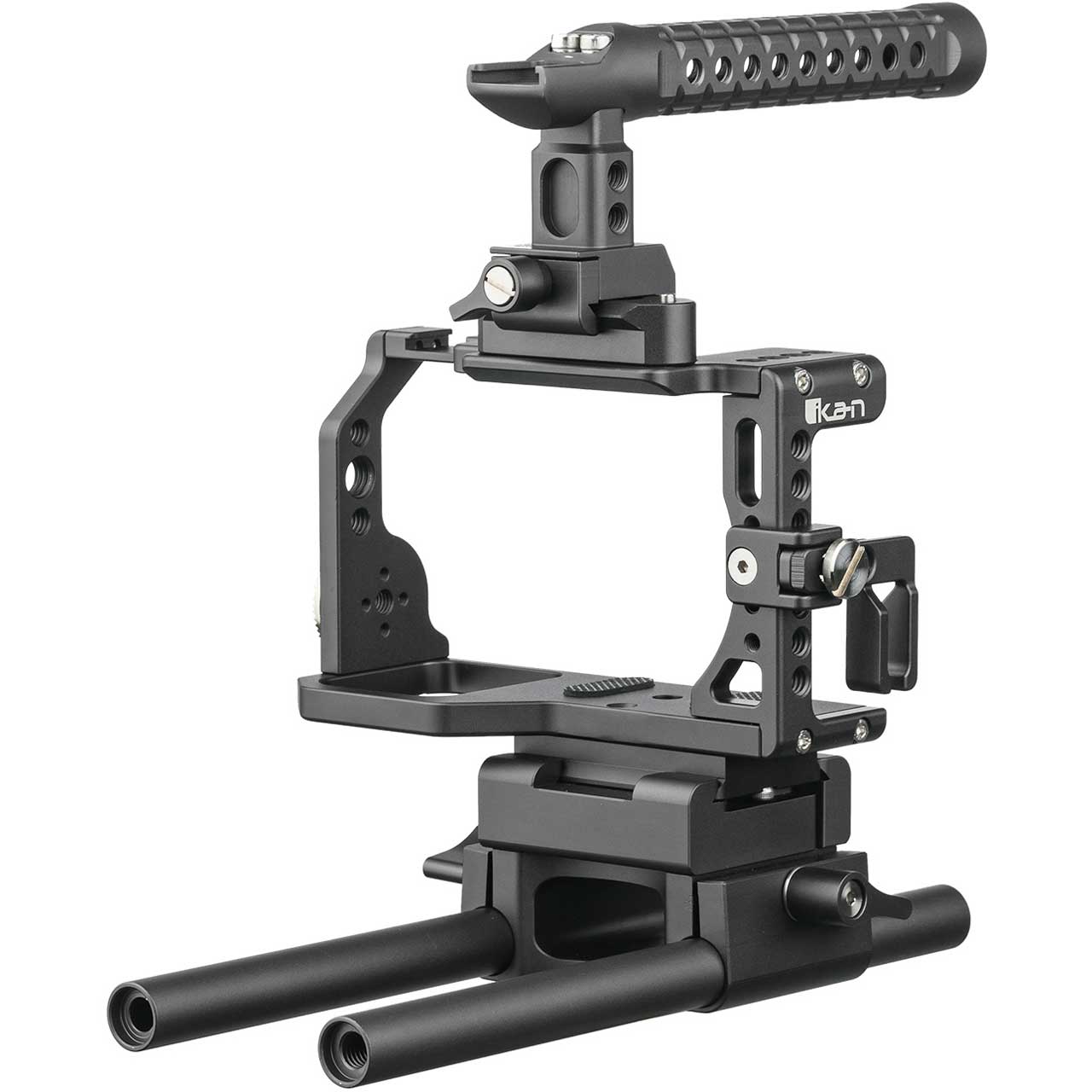

    The ikan STR-A6 is a form-fitting camera cage direct from ikan. The frame is shaped to accommodate the Sony a6500 as well as other cameras, like the a6400, a6300, and a6000, that share the same camera body. The cage comes in three main parts: the top handle, the base, and the camera frame.

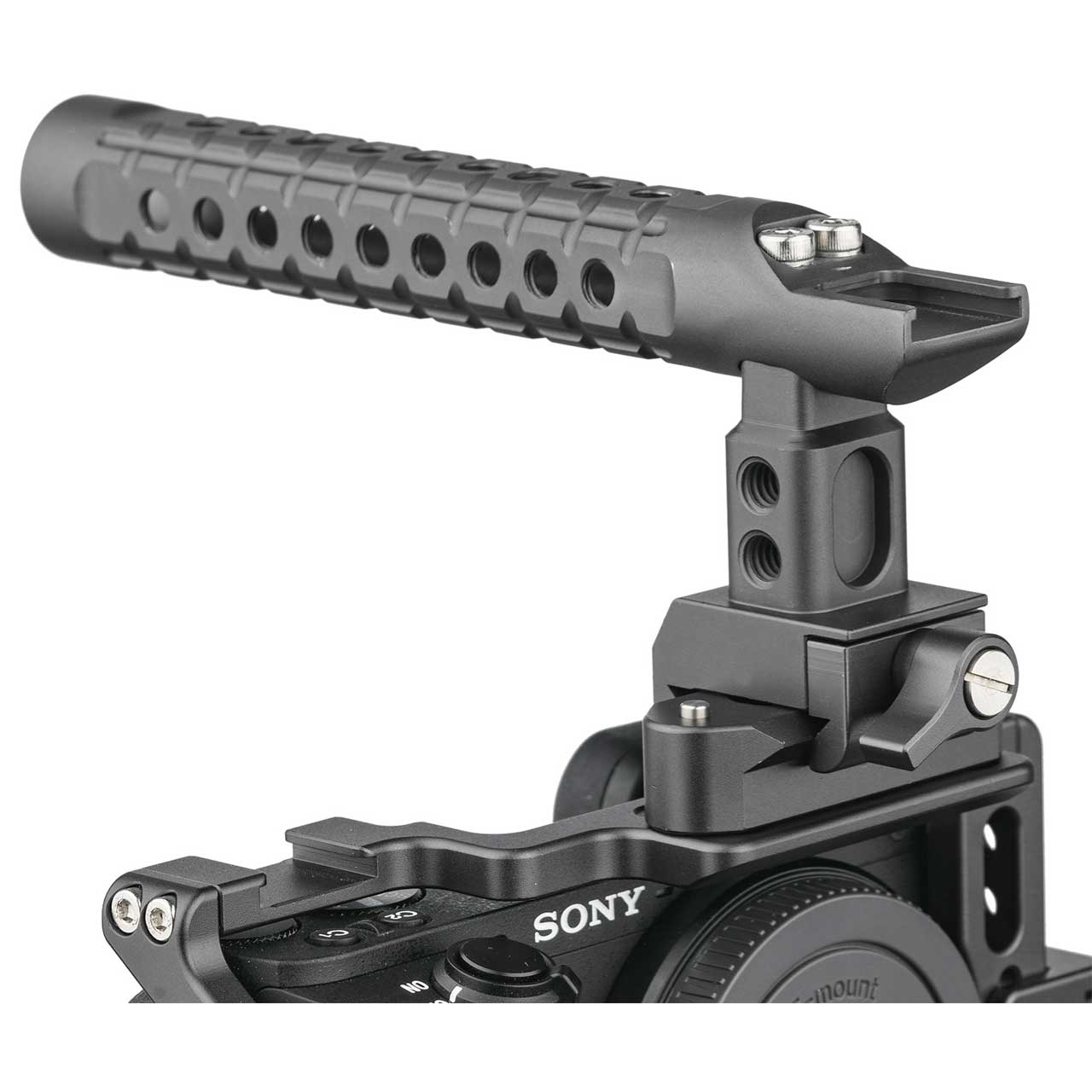

    The top handle mounts directly to a true NATO rail, with two hard stops to keep it from sliding off of the rail should it come loose. There are 40 1/4-20 mounts on the top handle when it is bare, but the grip can be covered with Ikan grips or, if custom grips are needed, can fit most bicycle handles. A 15mm rod can also be inserted into the end of the handle and held in place with a 1/4-20 screw through one of the many mounts. a cold shoe mount is located at the front of the handle, near where it connects to the frame's NATO rail.

    The base is simple and sleek, with mounts for two included 15mm rods (200mm long) and both 1/4-20 and 3/8-16 mounting points for tripod quick release plates. The locking knobs are large and solid and have a kipping function that allows tightening even when the knobs are partially obstructed. The base locks to the frame with an Arca-Swiss style connection, and there are hard stops on either side to allow safe horizontal positioning.

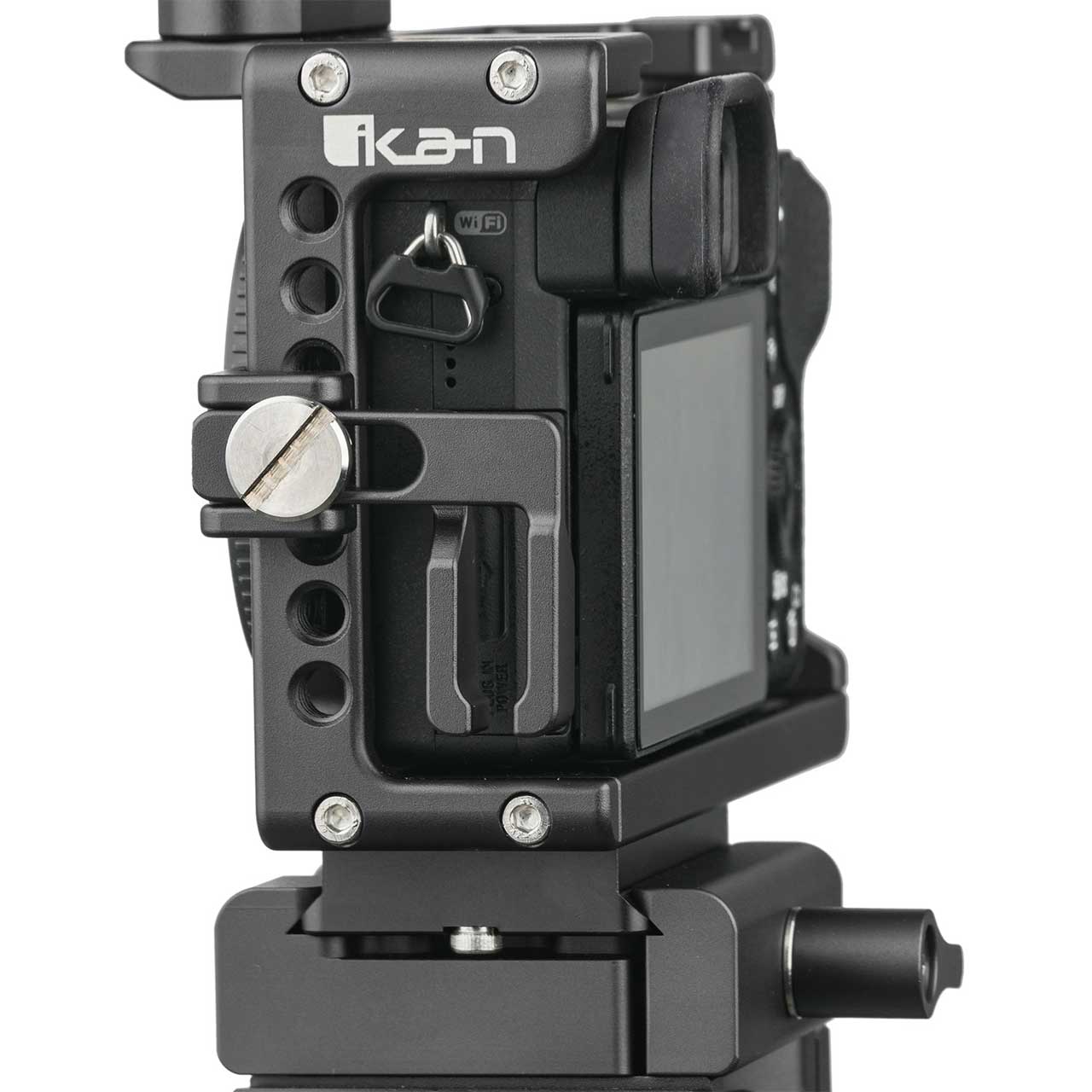

    The camera frame is shaped specifically to the Sony a6500/a6400-style body, with cutouts on top for button and dial access. Room has been made on the left and right sides of the cage for access to memory card slots, A/V inputs & outputs, and remote port access. There is also a cutout on the bottom of the cage over the battery port, allowing for quick swaps without having to unmount the cage. The cable clamp on the left side of the cage is positionable and universal and can be used to support cables nearly anywhere on the camera's left-hand side. Finally, the Arca-Swiss style base connection is also compatible with many types of photo tripod quick-releases, which means that is can be mounted to a photo tripod instead of the tripod quick release plate if it is removed from the base.

    • Features:

      • Form-Fitted to the Sony a6500 and a6400 Camera Body
      • Fits Sony a6000 and a6300
      • Arca-Swiss Plate Mounts to Cage Base and Many Photo Tripods
      • True NATO Top Handle Mount
      • Top Handle fits Ikan Grips and Many Bicycle Handles for Custom Grip Mounting
      • Top Handle can Accept 15mm Rod to Expand Accessorizing Options
      • Cut-Outs for Battery, Memory Card, and A/V Output Access
      • Mounts to Tripod Quick Release Plate with 1/4-20 and 3/8-16 Mounts on Base Bottom

    • Specifications:

      • Approx Dimensions:
        Cage Frame: 5.75" x 4.25" x 2.25" (146mm x 108mm x 57mm)
        Top Handle: 6.5" x 2.63" x 1" (165mm x 67mm x 25mm)
        Base: 2" x 4.25" x 3" (51mm x 108mm x 76mm)
      • Base Connection Type: Cage Frame: Arca-Swiss Style (Male)/Top Handle
      • Cable Clamp: STRATUS Medium Size
      • Frame Connection: Arca-Swiss (Female)
      • Grip Length: Top Handle: ~5"
      • Mounting Points: Top Handle: NATO Clamp (Female)
      • Rod Extensions: Not Included
      • Rods: 7.88" (200mm)
      • Rosette: Cage Frame: ARRI-Style; Right Hand Position / Top Handle
      • Shoe Mounts:
        Cage Frame: 1; Backless Cold Shoe
        Top Handle: 1; Cold Shoe
      • Stratus Rod Style: Static
      • Top Handle Mount: NATO Rail (Male)
      • Shipping Weight: 3lbs
      • Shipping Dimensions: 13" x 12" x 5"
      • Product Weight: 0.61lbs

    • Item Includes:

      • 1x 1/4-20 Mounting Screw
      • 1x Cable Clamp
      • 1x Cage Base w/ Static Rods
      • 1x Camera Frame For Sony A6500 Camera Body
      • 1x Top Handle w/ NATO Rail Mount
      • 2x 200mm Rods (7-7/8")

    • GTIN:

      0847983025848
