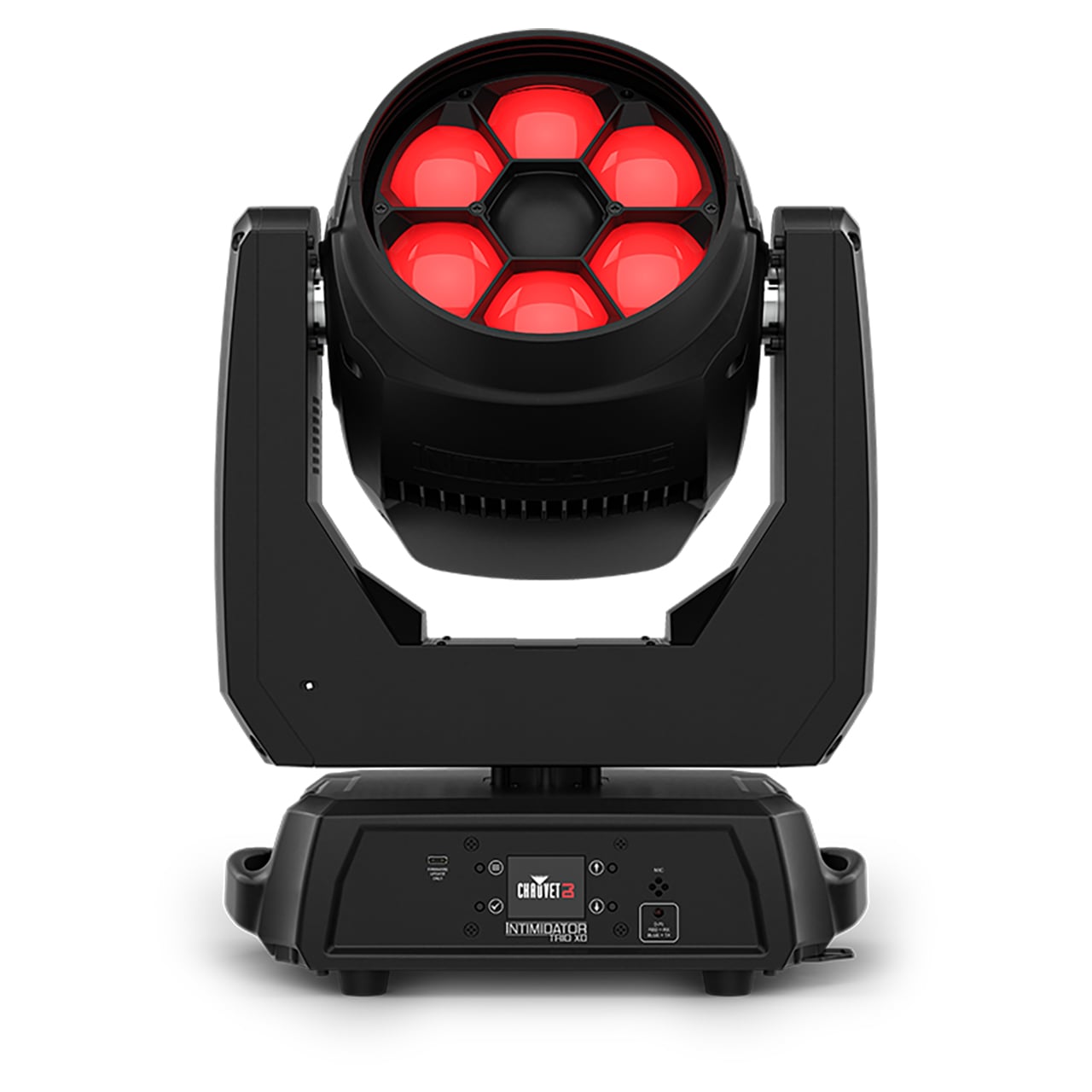

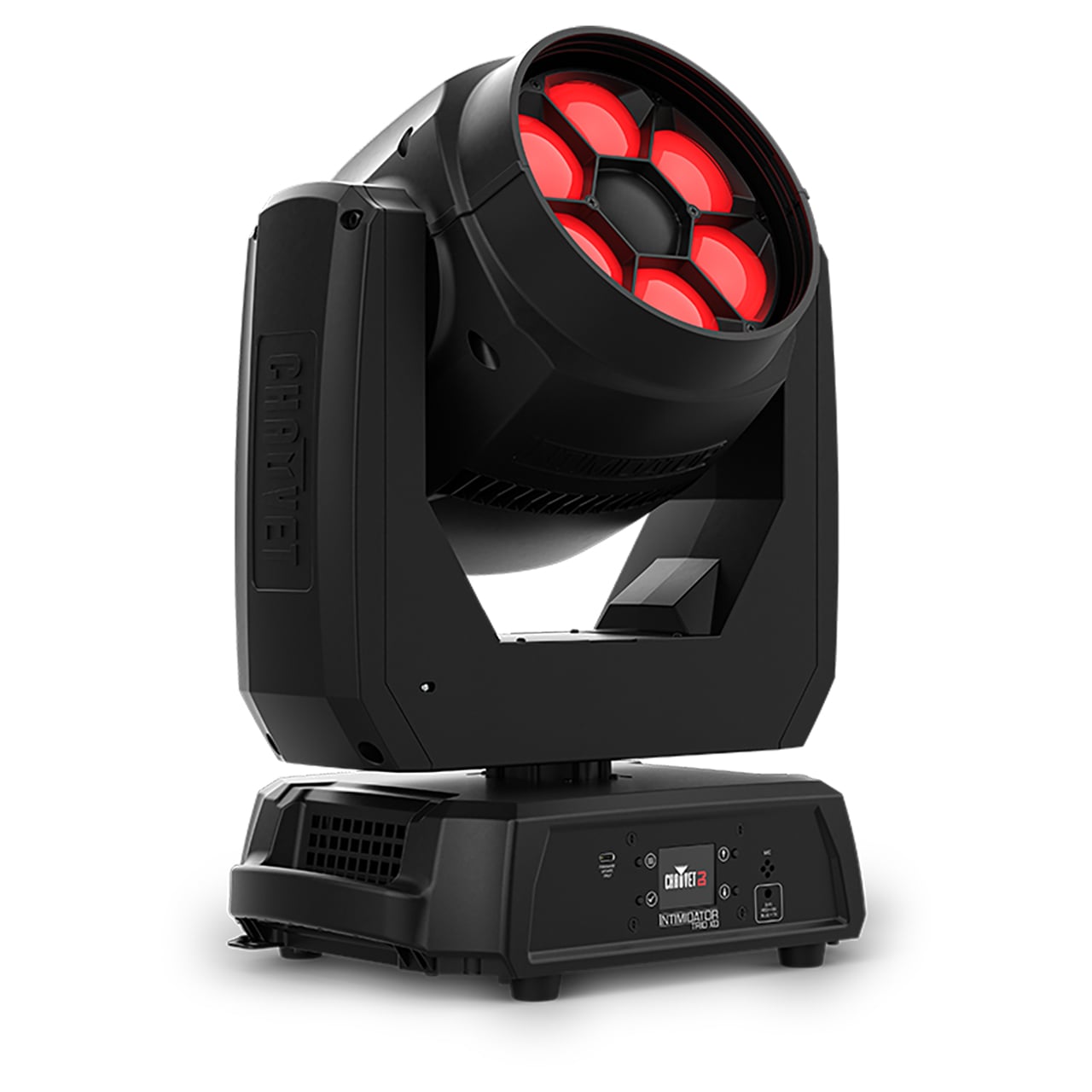

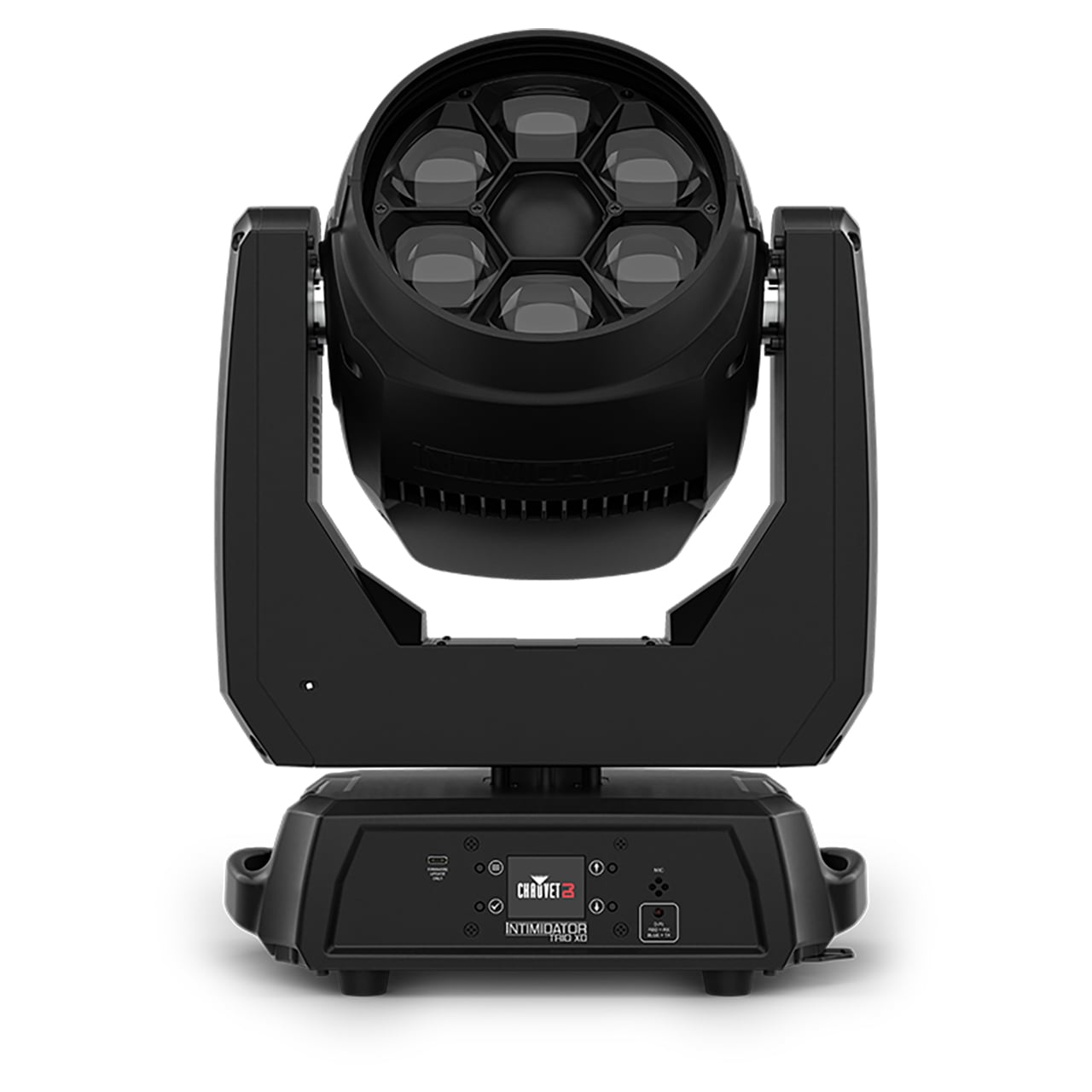

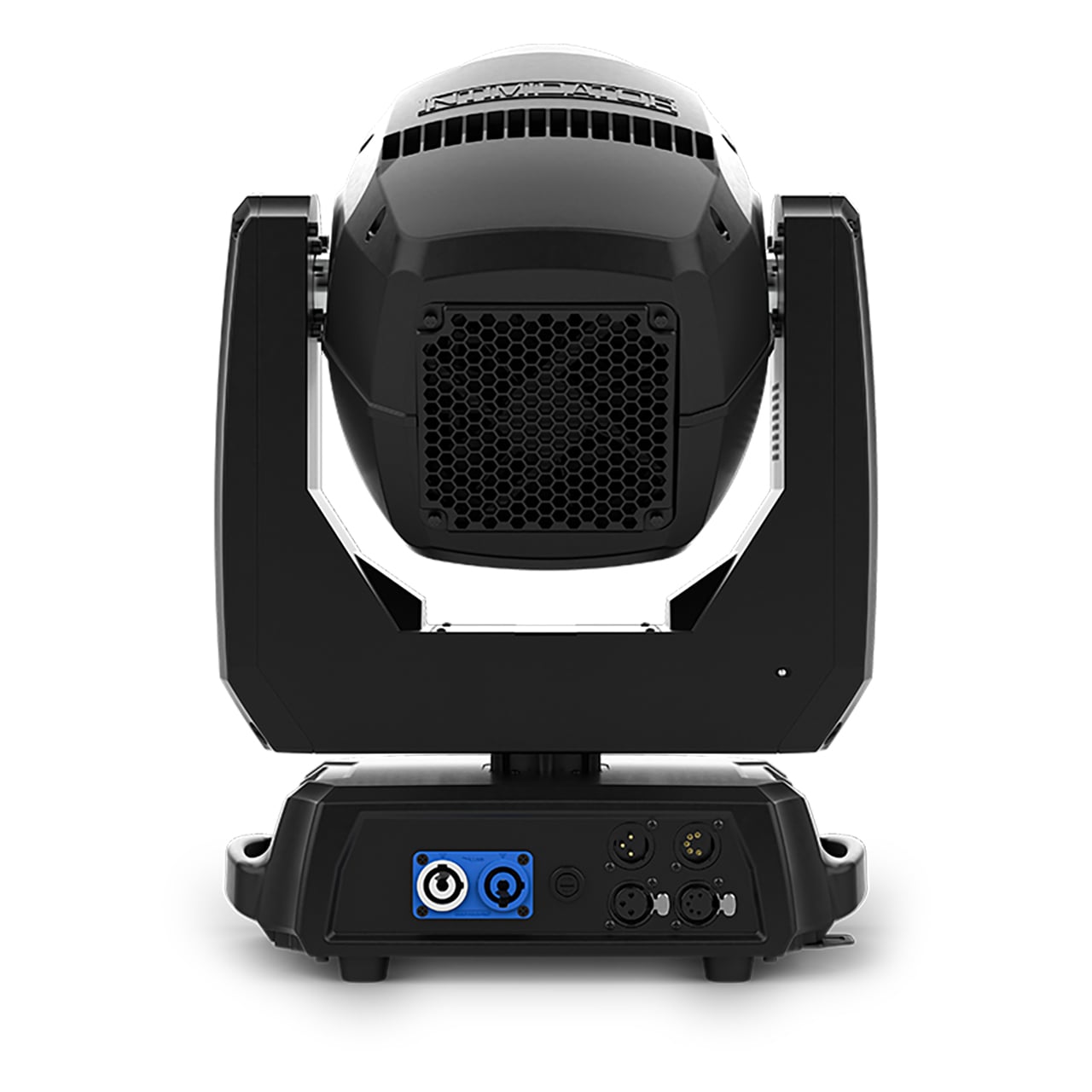

Chauvet Intimidator Trio XD RGBW LED Moving Head Fixture

INTIMIDATOR TRIO XD - Overview

• Features:

  • Innovative, LED-powered moving head with beam, wash, and effect features
  • Built-in D-Fi transceiver for wireless DMX or master/slave communications
  • Carbon fiber composite housing material is exceptionally strong, resists corrosion, and reduces weight
  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
  • Onboard USB-C port allows for quick software updates
  • Seamlessly change from a narrow beam to a wide wash with the motorized zoom
  • Continuously rotating honeycomb delivers the excitement of an effect light
  • Generate complex looks easily with built-in, eye-catching auto programs with zone control
  • Built-in Totem mode allows beams to remain focused on the dance floor
  • Set, save, and recall 1 scene directly from the full-color LCD display


• Specifications:

  • DMX Channels: 16, 23, or 52
  • DMX Connectors: 3- and 5-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Light Source: 6 LEDs (quad-color RGBW) 270W total, (9.5A), 50,000 hours life expectancy.
  • Strobe Rate: 0Hz - 20Hz
  • Zoom Angle: 3° - 22°
  • Power Linking: 4 units @ 120V; 8 units @ 230V
  • Input Voltage: 100V - 240VAC, 50/60Hz (auto-ranging)
  • Power and Current: 348W, 2.9A @ 120V, 60Hz
  • Power and Current: 343W, 1.5A @ 230V, 50Hz
  • Illuminance Narrow: (3°) 124,299 lux @ 2m
  • Illuminance Wide: (22°) 7,505 lux @ 2m
  • Cable Length: 5ft (1.5m)
  • Optional Controllers: RFC, RFC-XL
  • Max. Output Current: 12A (4 units @ 120V)(8 units @ 230V)
  • Fuse: F5A, 250V
  • Size: 12.6" x 8.7" x 17" (320mm x 220mm x 431mm)
  • Weight: 20.4lbs (9.3kg)
  • Approvals: CE, FCC, MET


• Item Includes:

  • 1x Intimidator Trio XD
  • 1x Power cord
  • 1x PowerCON to bare end (EU only)
  • 1x Hanging brackets
  • 1x Quick Reference Guide
