Barix TPA400 IP Former InformaCast IP Audio Decoder with InformaCast Software License

ITEM #: IPFORMER20193160 MFG #: TPA400IPFORMER + 2019-3160

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$325.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.


TPA400IPFORMER + 2019-3160 - Overview

IP Audio Decoder, PoE Powered with up to 6W Amplified Output on Screw Terminal Block to Drive Loudspeakers

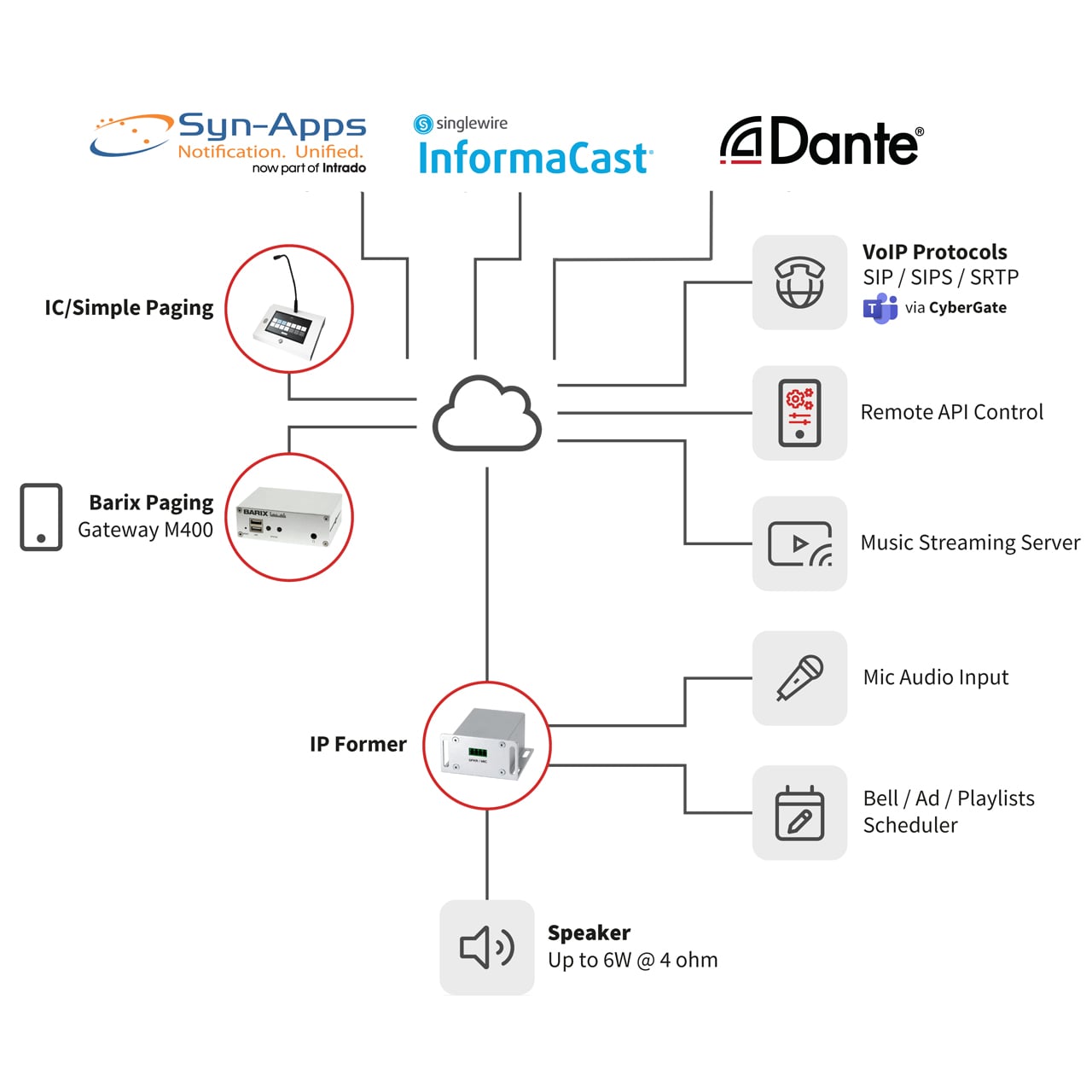

The Barix 2020.9301P IP Former can be attached to any loudspeaker either while in production or in existing installations. It enables audio-streaming over the internet with a reliable, fast-reactive connection, storing capabilities and VoIP/SIP negotiation. Installers can just sell an upgrade to existing installations and setups. Producers can offer an IP speaker without additional R&D. Powered by PoE, it is as easy to install as any clever IP speaker. As a decoder it streams audio from radio stations, telephones and paging stations.

It is ideal for speakers to play background music, live announcements in schools, retail, offices, for emergency warning systems or triggered message playback and announcements over SIP. For management and advanced functions, the IP former is ready for (optional) sound detection of the surrounding. Barix is offering adaptation to your business needs to grow together.

About InformaCast
Barix natively implemented Singlewire's Informacast into multiple audio and control devices. Enabling you to send effective mass notifications with the speed, reach and intrusiveness by bulking sms text message to mobile phones and all your on-premises devices whether this are IP or analog. Singlewire and Barix unites notification technology into a centralised platform to reach out everyone, wherever they are. Keep people safe and informed.

Applications:
• SIP and IP Paging/Notification
• Background music
• Emergency evacuation
• Singlewire InformaCast integration
• Syn-Apps Revolution integration
• MS Teams endpoint via CyberGate service
• Dante® support - requires extra license (sold separately)

  • Features:

    • 6.5W RMS @ 4Ω Speaker Output
    • Plenum Rated per UL Standard 2043
    • IEEE 802.3af PoE
    • Syn-App certified
    • Singlewire certified
    • Multi-level message priority
    • AACplus, MP3, G.711, G.722 over RTP
    • SIP VoIP endpoint support

  • Specifications:

    • Operation System: Embedded Linux based on Yocto

      Network Interfaces

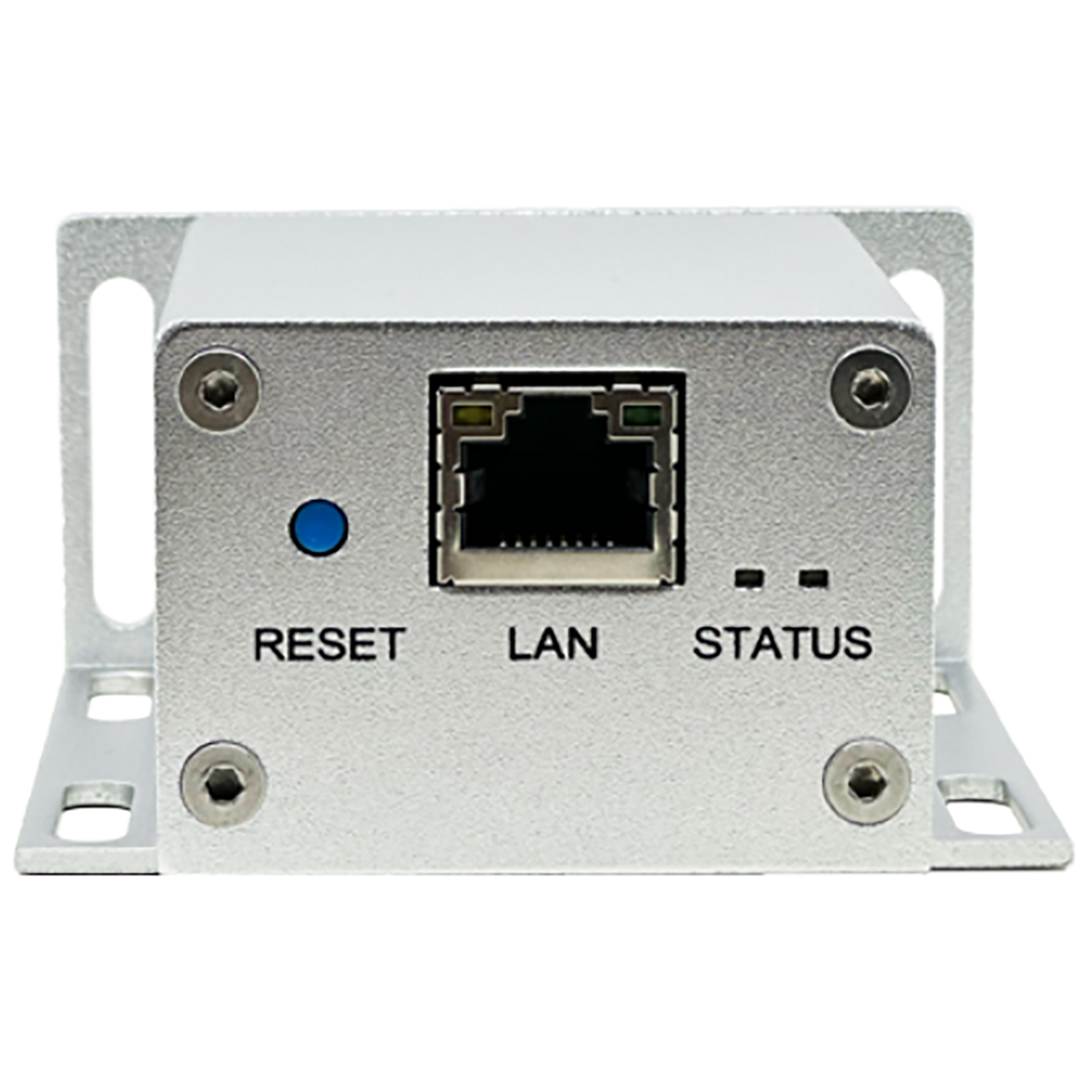

    • 1x Ethernet (RJ45) Interface
    • IPv4, IPv6 capable
    • 10/100 fdx/hdx, auto negotiation

      Protocols
    • TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
    • Dante® Support - Requires extra license (sold separately)
    • Singlewire InformaCast compatibility - included
    • SynApps Revolution compatibility

      Audio Interface

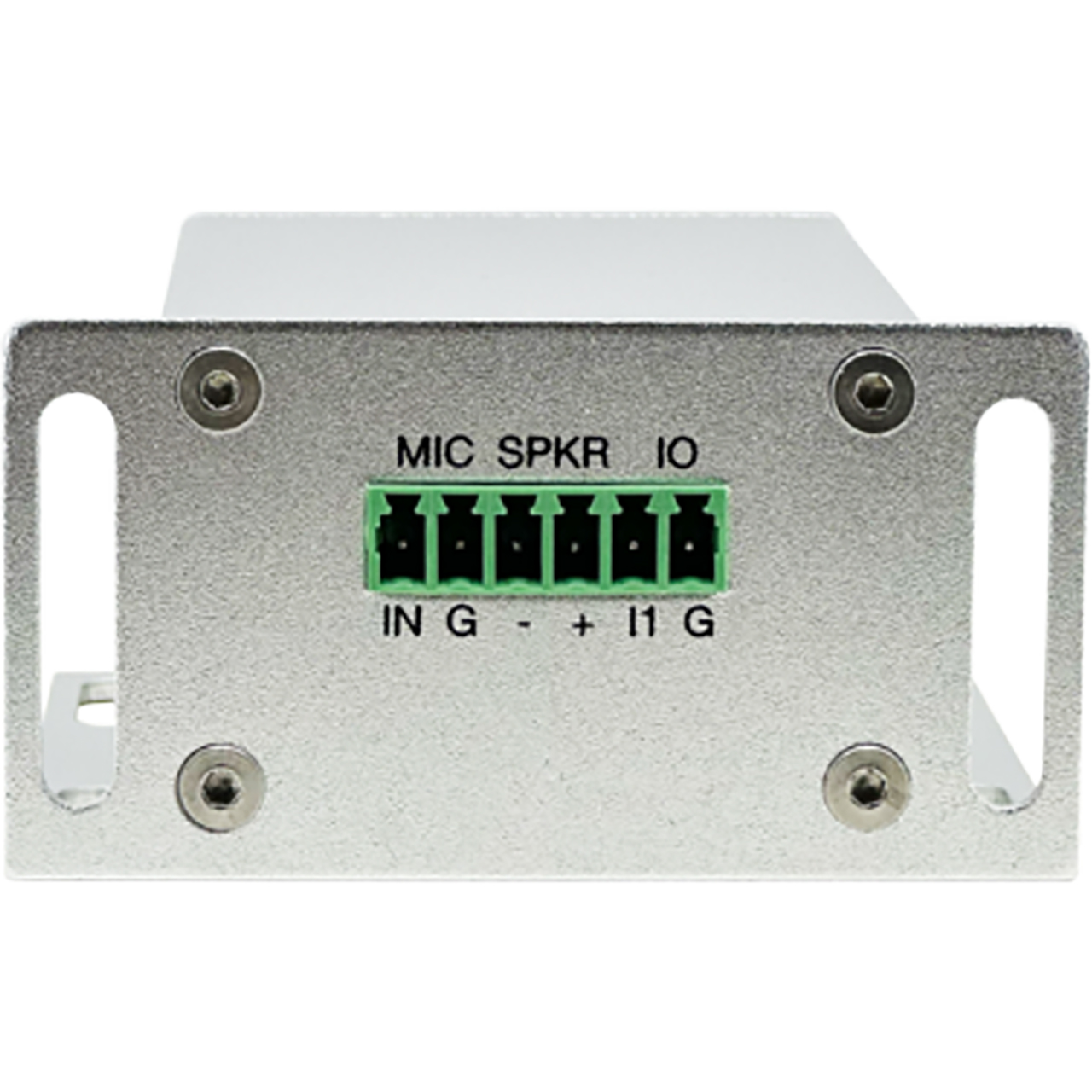

    • 6.5W RMS @ 4Ω on Screw Connector
    • 4Ω - 8Ω Speaker
    • Microphone Input 3.3VDC Bias on Screw Conn

      Audio Formats
    • MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.
    • AAC-HE (AAC, AAC plus, AAC plus V2)
    • PCM linear 16bit @44.1kHz
    • 711, 722, GSM, Opus, WAV, OGG Vorbis

      CPU/Memory
    • Barix IPAM400 Processor Module
    • Quad-Core ARM Cortex™ -A7
    • 256MB DDR3 L3
    • 16MB SPI Flash
    • 8GB SD-Card Flash

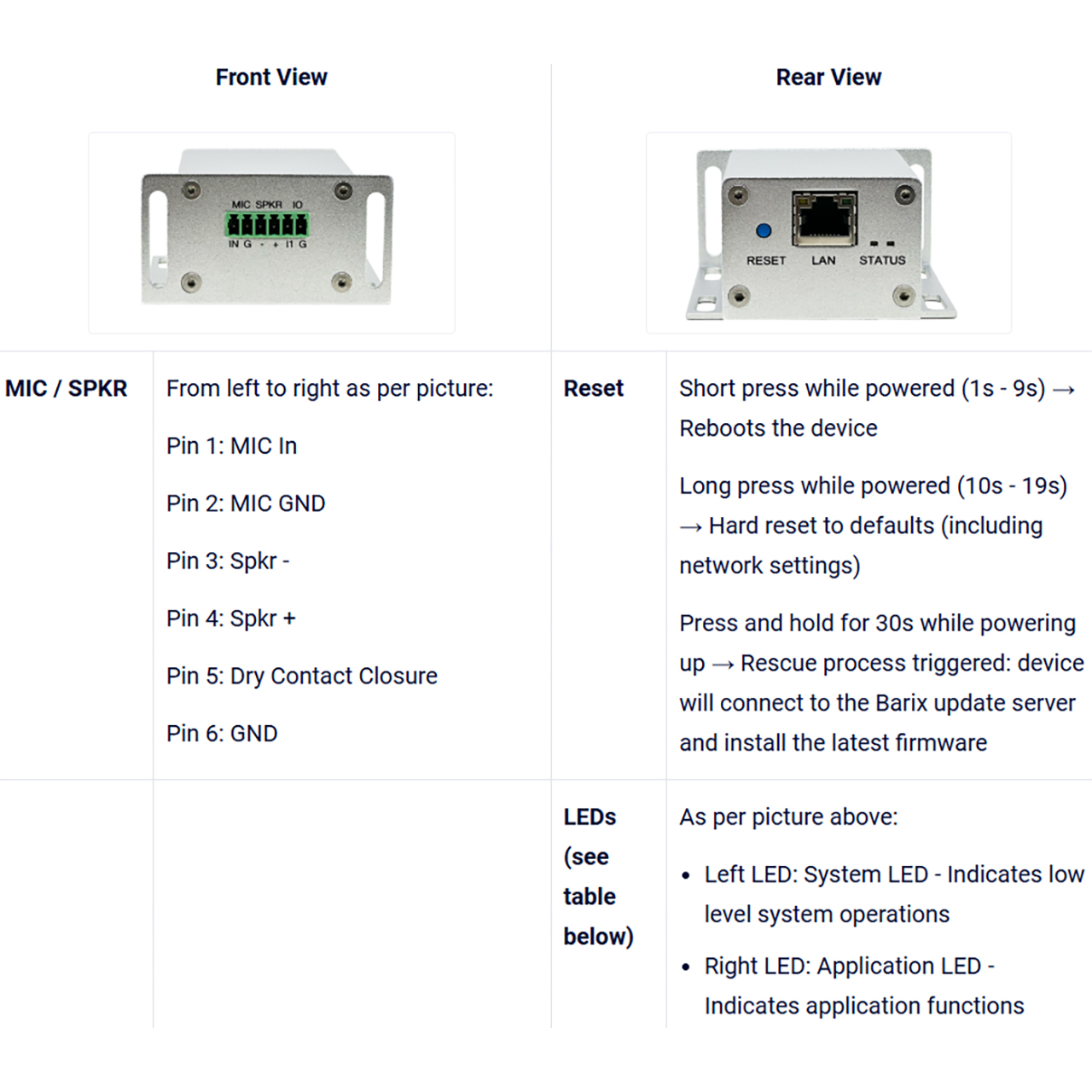

      User Interface
    • Web interface for configuration
    • 2x Multicolor LED Status indicators
    • Reset & Factory Defaults Button

      Other
    • Power Requirements: IEEE 802.3af PoE
    • MTBF: > 200,000h
    • Measurement/Mechanics: 4" x 2.4" x 1.25" - Various Mounting ears for 70/100V Transformer compatibility
    • Weight: 0.24lbs

  • Item Includes:

    • 1x Barix TPA400 IP Former InformaCast IP Audio Decoder with InformaCast Software License

  • Warranty:

    • 2 Year Warranty
