JBL-P3495 - Overview

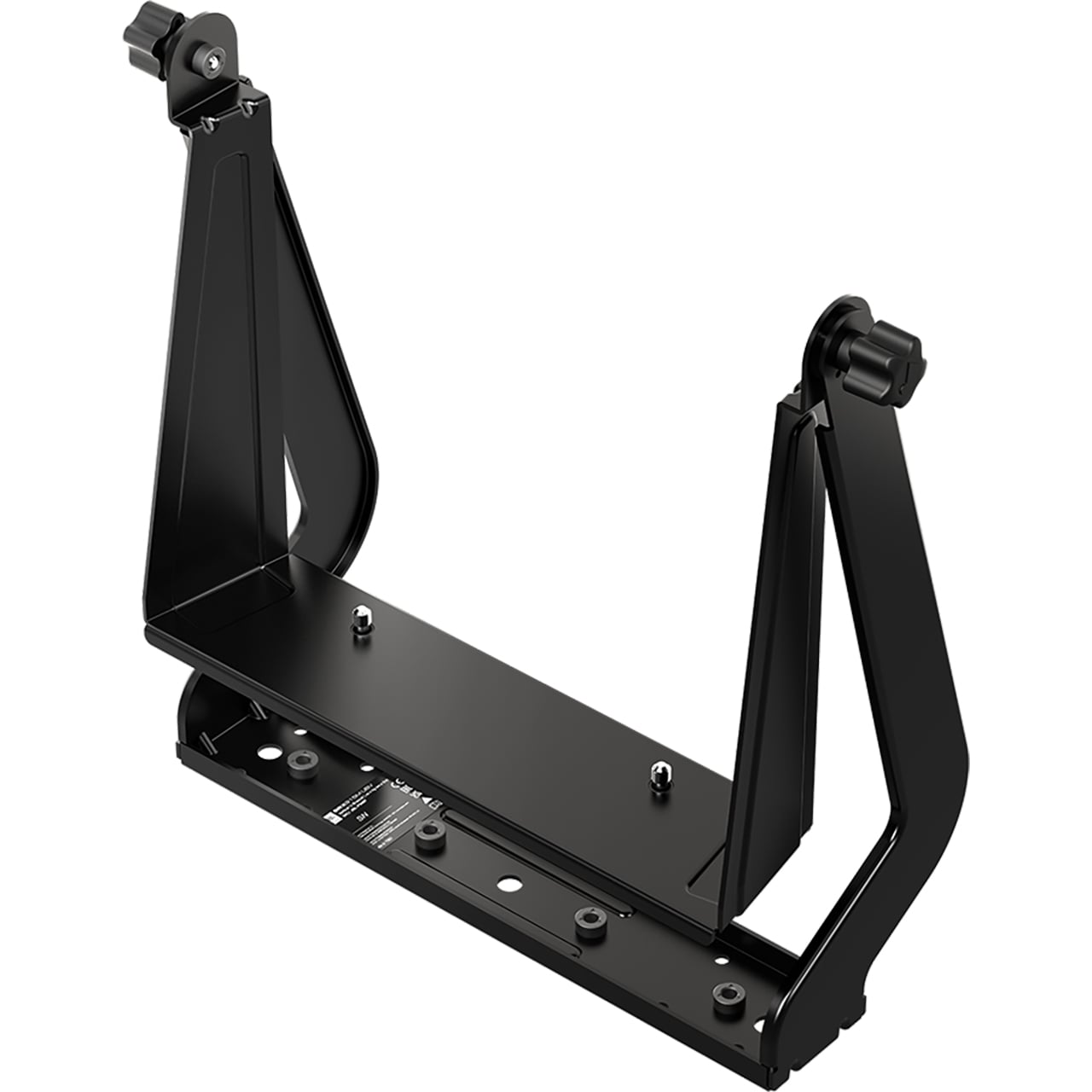

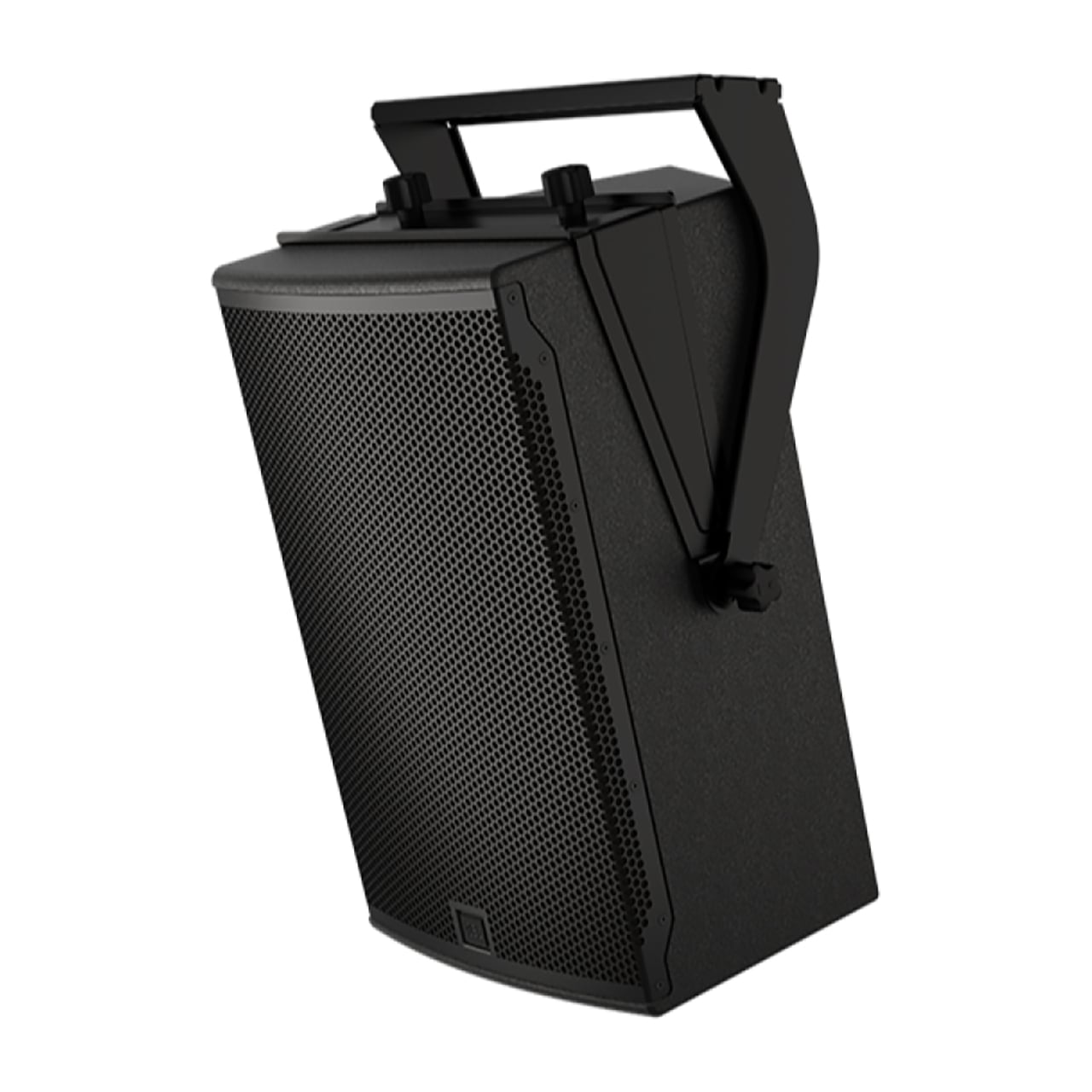

The JBL SRX912M UBV is a versatile U-bracket accessory designed for vertically mounting SRX912M loudspeakers.

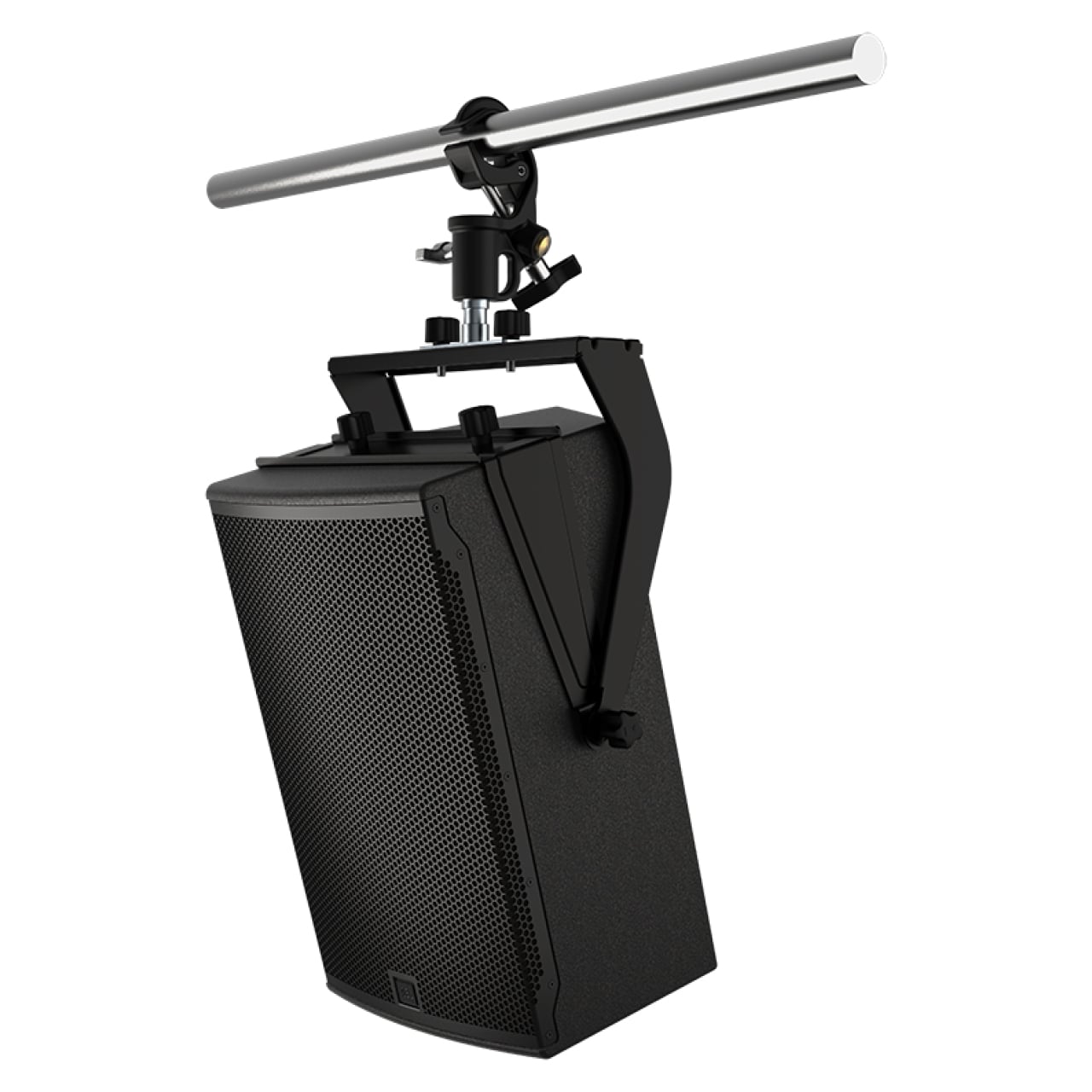

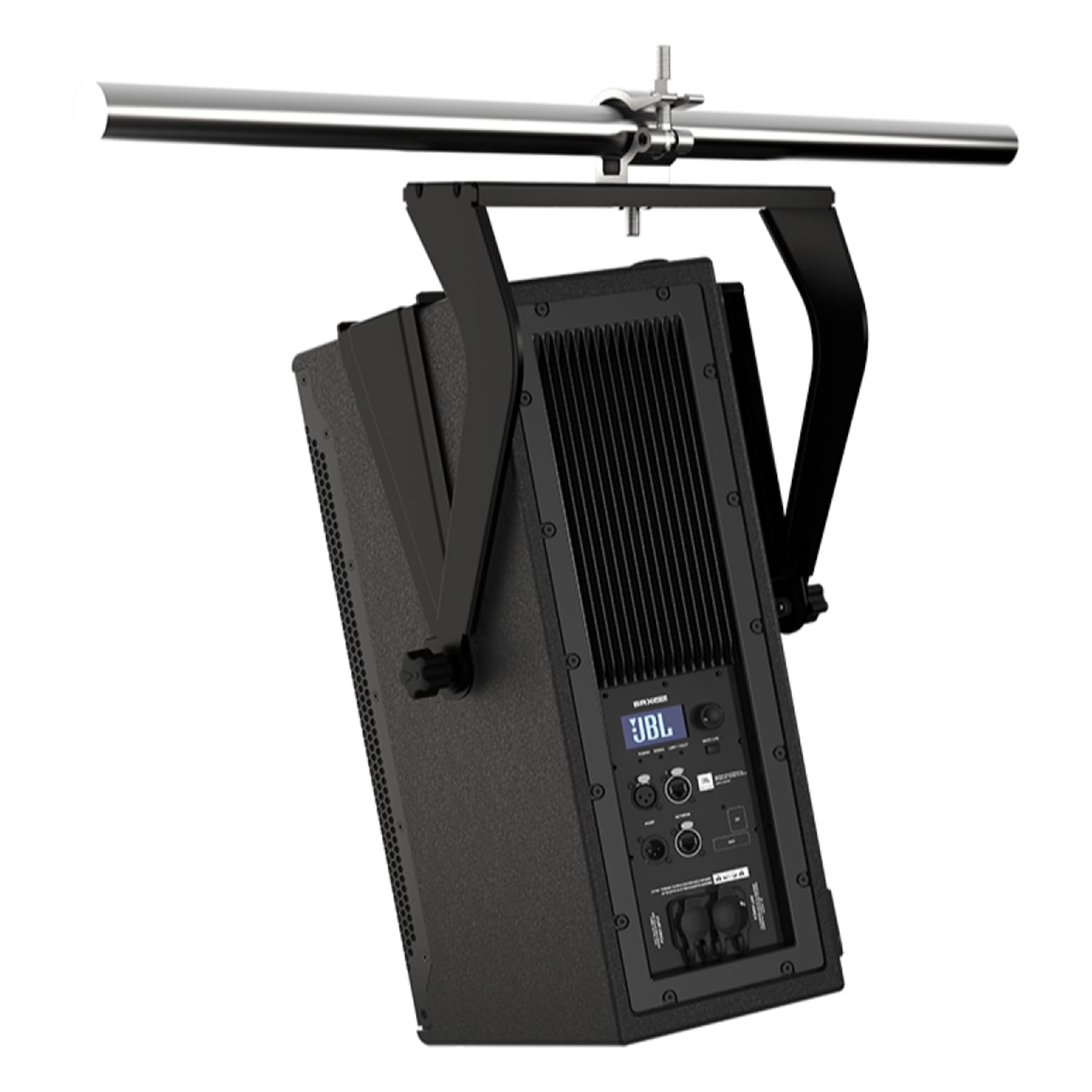

The two-piece design attaches to the enclosure using the included M10 knobs and the two top or bottom M10 QuickLink attachment points on the speaker, depending on the desired orientation. Two additional M10 knobs are used to lock the bracket at the desired tilt angle. Several M12 through-holes are provided for use with standard pipe or truss clamp adapters. The bracket is also compatible with the JBL RC100 rotating clamp which allows for a full 360° horizontal rotation when combined with the TV SPIGOT T accessory. Two M10 attachment points are available for installing eye bolts when suspending SRX912M loudspeakers with wire.

The SRX912M UBV can also be used for pole mounting when combined with the optional Pole Mount adapter. This combination allows for a greater down angle than is otherwise possible using the pole cup on the speaker.

  • Features:

    • Versatile vertical U-Bracket for SRX912M
    • Compatible with the RC100 rotating clamp
    • Support for third-party clamps
    • Support for M10 suspension points
    • Compatible with the Pole Mount adapter

  • Specifications:

    • Construction: Steel with anti-corrosion coating
    • Finish: Black powder coat
    • Dimensions (HxWxD): 15.5" x 19.2" x 3.1" (393mm x 487mm x 80mm)
    • Net Weight: 10lbs (4.4kg)
    • Shipping Weight: 17lbs (7.8kg)

  • Item Includes:

    • 1x U-Bracket

  • Warranty:

    • 5 Year Limited Warranty
