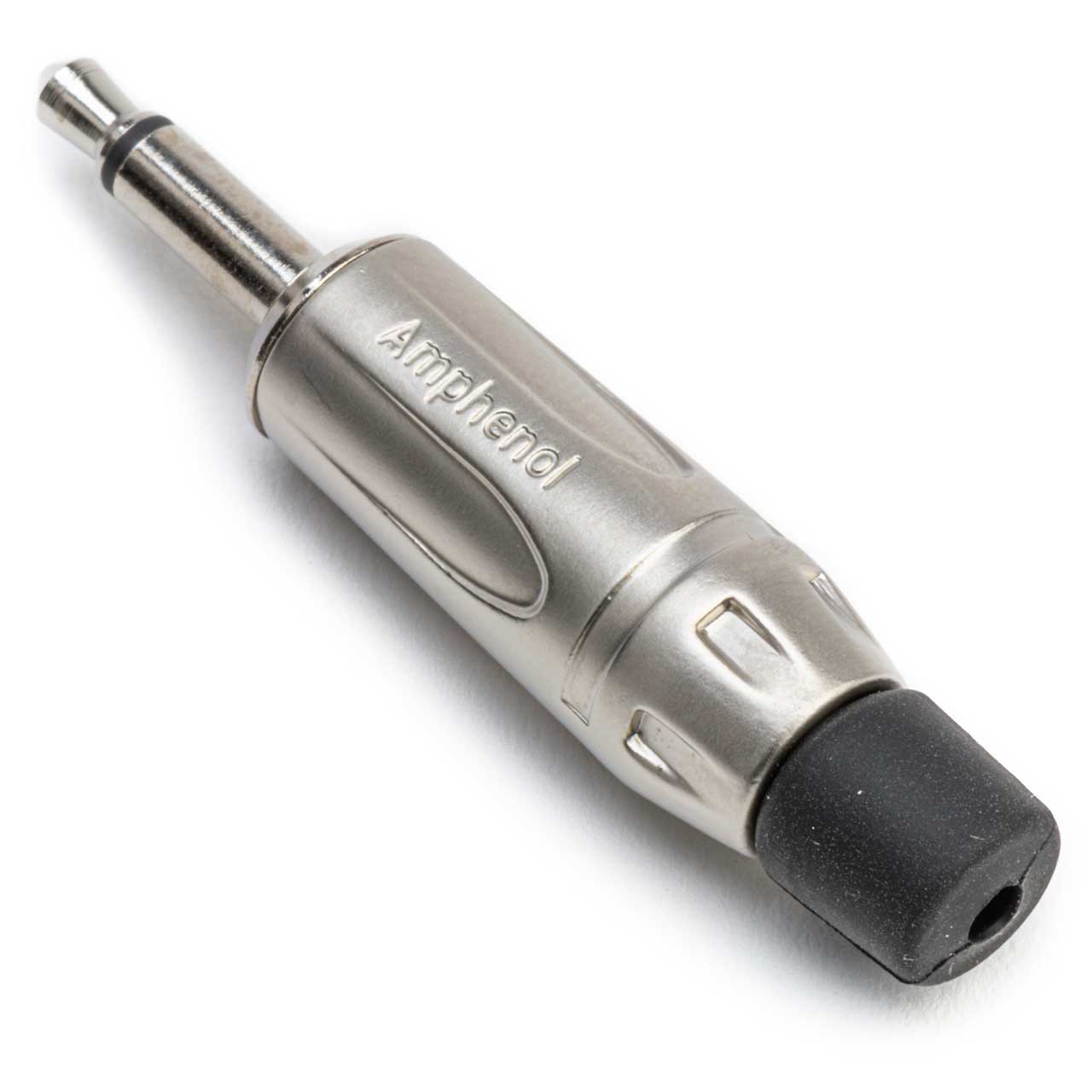

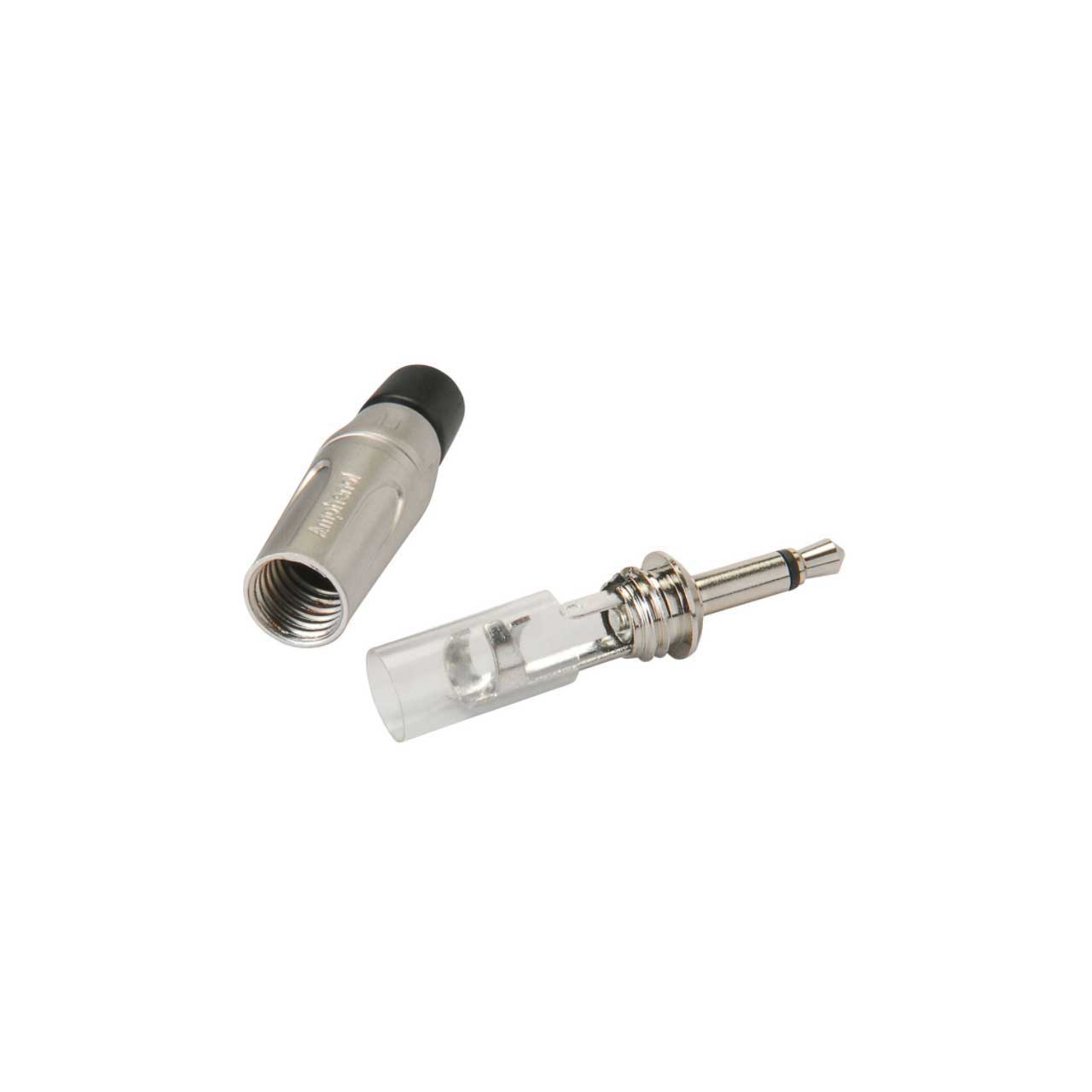

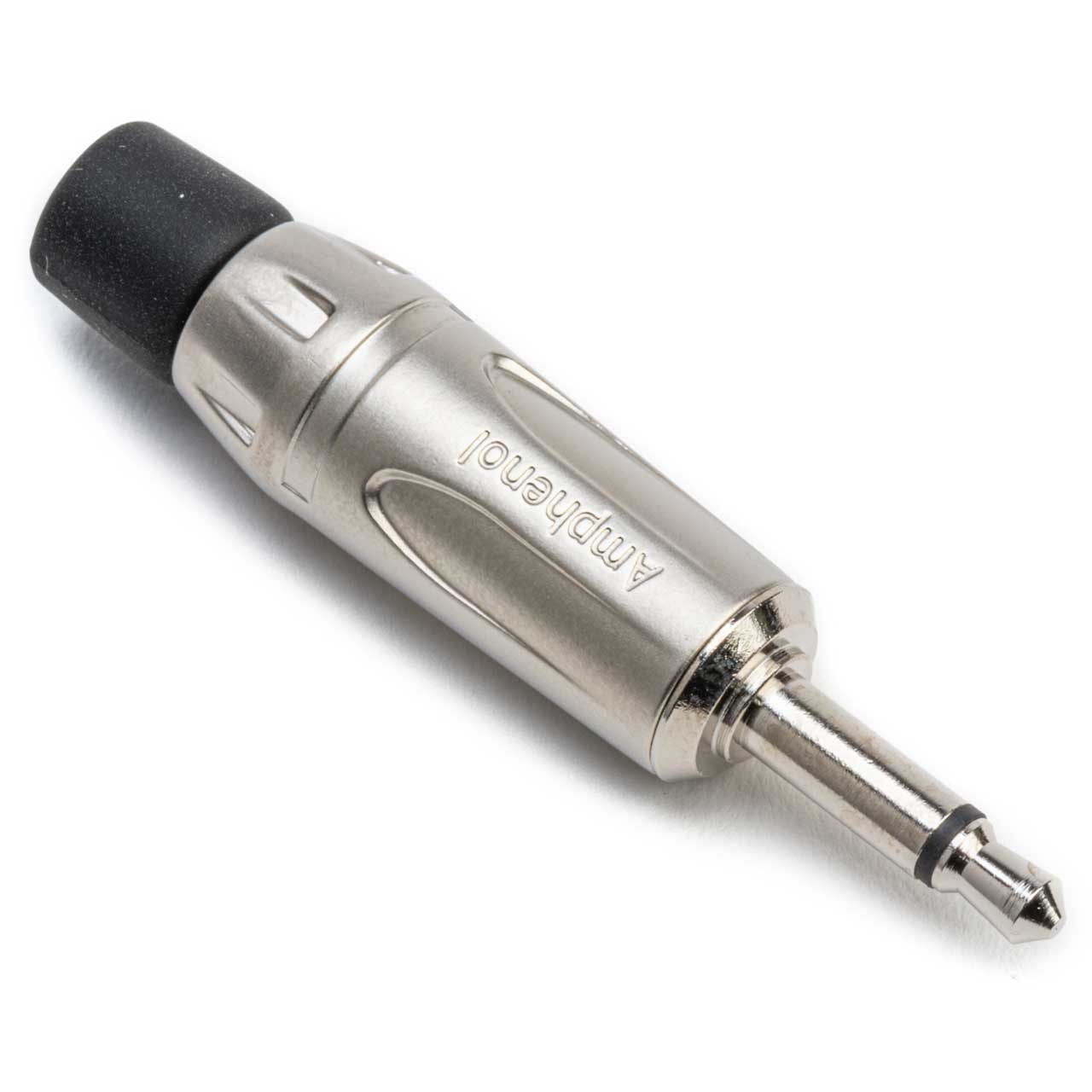

Amphenol KM2P 3.5mm Mono Male Plug

KM2P - Overview

• Features:

  • Solder contacts
  • Suits cable O.D 2.5mm to 5mm
  • Stylized shell design
  • Flexible cable grommet
  • Metal cable clamp


• Specifications:

  • Number of Contacts:2 Pole (Mono)
  • Termination: Solder
  • Wire Gauge :- Stranded Wire 2 Pole (Mono): AWG 16 - 1.5mm2, 3 Pole (Stereo): AWG 18 - 1mm2
  • Flammability rating of insulating plastics: UL94V-0
  • Solderability: complies with IEC 68-2-20
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Current Carrying Capacity: >0.5mA (Depends on Mating Connector and Cable)
  • Typical Contact Resistance: =20mO (Depends on Mating Connector and Cable)
  • Wire Gauge - Stranded Wire 2 Pole (Mono): AWG 16 - 1.5mm2, 3 Pole (Stereo): AWG 18 - 1mm2
  • Flammability rating of insulating plastics: UL94V-0
  • Solderability: Complies with IEC 68-2-20
  • Environmental :Complies with EU RoHS 2 Directive 2011/65/EU
  • Current Carrying Capacity: >0.5mA (Depends on Mating Connector and Cable)
  • Typical Contact Resistance: =20mO (Depends on Mating Connector and Cable)
  • Insulation resistance (initial): After Damp Heat Test >200M Ohm >100M Ohm
  • Test Voltage: AC RMS: Dielectric Strength :250VAC Protection Class IP40
  • Operating Temperature: -20§C to +65§C (-4§F to +149§F)
  • Insertion and Withdrawal Force:<20N / >3N (depends on mating connector)
  • Cable O.D.: 3mm to 5mm (0.118" to 0.196")
  • Mechanical Operations: 1000 mating cycles
  • Weight :8g (0.017lb)
  • Connector Shell Material: (Plugs) Diecast Zinc Alloy EZDA No.3
  • Connector Shell Finish: Satin Nickel or Black Polyester Insulators PA66
  • Cable Bushing: Santoprene
  • Contacts: Brass
  • Plating: Nickel or Gold Flash
