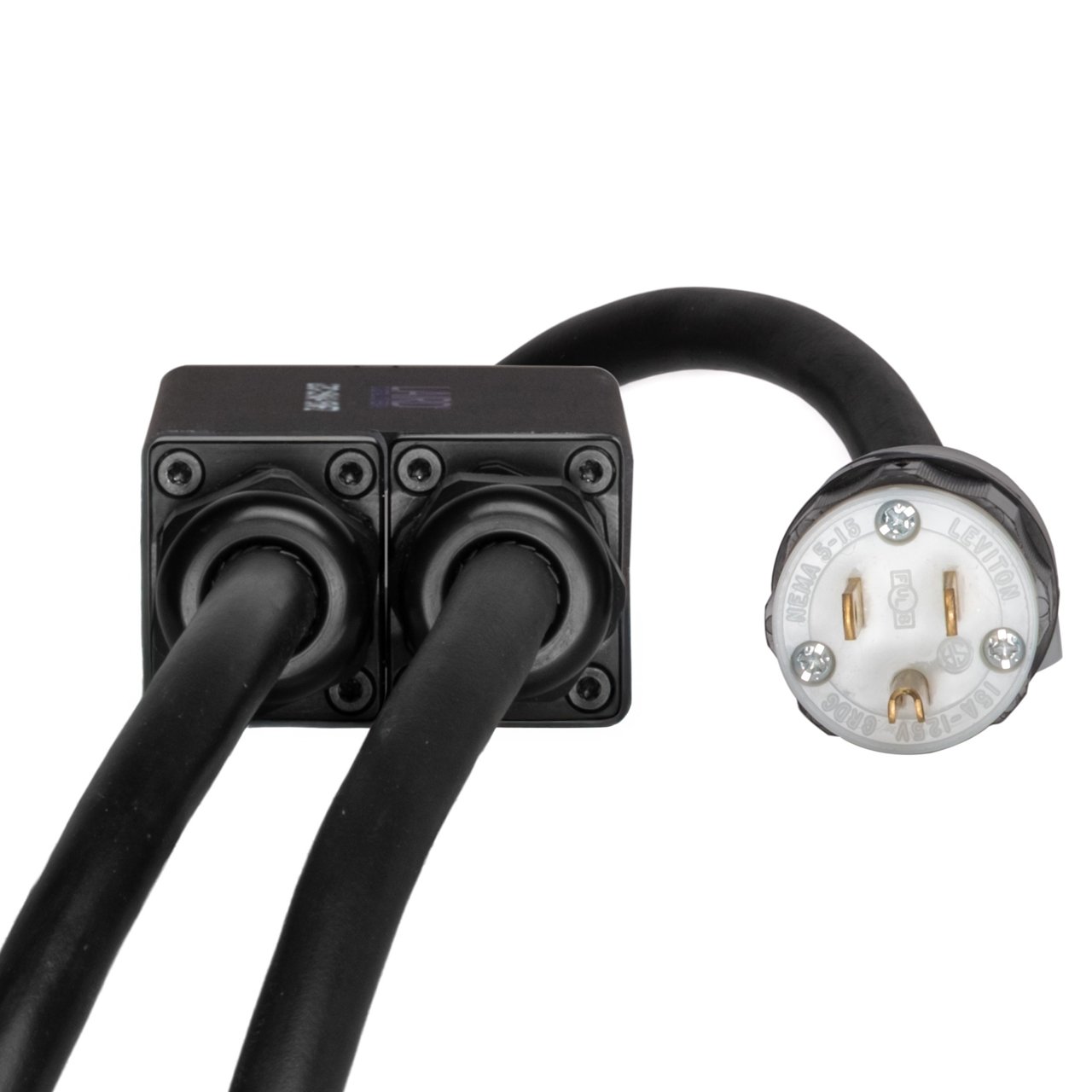

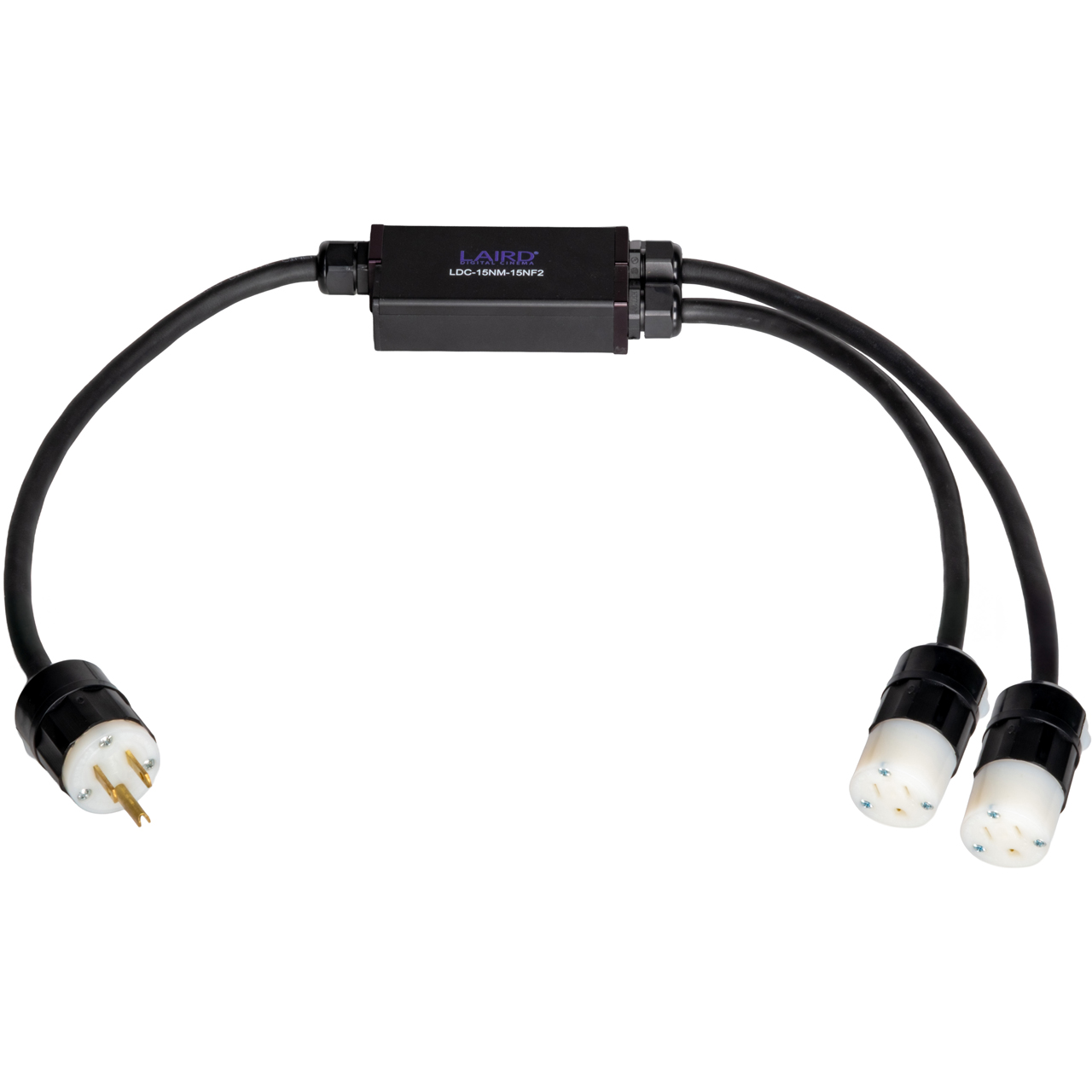

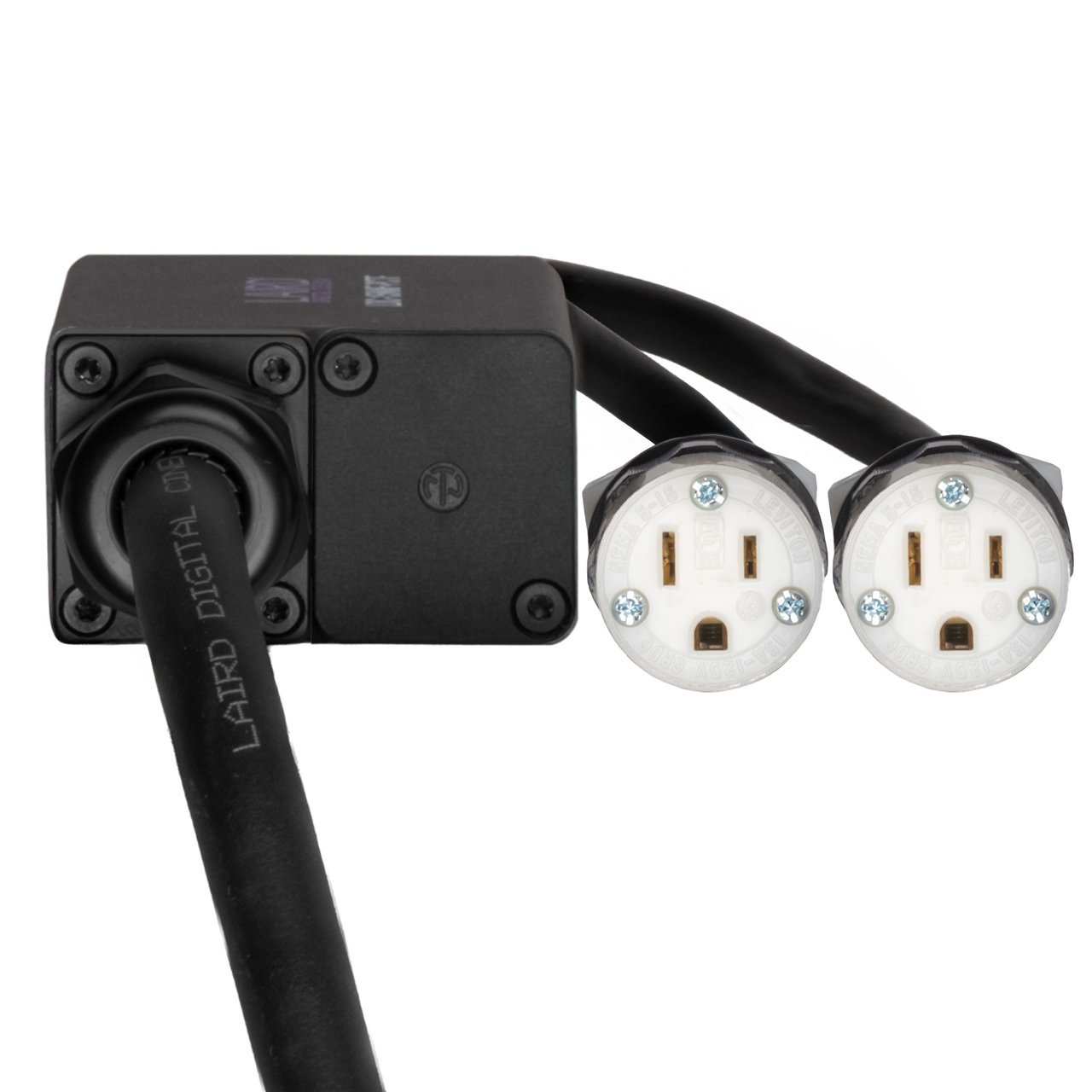

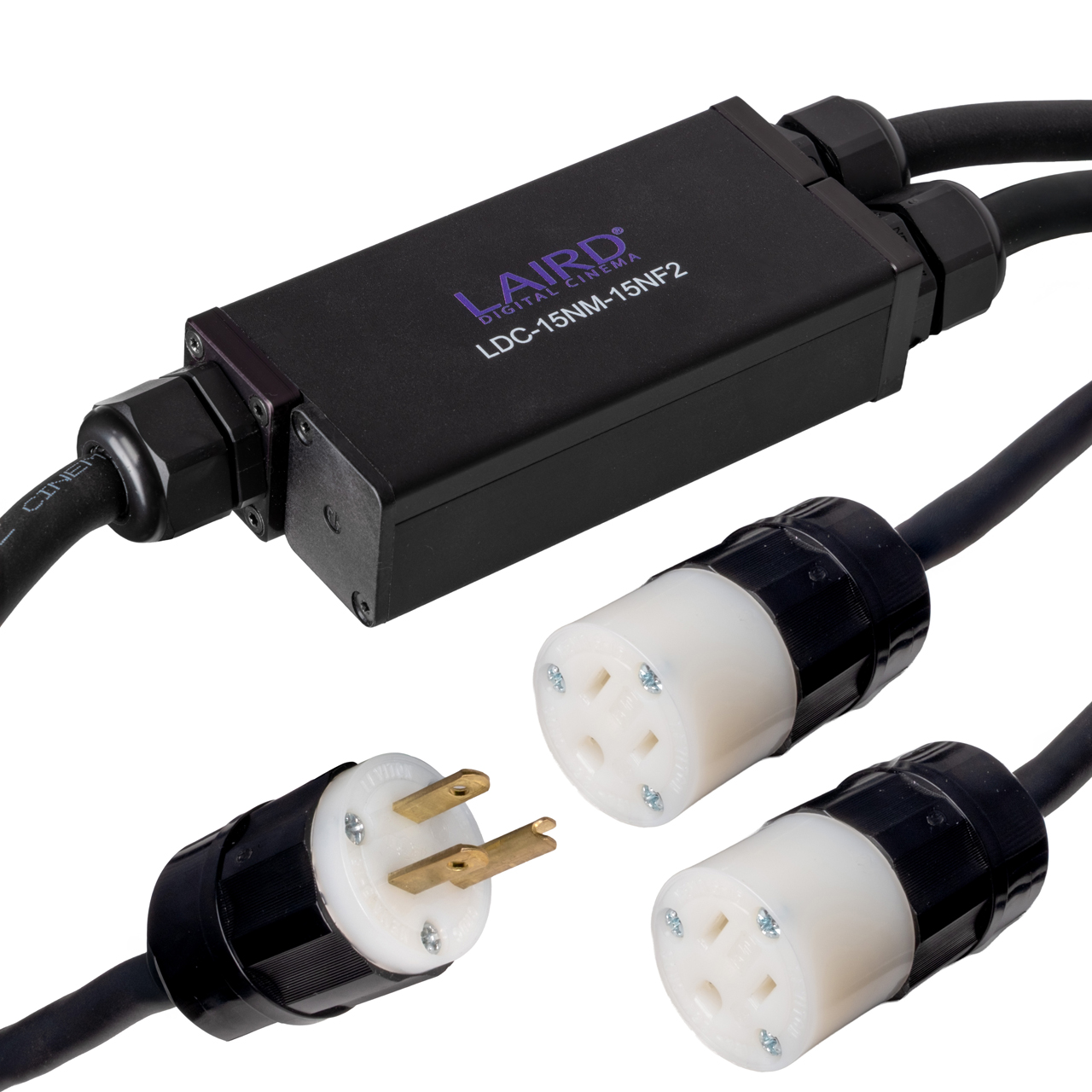

Laird LDC-15NM-15NF2 15-Amp Power Distribution Box Edison to Two (2) Edison Female

LDC-15NM-15NF2 - Overview

• Features:

  • Laird's PWR-12/3-TP Rugged yet flexible power cable
  • High-Quality Leviton Edison connectors
  • Rugged Aluminum Enclosure
  • Multiple connector options are available


• Specifications:

  Box Specifications
  • Dimensions: 4" x 2.04" x 1.24"
  • Input: 1x Edison Male Plug
  • Output: 2x Edison Female Receptacle

    Laird PWR-12/3-TP
  • Cable Type: SJOOW
  • Number of Conductors: 3x 12 AWG
  • Current Carrying Capacity: 25A
  • Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
  • Outer Jacket: Rubber (CPE) Black
  • Cable Insulation: Rubber (EPR)

    Neutrik Connectors
  • Contact Resistance: ≤2mΩ
  • Dielectric Strength: 4kVDC/2.8kVAC
  • Rated Amperage: 20A
  • Rated Voltage: 250VAC

    Leviton Connector
  • Amperage: 15A
  • Rated Voltage: 125VAC
  • Blades/Contact Material: Solid Brass


• Warranty:

  • Limited Lifetime
