LDC-15NMF-PCTF - Overview

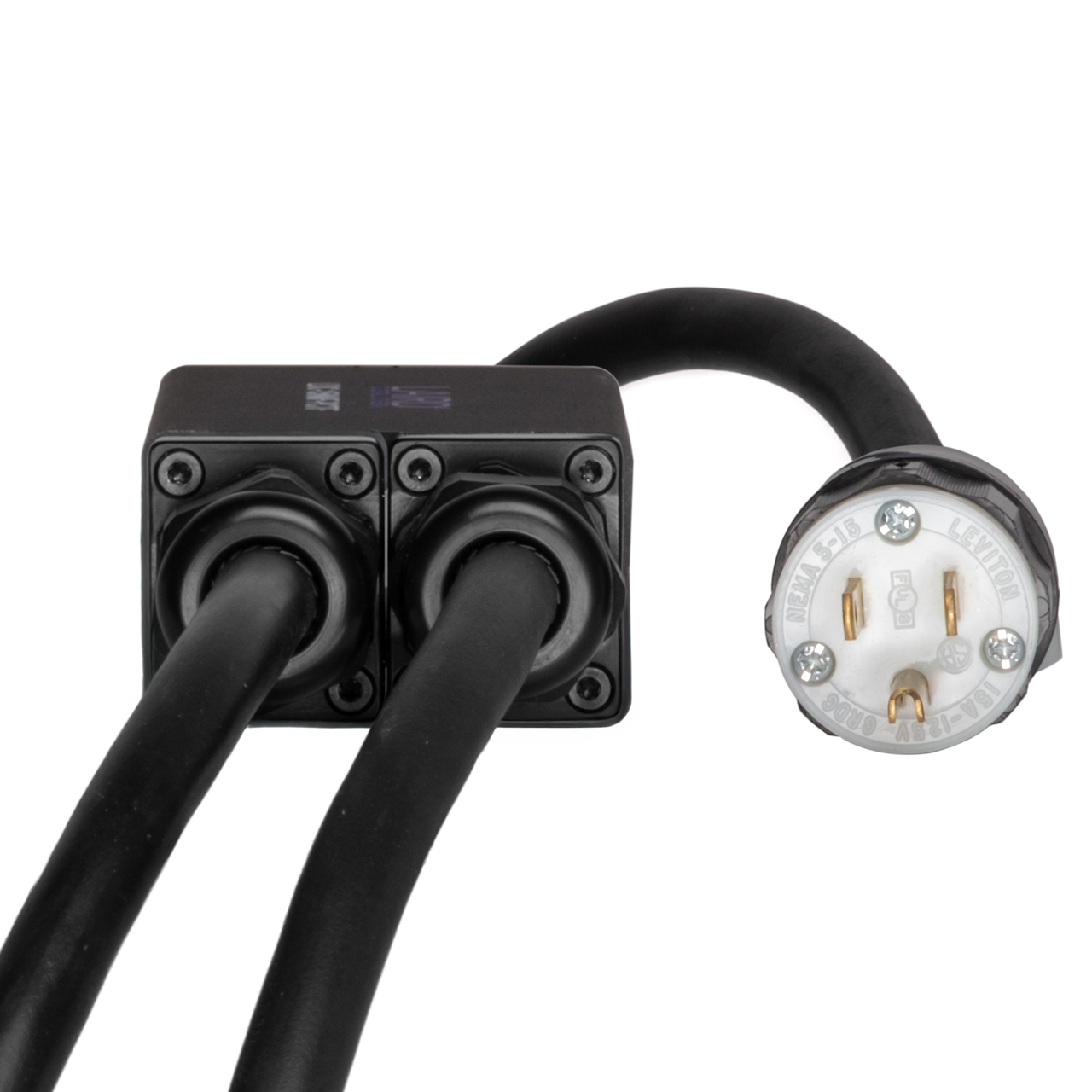

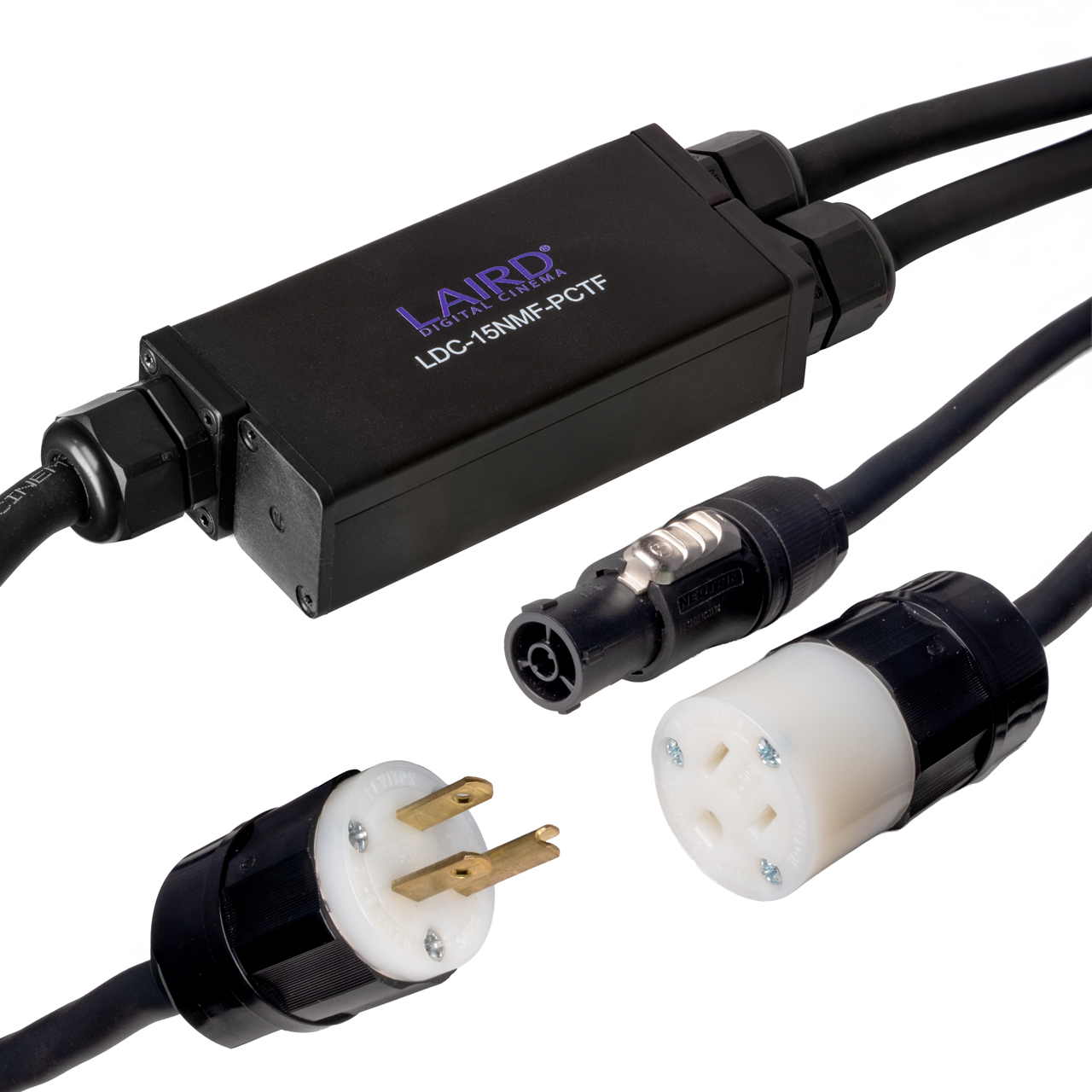

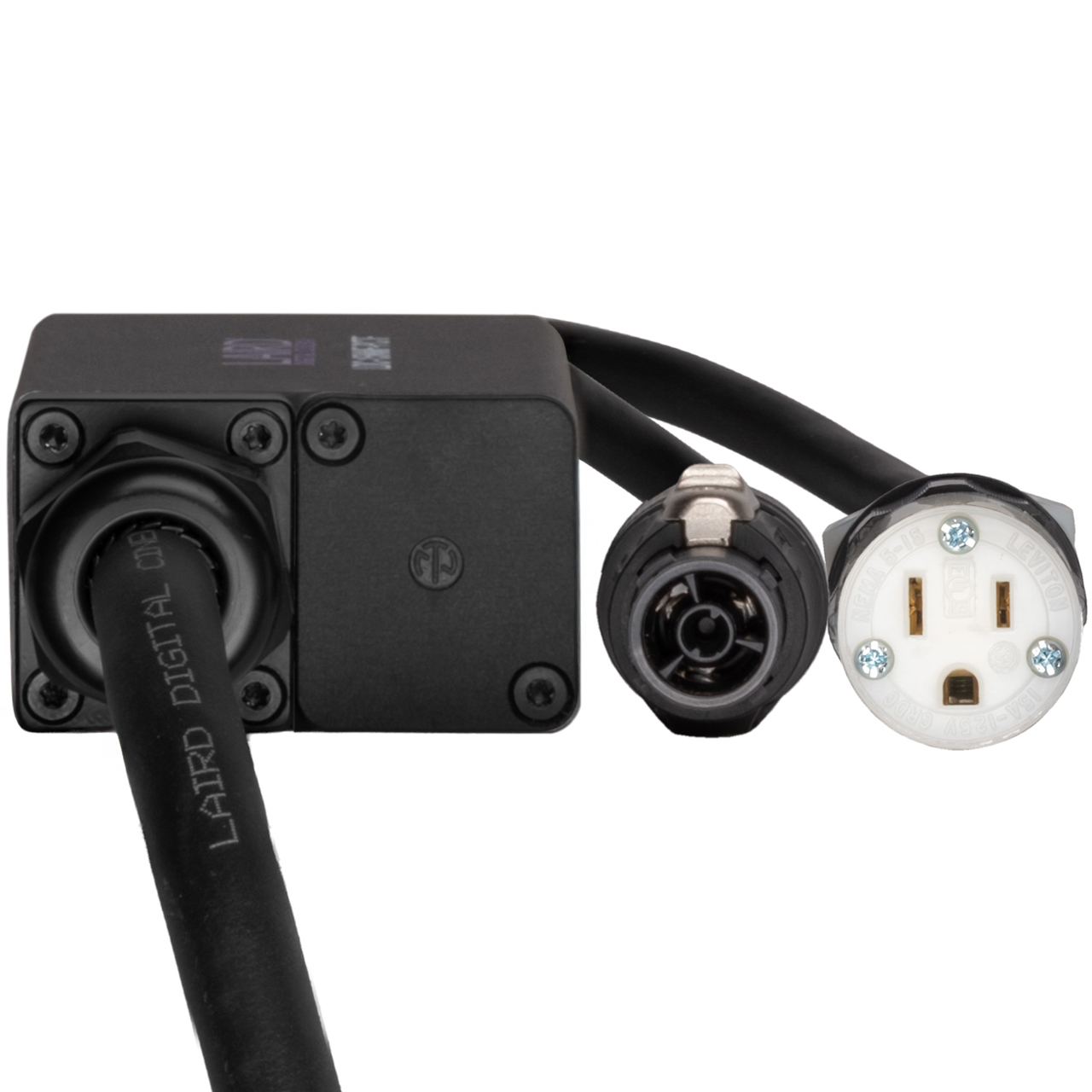

The Laird LDC-15NMF-PCTF is an Edison power distribution splitter that sends power via one 5-15 Edison Male plug to one NEMA 5-15 Female and one Neutrik powerCON TRUE1 Female connector.

powerCON TRUE1
The use of Neutrik powerCON TRUE1 connectors make the LDC-15NMF-PCTF a particularly good choice for harsh and heavy duty productions that would require environmentally sealed connectors, ensuring reliability and peace of mind. This makes the LDC-15NMF-PCTF ideal for professional audio, lighting rigging and live events.

5-15 Edison Connector
Sometimes simplicity is key, so on top of a powerCON TRUE1 connector, the LDC-15NMF-PCTF also features a female Edison connector for any gear that may require it.

Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterrupted power for your mission-critical gear.

  • Features:

    • Laird's PWR-12/3-TP Rugged yet flexible power cable
    • High-Quality Neutrik powerCON connectors
    • Rugged Aluminum Enclosure
    • Multiple connector options are available

  • Specifications:

      Box Specifications
    • Dimensions: 4" x 2.04" x 1.24"
    • Input: 1x Edison Male Plug
    • Output:
      1x Neutrik powerCON TRUE1 Female
      1x Edison Female Receptacle

      Laird PWR-12/3-TP
    • Cable Type: SJOOW
    • Number of Conductors: 3x 12 AWG
    • Current Carrying Capacity: 25A
    • Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
    • Outer Jacket: Rubber (CPE) Black
    • Cable Insulation: Rubber (EPR)

      Neutrik Connectors
    • Contact Resistance: ≤2mΩ
    • Dielectric Strength: 4kVDC/2.8kVAC
    • Rated Amperage: 20A
    • Rated Voltage: 250VAC

      Leviton Connector
    • Amperage: 15A
    • Rated Voltage: 125VAC
    • Blades/Contact Material: Solid Brass

  • Warranty:

    • Limited Lifetime
