LD Systems LDMON12AG3 12-Inch Powered Coaxial Stage Monitor - powerCON Compatible - Black

ITEM #: LDS-MON12AG3 MFG #: LDS-MON12AG3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$669.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDS-MON12AG3 - Overview

The LD Systems MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the modern age. The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

Both the signal (XLR/jack combo) and the power connection (powerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

  • Features:

    • 4 Sound Presets & 3-Band EQ: The four intuitively operated sound presets and the 3-band EQ enable quick, user-friendly sound adjustment
    • Turnable Notch Filter: With the tunable notch filter, feedback frequencies can be quickly eliminated.
    • Delay Line Function: The delay line function allows you to compensate for distances of up to 33ft (10m). This is very useful when operating multiple loudspeakers in FOH mode, for example at a town festival.
    • Easy Daisy Chaining: The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighboring stage monitor.
    • Heavy Duty Birch Plywood: The enclosures are made of heavy-duty 15mm birch plywood and coated with particularly resistant polyurea. Thus, they reliably withstand many years of hard use on the road.
    • Steel Front Grille: The extra-strong, torsion-resistant steel grilles effectively protect the speakers.
    • Two Die-Cast Aluminum Handles: The two cast aluminum handles, homogeneously integrated into the overall appearance, enable the best possible handling on stage.

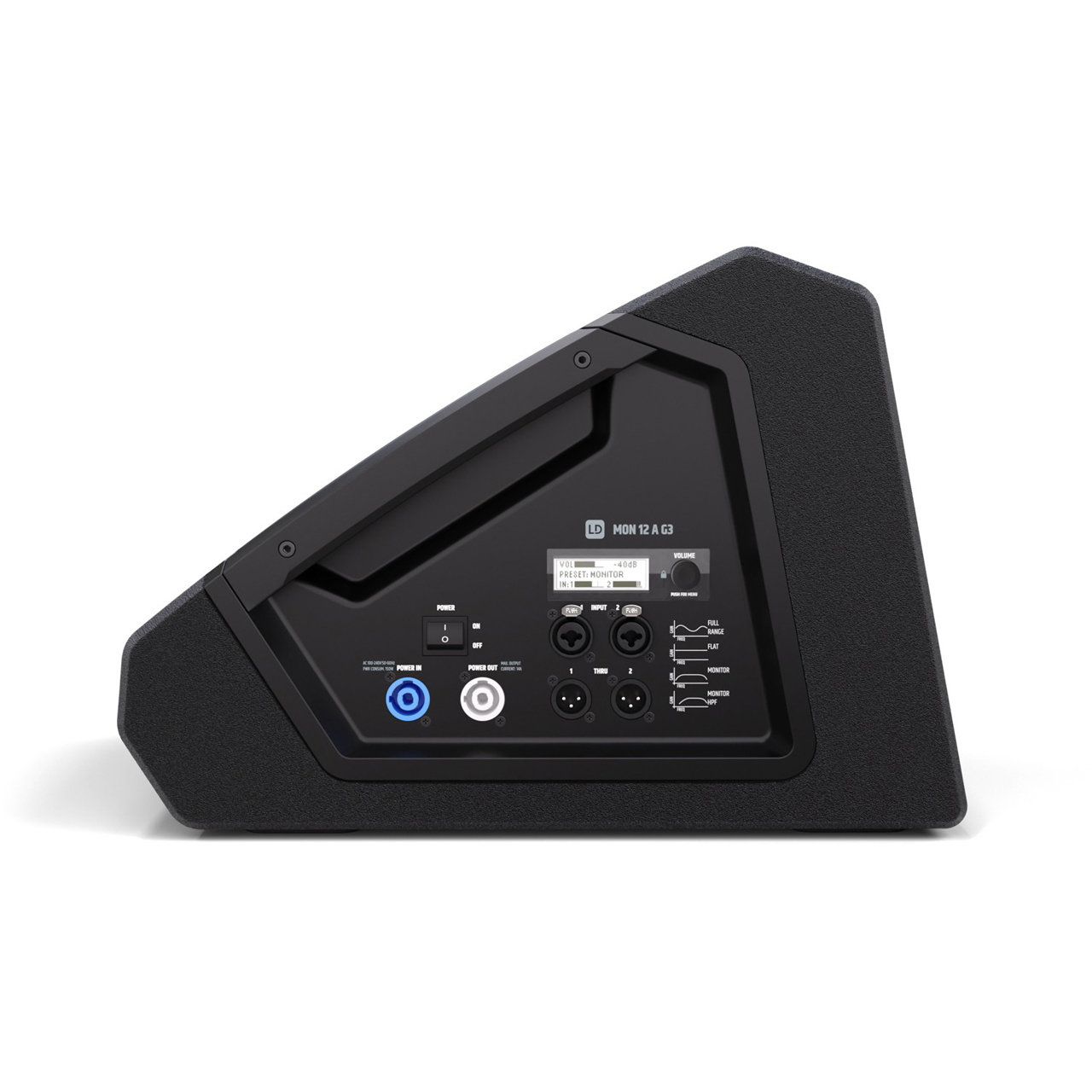

    • Recessed Connections: The connections and controllers are recessed in steel trays and are thus optimally protected against damage.
    • Noiseless Heat Sink: An elegantly designed heat sink on the back of the monitor provides fanless and thus noiseless cooling of the power electronics.

  • Specifications:

      General
    • Type: Active
    • Peak Output Power: 1200W
    • RMS Output Power: 300W
    • Amp Class: Class D
    • Max. SPL Peak (sine burst, fullspace/1m, THD=10 %): 127dB
    • Max. SPL Average (sine burst, BW, fullspace/1m, THD=10 %): 120dB
    • Frequency Response (-3dB, rel. Avg): 68Hz - 18kHz
    • Frequency Response (-10 dB, rel. Avg): 55Hz - 20kHz
    • Speaker System: 2-way coaxial system
    • Crossover Frequency: 1400Hz
    • Beam Angle: 50° (H) x 90° (V)
    • Monitor Angle: 33°
    • Number of Inputs: 2
    • Input Connector Types: 1/4" Jack TRS female
    • Number of Outputs: 2
    • Output Connector types: XLR 3-pole female
    • Protection Features: Multiband Limiter, Overheating, Overvoltage, Overload
    • Color: Black

      Inputs
    • Number of Line Inputs: 2
    • Line-In Connector Type: 1/4" Jack TRS female

      Signal Processing
    • Audio Processing: 3-band EQ (High, Mid, Low), Delay Line, Notch filter, Presets

      Bass Driver
    • Size: 12"
    • Magnet: Ferrite
    • Voice Coil: 2.5"

      Mid Range
    • Magnet: Ferrite

      Tweeter
    • Driver Size: 1"
    • Magnet: Ferrite
    • Voice Coil: 1.75"

      Mains Operation
    • Operation Voltage: 100V AC - 230V AC/50Hz - 60Hz
    • Power Supply Type: External switched-mode power supply (SMPS)
    • Rated Power: 150W
    • Mains Connector: Mains socket indoor power in male & powerCON
    • Mains Fuse: T4AL/250 V

      Housing
    • Design: Bass reflex
    • Number of Handles: 2
    • Flange: 36mm (0°/5°)
    • Cabinet Material: Birch multiplex, Medium-density fibreboard MDF
    • Material Thickness: 15mm
    • Front Grille Material: Aluminum

      Environmental
    • Ambient Temperature: 32°F - 104°F (0°C - 40°C)
    • Maximum Air Humidity (non-condensing): 80%

      Physical
    • Dimensions (LxWxH): 17.83" x 16.73" x 12.4" (453mm x 425mm x 315mm)
    • Weight: 38.4lbs (17.4kg)

  • Item Includes:

    • 1x MON 12 A G3
    • 1x Mains cable
