Lex DB15-QD1-1D PowerHOUSE 15A 1x2 Power Cable - NEMA1 5-15 Male to 2x 5-20 Female in Quad Box w/1-Ft Tail-120/208VAC

ITEM #: LEX-DB15-QD1-1D MFG #: DB15-QD1-1D

Primary Image
LEX Products Corp
Free Shipping with $49 Minimum Order

List Price:

$153.70

Our Price:

$125.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

DB15-QD1-1D - Overview

The Lex DB15-QD1-1D is a 15A 125 VAC NEMA 1 indoor 1x2 Y Power Cable with Rubberized Quad Box. It features one NEMA 5-15 Edison Straight Blade Male Plug on a 1.0 foot Pigtail to two NEMA 5-20 Edison Straight Blade Receptacles/Outlets in a rubberized, insulated Lex Quad Box.

Markets Served
Convention Centers, Live Events, Concert Touring, Industrial Maintenance and Repair

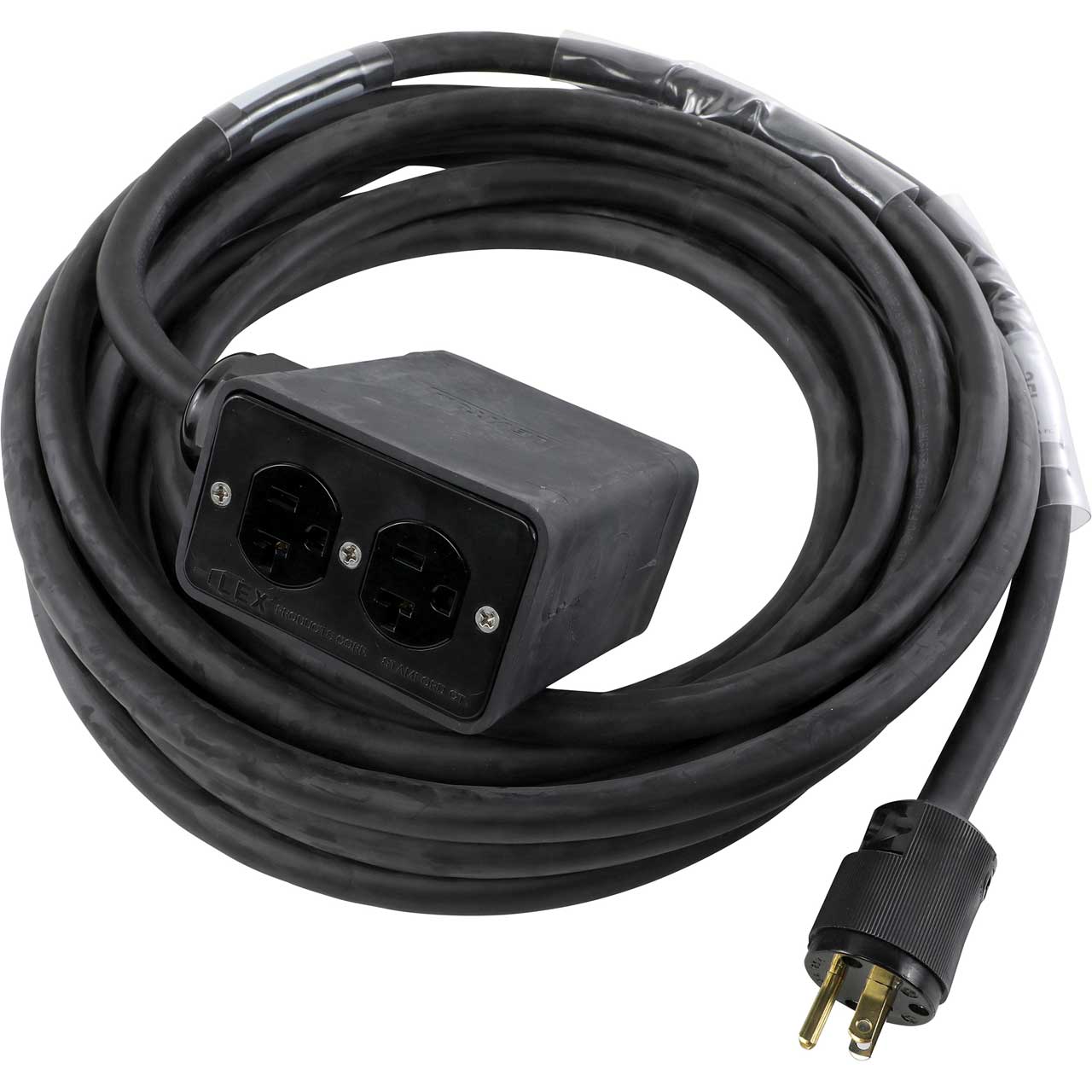

Please Note: This item has a 1 foot pigtail - the image above shows a 25' Pigtail (for illustration)

  • Features:

    • This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed
    • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion


  • Specifications:

    • Rating: 15 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
    • Environmental Rating: NEMA Type 1 (Indoor Use)
    • Input: (1) NEMA 5-15, 15 Amp, 2-pole, 3-wire, 125 VAC, straight blade plug on a 1.0' pigtail
    • Feed Thru: None
    • Output: (2) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
    • Overcurrent Protection: None
    • Dimensions: 4.70"L x 2.50"W x 4.20"H


  • Item Includes:

    • 1x DB15-QD1-1D 15A 1x2 Power Cable with 1 foot tail


  • Warranty:

    • 1-Year
