Lex TLL60WM-5-A Cam-Type Male Plug Feeder Tail - 5 Ft - Black

TLL60WM-5-A - Overview

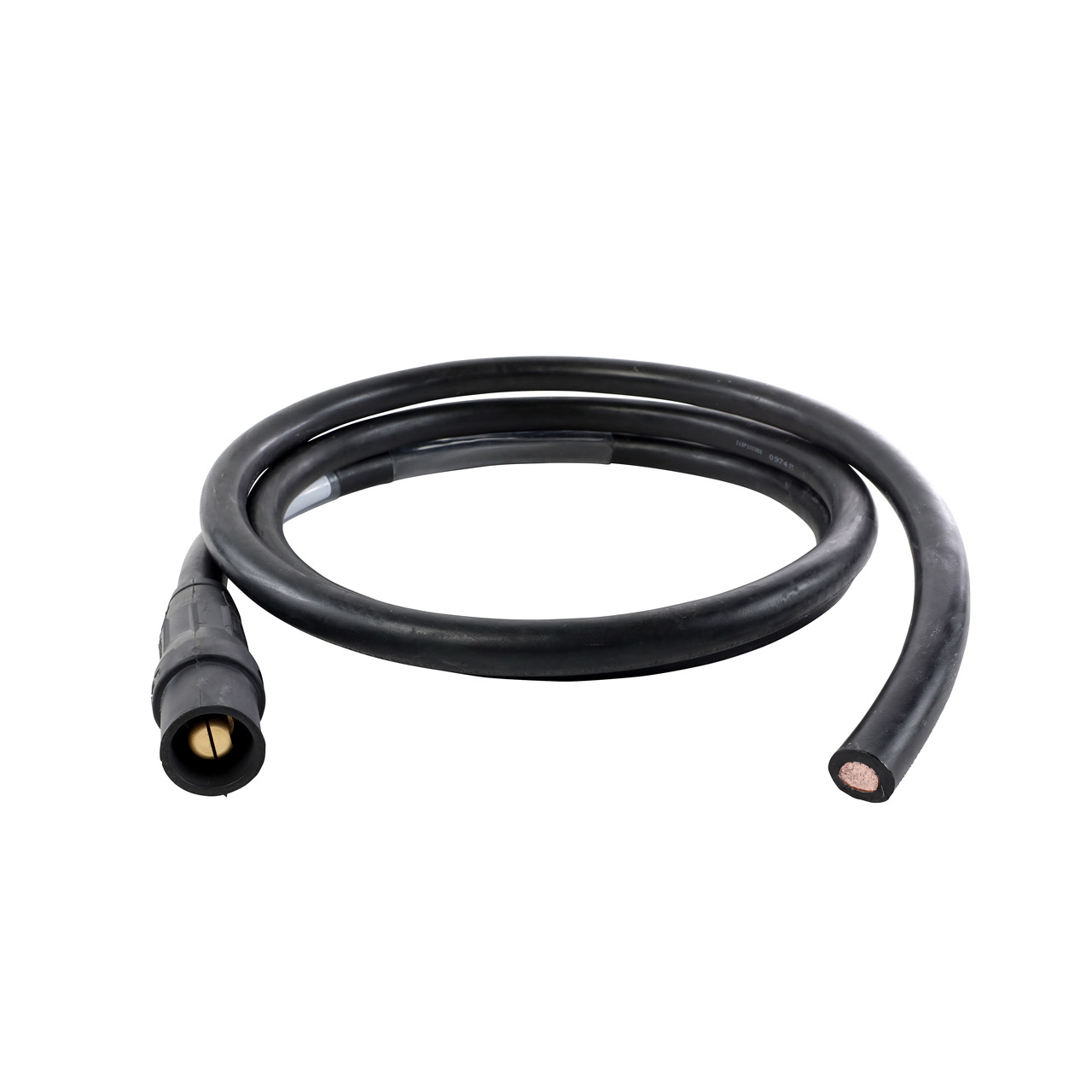

The Lex Products TLL60WM-5-A is a 400 Amp single-pole feeder tail cable (Black). It functions as a heavy-duty electrical tie-in line used to temporarily link massive power sources, like mobile generators or facility electrical panels, to portable power distribution boxes.Cable Type: 4/0 AWG Type W extra-hard-usage industrial power cable.Length: 5 feet long.Connector: Features one 16 Series Cam-Type single-pole male plug on one end (specifically a 16D24 black plug representing a standard phase line).Opposite End: A raw, blunt/bare end used for hardwiring directly into terminal lugs or switchboards.Electrical Rating: Handles up to 400 Amps and 600 VAC at 60 Hz.Safety Approvals: It carries a cULus Listing for temporary, indoor, and outdoor heavy industrial environment

• Specifications:

  • Rating: 400 Amp, Single-pole, Single-wire, 600 VAC, 60 Hz
  • Male Plug: (1) 16 Series, 400 Amp, single pole, single wire, 600 VAC, inline locking cam-type device, color-coded; y = Color

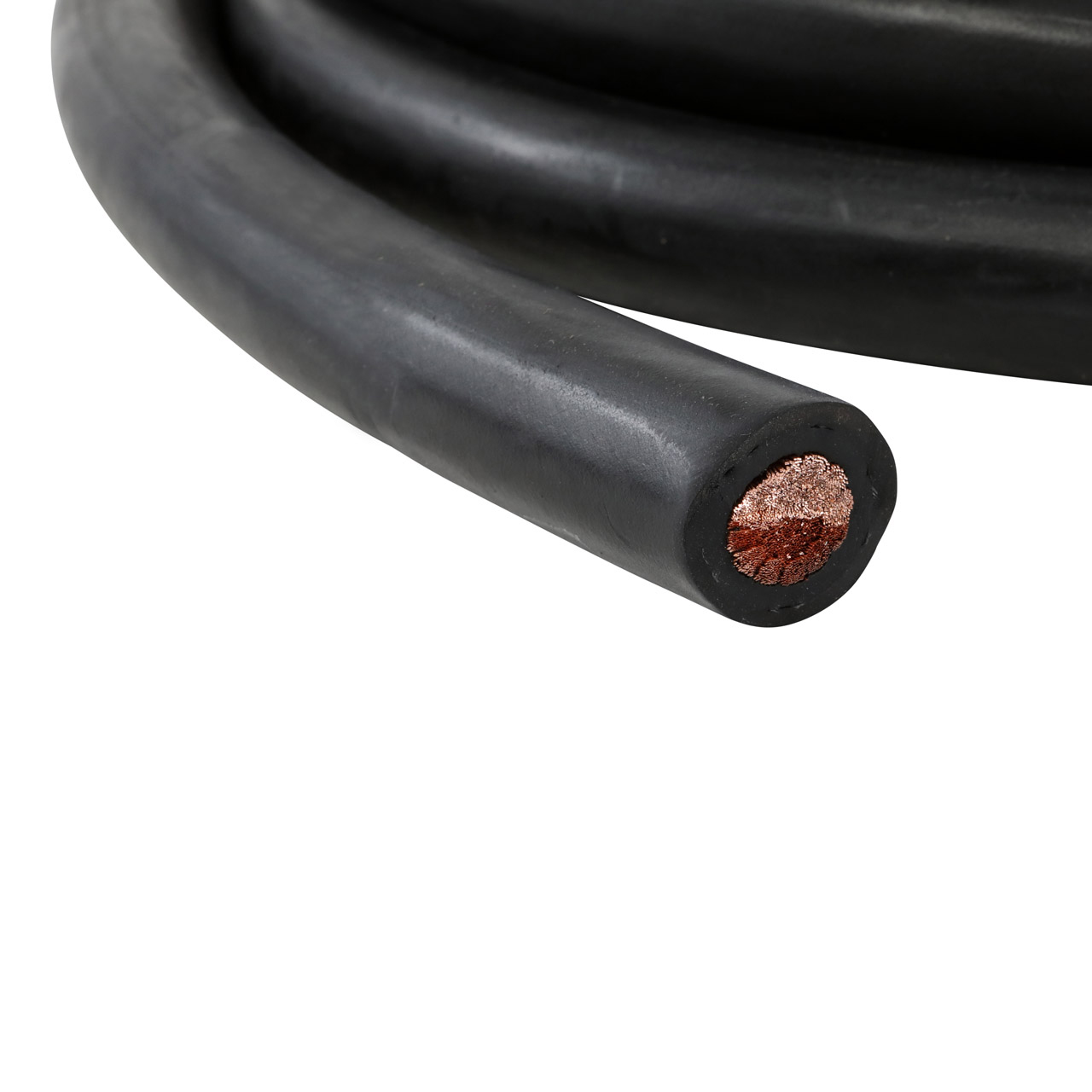

  • Cable/Cord: #4/0 Type W Cable
  • Length: 5 ft.
  • Female Connector: Blunt End
  • Weight:
  • Agency Approval: UL Listed
