Lex TLL60WM-5-E Cam-Type Male Plug Feeder Tail - 5 Ft - Green

ITEM #: LEX-TLL60WM-5-E MFG #: TLL60WM-5-E

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.


Availability: Sold Out
iAvailability Description Popup


TLL60WM-5-E - Overview

The Lex Products TLL60WM-5-E is a 400 Amp single-pole feeder tail cable (Green). It functions as a heavy-duty electrical tie-in line used to temporarily link massive power sources, like mobile generators or facility electrical panels, to portable power distribution boxes.

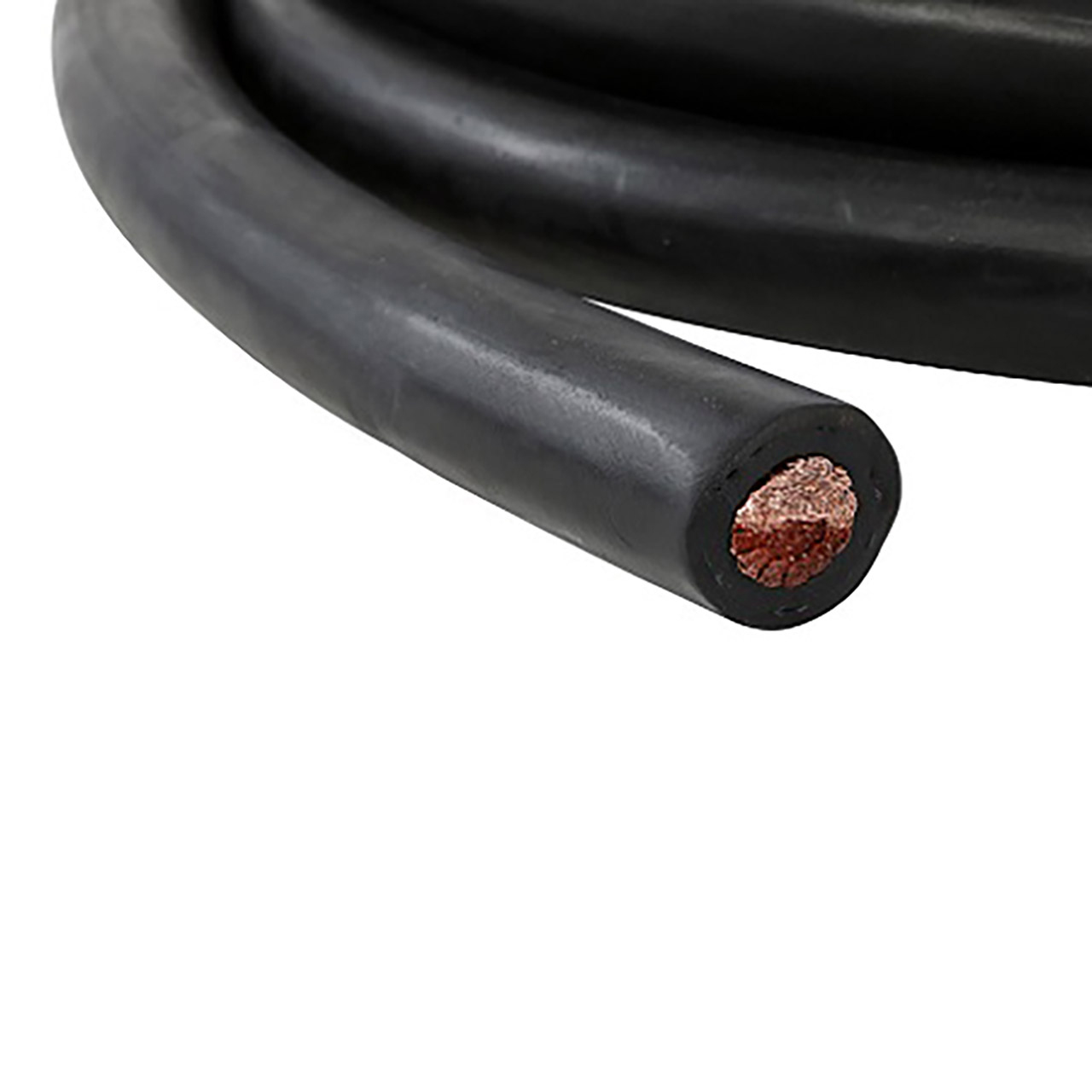

Cable Type: 4/0 AWG Type W extra-hard-usage industrial power cable.Length: 5 feet long.Connector: Features one 16 Series Cam-Type single-pole male plug on one end (specifically a 16D24 black plug representing a standard phase line).Opposite End: A raw, blunt/bare end used for hardwiring directly into terminal lugs or switchboards.Electrical Rating: Handles up to 400 Amps and 600 VAC at 60 Hz.Safety Approvals: It carries a cULus Listing for temporary, indoor, and outdoor heavy industrial environment

  • Specifications:

    • Rating: 400 Amp, Single-pole, Single-wire, 600 VAC, 60 Hz
    • Male Plug: (1) 16 Series, 400 Amp, single pole, single wire, 600 VAC, inline locking cam-type device, color-coded; y = Color
    • Cable/Cord: #4/0 Type W Cable
    • Length: 5 ft.
    • Female Connector: Blunt End
    • Weight:
    • Agency Approval: UL Listed


TLL60WM-5-E - Required Accessories
