Leader LV7330 Multi SDI Rasterizer
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

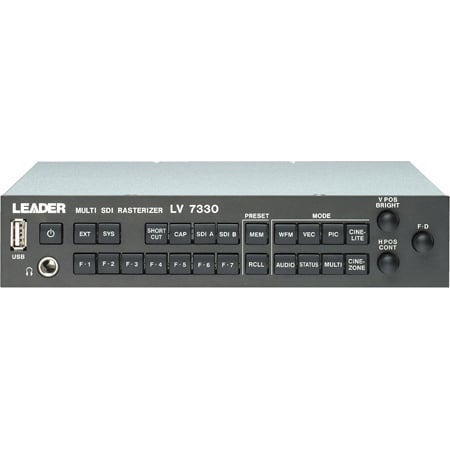

    Leader LV7330 Multi SDI Rasterizer

    Item #: LV7330   •   MFG #: LV7330


    List Price:$5,245.00
    Our Price:$4,983.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    The LV 7330 is a highly functional, compact, light-weight SDI rasterizer that boasts exceptional cost performance.
    When the LV 7330 is connected to an external XGA monitor, it can display the picture of an HD-SDI or SD-SDI signal in addition to video signal waveforms, vectors, audio data, and data analyses of the signal.
    The LV 7330 also comes standard-equipped with CINELITE II, a convenient tool for analyzing luminance data.

    • Features

      • Monitors 2 HD/SD-SDI Sources And Displays Picture, CINELITE, CINEZONE, Waveform, Vector, 5-Bar, Audio and Status Displays In Various Combinations.
      • DVI-I XGA Output (1024 x 768) For Superb, Crisp Waveforms And Picture Representations; Supports 16 x 9 and 4 x 3 Monitors.
      • CINELITE On-Picture Measurements, CINEZONE false color displays and peaking function facilitate quick camera focus and exposure setups.
      • Effortlessly Monitors R,G,B Levels & Composite Gamut With Innovative 5-Bar Display.
      • Time-Code Referenced Gamut Error Logs Facilitate Material Q/A And Improve Work Flows.
      • User Settable Error Levels & Alarms Facilitate Worry-Free Monitoring.
      • Embedded Audio Is Displayed And 2 Audio Channels (User Selectable) Are Fed To A Headphone Monitoring Output.
      • Pictures And Waveform Representations Can Be Captured, Reviewed And Compared To Live.
      • USB Connector Allows The Use Of A Jump-Drive For Storing Captured Screens, Presets And Software / Firmware Updates.
      • Various Display Adjustments Facilitate Monitor Matching Within A Production Or Studio Environment.
      • 30 Presets Permit Quick Access To Setups; USB Storage Of Presets Allows Each User To Personalize The Instrument.
      • Provides HD/SD-SDI Switched Output Of The Selected Source.
      • Accepts Black-Burst As Well As Tri-Level Sync For External Reference And Facilitates System Timing.
      • Rack-mounts In A Half-Rack Wide By 1 Rack High Space.
      • 10 - 18 Vdc Operation (XLR); AC Adaptor included.
      • Also available with built-in display as a half-rack 3RU monitor; see the LV5330 Portable Multi SDI Monitor.
