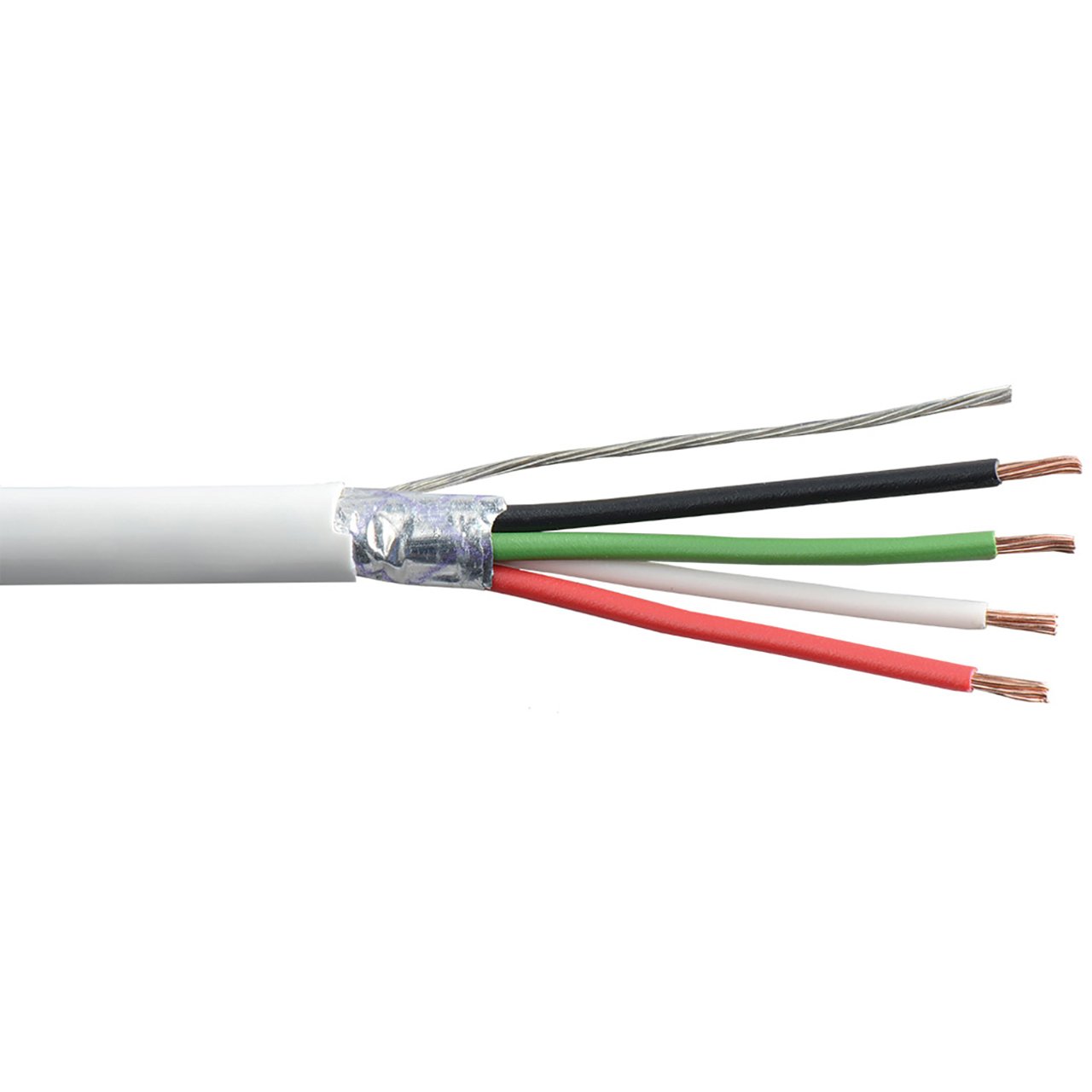

Liberty 22-4C-PSH-WHT Commercial Grade 22 AWG 4-Conductor Plenum Shielded General Purpose Cable - 1000 Foot Reel - White

22-4C-PSH-WHT - Overview

• Features:

  • Stranded annealed bare copper conductors
  • Plenum rated PVC alloy insulation
  • Plenum Rated PVC alloy insulation
  • Twisted, shielded
  • Plenum rated PVC jacket
  • UL 444, UL 13 CMP rated for the US and Canada
  • Standard package 1000 foot spool


• Specifications:

  Conductor
  • 22 AWG
  • 7-strand annealed bare copper conductors
  • Diameter: 0.029" (0.73mm)

    Electrical
  • DC resistance: 16.4Ω / 1000' (53.79Ω/KM)
  • Mutual capacitance: 39.7 pF/FT (130.22 pF/M)
  • Impedance: 47Ω
  • Velocity of Propagation: 55%
  • Voltage rating: 300V
  • Maximum current: 2.3A@25°C
  • Insulation: Plenum rated polyvinyl chloride
  • Wall thickness: 0.008" (0.20mm)
  • Diameter: 0.044" (1.13mm)
  • Regulatory NEC: CMP 75°C
  • CEC: CMP FT6 60°C
  • EU RoHS-2 2011/65/EU Compliant
  • Color Code Black, Red, White, Green

    Packages
  • Reel: 1000' (305m)
  • Weight: 20lbs/1000' (30 Kg/KM)

    Assembly: 4x conductors twisted
  • Lay length: 3.0" (80mm)
  • Twists: 4.0 per foot (12.5 per meter)

    Installation
  • Pull Tension: 25lb (112N)
  • Bend radius:
    - Unloaded: 1.37" (35mm)
    - Loaded: 2.74" (70mm)
  • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F (0°C) ambient temperature

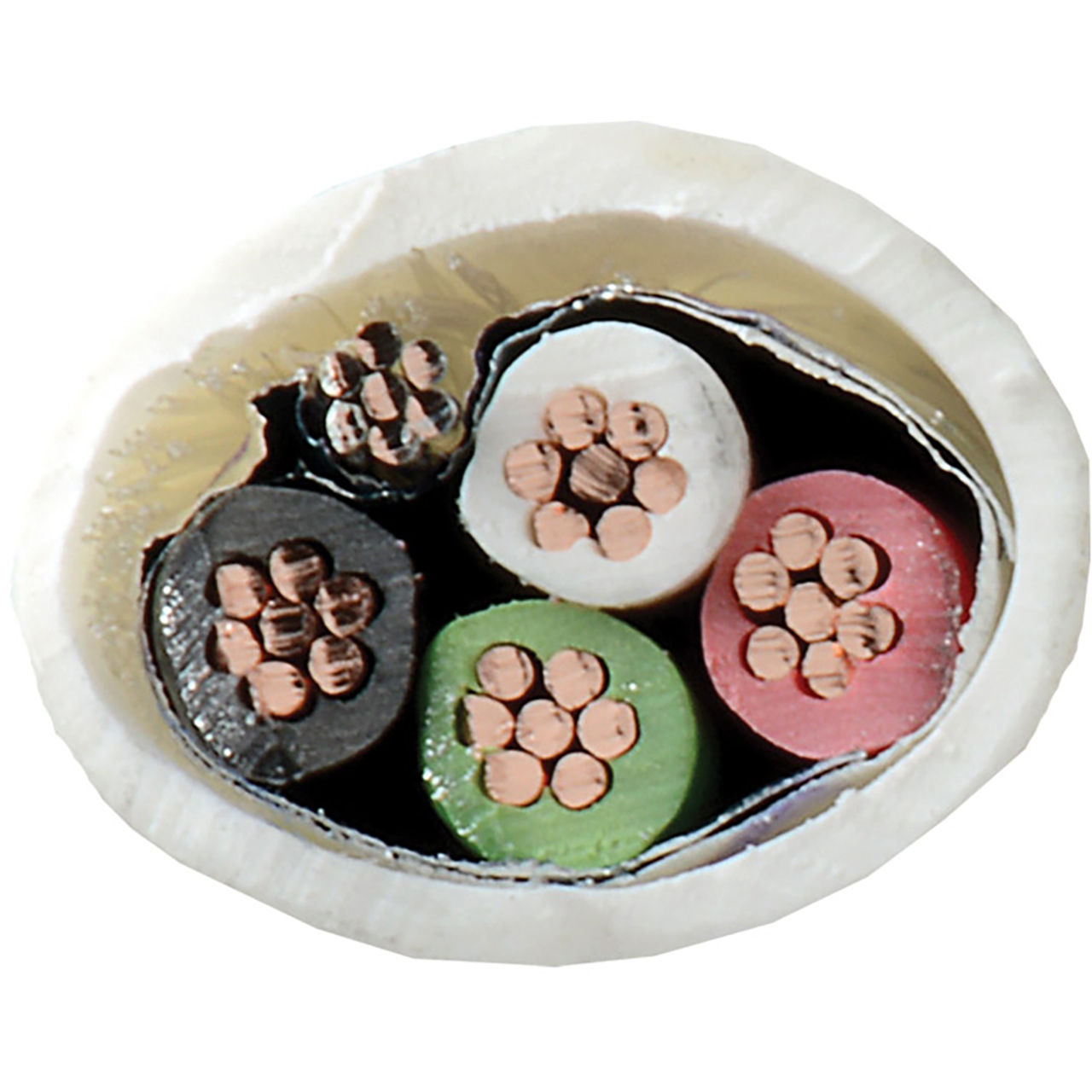

    Construct
  • Ripcord under jacket

    Applications
  • Plenum security and low voltage power
  • Plenum Class 2 and 3 power

    Shield
  • 100% aluminum/polyester tape foil out
  • 24 AWG 7-strand tinned copper drain

    Jacket
  • Plenum rated polyvinyl chloride
  • Colors: Natural White, Black
  • Wall thickness: 0.014" (0.38mm)
  • Diameter: 0.137" (3.48mm)
  • Final Outside Diameter: 0.137"


• Item Includes:

  • 1x Liberty 22-4C-PSH-WHT cable


• Warranty:

  • Lifetime Warranty
