CTB-40CK - Overview

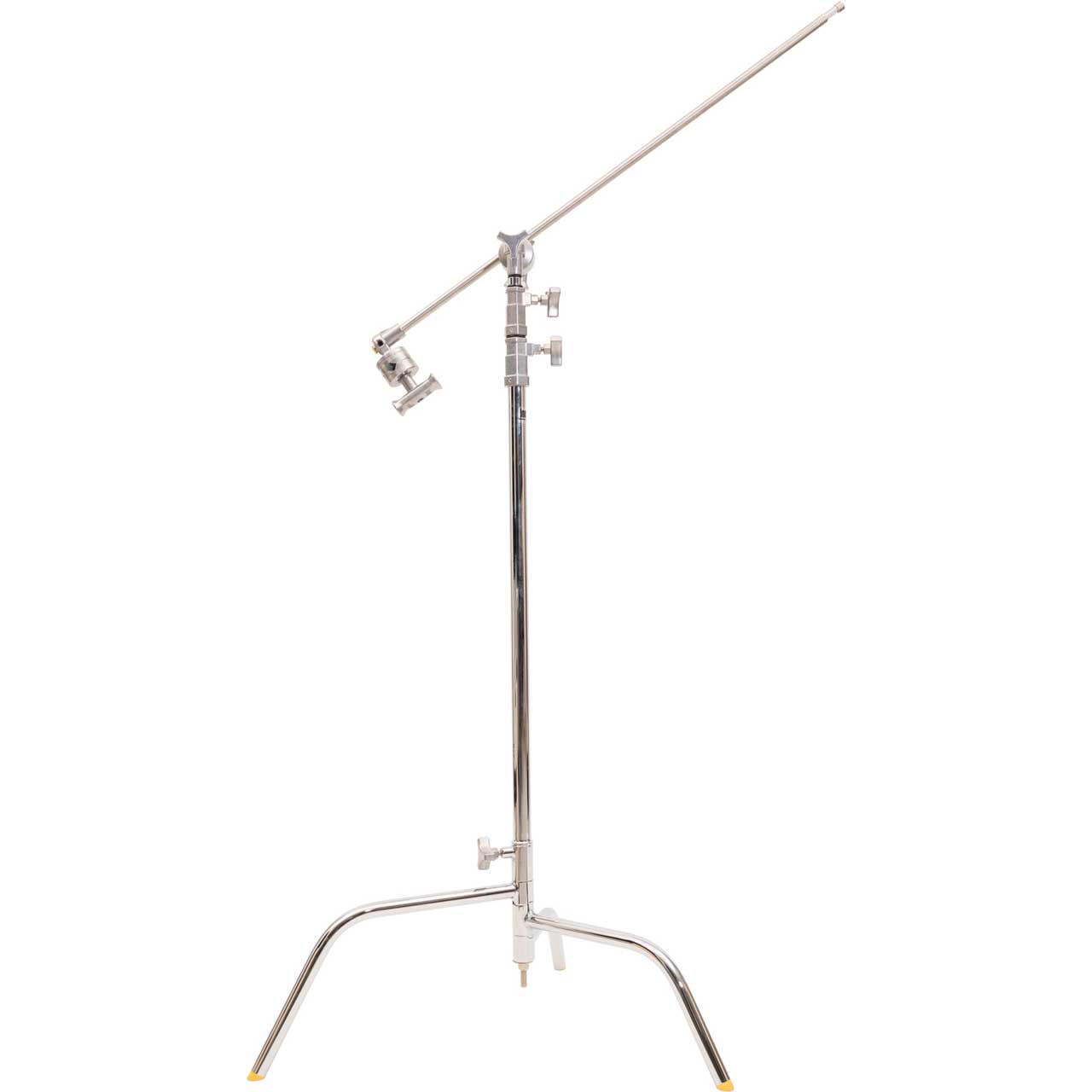

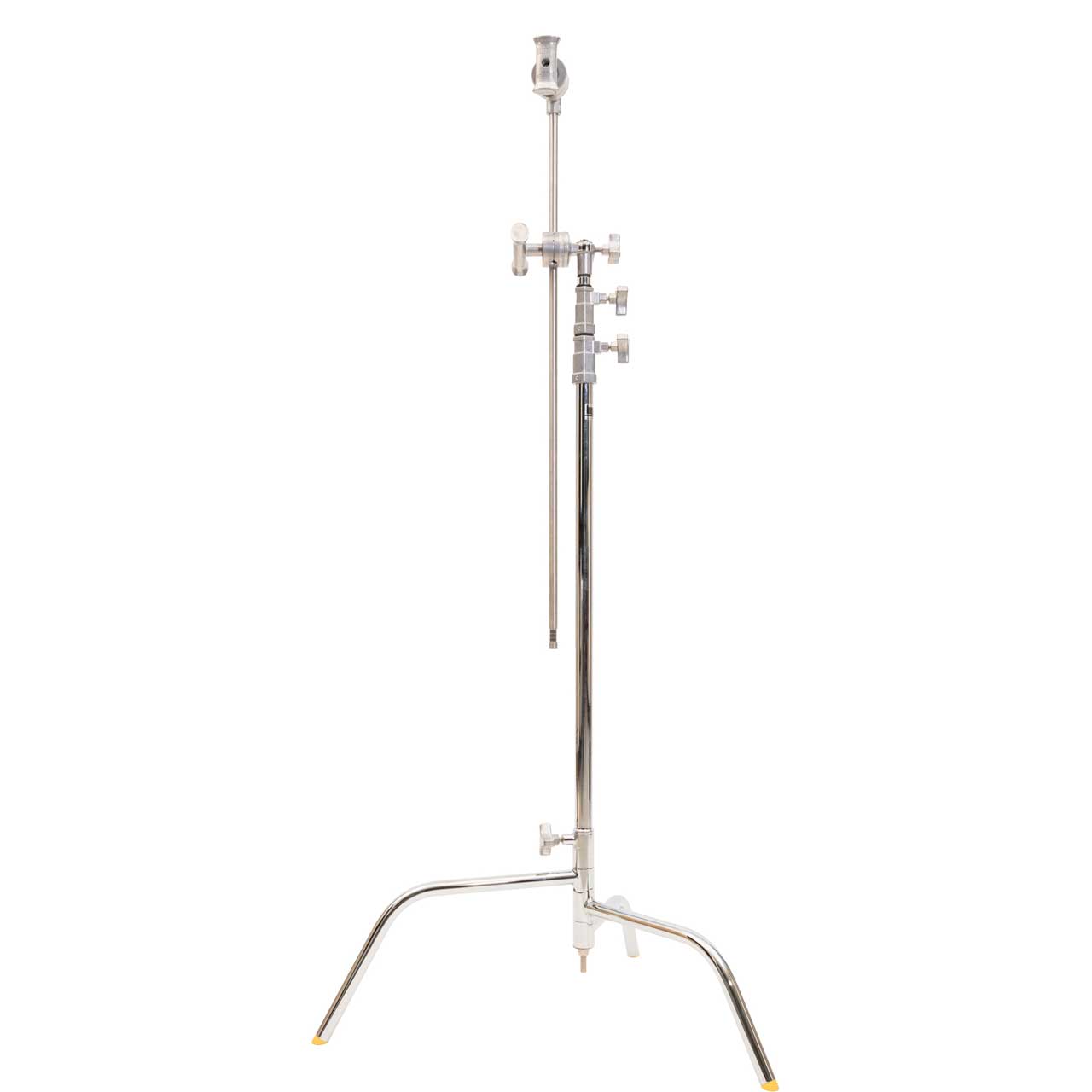

The Lowel 40-inch C-Stands are a motion picture and photography industry standard for go-to accessories in the studio or on location. The 40-inch double-riser shaft is outfitted with unique ergonomic locking tri-knobs that offer a firm grip and secure hold. The familiar staggered leg height design allows nesting several stands close together, and fast deployment. Lowel C-stands follow industry standard sizes to perfectly fit on grip trucks or C-stand hangers. When combined with the Lowel grip head and arm, there's no better tool for supporting light fixtures and light-modifiers like gobos, flags, silks, and scrims.

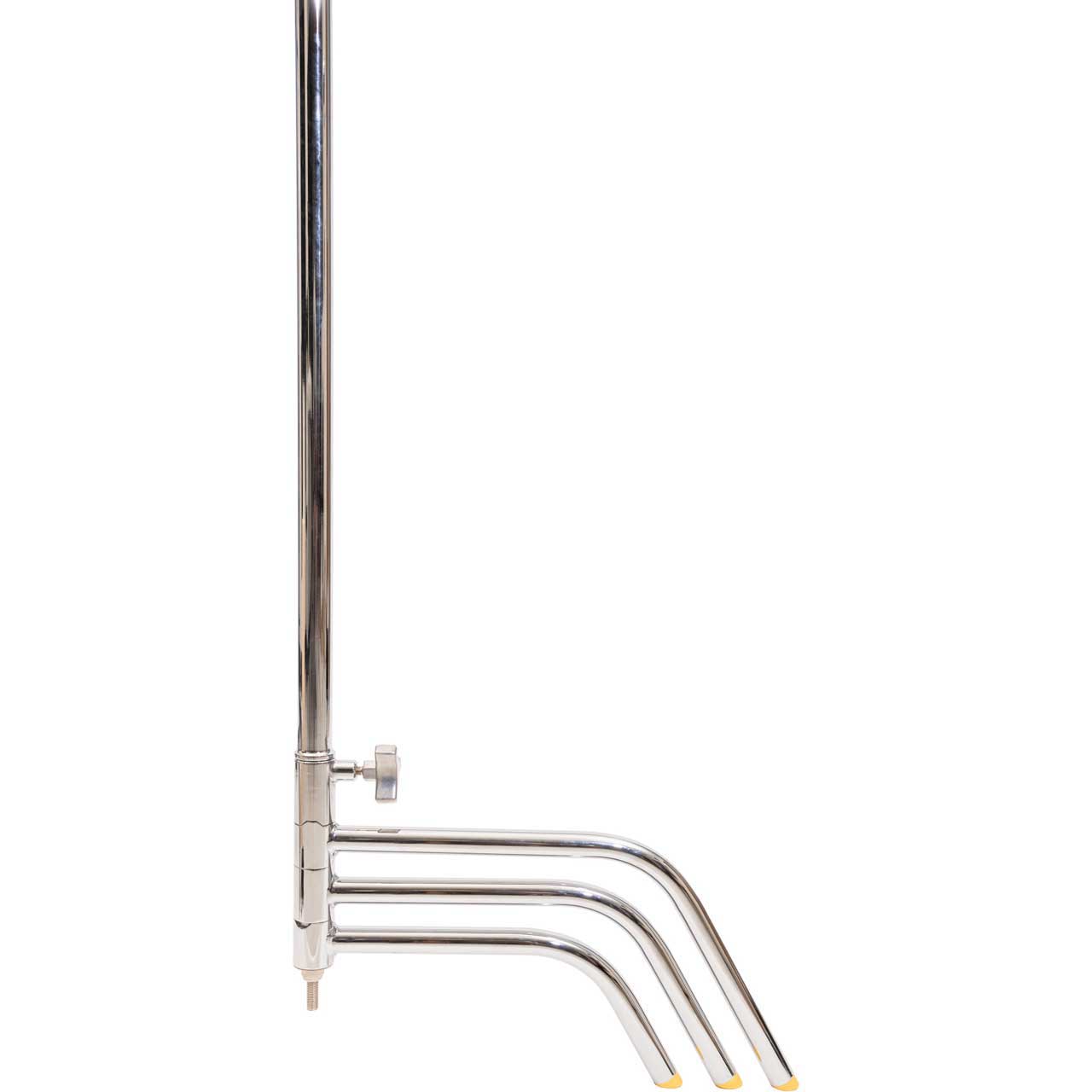

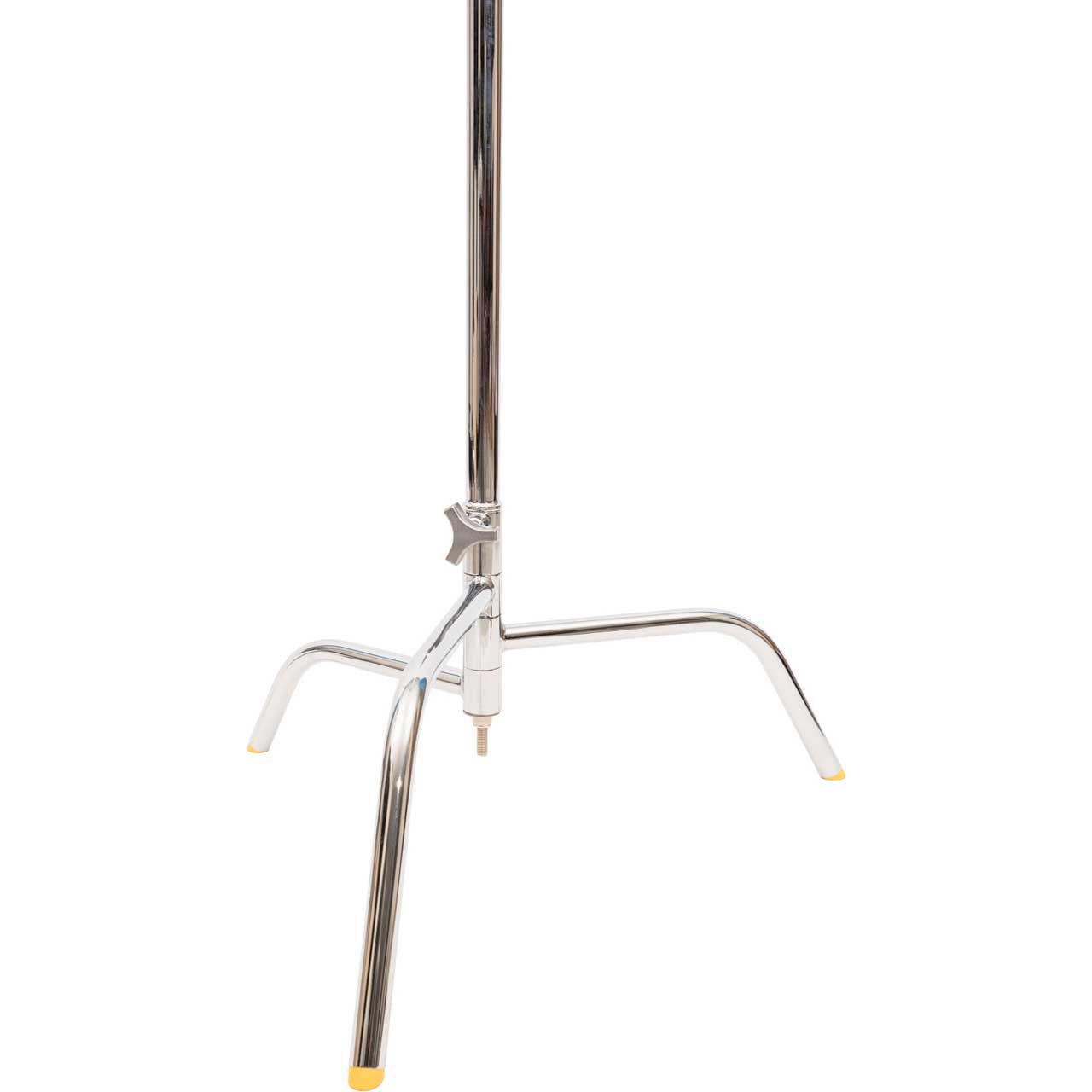

The Lowel turtle-base model C-stand CTB-40 features spring-loaded legs for fast setup and breakdown and for easy travel and storage. The removable base with a 1?-inch junior receiver facilitates exchanging riser sections with accessories like a stand adapter for low-angle lighting, or replacing the legs with a runway base for greater mobility.

Suggested Markets:
Motion Picture and Television
Independent content creation
In-house corporate production
House of Worship

  • Features:

    • Heavy duty - designed for loads up to 22 lbs./10 kg
    • Industry standard size to perfectly stack and store on carts, grip truck hangers or studio racks
    • Aluminum castings with stainless steel helicoil inserts
    • Captive "no backout" tri-knob handles with hex-nut wrench interface
    • Tapered brass brakes for fast and secure riser adjustment
    • Spring loaded and welded 1.5mm tube wall thickness steel legs
    • Top riser with welded knurled baby pin to prevent rotation of grip head or lighting fixture

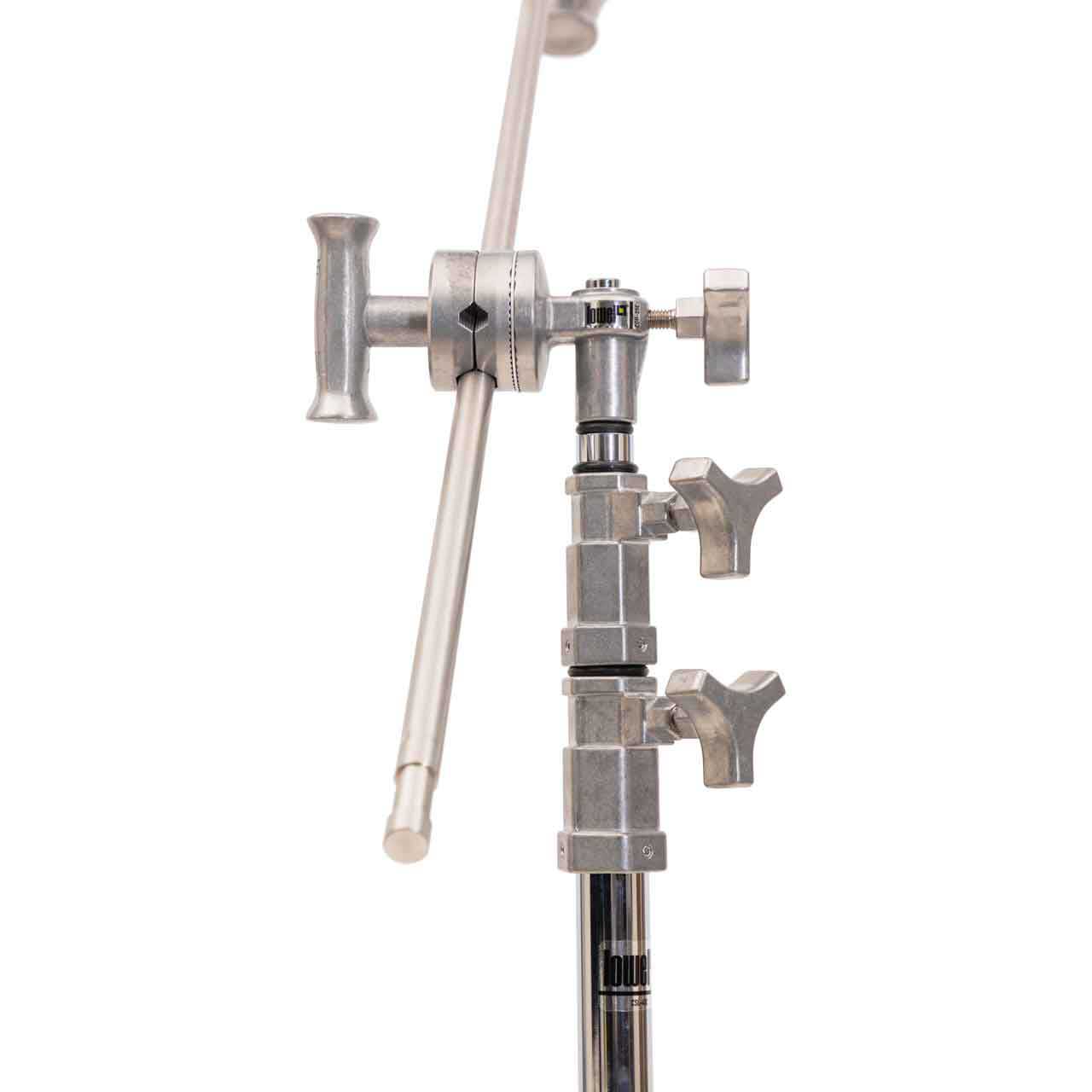

    • Serrated Grip Head with aluminum gasket to prevent slipping and sagging
    • Stainless steel Grip Arm with flat recess pin to limit slipping or rotation of light fixtures
    • Choice of Turtle Base or Sliding Leg Base
    • Choice of electroplated chrome or powder coated black finish
  • Specifications:

    • Load Capacity: 22 lb. (10 kg)
    • Mounting Options: 5/8 in. stud
    • Maximum Working Height Turtle Base: 118 in. (299.7 cm)
    • Sliding Leg: 127 in. (322.4 cm) - Minimum Working Height: 53.5 in. (136 cm)
    • Collapsed Height: 53.5 in. (136 cm)
    • Footprint Diameter: 37 in. (94 cm)
    • Arm Length: 40 in. (101.6 cm)
    • Detachable Base: Yes, 11/8-inch Jr. Receiver (Turtle Base models only CTB-40CK / CTB-40BK)
    • Leveling Leg: Yes, Single Leg (Sliding Leg models only CSL-40CK / CSL-40BK)
    • Finish: Electroplated Chrome or Powder Coated Black
    • Construction Material: Aluminum, Steel
    • Weight Turtle Base: 12.8 lb. (5.8 kg)
    • Sliding Leg: 12 lb. (5.4 kg)
  • Item Includes:

    • 1x Sliding Leg or Turtle Base C-Stand
    • 1x 2.5" Grip Head
    • 1x 40" Stainless steel Grip Arm
    • 1x User Guide
