Middle Atlantic NEXSYS UPX-RLNK-1000R-2 - 1000 VA 15 Amp UPS Backup Power System with RackLink - Bank Outlet Control

ITEM #: MAPUPXRLNK1000R2 MFG #: UPX-RLNK-1000R-2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,500.00

Our Price:

$2,250.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    UPX-RLNK-1000R-2 - Overview

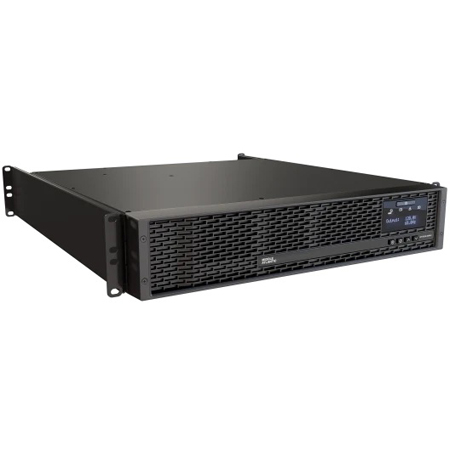

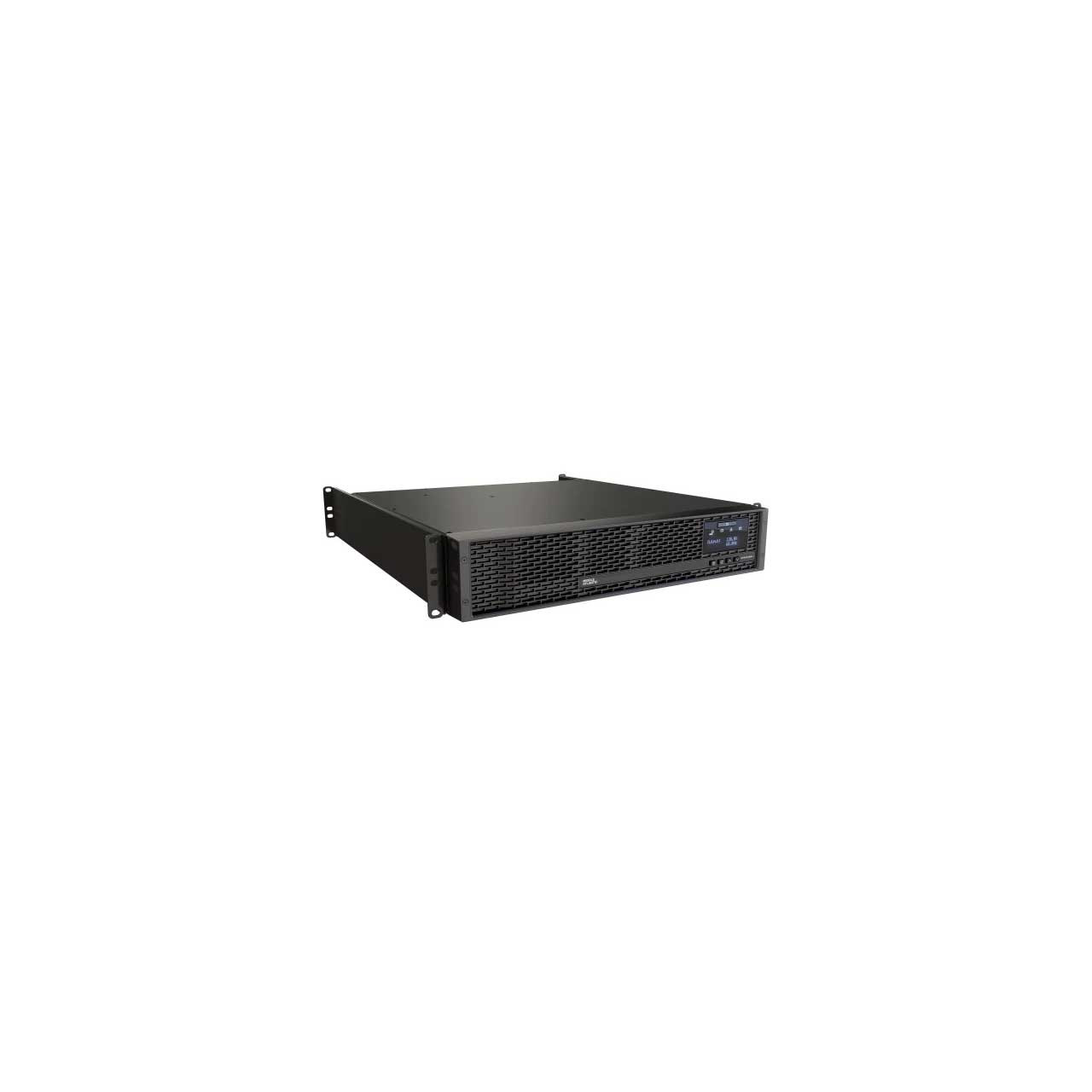

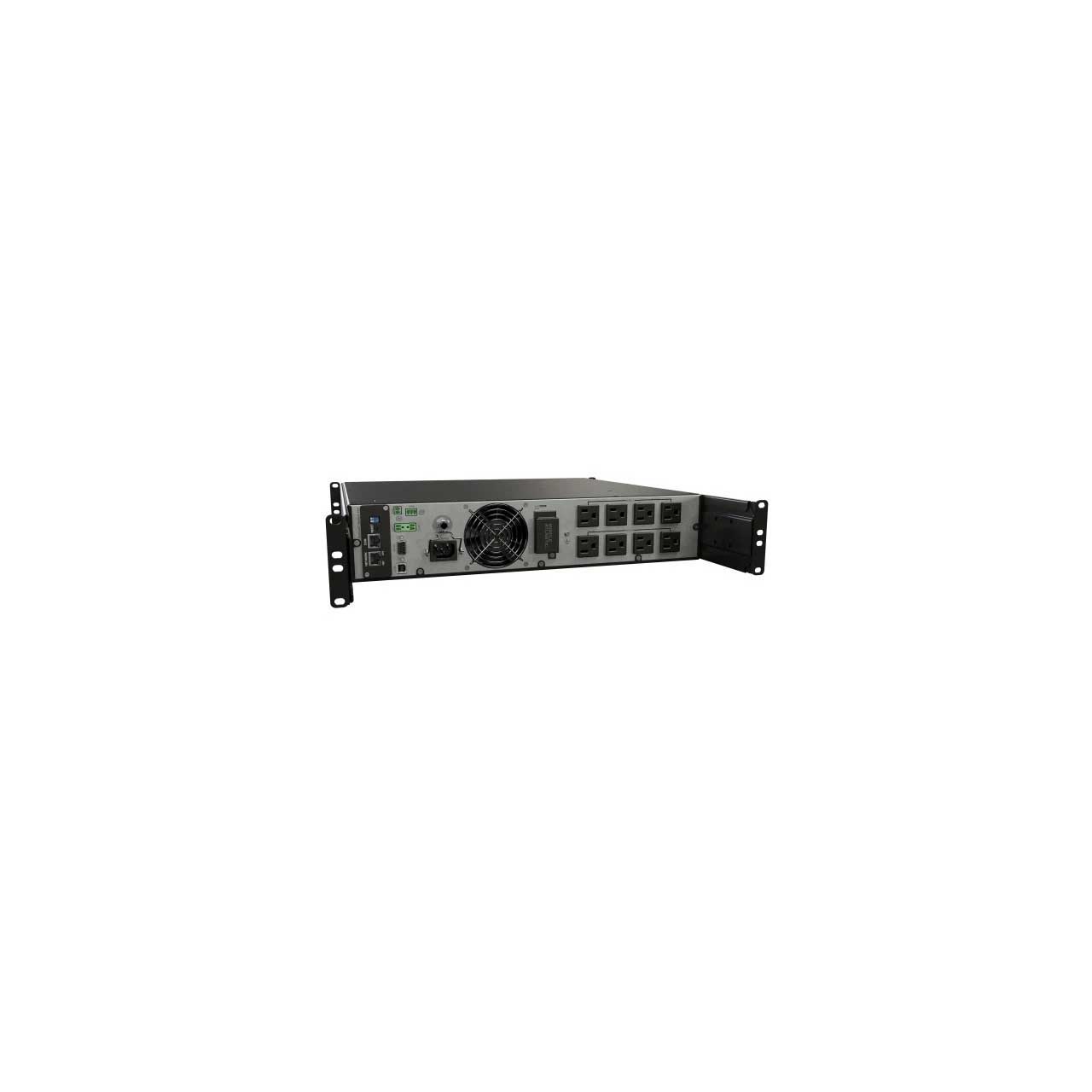

    Protect your equipment with the Middle Atlantic NEXSYS UPX-RLNK-1000R-2. This rack-mountable UPS system from Middle Atlantic features 8 surge protected outlets and 900W watts of power.

    NEXSYS is built on a promise that Middle Atlantic has kept for over two decades - more than half the life of the company - that their power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And their NEXSYS Line Interactive UPSs prove it. They are built with premium components to keep your AV systems running as smoothly as you'd expect. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment.Everything is assembled and connected right from the factory saving you time during your installations. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrails.The battery is already connected so just plug it in!

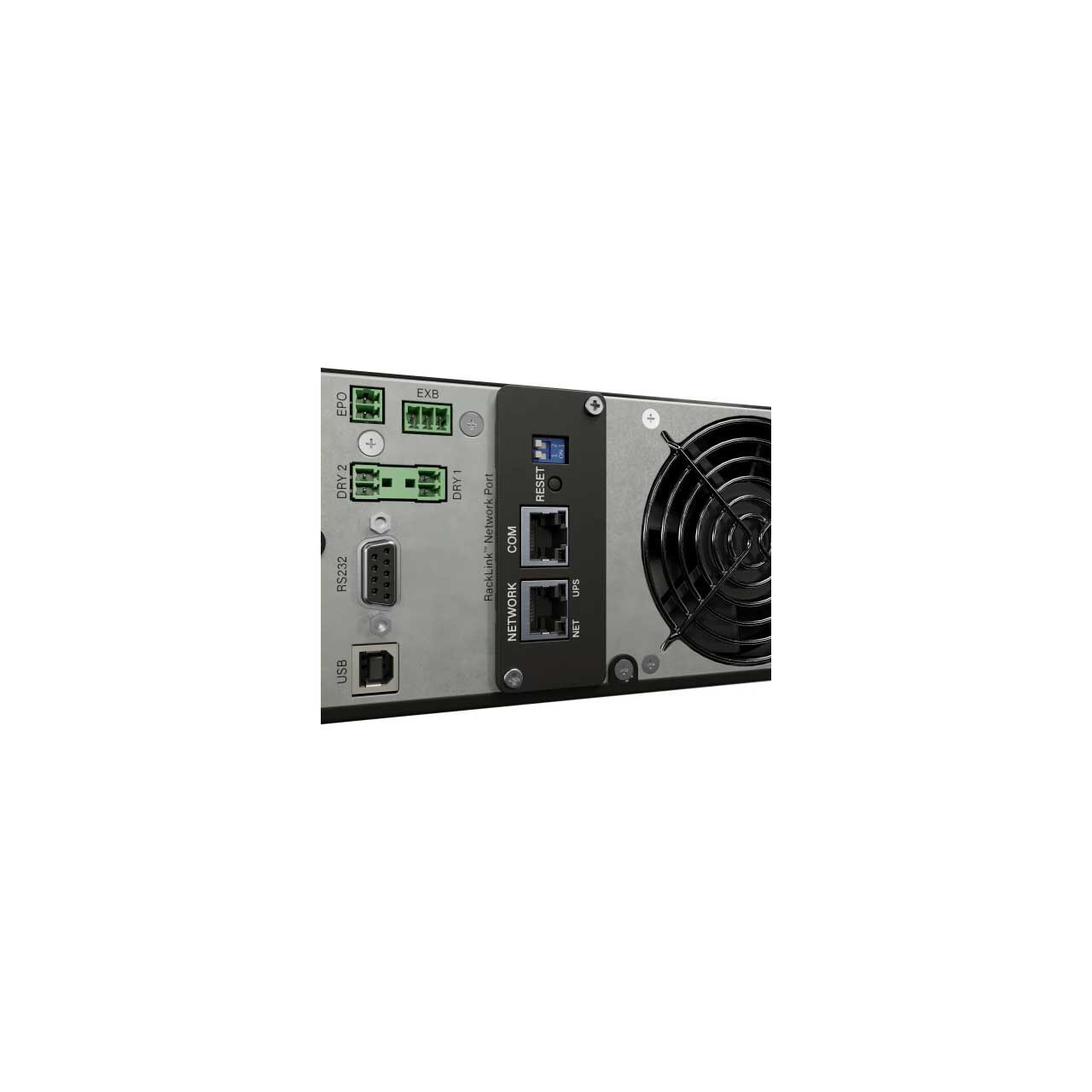

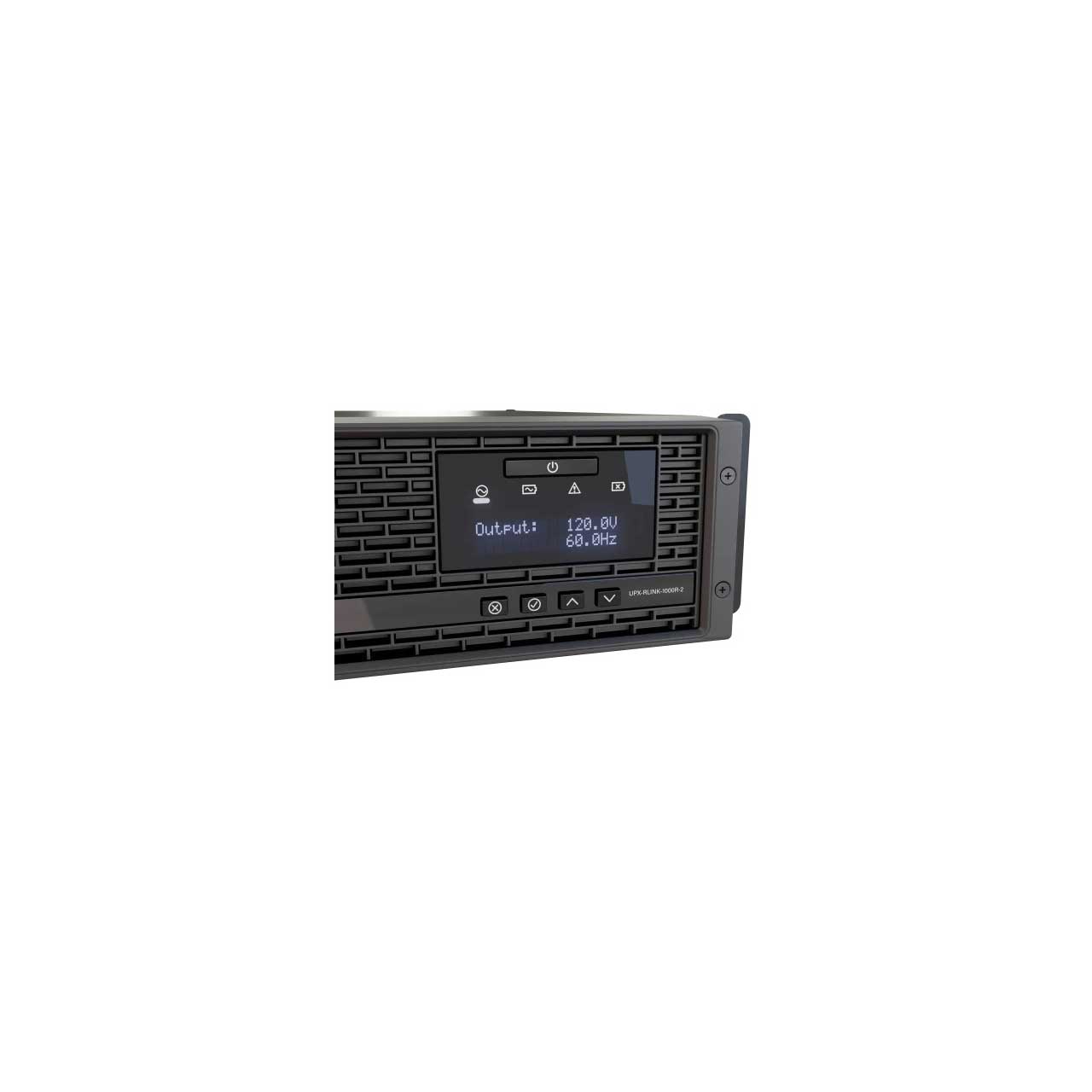

    The NEXSYS UPS are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to the UPS. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS . Front panel LCD screen shows UPS Device Name, Model Number, Serial Number, Replacement Battery Number, Battery Install Date, Firmware Version and where applicable, RackLink Network card IP address and MAC address. Hot swappable battery from the front access panel for easy service without disrupting the system. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required.

    • Features:

      • An Out-of-Box(y) Experience - Everything is assembled and connected right from the factory saving you time during your installations.
      • Customization is a Breeze. - The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications.
      • "NEXSYS, alert me when..." - Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
      • Pure Power - All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
      • Keep your power squeaky clean - Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
      • RackLink Remote Management Built-In - The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.

    • Specifications:

      • Dimensions & Measurements
      • AC Voltage Input: 120 VAC
      • AC Voltage Output: 110, 120V, 127
      • Amps: 15 Amp
      • Cord Length: 6ft (1.8m)
      • Dimensions (DxWxH): 16in x 19in x 3.5in(40.6cm x 48.3cm x 8.8cm)
      • Mounting Depth Max: 36 in (91.4 cm)
      • Mounting Depth Min: 22 in
      • Operating Temperature: 32°F - 104°F
      • Primary Package Weight: 54lbs (24.5kg)
      • Product Weight: 44.1 lbs (20kg)
      • Rack Units: 2 RU
      • VA: 1,000 VA
      • Volts AC: 120 VAC
      • Volts DC: 36 VDC
      • Watts: 900 W

        Characteristics & Features
      • Color: Black
      • Control Type: RackLink
      • Isolated Ground: No
      • Mounting Points: 4
      • Network Card Included: Yes
      • Network Enabled: Yes
      • Outlet Control Type: Bank

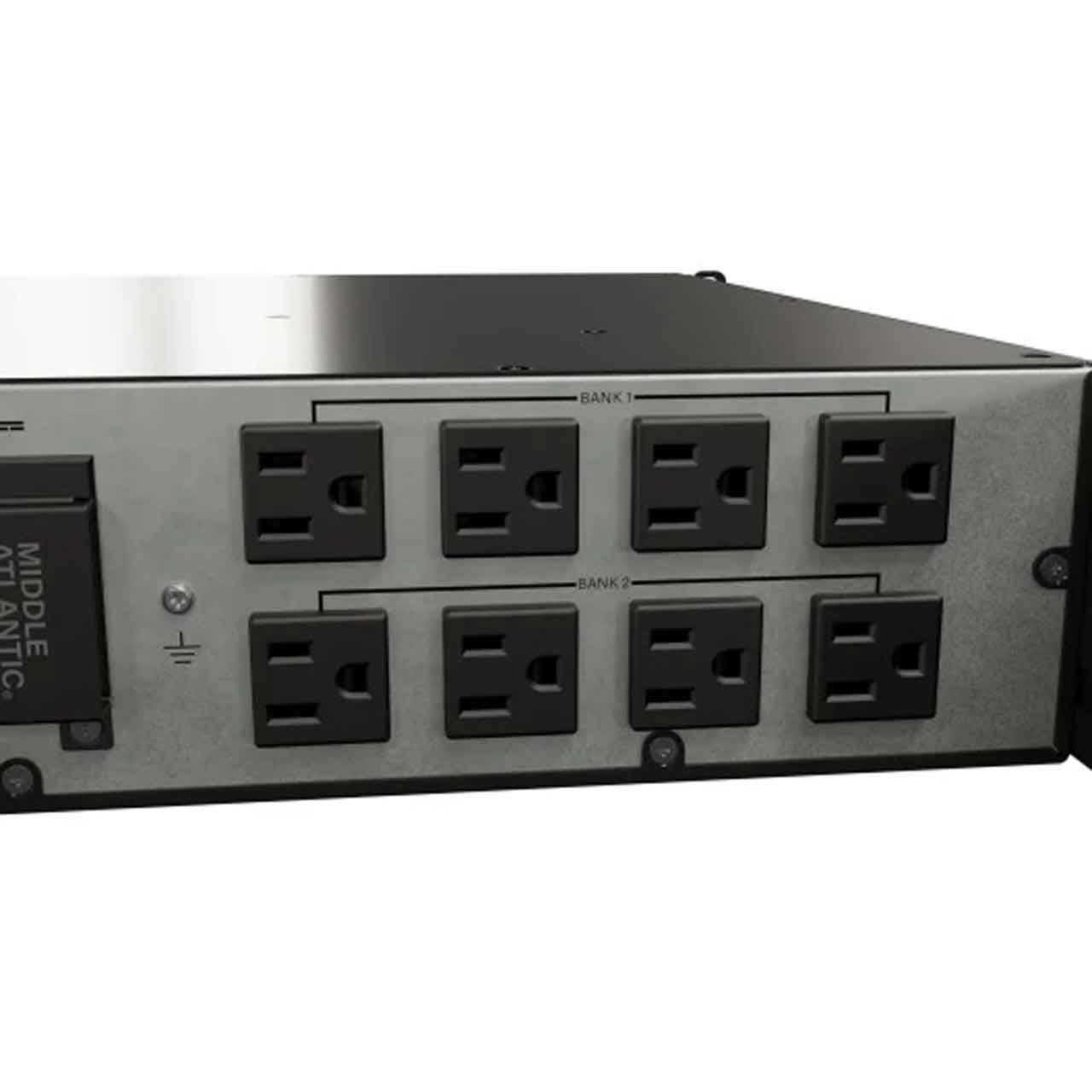

      • Outlet Count: 8
      • Plug Type: NEMA 5-15P
      • Receptacle Type: NEMA 5-15R
      • Surge Protection Type: MOV
      • Topology: Line Interactive

    • Item Includes:

      • 1x Middle Atlantic UPX-RLNK-1000R-2 NEXSYS 1000VA UPS System, w/ Network Card & Bank Outlet Control Type!

    • Warranty:

      • Battery: 2 Years
      • Unit: 3 Years
