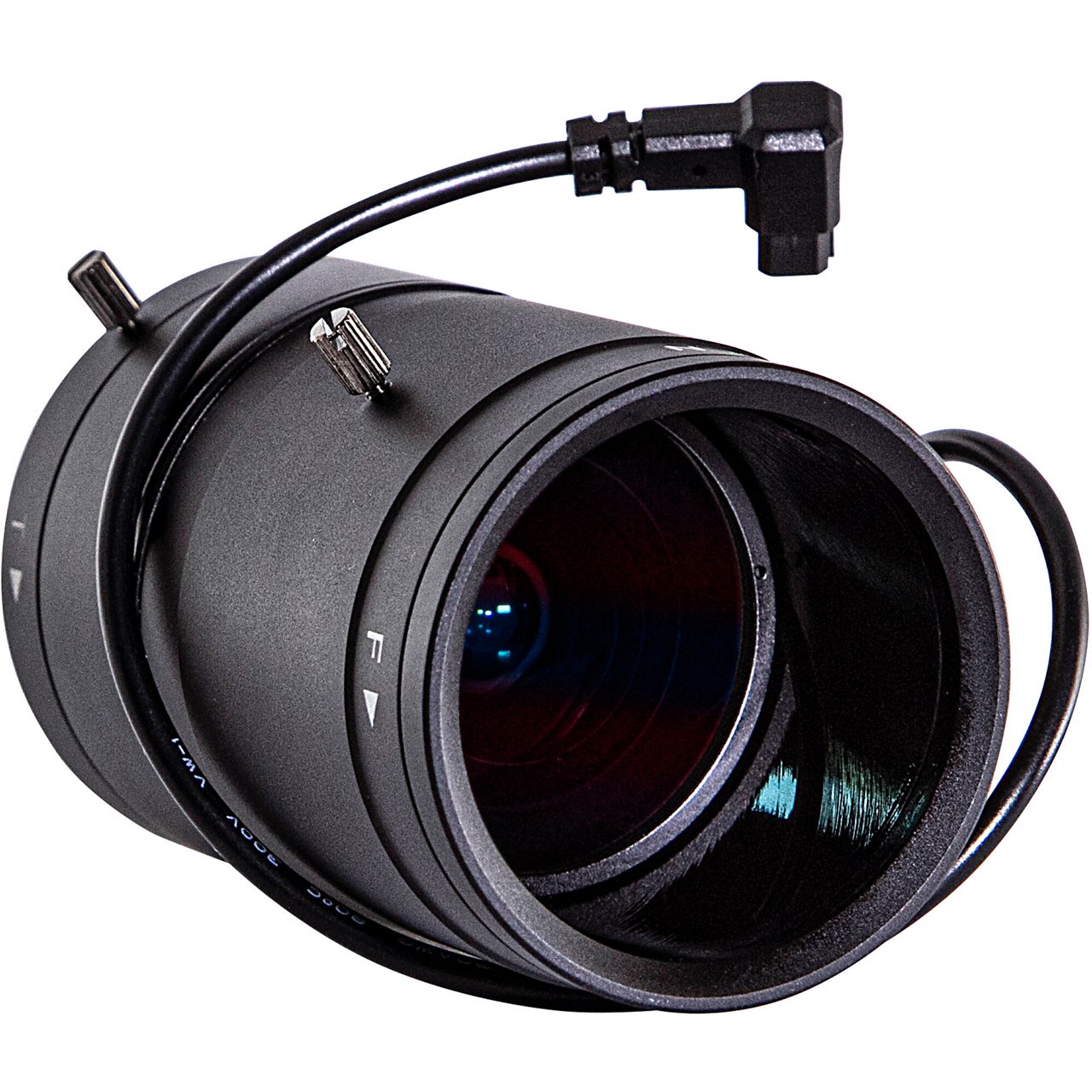

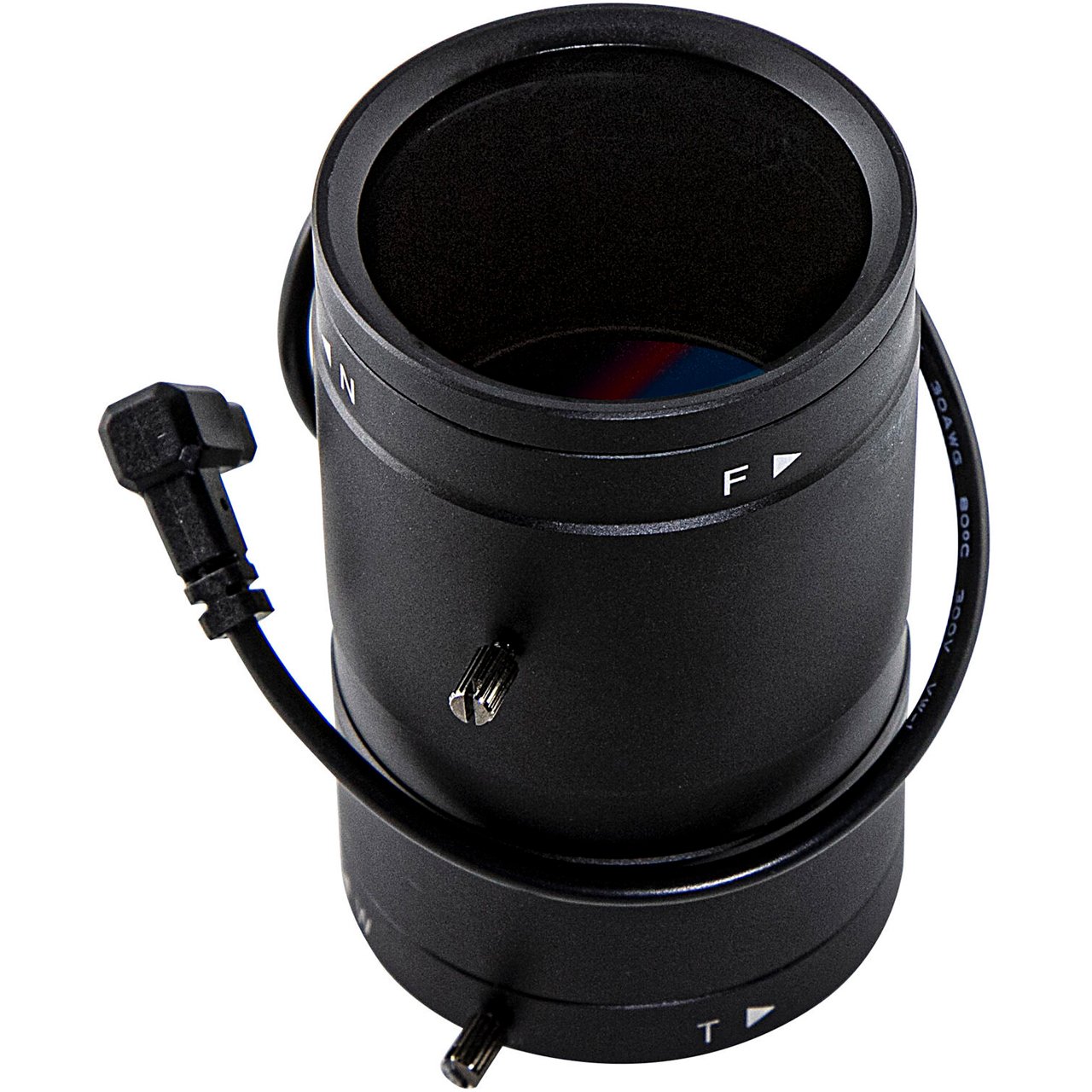

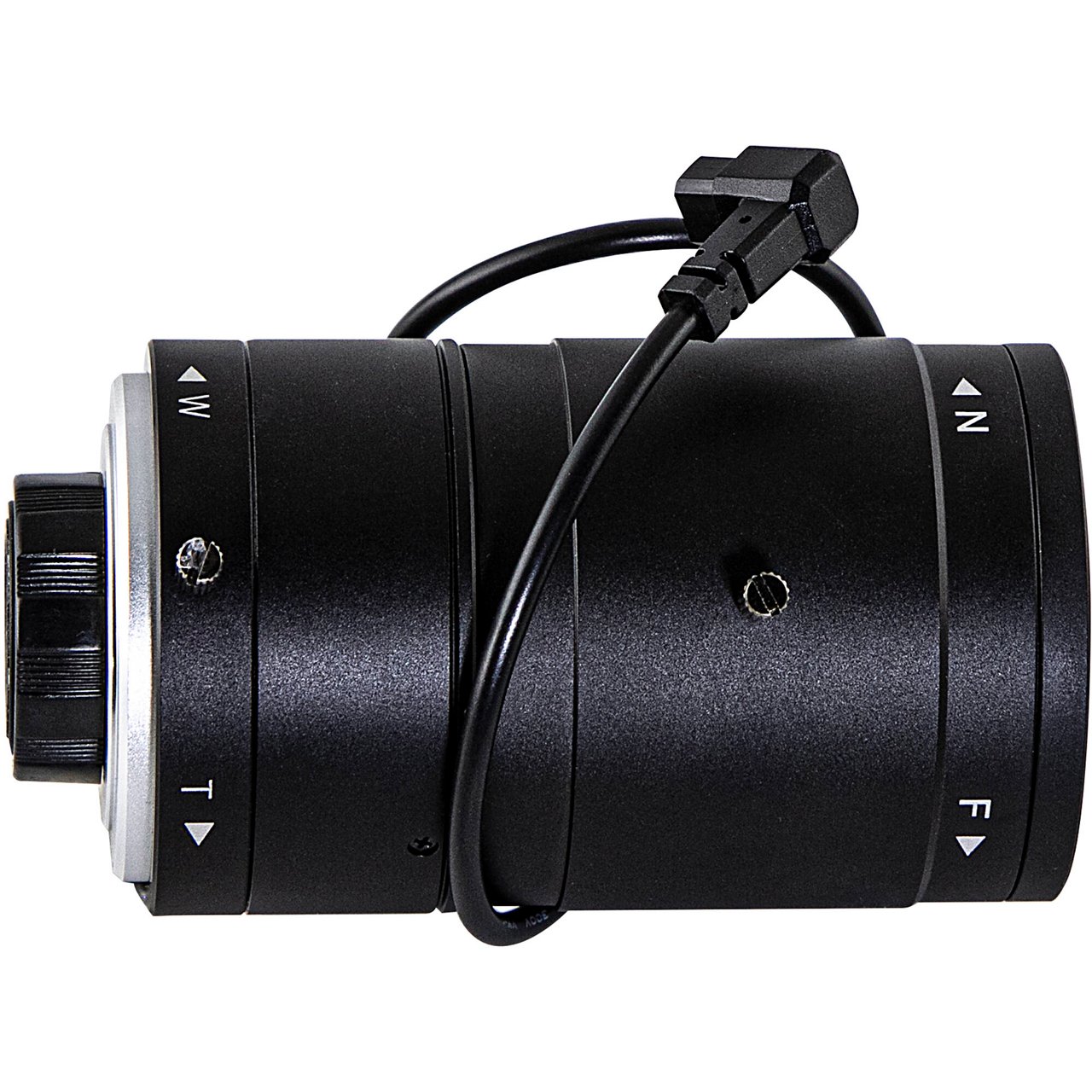

Marshall CS-3816-8MP-V2 CS-Mount 3.8-16mm Varifocal Lens V2 for 8MP Cameras with 1/1.7 Inch Sensor

CS-3816-8MP-V2 - Overview

• Features:

  • Supports 8MP camera resolution
  • CS mount with enhanced optical glass components
  • Designed for 1/1.7", 1/1.8", 1/1.9" image sensors
  • Focal Length: 3.8mm to 16mm
  • Diagonal field of view ranging from 148° to 35.8°
  • Infrared (IR) correction for accurate imaging in various lighting
  • Equipped with DC auto iris control
  • Manual zoom and focus adjustment with locking screws for stability


• Specifications:

  • Dimensions (DxL): 2.2" x 3.56" (56mm x 90.5mm)
  • Weight: 9.03oz (256g)
  • Lens Mount: CS
  • Sensor Compatibility: 1/1.7", 1/1.8", 1/1.9" (8 MP)
  • Focal Length: 3.8mm to 16mm
  • Back Focal Length: 7.9mm
  • Maximum Aperture: f/1.4
  • Minimum Aperture: f/1.6
  • 1/1.7"-Type Sensor:
    - Diagonal: 148° to 35.8°
    - Horizontal: 112.3° to 29.2°
    - Vertical: 56.8° to 15.5°
  • 1/1.8"-Type Sensor:
    - Diagonal: 140.7° to 34.7°
    - Horizontal: 106° to 27.8°
    - Vertical: 76.4° to 20.9°
  • 1/1.9"-Type Sensor:
    - Diagonal: 131.6° to 33°
    - Horizontal: 107.8° to 28.2°
    - Vertical: 64.4° to 17.8°
  • Minimum Focus Distance: 7.92" (20.12cm)
  • Focus Type: Manual Focus
  • Iris Type: DC Auto
  • IR Corrected: Yes
  • Operating Conditions: 12°F - 92°F (-20°C - 60°C)
  • Flange Back Length: 0.5" (12.78mm)


• Item Includes:

  • 1x CS-Mount 3.8mm - 16mm Varifocal Lens V2


• Warranty:

  • 2 Year Limited Warranty
