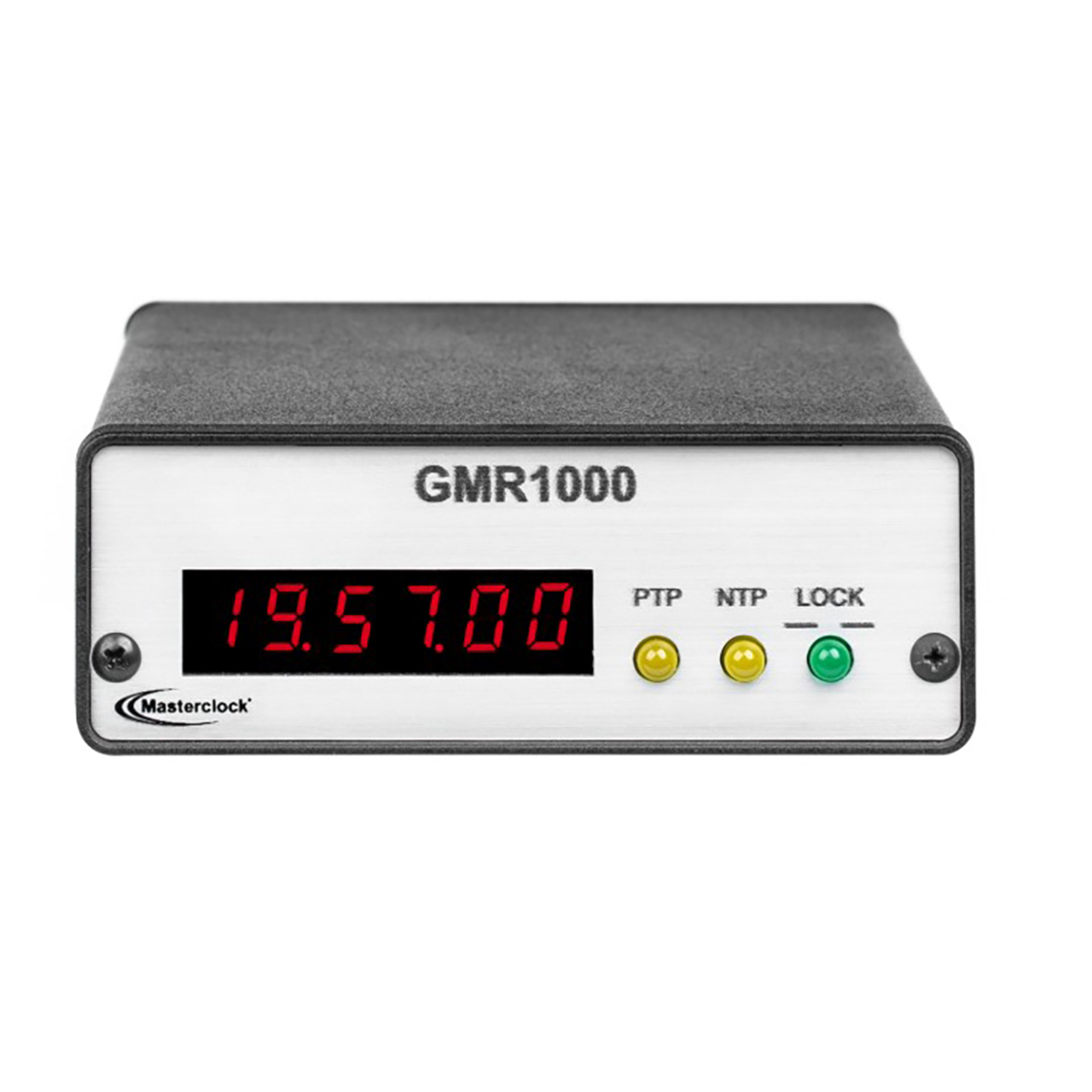

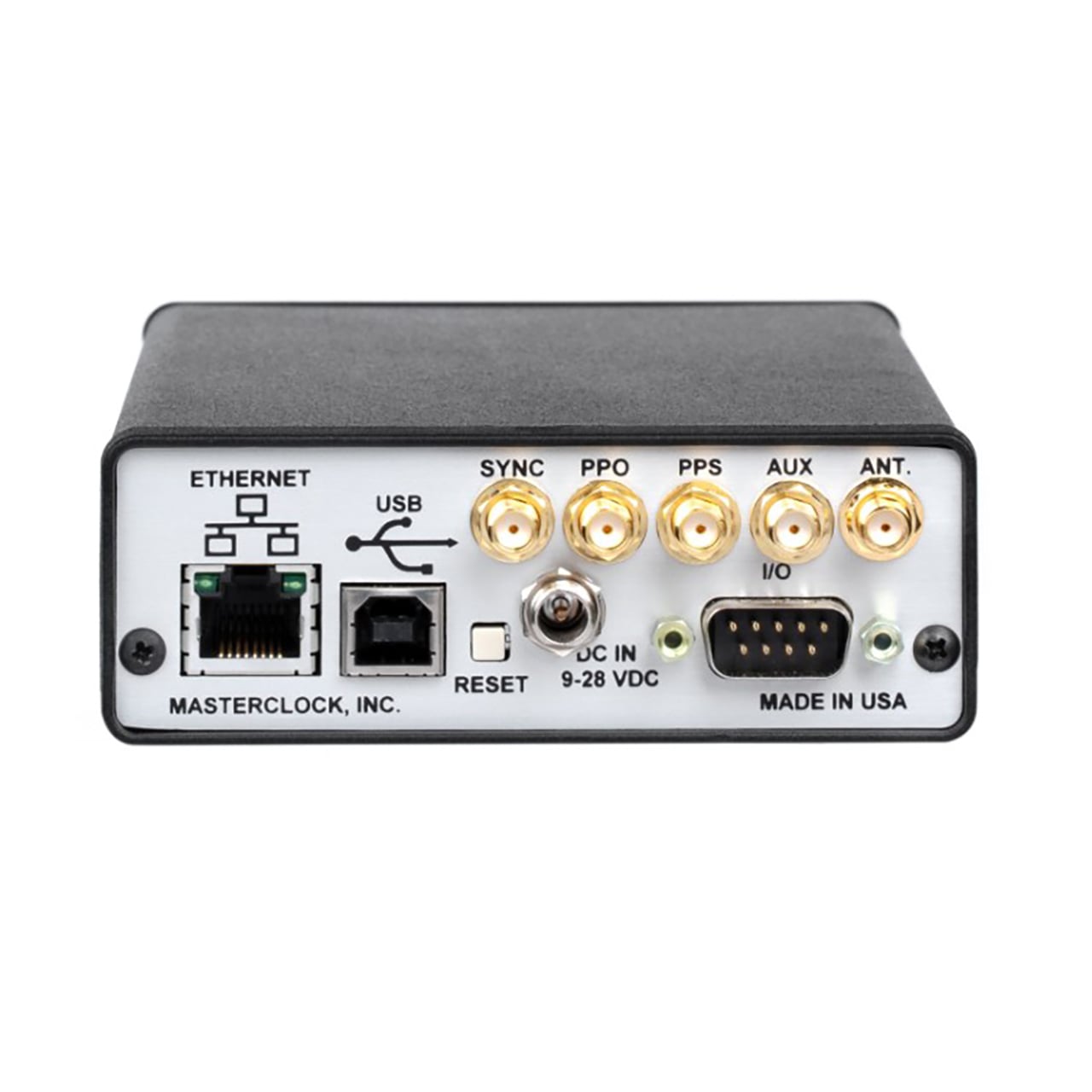

Masterclock GMR1000 Base Model - Multi Function NTP and PTP Master Clock with 6-Digit Front Display Panel

ITEM #: MC-GMR1000 MFG #: GMR1000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,595.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


GMR1000 - Overview

The Masterclock GMR1000 is an enterprise-grade time and frequency generator/server built into a robust and compact design. This Missioncritical Stratum 1 timing solution synchronizes to GPS, GNSS, IRIG-B, NTP or PTP reference and is backward compatible with legacy signals. Internal disciplined highstability oscillator options allow for critical holdover resiliency.The GMR1000 is a high- precision time and frequency reference devices. It serves the needs of commercial establishments, industry, military and laboratory environments. NTP, GPS, NMEA, NENA, Time Code, 10 MHZ, IEEE 1588 PTP, PPS, PPO,and high-stability oscillator options are available.

  • Features:

    • NTP server/client via RJ45 10/100 Mb Ethernet
    • NMEA 0183 via RS232/422, Serial, or IP
    • NENA format 0, 1, 8 via RS232/422
    • Internal high-stability TCXO oscillator ±3 sec /year
    • Configuration via USB or Ethernet
    • Mount multiple units in a single rack (RM4)
    • WinDiscovery configuration software included
    • Fully configurable offsets for time zone and DST
    • Programmable relay closure - with NO/NC drycontact relay
    • Relay alerts loss of sync by default
    • Secure configuration and monitoring with SSH SHA2 AES256 encryption
    • SNMPv3 with custom MIB
    • IPv4/IPv6 compatible

  • Specifications:

    • DC Input: 9V - 28VDC, Includes external 24VDC wall mount power supply with locking DC plug
    • Power Consumption: < 7.5W steady state
    • Temperature: 32°F - 140°F (0°C - 60°C)
    • Humidity: Up to 90% (non-condensing)
    • MTBF: 625,979 hours (Calculated using Fixed/Ground Mil HDBK 217F assumptions)
    • Size: 6.45" x 4.17" x 1.52" (16.38cm x 10.59cm x 3.86cm)
    • Weight: 16oz (453.6g)
    • Compliance: FCC, ROHS, CE Marked, ANSI

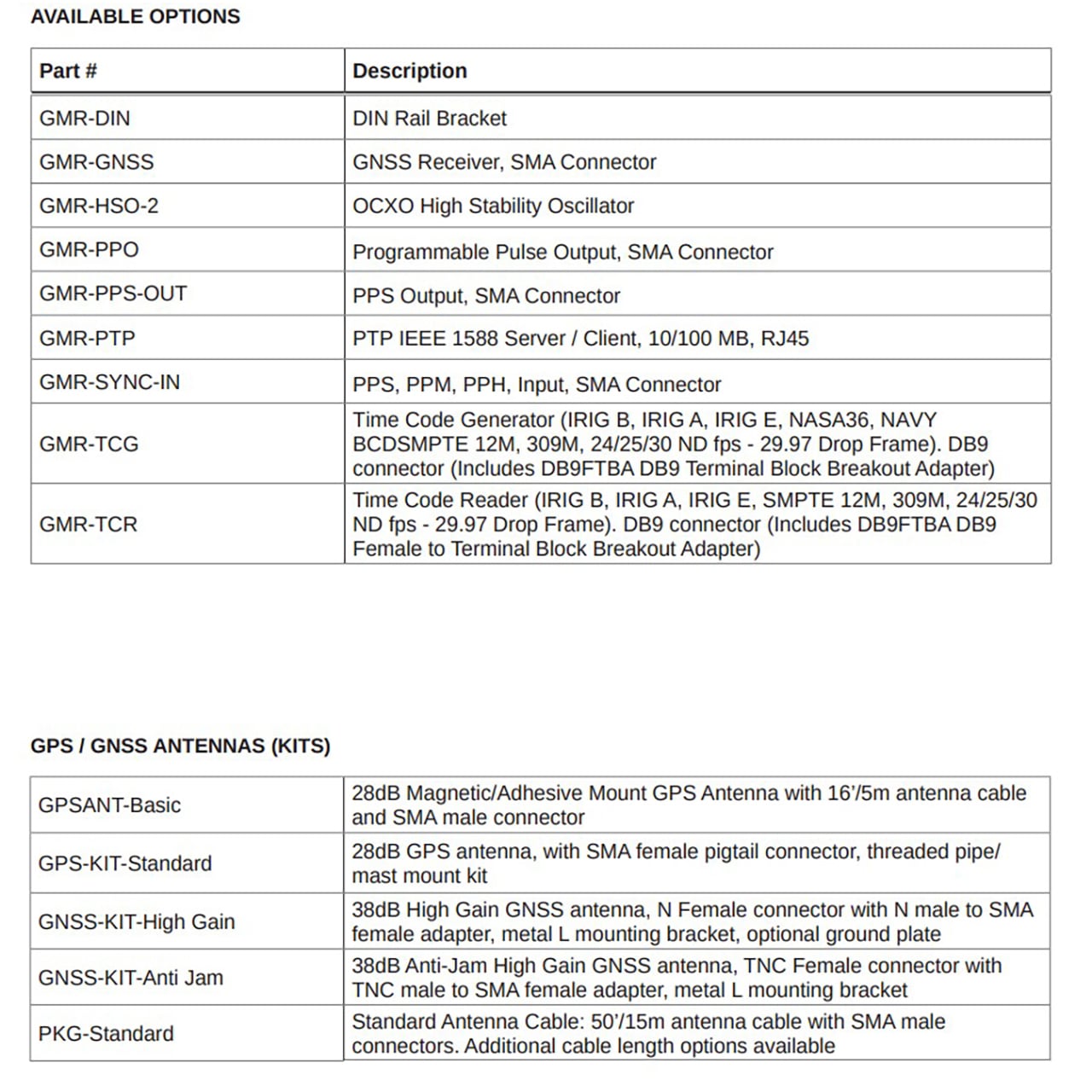

GMR1000 - Required Accessories
