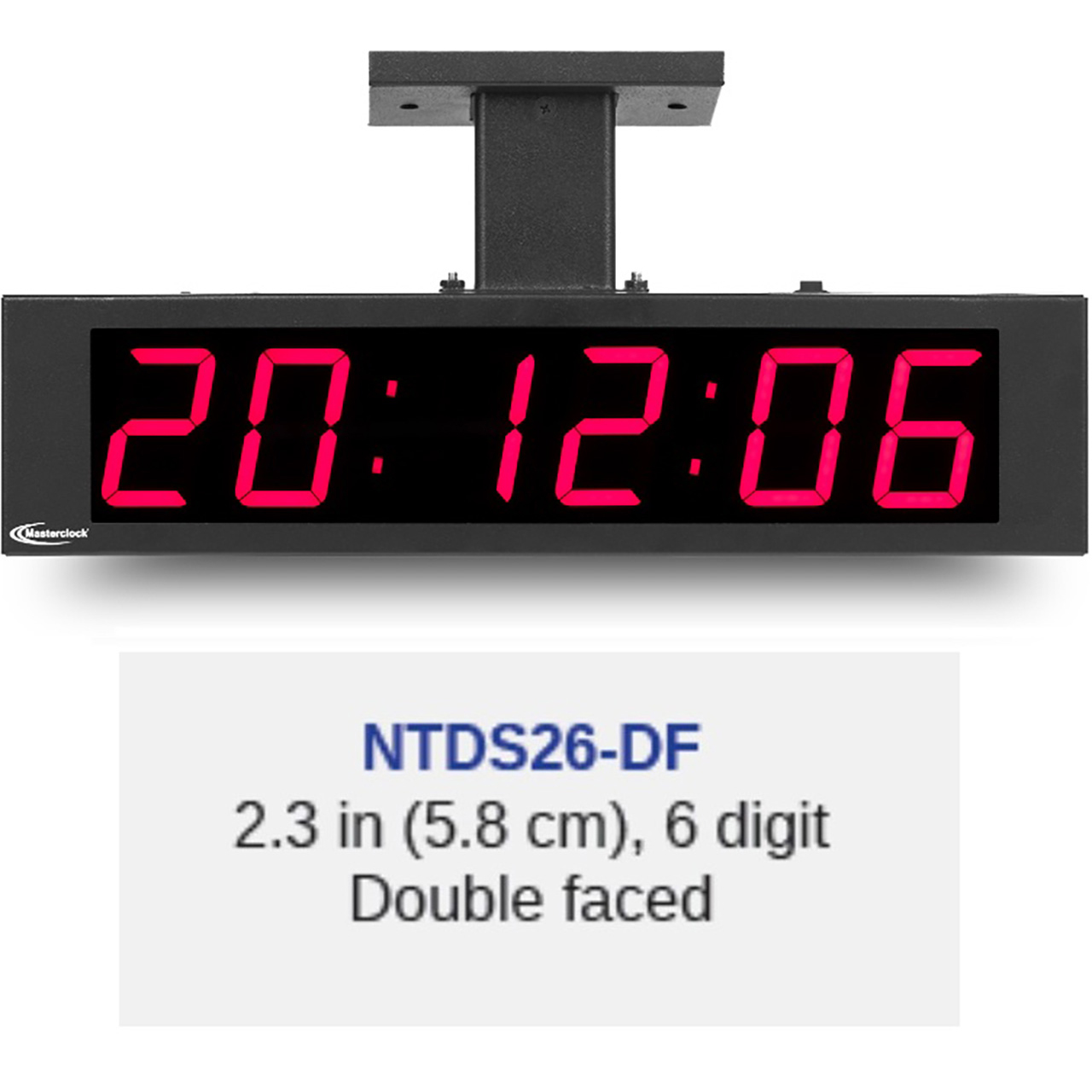

Masterclock NTDS26-DF Dual-Face 6-Digit NTP Network Clock with 2.3-Inch LEDs - Red LED - PoE Power - Ceiling Mount

KDC-26-R-N-P - Overview

Includes WinDiscovery software for easy clock and generator configuration within your network!

• Features:

  • RTC back-up maintains time during loss of power and/or loss of NTP reference
  • Time Zone offsets (to one second resolution) supports any biasing requirements
  • Operates on WAN or LAN at 10/100Mbps
  • Complete flexibility in Daylight Saving Time configurations
  • Fully configurable network settings, including DHCP/STATIC IP support
  • Primary and secondary NTP reference with fault-tolerant switching
  • Supports NTP Broadcast, Multicast and query (Unicast) modes
  • Password protected communication and secure SSH management access
  • Remotely view, adjust and configure devices with WinDiscovery app
  • Rechargeable battery retains time and configuration for 14+ days after power loss
  • Six-digit models: six-digit time or date display
  • Nine-digit models: six-digit time display plus three-digit DOY (Day of Year)
  • Twelve-digit models: six-digit time display plus six-digit date display
  • 12- or 24-hour display formats
  • Five year warranty from date of sale


• Specifications:

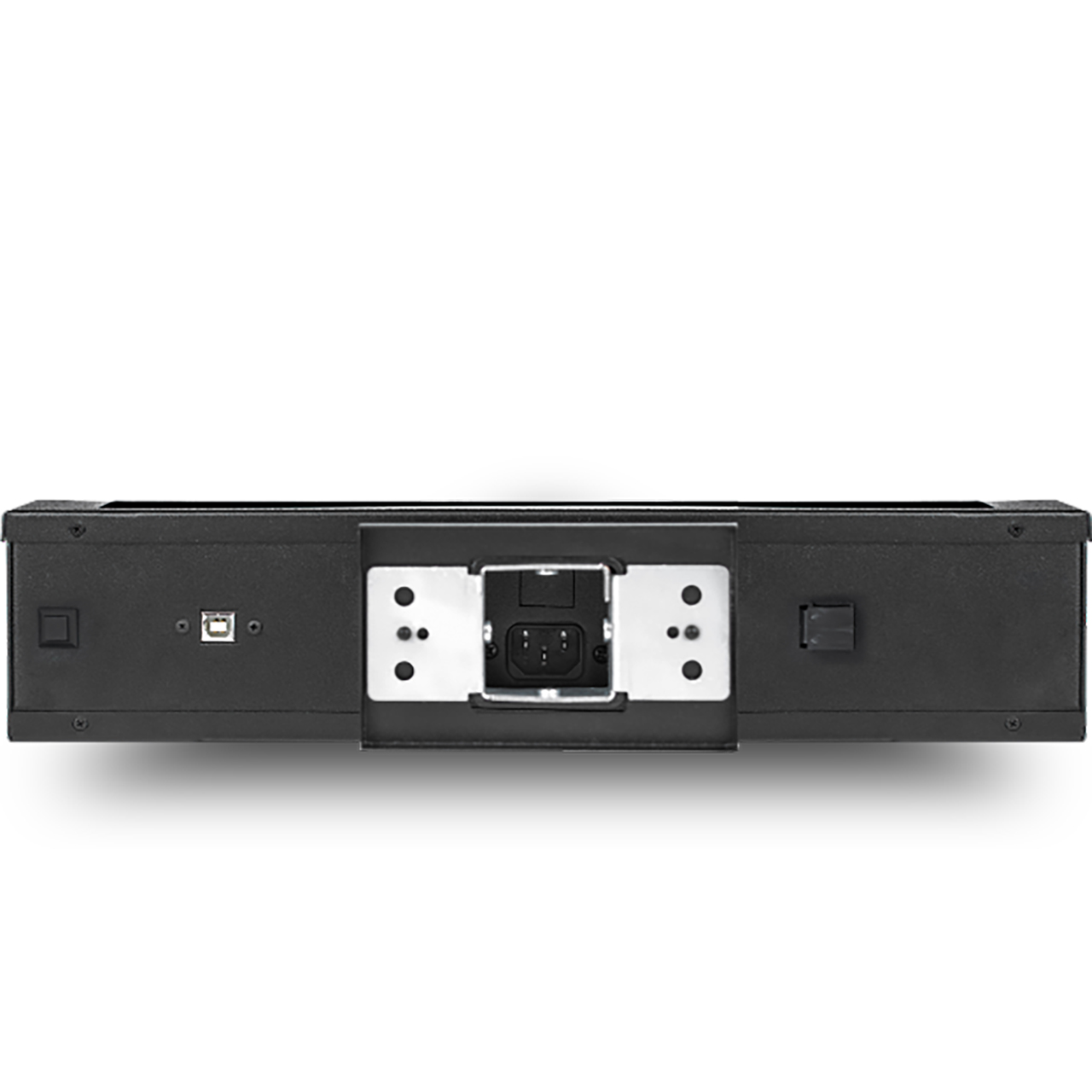

  Connectors
  • Ethernet RJ45
  • IEC AC Power
  • DC input
  • USB for configuration

    Power
  • Choice of IEC AC, PoE (IEEE802.3af) or DC (24VDC)
  • International: IEC AC 90V - 240V, 50/60Hz
  • Power consumption < 15W

    Operating Parameters
  • Temperature: 32°F - 140°F(0°C - 60°C)
  • Humidity: Up to 90% (non-condensing)
  • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
  • Storage Humidity: Up to 90% (non-condensing @ 77°F [25°C])

    Physical
  • Black metal chassis
  • IP Rating: IP40
  • Size (HxWxD): 3.5" x 17" x 3" (8.9cm x 43.2cm x 7.6cm)
  • Weight: 8.0lbs (3.63kg)

    MTBF
  • 86,700 - 100,000 hours
  • Calculated using Fixed/Ground Mil HDBK 217F assumption

    Compliance
  • FCC, ROHS, CE Marked, ANSI
