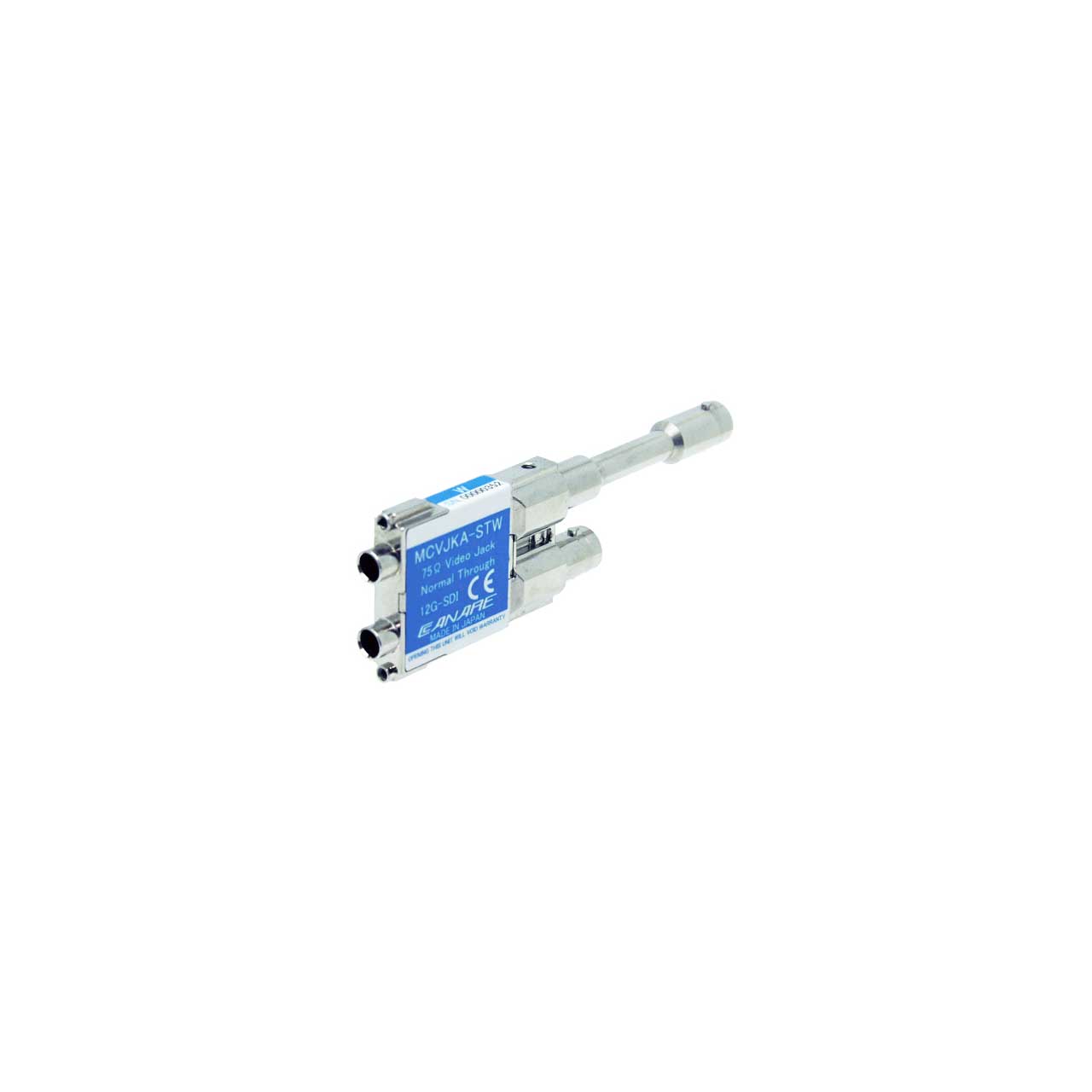

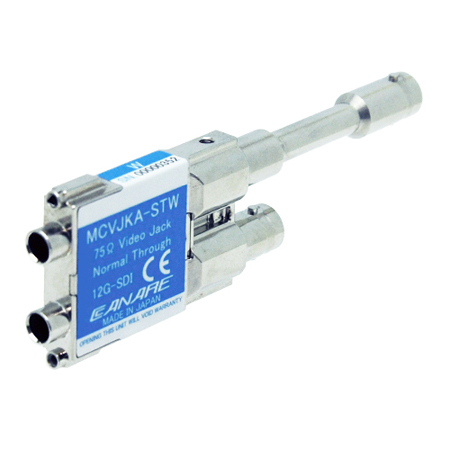

Canare MCVJKA-STW 12G-SDI Normal Through Staggered Rear BNC Dual Video Jack

MCVJKA-STW - Overview

• Features:

  • Return loss: = 10 dB @ 3 GHz, 7 dB, @ 6 GHz, 4 dB @ 12 GHz
  • Isolation: = 45 dB @ 6 GHz
  • 12G/3G/HD/SD-SDI
  • Dust-proof shutter
  • Staggered BNC rear jacks with vertical stud position. Improved visibility of the position mark on the BNC plug body.

    Note1: Be sure to use with Canare Micro Video Patch Cords.
  • Note2: Not compatible with other plug/patch cables.
  • Note3: 'MCVJKA-STW/STS' cannot use with patchbays `32MCK series'. Be sure to use with '32MCKA series'


• Specifications:

  • Electrical
  • Insulation Resistance: 1x10⊃9 Ω or more (1,000MΩ or more)
  • Voltage Proof: Without any damage such as electric breakdown etc
  • Contact Resistance:Between external contacts:5mΩ or less, Between center contacts :50mΩ or less
  • Return loss: 15dB or more(~ 1.5GHz ), 10dB or more(~3.0GHz ), 7dB or more(~ 6.0GHz), 4dB or more(~ 12.0GHz)
  • Isolation: 45dB or more(~6.0GHz)
  • Insertion Loss: 1.5dB or less (~3.0GHz), 2.0dB or less (~6.0GHz)

    Insulation
  • Insulation Resistance: DC500V, 1,000MΩ or more
  • Voltage proof: Without damage such as electric breakdown etc.
  • Contact Resistance:Between External Contact:10mO or less Between Center Contact :100m Ω or less
  • Return Loss: 15dB or more(~1.5GHz ), 10dB or more(~3.0GHz), 7dB or more(~6.0GHz), 4dB or more(~12.0GHz)


• Item Includes:

  • 1x Canare MCVJKA-STW 12G-SDI Normal Through Staggered Rear BNC Dual Video Jack
