Mipro ACT-700H ACT-7 Series UHF Wideband Handheld Wireless Cardioid Condenser Mic - 480-554/554-608MHz - Li-Ion Battery

ITEM #: MIP-ACT-700H MFG #: ACT-700H

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MIP-ACT-700H

ACT-700H - Overview

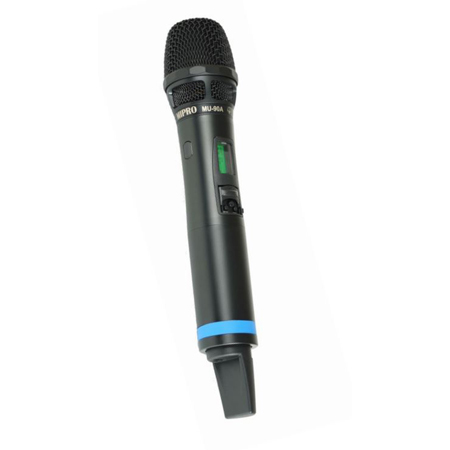

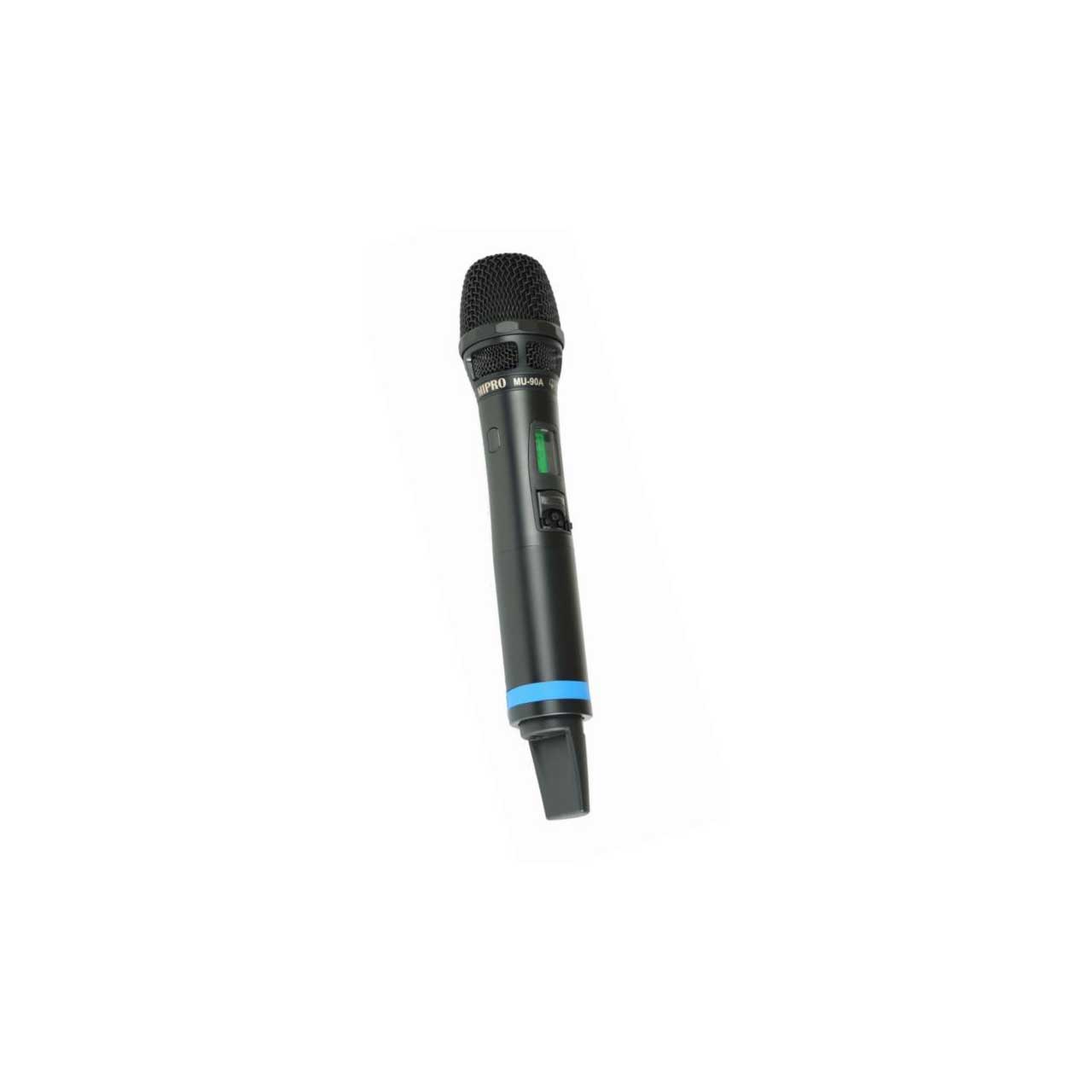

The MIPRO ACT-700H is a 72 MHz handheld wireless microphone with the MU90A cardioid condenser capsule in black. It works with MIPRO ACT-7 Receivers (sold separately).

This UHF handheld transmitter is the latest in a line of premium, innovative and reliable wireless products from MIPRO. The redesigned patented battery compartment accommodates two alkaline batteries or one rechargeable 18500 lithium battery, a USB Type-C charging port with included cable provides for safe and intelligent charging. The ACT-700H metal grill protects the new MU-90A premium condenser capsule against impact, rolling and pop noise. The capsule's shock isolation provides virtually zero handling noise. The upper grill can be detached for cleaning. The lower grill holds the capsule and is attached to the housing via an industry standard thread configuration allowing a user to use other manufactures capsules that have the standard thread configuration if desired.

The ACT-700H features improved RF circuitry, low power consumption characteristics, selectable RF output, backlit LCD display, silent and lockable on/off switch, mute switch and color-coded identification rings. A patented antenna cover protects the high-efficiency wideband transmitting antenna. With 72 MHz of bandwidth, the ACT-700H accommodates up to 2881 UHF frequencies. The new MIPRO ACT-700H is innovative, reliable and offers the premium performance and flexibility required for today's professional audio applications.

  • Features:

    • Premium cardioid condenser capsule with industry standard thread configuration
    • 3 selectable mute settings; manual or disable
    • Multifunction backlit LCD
    • 13 hours - 1 ICR 18500 rechargeable battery or 2 AA alkaline batteries
    • USB Type-C charging port
    • Magnesium alloy housing
    • Selectable RF output
    • Steel grill with fine metal mesh interior
    • Locking power switch
    • Extremely low handling noise
    • Superior off axis and pop characteristics
    • Optional color bands for identification

  • Specifications:

    • Frequency Band 5UA: 480~554 MHz 5NU: 554~608 MHz
    • Antenna: Built-in
    • RF Power Output: 10mW/50mW (switchable)
    • Encryption: 256 bit
    • Oscillation Mode: PLL Synthesized
    • Frequency Stability: <=±0.005% (-10~+60°)
    • Modulation Type: Analog
    • Spurious Emission: <4 nW
    • Deviation Range: <± 40kHz
    • Capsule: Premium cardioid condenser, industry standard thread configuration
    • Battery: 1 ICR 18500 rechargeable lithium battery OR 2 AA alkaline batteries
    • Battery Life: 13 hours
    • Dimensions: 51(O)x268(L)mm / 2(O)x10.5(L)"
    • Weight Approx: 328g / 11.6oz, excluding battery

  • Item Includes:

    • ACT-700H UHF Handheld Microphone

  • Warranty:

    • LIMITED ONE YEAR WARRANTY
