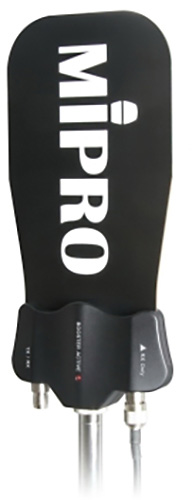

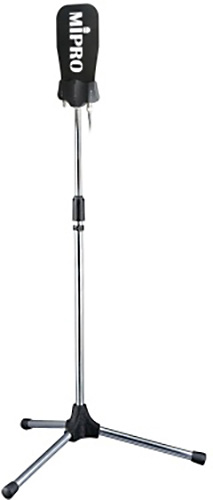

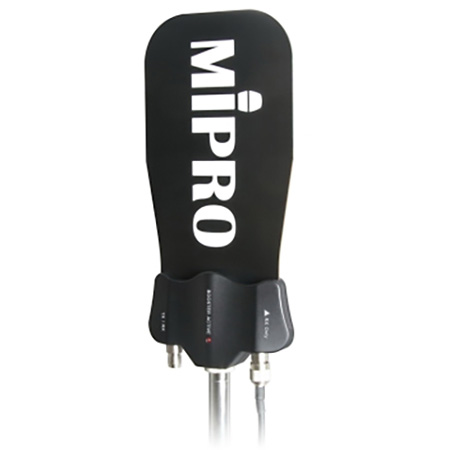

Mipro AT-70WA Wideband Transmitting and Receiving Omni-Directional Antenna
  • Mipro AT-70WA Wideband Transmitting and Receiving Omni-Directional Antenna
  • Mipro AT-70WA Wideband Transmitting and Receiving Omni-Directional Antenna

Questions? Ask a Markertek Expert:
800-522-2025 Email

Mipro AT-70WA Wideband Transmitting and Receiving Omni-Directional Antenna

Manufacturer: Mipro Electronics

Item #: MIP-AT-70WA   •   MFG #: AT-70WA



List Price:$400.00
Our Price:$285.71

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Mipro AT-70Wa is a bi-functional omni-directional antenna for professional receiving and transmitting applications. It is optimized for 470 - 1000 MHz, which is fully compatible with US and EU new telecom regulations. It has a 2 - 4 dBi gain which is ideal for any specific installation requiring full directionality. It can be easily distinguished by its new "W-Shape" appearance.

    The AT-70Wa has two input connectors: "TX/RX" connector can be connected to a transmitter or receiver, however, connection to a short coaxial cable is recommended when connected to a receiver. "RX" connector (cannot be connected to a transmitter) has a built-in 0 - 12 ± 1 dB gain adjustable booster, and thus provides extended reception range and compensates the signal loss of coaxial cable to improve reception range and signal quality.

    The AT-70Wa offers users the options of transmitting or receiving based on their actual application. The power of gain controllable booster can be provided by a MIPRO AD-708 antenna divider or any MIPRO ACT Series receivers which provides bias by adding an adjustor on their antenna connectors.


    • Specifications

      • Frequency Range: UHF 470 - 1,000 MHz
      • Antenna Gain: 2 - 4 dBi
      • Booster Gain: RX Connector 0 - 12 ± 1 dB gain adjustable; TX/RX Connector 0 dB
      • VSWR: < 2:1
      • Voltage Range of RX Connector: 8 - 15 V DC
      • Power Consumption RX Connector: 1.3 W / 8 V DC; TX Connector: 0 mW
      • Impedance: 50 ω
      • Connectors: TNC female × 2
      • Dimensions (W × H × D) 120 × 261 × 32 mm / 4.7 in × 10.3 in × 1.3 in
      • Weight Approx. 200 g / 7 oz
