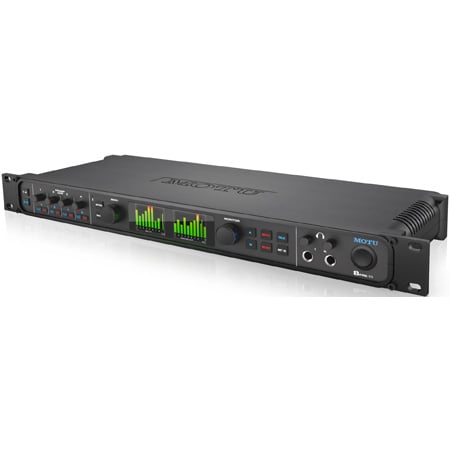

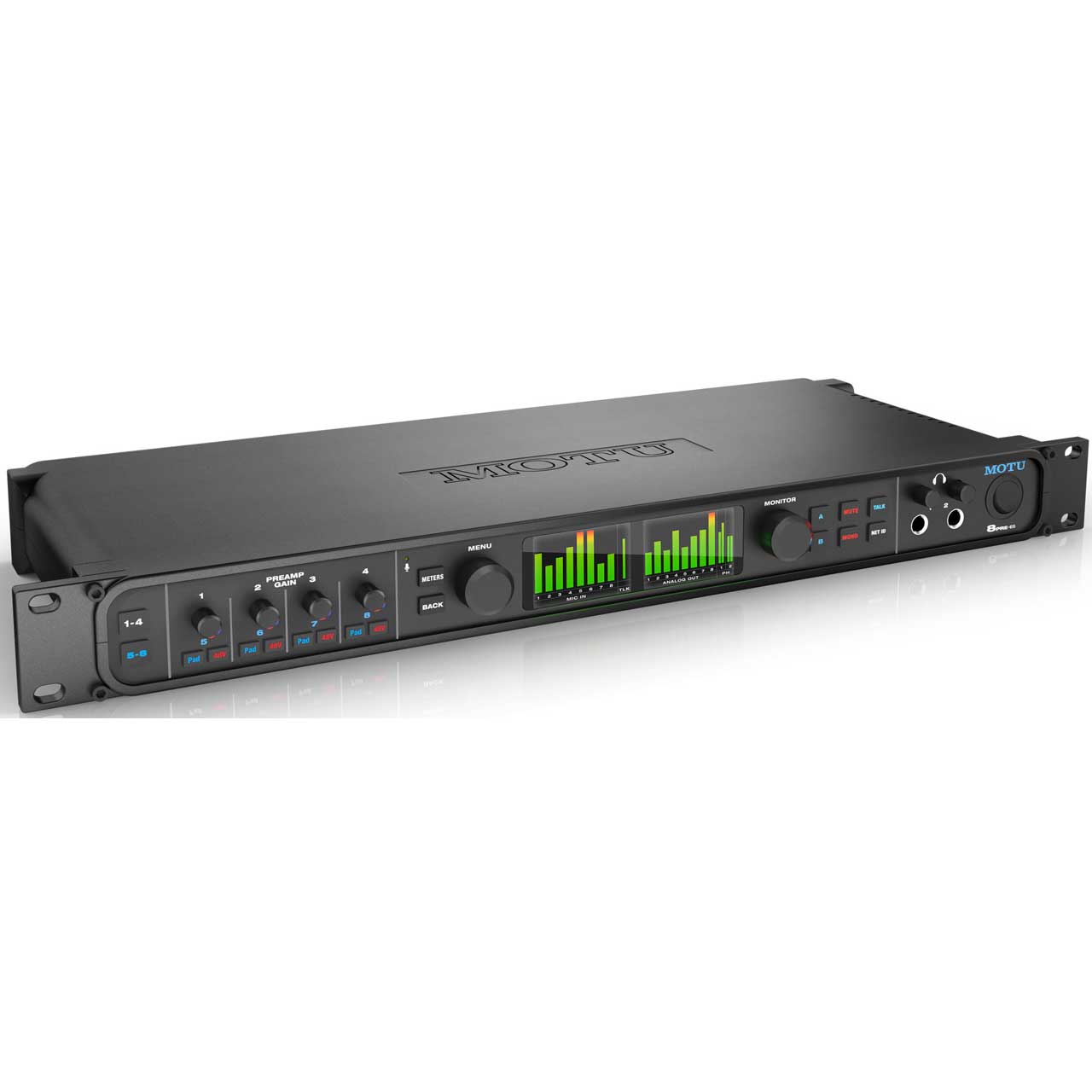

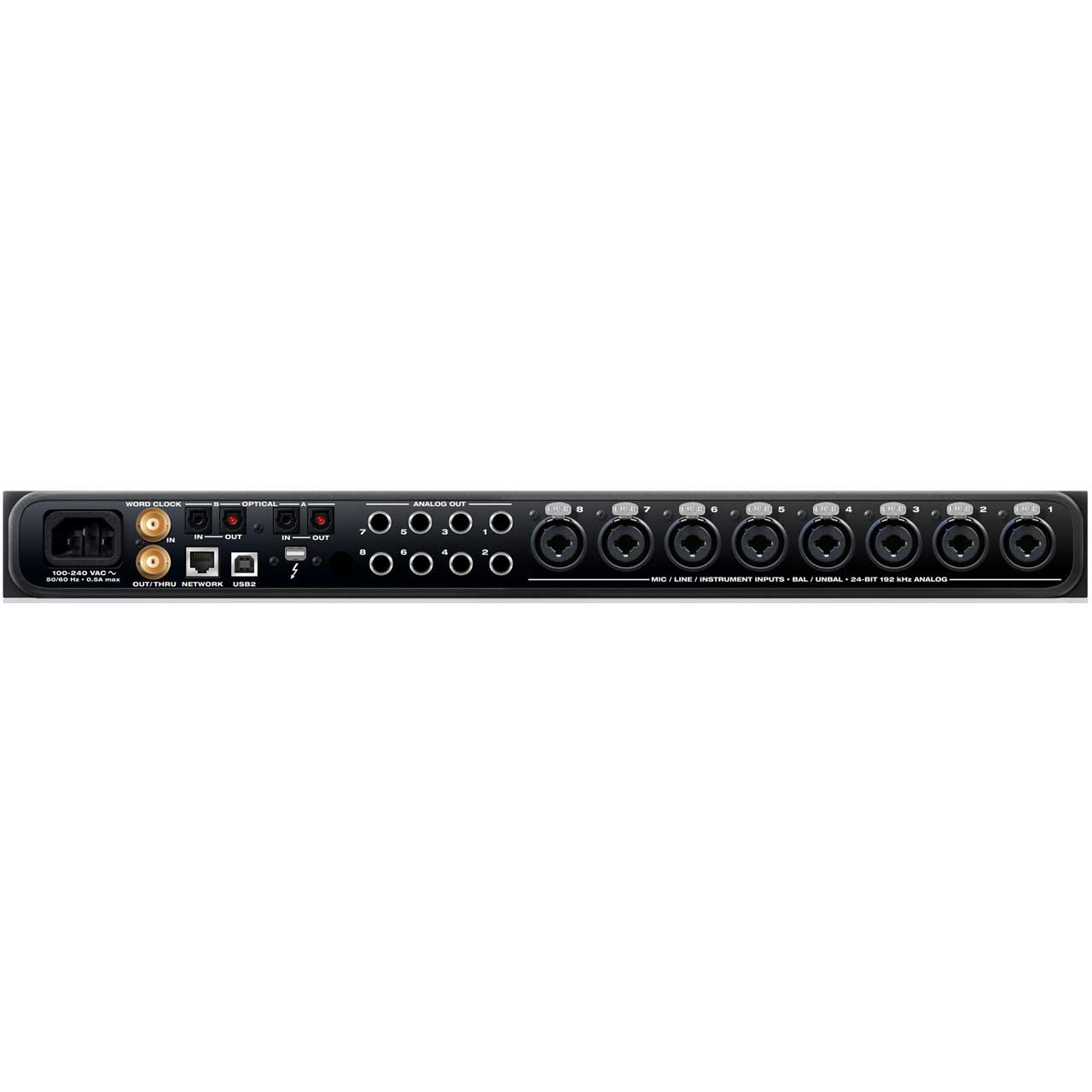

MOTU 8pre-es 24 x 28 Thunderbolt USB Audio Interface with 8 Mic Preamps DSP and Networking
  • MOTU 8pre-es 24 x 28 Thunderbolt USB Audio Interface with 8 Mic Preamps DSP and Networking
  • MOTU 8pre-es 24 x 28 Thunderbolt USB Audio Interface with 8 Mic Preamps DSP and Networking
  • MOTU 8pre-es 24 x 28 Thunderbolt USB Audio Interface with 8 Mic Preamps DSP and Networking
  • MOTU 8pre-es 24 x 28 Thunderbolt USB Audio Interface with 8 Mic Preamps DSP and Networking
Questions? Ask a Markertek Expert:
800-522-2025 Email

MOTU 8pre-es 24 x 28 Thunderbolt USB Audio Interface with 8 Mic Preamps DSP and Networking

Manufacturer: Motu

Item #: MOTU-8PRE-ES   •   MFG #: 8PRE-ES


Our Price:$1,195.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    Equipped with renowned ESS Sabre32 Ultra™ DAC technology and new dual full-color LCDs, the 8pre-es delivers everything you need to turn your computer into a powerful 24-bit/192 kHz digital audio workstation. The 8pre-es connects to a Mac or PC with Thunderbolt™, Hi-speed USB 2.0 or AVB/TSN Ethernet. Proven, reputable MOTU drivers work with all your favorite audio apps, delivering industry-leading, ultra-low round-trip latency (RTL) performance as low as 1.6 ms at 96 kHz over Thunderbolt with high-performance DAW hosts. USB audio class-compliant firmware allows connection to your iPad™ or any iOS™ device (with a standard camera connection kit, sold separately).

    The 8pre-es is equally well-suited for studio and stage, with or without a computer. As an interface or standalone mixer, the 8pre-es provides 24 separate inputs and 28 separate outputs, including eight XLR/TRS "combo" mic/line/guitar inputs, eight balanced (TRS) quarter-inch outs and two independent front-panel headphone outs.
    Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and effects processors. Record, monitor, route and process all of these live inputs with no latency and no processor strain on your computer. Extensive routing features let you patch ins to outs, or split inputs to multiple destinations. Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing. Add Classic Reverb with lengths up to 60 seconds. Further sculpt your sound with 4-band parametric EQ meticulously modeled after British analog console EQs. Apply conventional compression or the Leveler™, an accurate model of the legendary LA-2A™ optical compressor that provides vintage, musical automatic gain control.

    Take control of your recording sessions with built-in talkback mic and front-panel talk button. Connect two sets of speakers and check your mixes instantly with front-panel A/B speaker select buttons.
    Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "waterfall" display, full-featured oscilloscope, X-Y plot, and linear/polar phase graph. After recording and mixing in the studio, take the 8pre-es on stage as a stand-alone mixer with effects. Control everything over Wi-Fi from your favorite web browser running on your laptop, tablet and smartphone.Through AVB/TSN Ethernet, connect another MOTU interface for more I/O - or connect to an expanded MOTU network with multiple interfaces and computers. From studio to stage, the 8pre-es delivers exceptional sound quality, state-of-the-art operation and rock-solid performance.

    • Features

      • Superb analog audio quality and high-end converters
      • New dual-LCD design
      • Ultra-low latency and proven, high-performance MOTU drivers
      • 52 simultaneous audio channels
      • Control room features
      • DSP mixing and effects processing
    • Specifications

      • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz.
      • Mic/line/instr inputs: 8 x XLR/TRS "combo style" mic/line/instr inputs
      • Preamp gain: 0 to +63 dB (digitally controlled)
      • TRS max level with pad: +17 dBu.
      • Analog outputs: 8 x 1/4" TRS line out (balanced, DC coupled), Max level: +20 dBu (digitally adjustable -4 to +20), 2 x 1/4" TRS stereo headphone.
      • Digital I/O: 2 banks (16 ch) of ADAT optical at 1x sample rates
      • 2 banks (8 ch) of SMUX optical at 2x sample rates
      • Switchable to stereo TOSLink (optical S/PDIF).
      • Total I/O: 24 in / 28 out (52 total) at 1x sample rates, 16 in / 20 out (36 total) at 2x sample rates , 8 in / 12 out (20 total) at 4x sample rates.
      • Computer I/O: 1 x Thunderbolt 1 (Mac and Win), Thunderbolt 2 & 3 compatible, 1 x USB 2.0 audio class compliant, USB 3.0 and iOS compatible.
      • Computer I/O channels Thunderbolt:128 in/out at 1x (44.1 to 48 kHz)
      • 128 in/out at 2x (88.2 to 96 kHz) 64 in/out at 4x (176.4 to 192 kHz).
      • Computer I/O channels USB: 64 in/out at 1x (44.1 to 48 kHz) 32 in/out at 2x (88.2 to 96 kHz) 24 in/out at 4x (176.4 to 192 kHz).
      • Sync I/O: 1 x BNC word clock in/out
      • Network I/O: 1 x RJ45 AVB/TSN Ethernet (1 Gbps)
      • Headphone; 2 x 1/4" TRS stereo phone (assignable)
      • Phantom power: 8 x individual +48V.

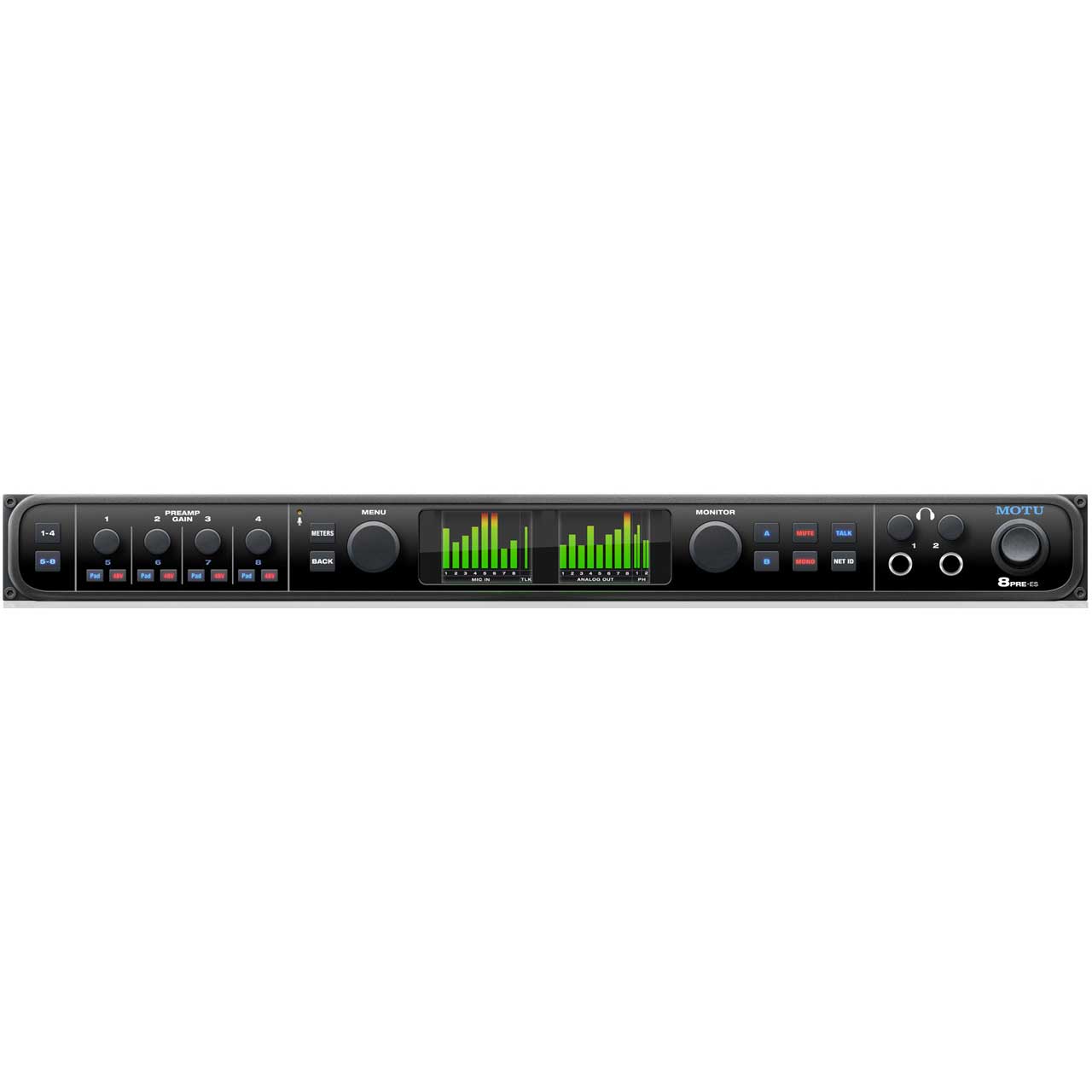

      • Front panel: 2 x 1/4" TRS headphone output, 2 x digital rotary encoders phone vol , 4 x digital rotary encoders mic/instr input gain, 2 x large digital rotary encoders main vol / menu, 8 x small switches (2) Pad / (2) 48V Phantom pwr, 10 x large switches menu nav / A-B select, etc., 2 x LCD (128 x 160) for level meters / menu nav.
      • Power: International 100-240V autoswitching supply 50-60 Hz 0.5A max.
      • Dimensions and weight: (width x depth x height, enclosure only, with rack brackets) 19 x 7 x 1.75 inches, 48.3 x 17.75 x 4.5 cm, 4.2 lbs / 1.9 kg.
