ZOOM H6 AB 6-Track Handy Digital Audio Recorder with ZOOM ZDM-1 Podcast Mic Pack


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    MTK-ZMPODKIT-H6 - Overview

    Save $20 On This Podcast Bundle!

    The Most Versatile Portable Recorder Ever
    At Zoom they've been building innovative products for the past thirty years. But with the revolutionary H6 six-track recorder, the bar is raised further still. Four interchangeable input capsules -- X/Y, MS, Shotgun, and Dual XLR/TRS Combo -- make the H6 the ultimate chameleon of the audio world, and its advanced preamps make it the best-sounding one too. Whatever your application -- live recording, professional film/video work, live broadcast or electronic news gathering -- the H6 can handle it with ease.

    Capture The Performance On A Whole New Level
    Do more than just record the show: Document the experience. Use the X/Y capsule to capture the overall sound in stereo, then use the other four inputs for a direct feed from the mixing board, or for external spot mics to pick up specific instruments and the room sound. With the H6, you can relive that great performance night after night.

    Get The Sound That Completes The Scene
    Whether you slide it onto your camera strap or attach it directly to your DSLR with our Hot Shoe mount, the H6 is the essential audio recorder for location videography. Its supplied MSH-6 mic capsule and onboard MS decoding, plus the ability to record up to 6 tracks simultaneously, gives you plenty of options in post-production.

    Deliver The Full Story, Down To The Last Detail
    Extend your range with the optional SGH-6 Shotgun mic. Get every word of that headline-making interview. Capture breaking news with maximum impact, then mix and prepare the audio for broadcast while still in the field. With the H6, you can do onsite reporting that really resonates.

    Make Every Chord, Every Note, Every Riff Really Sing
    Plug in the optional EXH-6 Dual XLR/TRS capsule and your H6 becomes a personal 6-track studio with six discrete line- or mic-level inputs, each with its own volume control and pad. Record and overdub up to 99 takes in high-resolution audio, then mix down to a stereo MP3 for posting to your favorite website. With the H6, the road from great idea to perfect track just got a lot shorter.

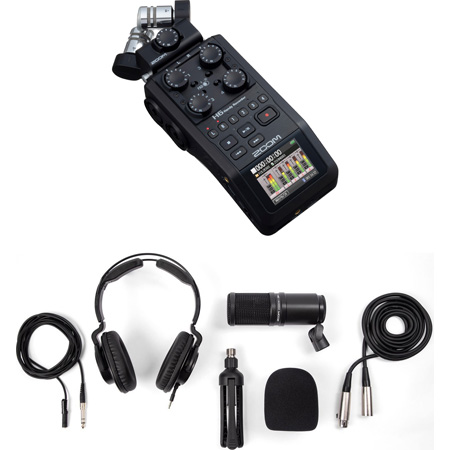

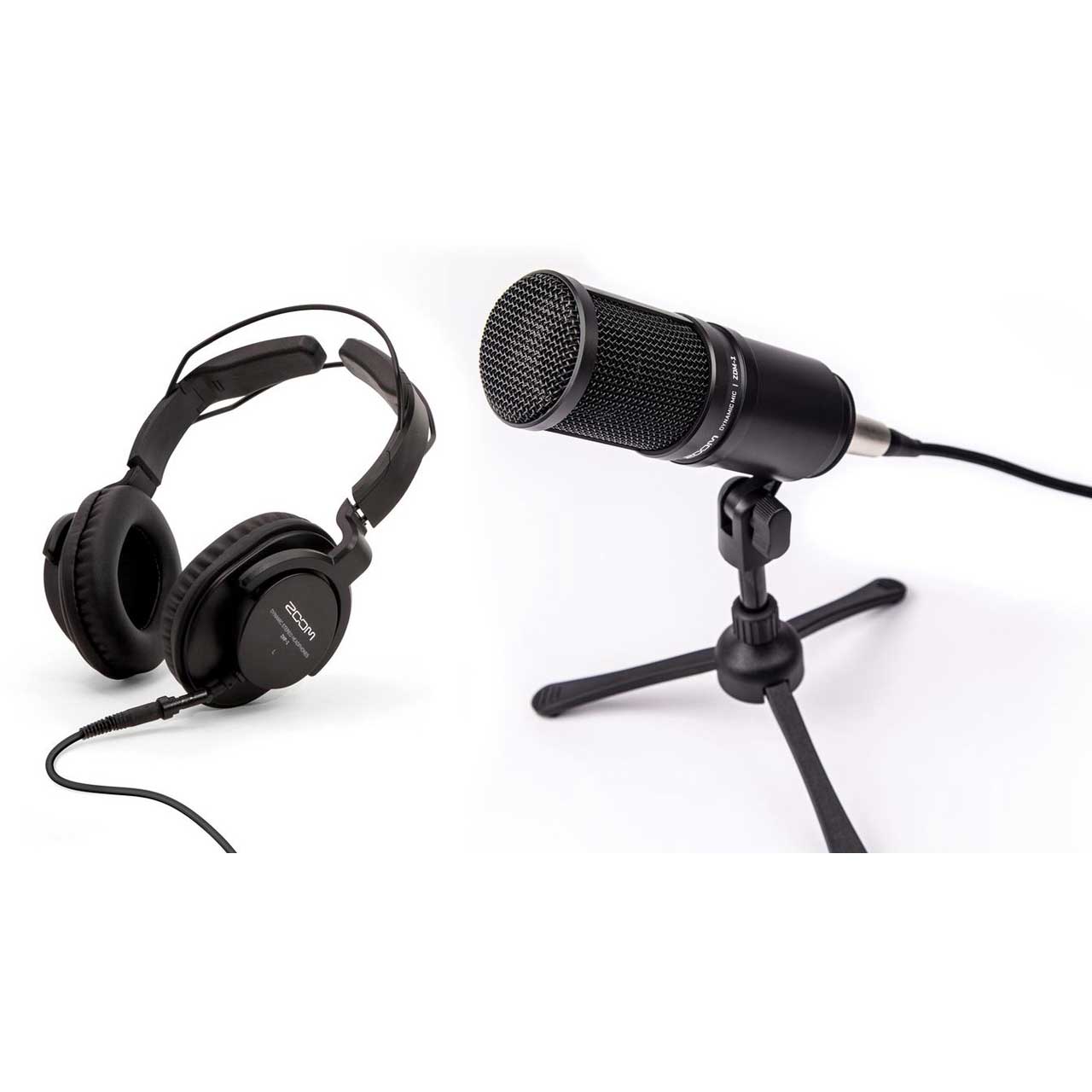

    The Perfect Podcast Pack
    Whether you're taking your first step into podcasting or upgrading your setup, the ZDM-1 Podcast Mic Pack includes everything you need to create professional-quality podcasts; ZDM-1 broadcast-style dynamic mic, ZHP-1 professional closed-back headphones, ZTPS-4 adjustable tabletop mic stand, ZDM-1 windscreen, and a 2 meter mic cable.

    • Features:

      • H6
      • Interchangeable input capsules that can be swapped out as easily as the lens of a camera
      • Six-track simultaneous recording
      • Four mic/line inputs with XLR/TRS combo connectors
      • Gain controls (real knobs!) and -20dB pads for each input
      • Phantom power for all main inputs: +12/+24/+48V
      • Large full-color LCD display, angled so it's easy to read in all environments
      • Records directly to SD, SDHC and SDXC cards up to 128GB
      • Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
      • Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
      • Multitrack to stereo internal mixdown
      • Independent monitor and playback mixes
      • Virtual VU meters
      • Voice memo and up to 99 marks per recording
      • Overdubbing, up to 99 takes
      • Built-in effects, including low-cut filtering, compression and limiting
      • Onboard MS decoding
      • Normalize, Divide and Trim editing

      • ZDM-1 large-diaphragm dynamic microphone captures smooth, broadcast-quality sound
      • ZHP-1 professional closed-back headphones let you hear every detail
      • The compact and sturdy ZTPS-4 Tabletop Tripod makes setup easy anywhere
      • Custom windscreen for ZDM-1 delivers clean recordings every time
      • Included 2 meter XLR microphone cable lets you get started right away
      • All components feature premium build quality for lasting use
    • Specifications:

      • H6
        Recording Media
      • SD card: 16MB - 2GB
      • SDHC card: 4GB - 32GB
      • SDXC card: 64GB - 128GB

        Inputs - Capsules
        XYH-6 X/Y Mic
      • Mic Type: Unidirectional
      • Sensitivity: -41dB, 1kHz @ 1Pa
      • Input Gain: -∞ - 46.5dB
      • Max Sound Pressure Input: 136dB SPL
        XYH-6 Mic/Line In
      • Connector: 1/8" stereo mini jack
      • Input Level: - ∞ - 46.5dB
      • Input Impedance: 2kΩ
      • Plug-in Power: 2.5V supported

        Inputs 1 to 4
      • Mic Connectors: XLR/TRS combo jacks (XLR: Pin 2 hot/TRS: Tip hot)
      • Mic Input Gain: (PAD OFF) -∞ - 55.5dB
      • Mic Input Gain: (PAD ON) -∞ - 35.5dB
      • Mic Input Impedance: 1.8kΩ or more
      • Mic Max Input Level: +22dBu (PAD ON)
      • Mic Phantom Power: +12V/+24V/+48V (Phantom power can be turned on/off independently for Inputs 1 - 4)
      • Mic Equivalent Input Noise (EIN): -120dBu or less

      • Line Out: Jack type: 1/8" stereo mini jack Rated Output Level: -10dBu when output load impedance is 10kΩ or more
      • Phone Out: Jack type: 1/8" stereo mini jack Output Level: 20mW + 20mW into 32Ω load
      • Built-in Speaker: 400mw 8Ω mono speaker

        Recording Formats
      • WAV: Sampling frequency: 44.1/48/96kHz, Bit rate: 16/24 (Mono/Stereo, BWF-compliant)
      • Maximum Simultaneous Recording Tracks: 8 (L/R + INPUT 1 to 4 + L/R backup) (Backup recording: -12dB lower than set L/R input gain)
      • MP3: Sampling frequency: 44.1kHz, Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps Maximum simultaneous recording tracks: 2

      • Display: 2.0-inch full color LCD (320 x 240 pixels)

      • Mass Storage Class Operation Class: USB2.0 High Speed
      • Audio Interface Operation: Multi-track mode class: USB2.0 High Speed - Inputs/Outputs: 6/2, Sampling frequency: 44.1/48kHz/96kHz, Bit rate: 16/24 bit USB bus powered operation possible

        Power Requirements
      • 4x AA size (LR6) battery
      • Alkaline or NiMH type
      • AC Adapter: AD-17 (DC5V/1A/USB-type) (optional)
      • USB bus power
      • Battery Life: Over 20 hours (with alkaline battery, continuous recording)

        Dimensions And Weight
      • H6 (WxDxH): 3.06" x 6.02" x 1.88" (77.8mm x 152.8mm x 47.8mm), 9.88oz (280g)
      • XYH-6 (WxDxH): 3.11" x 2.37" x 1.78" (78.9mm x 60.2mm x 45.2mm), 4.59oz (130g)

      • Type: Dynamic
      • Polar Pattern: Supercardioid
      • Frequency Response: 50-18,000Hz
      • Sensitivity: -54 dBV.Pa (2.0mV)
      • Output Impedance: 200Ω
      • Min. Load Impedance: 200Ω
      • Max. Spl: 135dB
      • Connector: XLRM
      • Dimensions: 5.9" x 2.12" (150 mm x 54mm)
      • Weight: 3lbs (1.36kg)

      • Acoustic Design: Dynamic, closed-back
      • Driver: 40mm, neodymium
      • Sensitivity: 102dB SPL (1mW) at 1kHz
      • Frequency Response: 10-20,000Hz
      • Maximum Input Power: 200mW
      • Rated Impedance: 68Ω at 1 kHz
      • Earpad: Leatherette
      • Head Band Pressure: Approx. 4.5 N
      • Cable: 9.9ft (3m) straight cable, single-sided
      • Connector: Stereo mini jack
      • Net Weight: 6.7oz (190g)
    • Item Includes:

      • 1x H6 Digital Recorder
      • 1x Operation manual
      • 1x XYH-6 X/Y mic capsule
      • 4x AA size (LR6) battery
      • 1x Cubase LE Software
      • 1x WaveLab LE Software
      • 1x ZDM-1 Large-Diaphragm Dynamic Microphone
      • 1x ZHP-1 Professional Closed-Back Headphones
      • 1x ZTPS-4 Tabletop Tripod
      • 1x Custom windscreen for ZDM-1
      • 1x 2m (6.56ft) XLR microphone cable
      • 1x Steinberg's WaveLab Cast software
