MuxLab 500020 Digital Audio Balun

Name: MuxLab 500020 Digital Audio Balun
Brand: MuxLab Inc
SKU: MUX-500020
Price: 23.00 USD
Availability: PreSale

ITEM #: MUX-500020 MFG #: 500020

MuxLab Inc

List Price:

$34.00

Our Price:

$23.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500020 - Overview

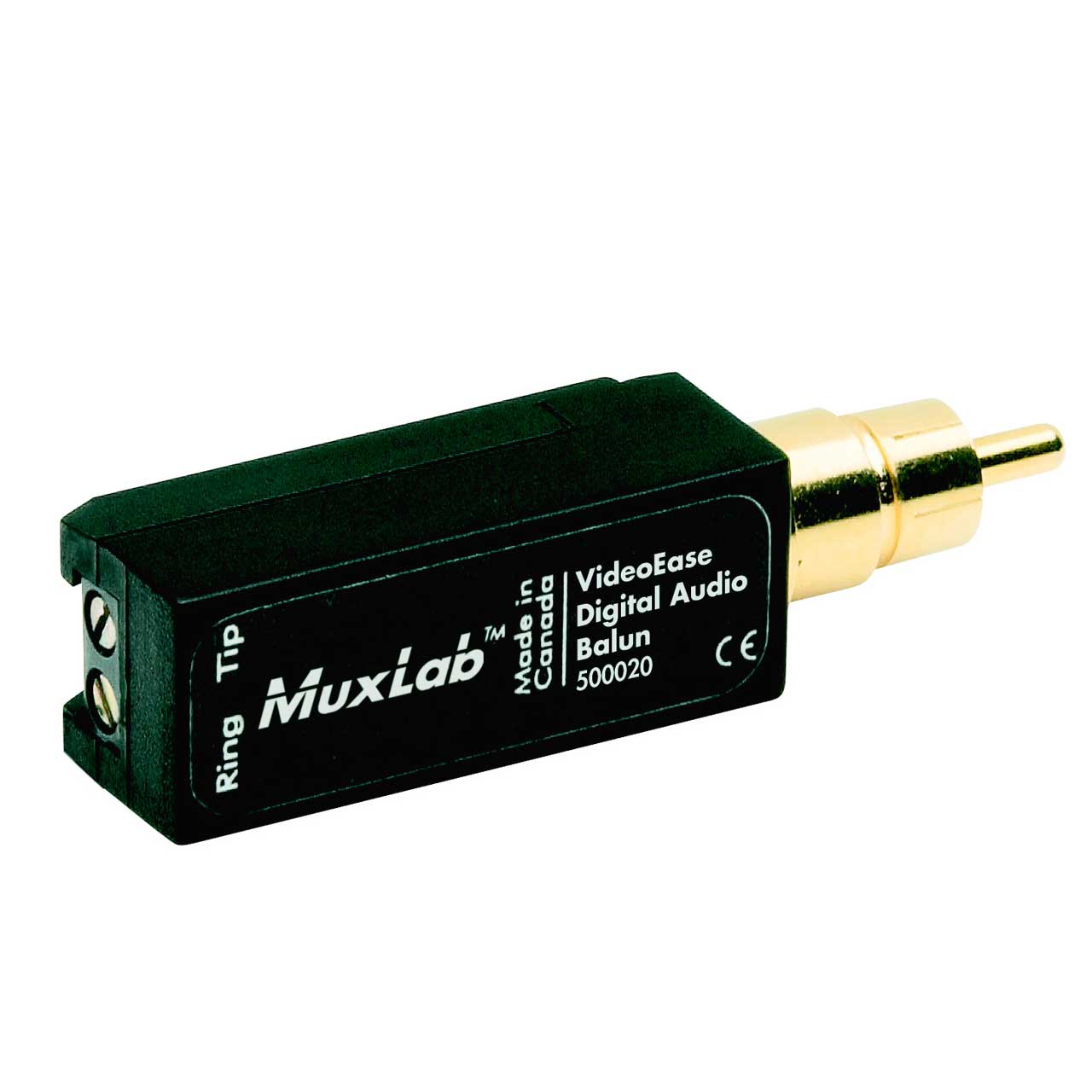

The MuxLab VideoEase Digital Audio Balun allows a digital audio source to be connected up to 600feet (183m) away from a digital audio decoder/amplifier via copper unshielded twisted pair (UTP). Used in pairs, the Digital AudioBalun allows a Digital Audio source such as aDVD, VCR or satellite receiver to be connected via copper twisted pair to a Digital Audio home theatre system in a point-to-point scenario.

The Digital Audio Balun connects directly to the digital audio equipment and features screw terminals and built-in cable strain relief for ease of installation and reliable connectivity.

Features:
- Supports Dolby® Digital, dts® digital audio
- Up to 600 feet (183m) via Cat 5 UTP
- Cable strain relief
- Compact design
Specifications:
- Environment: Dolby® Digital, Dolby Pro Logic, dts®, LOGIC7®, THX Surround EX™
- Devices: DVD, VCR, Camcorders, satellite receivers, home theatre, channel processors, amplifiers, D/A converters, MPEG encoders/decoders, switchers and other commercial or consumer audio equipment supporting digital audio
- Transmission: Transparent to the user
- Bandwidth: 1MHz to 25 MHz. Does not have DC continuity
- Maximum Input: 1.0 Vp-p
- Insertion Loss: Less than 1 dB per pair over the frequency range
- Return Loss: Greater than 15 dB over the frequency range
- Common Mode Rejection: Greater than 60 dB @ 10 MHz
- Max. Distance: Cat 5 - 600 ft. (183m)
- Cable - UTP:
  - 24 gauge or lower solid copper twisted pair wire
  - Impedance: 100 ohms at 1 MHz
  - Maximum Capacitance: 20 pf/foot
  - Attenuation: 6.6 dB/1000 ft at 1 MHz
- Connectors:
  - 2x screw terminals
  - 1x S/PDIF (RCA) gold-plated male connector
- Pin Configuration: Tip-signal, Ring-GND
- Impedance:
  - Input: 75 ohms (RCA)
  - Output: 100 ohms (Screw Terminals)
- Temperature:
  - Operating: 32°F - 131°F (0°C - 55°C)
  - Storage: -4°F - 185°F (-20°C - 85°C)
  - Humidity: up to 95%
- Enclosure: Fire retardant plastic
- Dimensions: 2.30" x 0.62 x 0.62 (5.8 x 1.6 x 1.6 cm)
- Weight: 1.5 oz (43 g)
Warranty:
- Lifetime Warranty
Applications:
- Home theatre systems, schools, concert halls
- Auditoriums and convention halls
- Arenas, parks. airports, hotels
GTIN:
0627699000205
