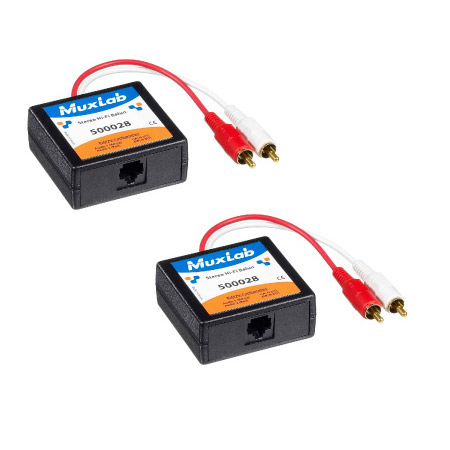

MuxLab 500028 RCA Stereo Audio Hi-Fi Balun 2-Pack

500028-2PK - Overview

• Features:

  • 20 Hz to 20 KHz bandwidth
  • Cost-efficient cabling
  • Up to 3,250 ft (1km) via Cat 5 UTP
  • Color-coded RCA cable leads
  • Quicker moves, adds and changes
  • 2-Balun Set


• Specifications:

  • Environment: Line level unbalanced analogue audio
  • Transmission: Transparent to the user
  • 3dB Bandwidth: 20 Hz to 20 KHz over the distance range
  • Maximum Input: 1.1Vp-p (unbalanced)
  • Insertion Loss per balun pair: Less than 2 dB over the frequency range.
  • Common Mode Rejection:
    - Greater than 60 dB @ 1 KHz
    - Greater than 40 dB over the frequency and distance range
  • THD: Maximum 0.007% @ 1 KHz over distance range.
  • Audio Source Impedance: 100 ohms maximum
  • Audio Receiver Impedance: 10 k ohms minimum
  • Max. Distance - Cat5e/6 UTP: 3,250 ft (1km)
  • Pin Configuration (RJ45), EIA 568 A or B:
    - Audio 1 (White): pins 1[R] & 2 [T]
    - Audio 2 (Red): pins 3 [R] & 6 [T]
  • Cable - UTP:
    - 24AWG or lower solid copper twisted pair wire
    - Impedance: 100 ohms at 1 MHz
    - Maximum Capacitance: 20 pf/foot
    Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Cable - Coax: Shielded audio cable
  • Connectors:
    - 500028: 2x RCA-M 6" cable leads
    - 500028-F: 2x RCA-F
    - 1x RJ45
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95%
  • Enclosure: ABS. Fire retardant plastic
  • Dimensions: 2.40" x 2.25" x 1.00" plus 6" audio lead (500028)
  • Weight: 3.1 oz (89 g)


• Item Includes:

  • 2 Model 500028 Units


• Warranty:

  • Lifetime Warranty

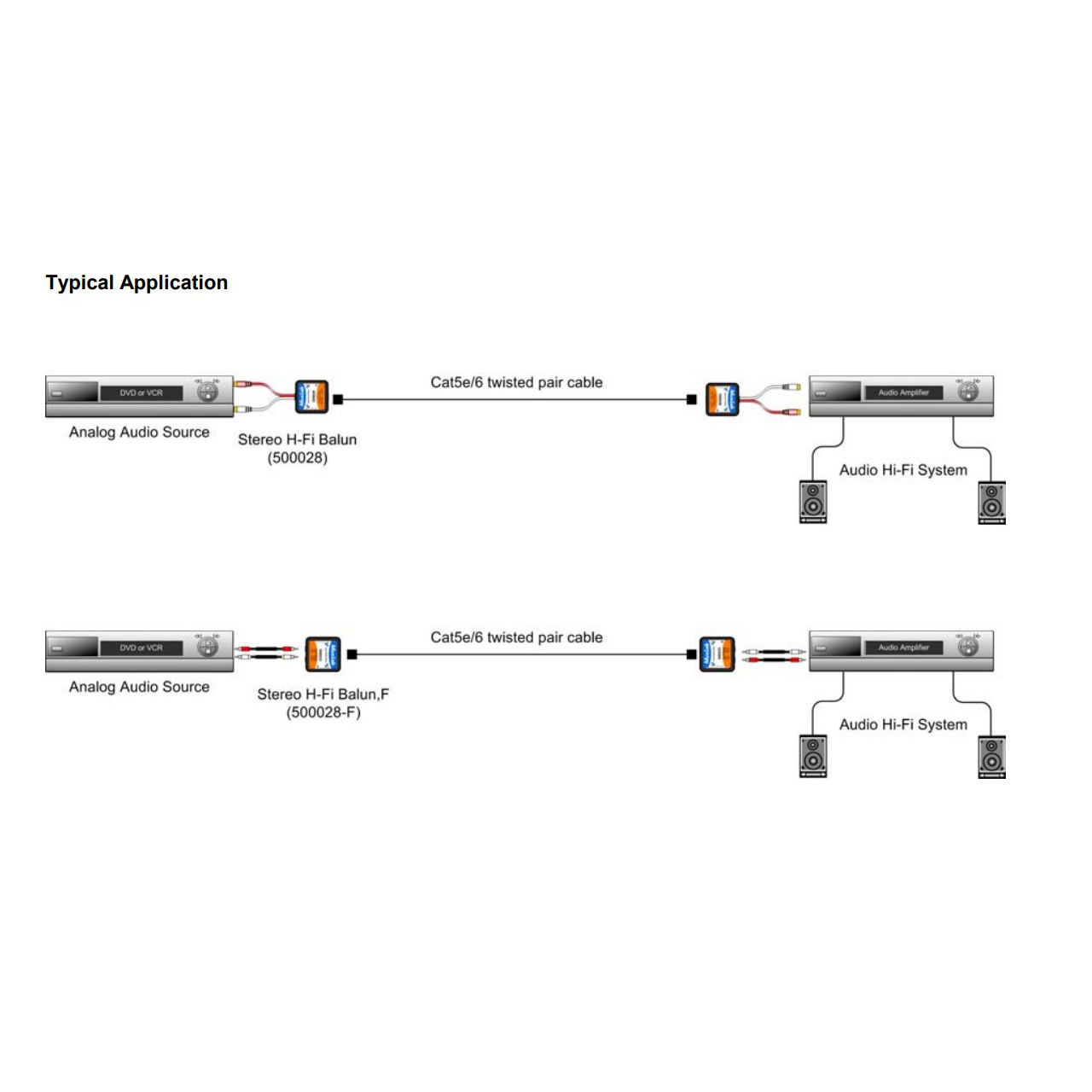

• Applications:

  • Boardroom Systems
  • Classroom training
  • Auditoriums
  • Custom home installations
  • Intercom systems.


• GTIN:

  0627699930281
