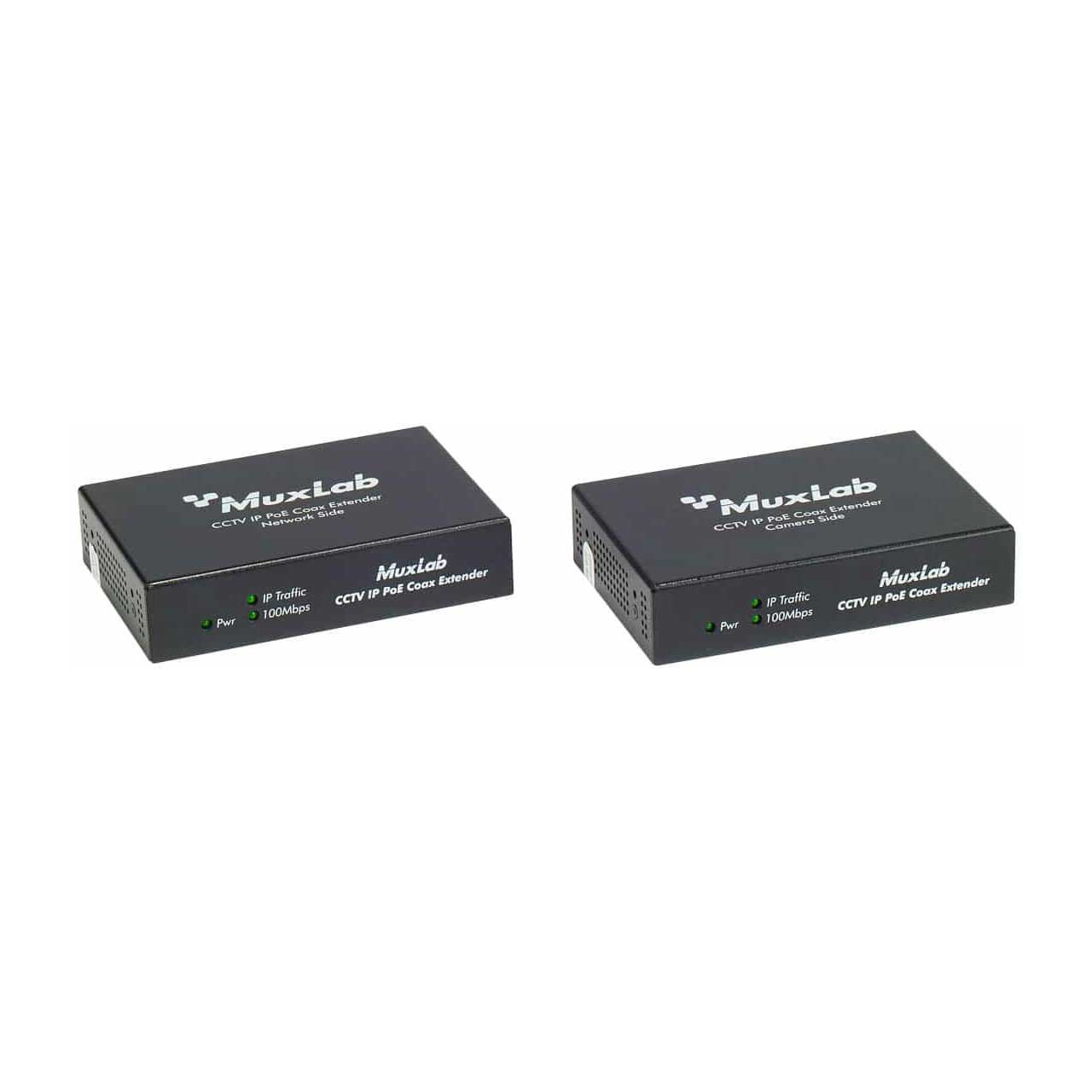

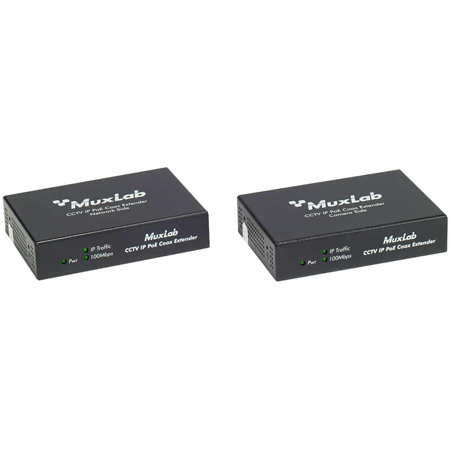

MuxLab 500115 Longreach CCTV IP PoE Extender Kit with Camera Side & Network Side - 1969 Feet/600M

500115 - Overview

• Features:

  • Supports one IP PoE camera via one coax cable
  • Supports CCTV IP PoE cameras up to 15.4W
  • Up to 1000 ft (300m) via coax @ 100Mbps/15.4W
  • Up to 330 ft (100m) on the LAN connection
  • LED indicators for power, IP traffic, 100Mbps
  • Optional 48VDC power supply (500113)
  • Includes wall-mount brackets


• Specifications:

  • Environment PoE CCTV IP
  • Devices PoE CCTV IP cameras with a 10/100Mb/s Ethernet port, using up to 15.4 Watts.
  • Transmission Transparent to the user
  • Standard supported Ethernet side: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IEEE 802.3af compatible PoE
  • PoE Power PoE Class 3

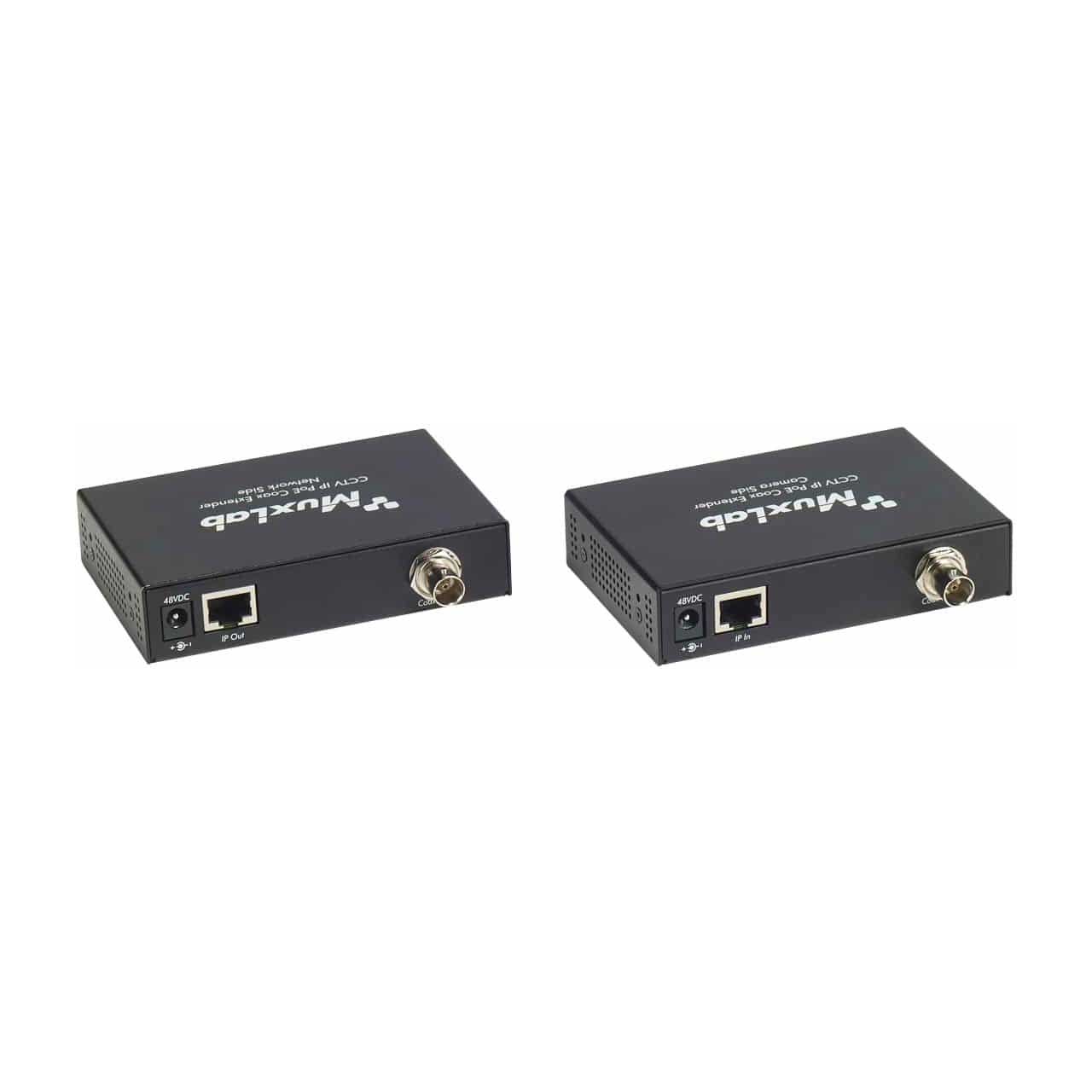

  • Connectors One (1) BNC 75 Ohms.
  • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
  • LED Indicators Power, IP Traffic, 100Mbps
  • Maximum Distance RG59/RG6: Up to 980 ft (300m) @ 100Mbps
  • UTP Cat 5e/6: Up to 330 ft (100 m) @ 100 Mbps
  • Note: When installed in an electrically noisy environment, an STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
  • Cable UTP/STP: One (1) Cat 5e/6 or better twisted pair cables required
  • RG59/RG6: 75 Ohms (avoid CCS and aluminum foil cable due to DC loss)

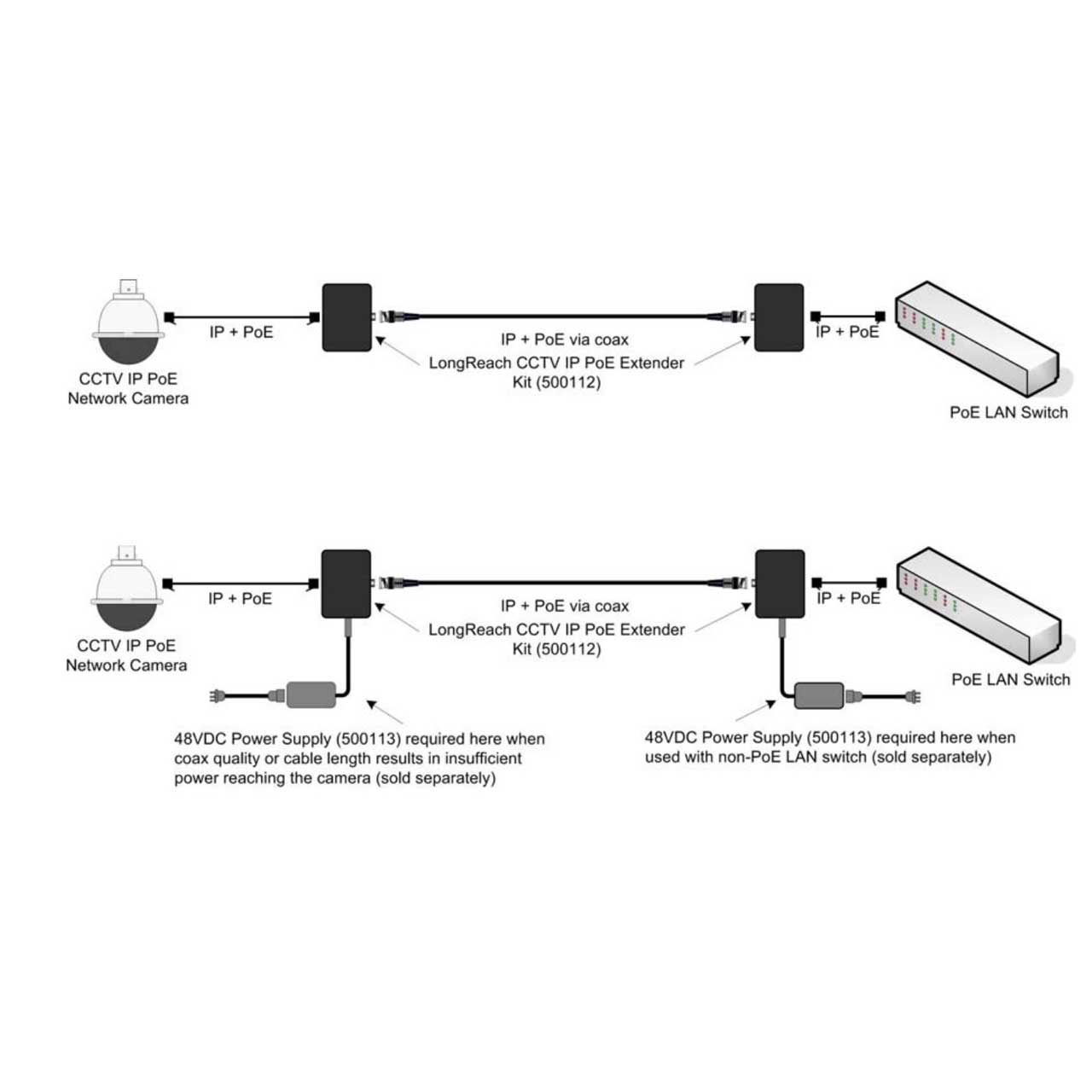

  • PoE Power Supply
  • (500113)
  • Optional Power Supply (110-240V/48VDC/.625A, 2.1mm plug) with interchangeable blades (sold
  • separately)
  • Required at the Camera Side Device when coax cable quality or length results in insufficient
  • power reaching the camera. Required at the Network Side Device when used with non-PoE
  • LAN switch.
  • Power Consumption Network Side: 1.82 Watt Camera Side: 1.73 Watt
  • Temperature Operating: 0° to 40°C
  • Storage: -20° to 85°C
  • Humidity: Up to 95% non-condensing
  • Enclosure Metal
  • Accessories Wall-mount brackets included
  • Dimensions 4.37" x 2.95" x 0.99" (111 x 75 x 25 mm)
  • Shipping Weight 500112: 1.5 lb (0.68 kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
  • Warranty 2 years
  • Weight 1.54 lbs (0.700 kg)
  • Dimensions 0.98 H x 2.95 W x 4.37 L in (11.10 x 7.50 x 2.50 cm)
