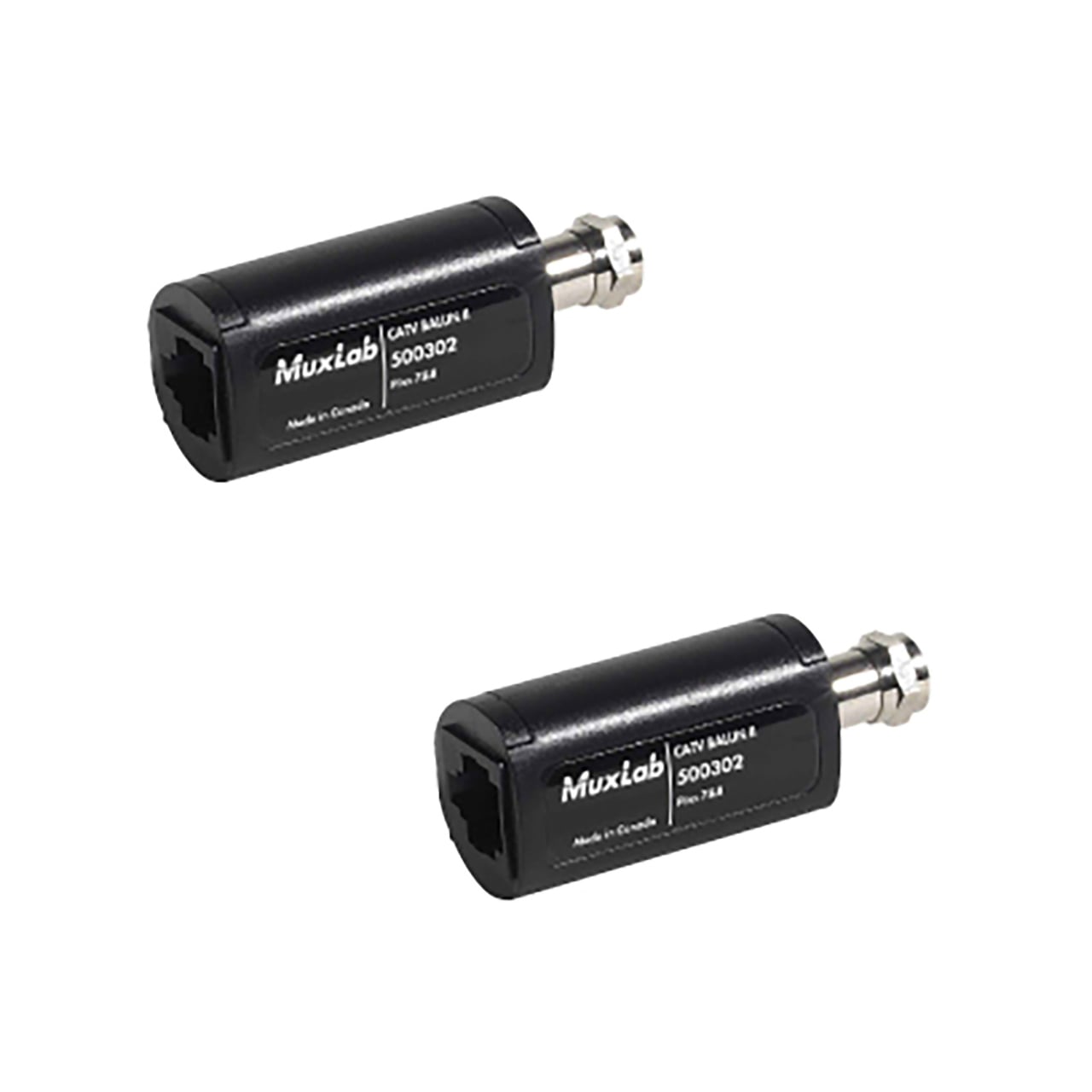

MuxLab 500302-2PK CATV Balun II 75 Ohm Coax VideoEase CAT5 Balun - 2 Pack

Name: MuxLab 500302-2PK CATV Balun II 75 Ohm Coax VideoEase CAT5 Balun - 2 Pack
Brand: MuxLab Inc
SKU: MUX-500302-2PK
Price: 109.00 USD
Availability: Backorder

ITEM #: MUX-500302-2PK MFG #: 500302-2PK

MuxLab Inc

List Price:

$130.00

Our Price:

$109.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500302-2PK - Overview

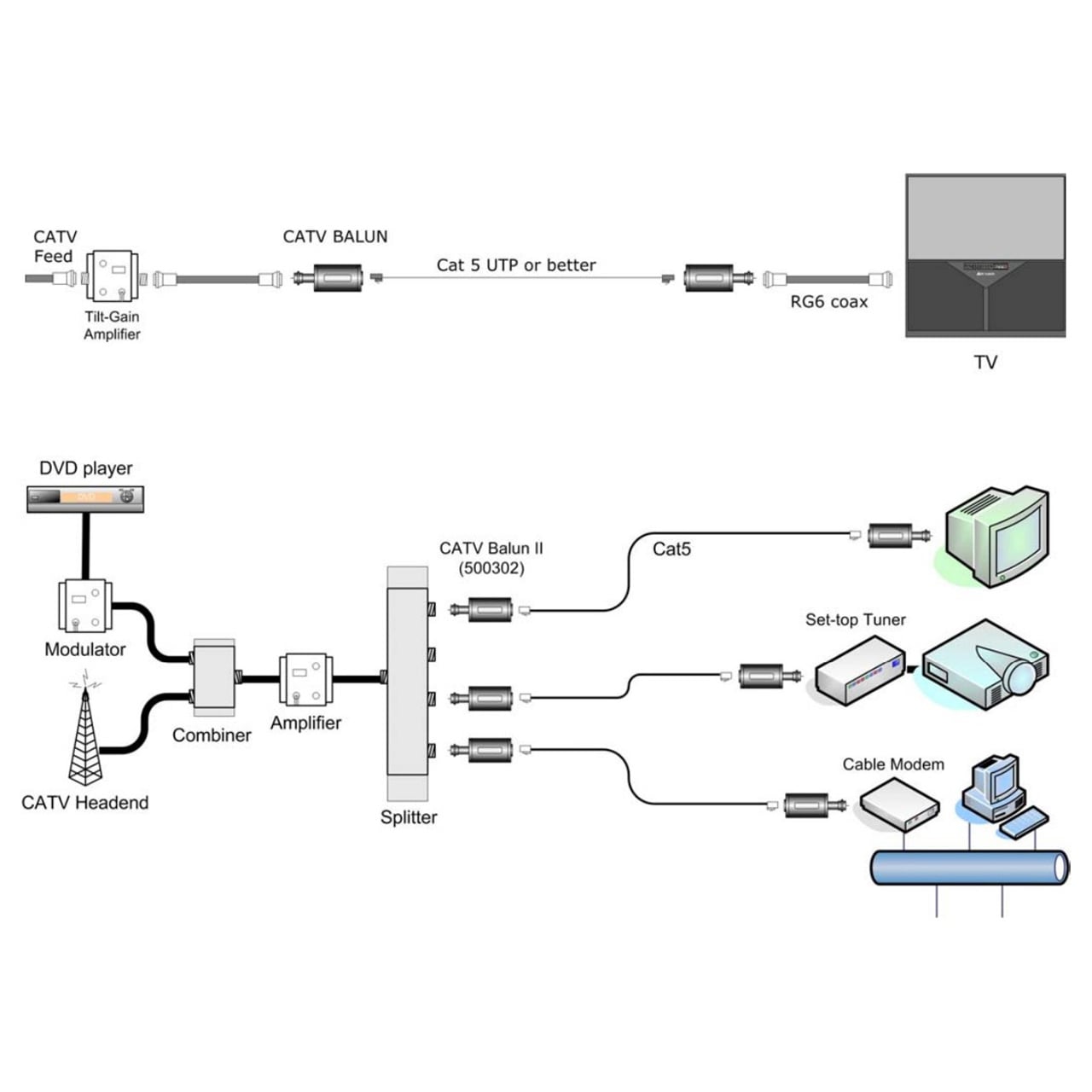

The MuxLab 500302-2PK CATV Balun II allows traditional 75Ω coaxial cable to be replaced by a single pair of Cat5 UTP cable in the CATV, VHF and FM environments in certain applications. Used in pairs, the CATV Balun II allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. The CATV Balun II provides a versatile cabling solution for broadband video systems used by schools, government, offices, hospitals, financial institutions, hotels and residential complexes. The CATV Balun II works in conjunction with RF splitters, combiners, amplifiers and cable modems for a total cabling solution. 2-Pack.

Features:
- High bandwidth - up to 900MHz
- Low insertion loss
- Compact design
- Supports broadband Internet and digital cable
- Eliminate costly coaxial cable
- Quicker moves, adds and changes
- Neater wiring
Specifications:
- Environment: Private and public broadband CATV, VHF and FM networks
- Devices: Terrestrial CATV, local channel amplified antennas, DVD players, RF modulators, splitters, cable modems and other broadband video equipment. Does not support satellite dish RF.
- Transmission: Transparent to the user
- 3dB Bandwidth: 5MHz - 900MHz
- Video Channels Supported: CATV 2-142, VHF channels 2-13, FM broadcast band
- Insertion Loss Per Pair:
  - <10dB: 5MHz - 10MHz
  - <3dB: 10MHz - 600MHz
  - <4dB: 600MHz - 725MHz
  - <3dB: 725MHz - 900MHz
- Return Loss:
  - >10dB: 15MHz - 370MHz
  - >7dB: 370MHz - 770MHz
  - >10dB: 770MHz - 900MHz
- Common Mode Rejection (CMMR): -20dB or higher at 5MHz to 900MHz
- Cable - Cat5e/6 UTP: 24-AWG or lower solid copper twisted pair
- Impedance: 100Ω - 120Ω
- Cable - Coax: Impedance: 75Ω at 1MHz (RG6)
- Connector - Input: "F" connector - male
- Connector - Output: RJ45 - female
- RJ45 Pin Configuration: RJ45 Pins 7&8
- Maximum Distance: Up to 330ft (100m) via Cat 5 UTP depending on channel frequency and input power. Maximum 100m at CATV Channel 2. May require tilt amplifiers at higher frequencies.
- Temperature:
  - Operating: 32°F - 104°F (0°C - 40°C)
  - Storage: 14°F - 158°F (-10°C - 70°C)
- Enclosure: ABS
- Humidity: Maximum 95% (non-condensing)
- Dimensions (LxWxH): 1.96" x 1" x 1.1"
- Weight: 1lbs (0.4kg)
- Regulatory Approval: FCC Part 15 Class A, CE
- Order Information: 500302, CATV Balun II
Item Includes:
- 2x Model 500302
Warranty:
- Lifetime Warranty
