500534 - Overview

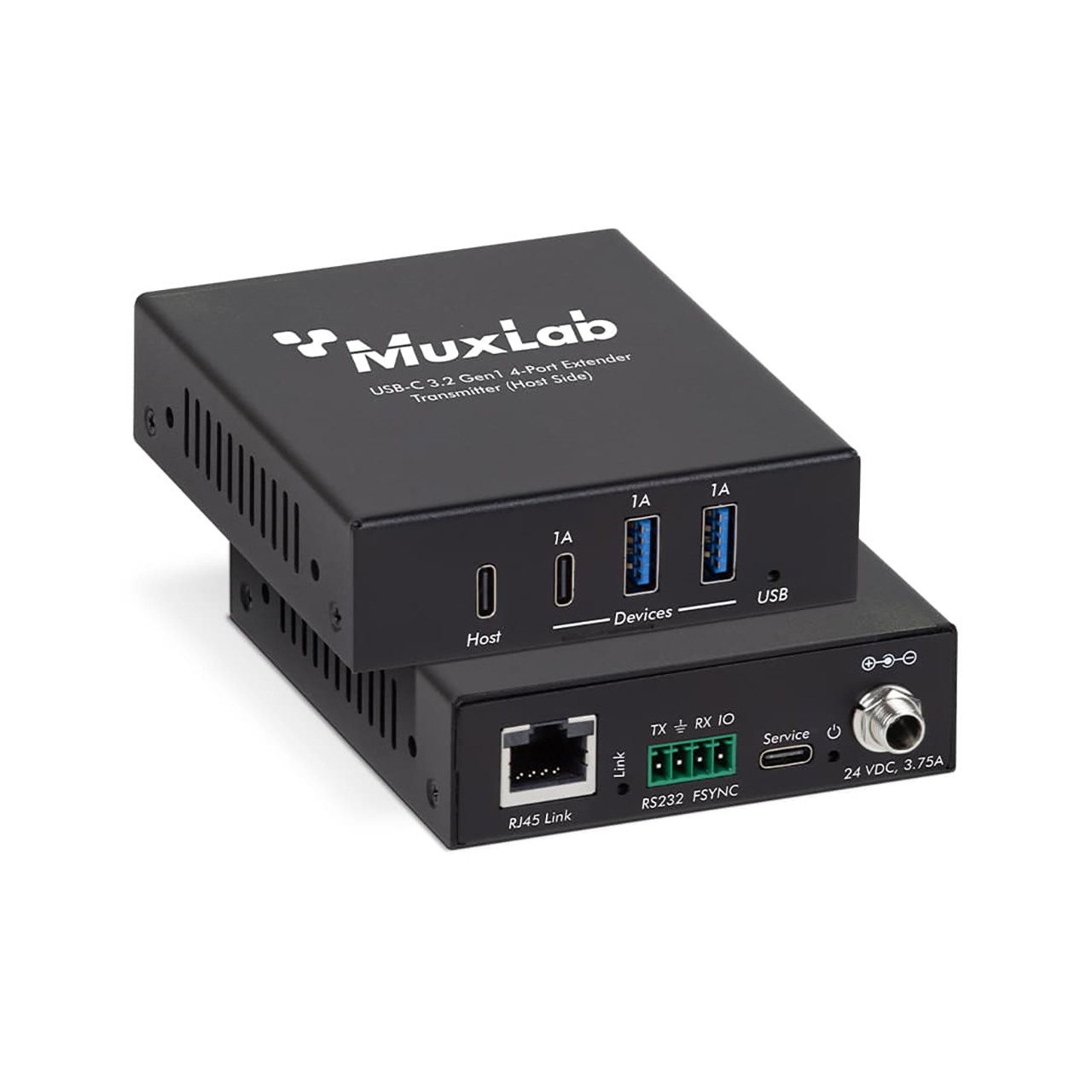

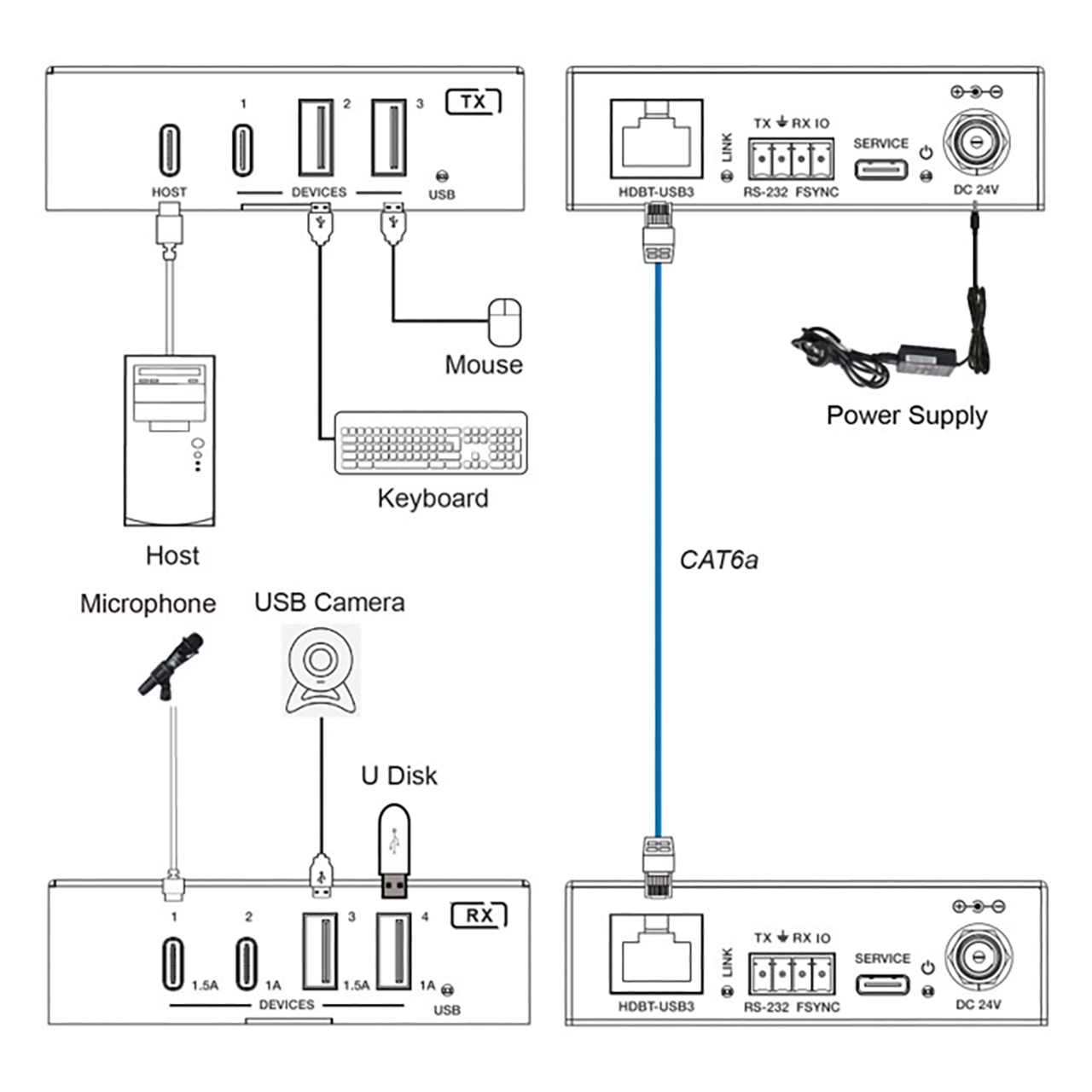

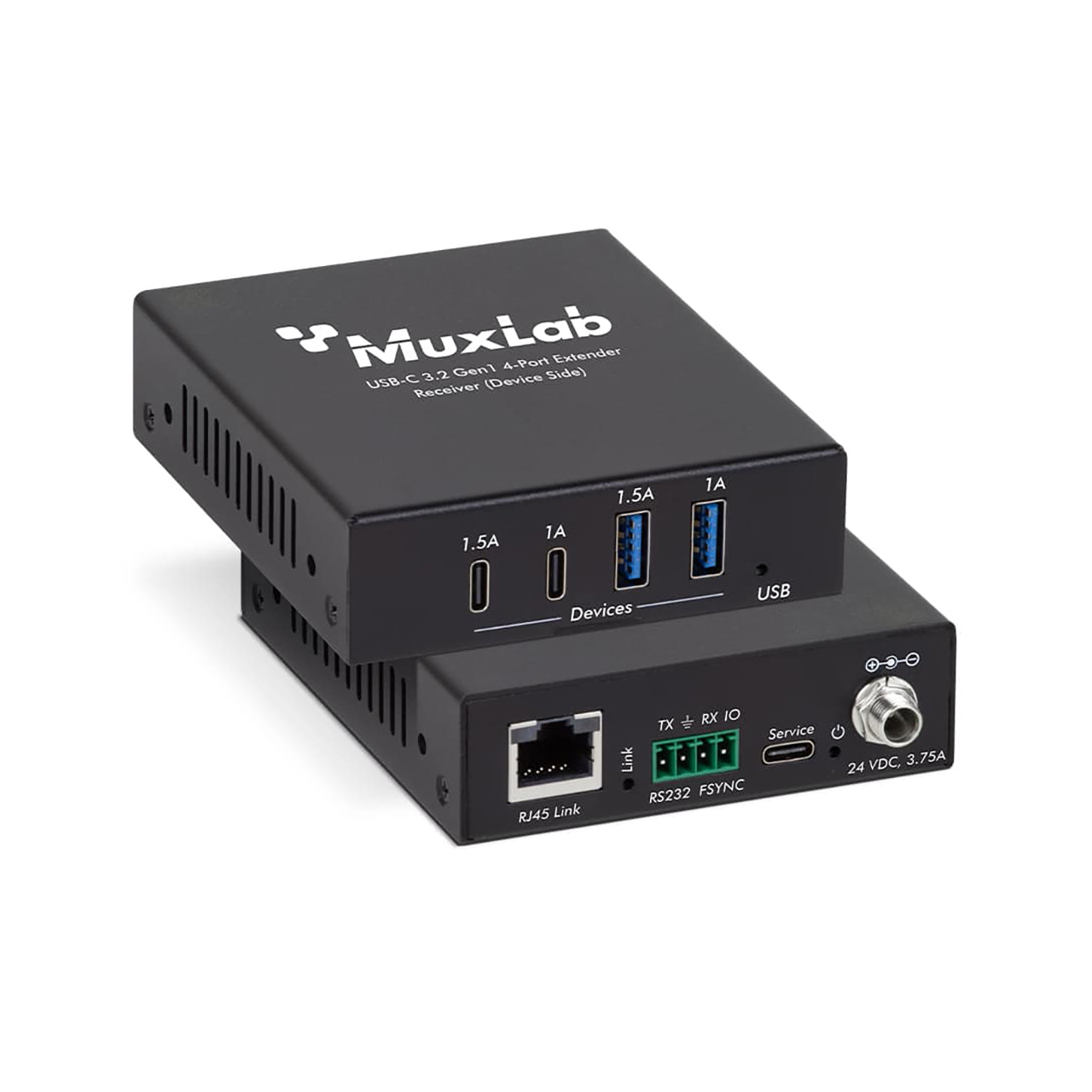

The Muxlab 500534 USB-C 3.2 Gen1 4-Port Extender Kit, 100m enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 100m (328ft) over standard Cat6a UTP. Transmitter features with one USB-C 3.2 Gen1 three local (One USB-C and two USB-A) input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.2 Gen1 (Two USB-C and Two USB-A) outputs, one FSYSNC GPIO output and one RS-232 pass-through. The device also supports 24V Bi-directional PoC.

The USB-C 3.2 Gen1 4-Port Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.

Applications Include:
- Conference Rooms
- Classroom Projector Systems
- Collaborative PC Systems
- Digital Signage
- Educational Institutions
- Boardroom Systems

Features:
- Extension of USB 3.2 Gen1 up to 100m/328ft over CAT6a cable
- USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and USB 1.1 Hardware acceleration for isochronous and bulk transfer
- USB-C and USB-A Ports supports 5VDC up to 1.5A and 1A on the Receiver
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24VDC PoC
- Simple plug and play, no driver and setting installation required
Specifications:
- USB Protocol: USB 3.2 Gen 1
- Transmission Rate: Up to 5Gbps
- Network Bandwidth: 10G
- Transmission Distance: 328ft (100M) over CAT6a (F/FTP) cable
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

  Connection
- Transmitter Input: 2x USB HOST [USB-C, 24pin Female]
- Transmitter Output:
  - 1x USB-C DEVICE [USB Type C, 24-pin female]
  - 2x USB-A DEVICE [USB Type A, 9-pin female]
  - 1x HDBT-USB3 [RJ45 connector, 24V PoC]
- Transmitter Control:
  - 1x RS-232 [3pin-3.5mm Phoenix Connector]
  - 1x FSYNC [1pin-3.5mm Phoenix Connector]
  - 1x SERVICE [USB-C,Update Port]
- Receiver Input: 1x HDBT-USB3 [RJ45 connector, 24V PoC]
- Receiver Output:
  - 2x USB-A DEVICE [USB Type A, 9-pin female]
  - 2x USB-C DEVICE [USB Type C, 24-pin female]
- Receiver Control:
  - 1x RS-232 [3pin-3.5mm Phoenix Connector
  - 1x FSYNC [1pin-3.5mm Phoenix Connector]
  - 1x SERVICE [USB-C, Firmware Update Port]

  Mechanical
- Housing: Metal Exclosure
- Color: Black
- Dimensions (Transmitter/Receiver): 3.34" x 3.93" x 1" (85mm x 100mm x 25.5mm)
- Weight:
  - Transmitter: 0.58lbs (265g)
  - Receiver: 0.6lbs (275g)
- Power Supply:
  - Input: 100V - 240V AC 50/60Hz
  - Output: 24V DC/3.75A
- Power Consumption: 68W (Max)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°f - 104°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (non-condensing)
Item Includes:
- 1x USB-C 3.2 Gen1 4-Port Extender Transmitter
- 1x USB-C 3.2 Gen1 4-Port Extender Receiver
- 2x 24VDC/3.75A Power Supply
Warranty:
- 2 Year Limited Warranty
