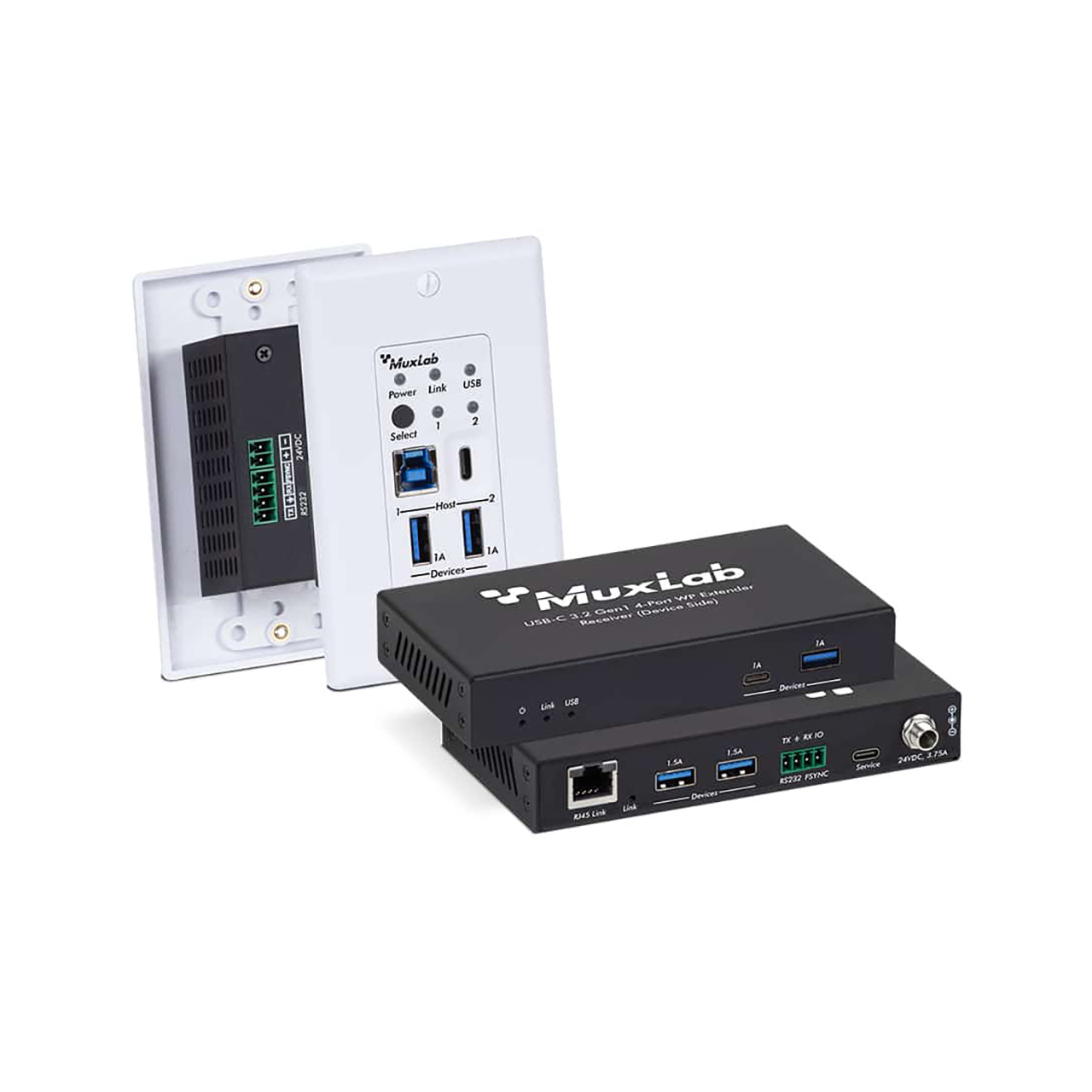

Muxlab 500535 USB-C 3.2 Gen1 4-Port Wallplate Extender Kit - 328 feet / 100 meters over Cat6A

ITEM #: MUX-500535 MFG #: 500535

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$818.00

Our Price:

$654.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500535 - Overview

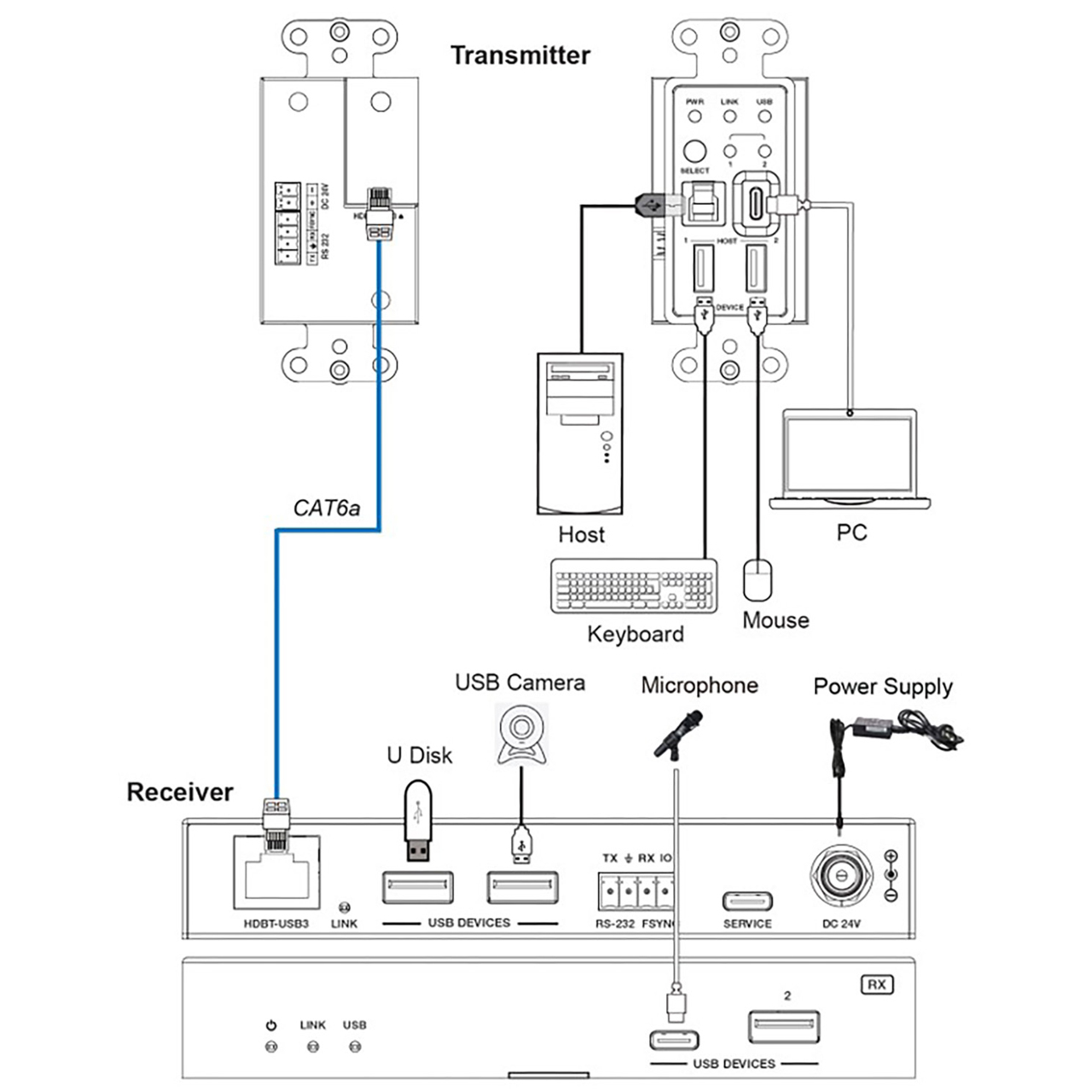

The Muxlab 500535 USB-C 3.2 Gen1 4-Port WP Extender Kit, 100m enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 100m (328ft) over standard Cat6a UTP. Transmitter features with one USB-C and one USB-B inputs, two USB-A local ports, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.2 Gen1 outputs (one USB-C and three USB-A), one FSYSNC GPIO output and one RS-232 pass-through. The device also supports 24V Bi-directional PoC.

The USB-C 3.2 Gen1 4-Port WP Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.

Applications Include:
- Conference Rooms
- Classroom Projector Systems
- Collaborative PC Systems
- Digital Signage
- Educational Institutions
- Boardroom Systems

  • Features:

    • Extension of USB 3.2 Gen1 up to 100m/328ft over CAT6a cable
    • USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
    • Backwards compatible with USB 2.0 and USB 1.1
    • Hardware acceleration for isochronous and bulk transfer
    • USB-C and USB-A Ports supports 5VDC up to 1.5A and 1A on the Receiver
    • Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
    • Support bi-directional 24VDC PoC
    • Simple plug and play, no driver and setting installation required

  • Specifications:

      Technical
    • USB Protocol: USB 3.2 Gen1
    • Transmission Rate: Up to 5Gbps
    • Network Bandwidth: 10G
    • Transmission Distance: 100m/328ft over CAT6a (F/FTP) cable
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

      Connection
    • Transmitter Input:
      - 1x USB HOST [USB-B, 9pin Female]
      - 1x USB HOST [USB-C, 24pin Female}
    • Transmitter Output:
      - 1x HDBT OUT [RJ45, Female]
      - 2x USB-A DEVICE [USB-A, 9-pin Female]
    • Transmitter Control:
      - 1x HDBT IN [RJ45 Female]
    • Transmitter Output:
      - 3x USB-A DEVICES [USB-A, 9-pin Female]
      - 1x USB-C DEVICES [USB-C, 24-pin Female]
    • Transmitter Control:
      - 1x RS-232 [3pin-3.5mm Phoenix Connector]
      - 1x FSYNC [1pin-3.5mm Phoenix Connector]
      - 1x SERVICE [USB-C,Update Port]
    • Receiver Input: 1x HDBT IN [RJ45 Female]
    • Receiver Output:
      - 3x USB-A DEVICES [USB-A, 9-pin Female
      - 1x USB-C DEVICES [USB-C, 24-pin Female]
    • Receiver Control:
      - 1x RS-232 [3pin-3.5mm Phoenix Connector]
      - 1x FSYNC [1pin-3.5mm Phoenix Connector]
      - 1x SERVICE [USB-C, Firmware Update Port]

      Mechanical
    • Housing: Metal Enclosure
    • Color:
      - Transmitter: White and Black
      - Receiver: Black
    • Dimensions:
      - Transmitter: 1.77" x 1.65" x 4" (45mm x 42mm x 103.5mm)
      - Receiver: 5.51 x 2.95 x 0.9" (140mm x 75mm x 23mm)
    • Weight:
      - Transmitter: 0.25lbs (115g)
      - Receiver: 0.7lbs (318g)
    • Power Supply:
      - Input: 100V - 240V AC 50/60Hz
      - Output: 24V DC/3.75A
    • Power Consumption: PoC Power Supply:62W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 4°C)
    • Storage Temperature: -4°F - 140°F (0°C - 40°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)

  • Item Includes:

    • 1x USB-C 3.2 Gen1 4-Port WP Extender Wallplate Transmitter

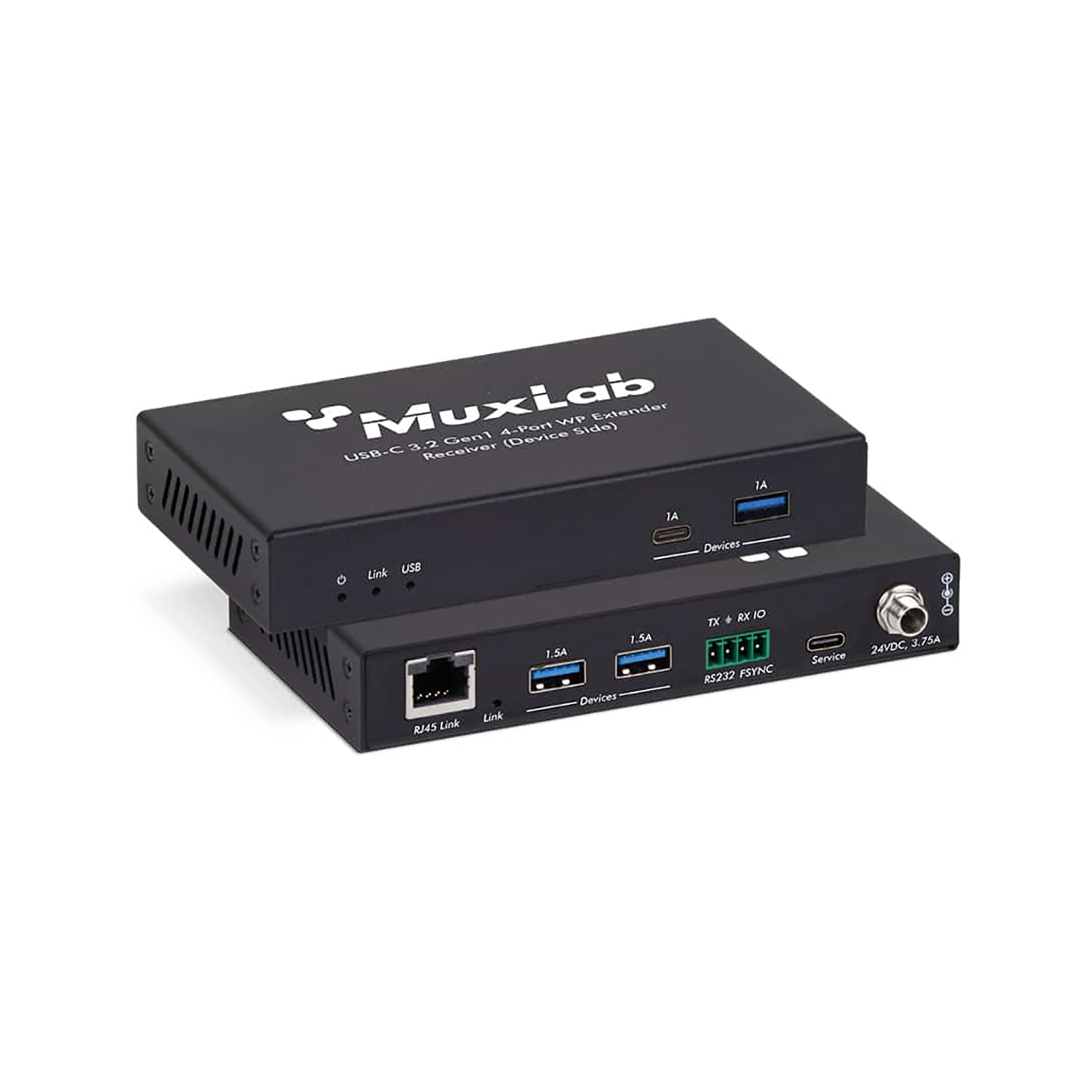

    • 1x USB-C 3.2 Gen1 4-Port WP Extender Receiver
    • 1x 24VDC/3.75A Power Supply

  • Warranty:

    • 2 Year Limited Warranty
