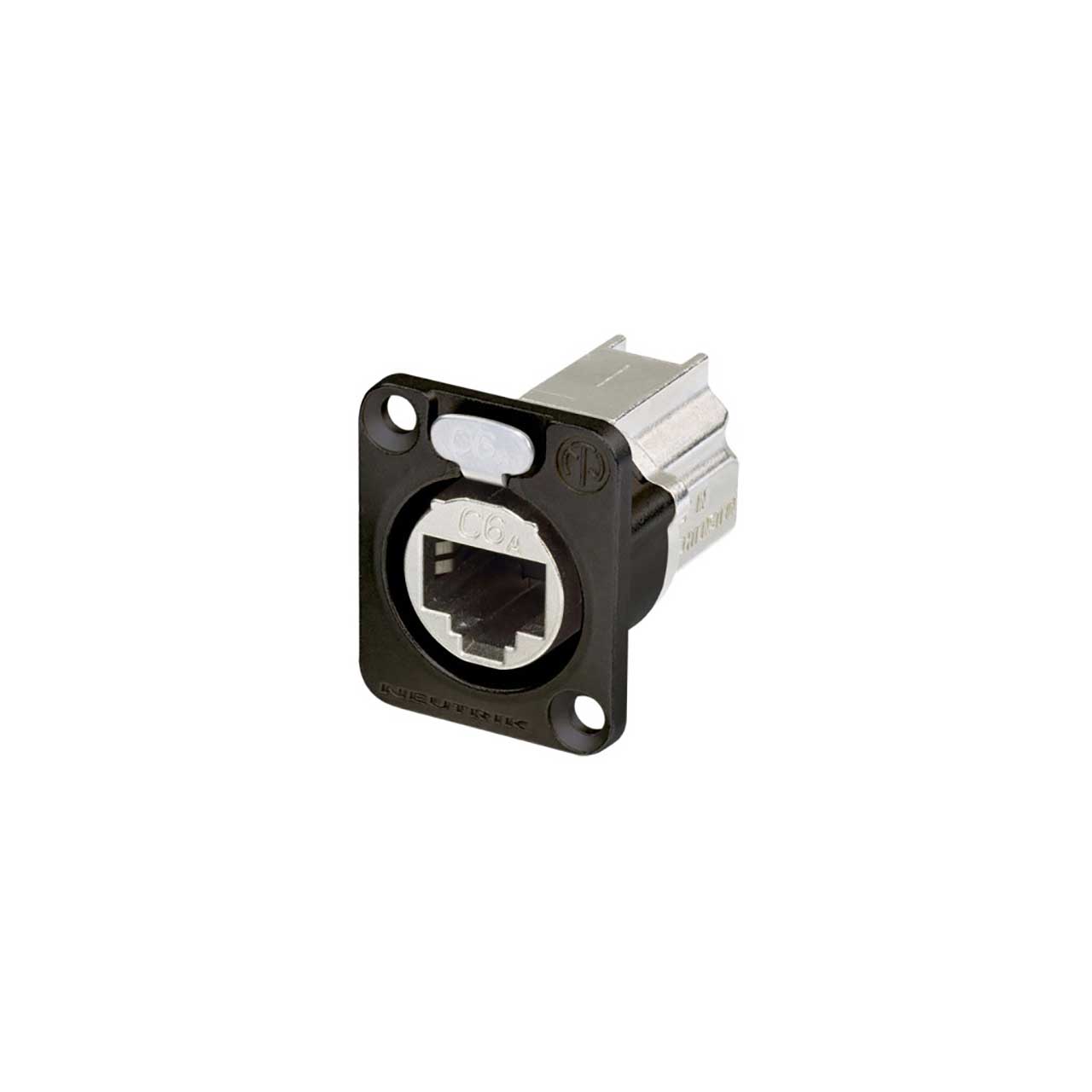

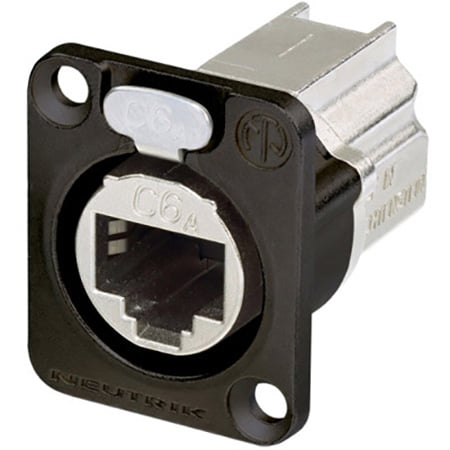

Neutrik NE8FDX-P6-B D-shape CAT6A etherCON Panel Connector - Shielded / Feedthrough - Black Housing
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Neutrik NE8FDX-P6-B D-shape CAT6A etherCON Panel Connector - Shielded / Feedthrough - Black Housing

    Manufacturer: Neutrik USA Inc

    Item #: NE8FDX-P6-B   •   MFG #: NE8FDX-P6-B


    List Price:$18.73
    Our Price:$15.28
    Quantity Pricing

    free ship
    In Stock
    Item is Available for immediate shipping from our warehouse.

      Neutrik D-shape CAT6A panel connector, shielded, feedthrough, Nickel housing.

      etherCON provides solutions for data transfer in harsh and demanding applications. These connectors are especially applicable for Ethernet networking in audio, commercial, entertainment, live stage production, DMX lighting, industrial and outdoor internet access environments. The etherCON series offers tailor-made products to suit all state-of-the art transmission classes like CAT6A, CAT6, CAT5e as well as class D according to TIA / EIA 568C.2 and ISO / EC 11801 respectively EN 50173-1 standard. The broadly based product range includes male cable carriers, assembled female receptacles, feedthrough jacks, cable couplers and shielded versions with or without illumination possibilities by LEDs. For pre-assembled RJ45 cables Neutrik offers a rugged diecast metal shell as a male cable carrier, which does not require the re-termination of the cable assembly. Female chassis receptacles are based on the well known Neutrik "A & B" series as well the "D" series of XLR receptacles with either secure latching system or push pull locking (CAT6) features not found on other RJ45 receptacles. Terminations available do include horizontal and vertical PCB mount or IDC. Ingress protection of IP 54 is achived on the CAT 5 version by assembling the waterproof sealing kit SE8FD while CAT 6 versions are IP 65 rated as standard and at the new CAT6A range it is customers choice to use the IP 65 protected receptacles or the unprotected versions.

      Attention! Does not intermate with CAT6 cable connectors.

      • Features

        • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
        • PoE+ compliant according to 802.3at Type2
        • Rugged latch lock system million fold proven
        • Intermateable with the existing etherCON CAT5 range
        • Shielded system - high noise immunity and EMI protection
      • Specifications

        • Electrical
        • Gender: female
        • Dielectric strength: 1 kVdc
        • Insulation resistance: > 0.5 GΩ
        • Rated current per contact: 1.5 A

          Transmission performance
        • CAT6A, acc. TIA/EIA rating
        • CAT6A, acc. IEC/ISO/EN rating
        • Power over Ethernet PoE+ acc. IEEE 802.3at

        • Lifetime > 1000 mating cycles
        • Wiring Feedthrough
        • Locking device Latch lock

        • Contact plating Au
        • Shell Zinc diecast (ZnAl4Cu1)
        • Shell plating Black

        • Flammability UL 94 V-0
        • Temperature range -40 °C to + 70 °C
      • GTIN:
